- Article number
- Led Consumption
- Lumen
- Cut Out
- Light Distribution
- 2013.204
- 7W
- 656 lm
-
GRAEAE II

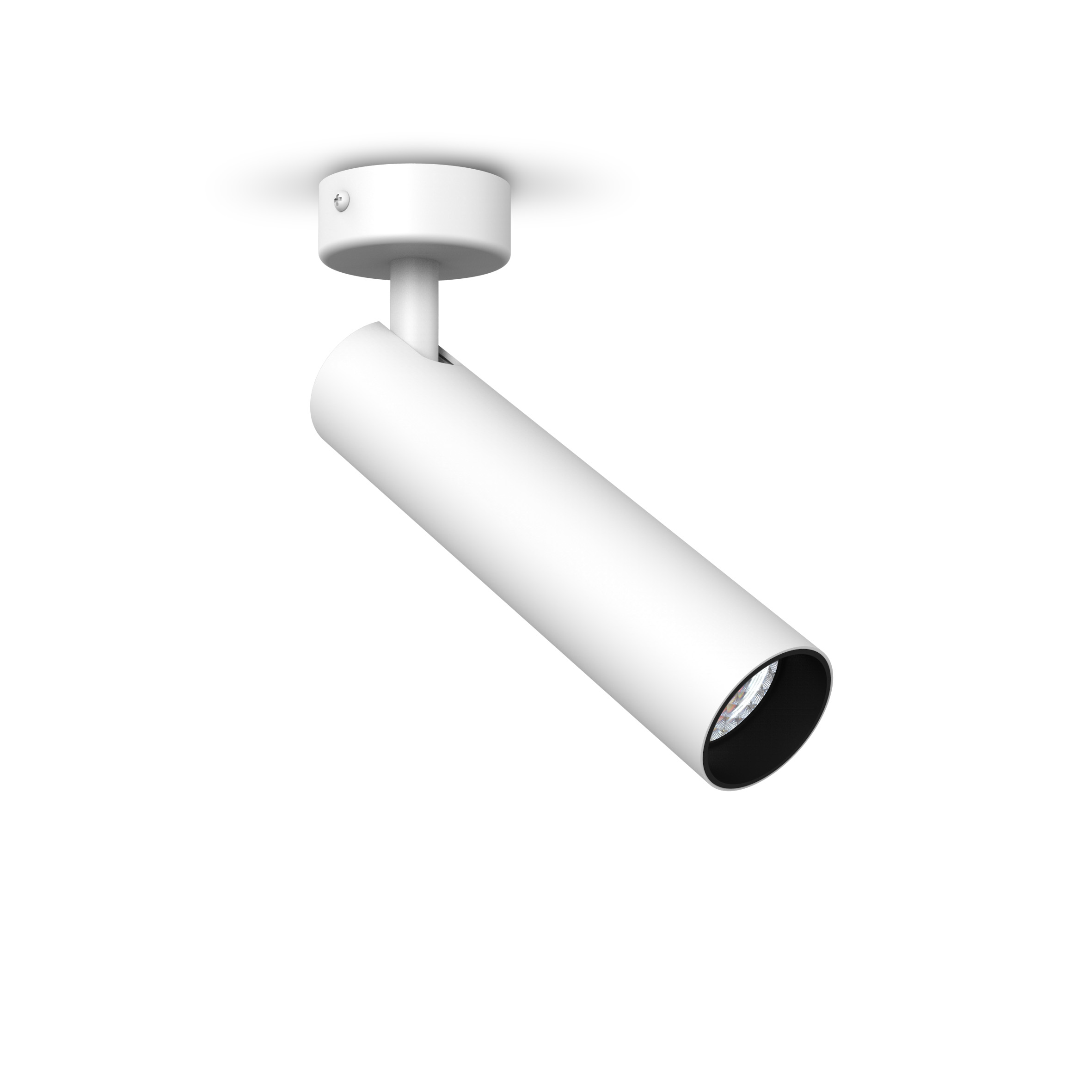

ITEM NO. 2013.204
Consumption7W
Current / Voltage350mA
LED Lumen656 lm
Beam Angle 18° /23°/35°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

- 2013.203
- 13W
- 1332 lm
-

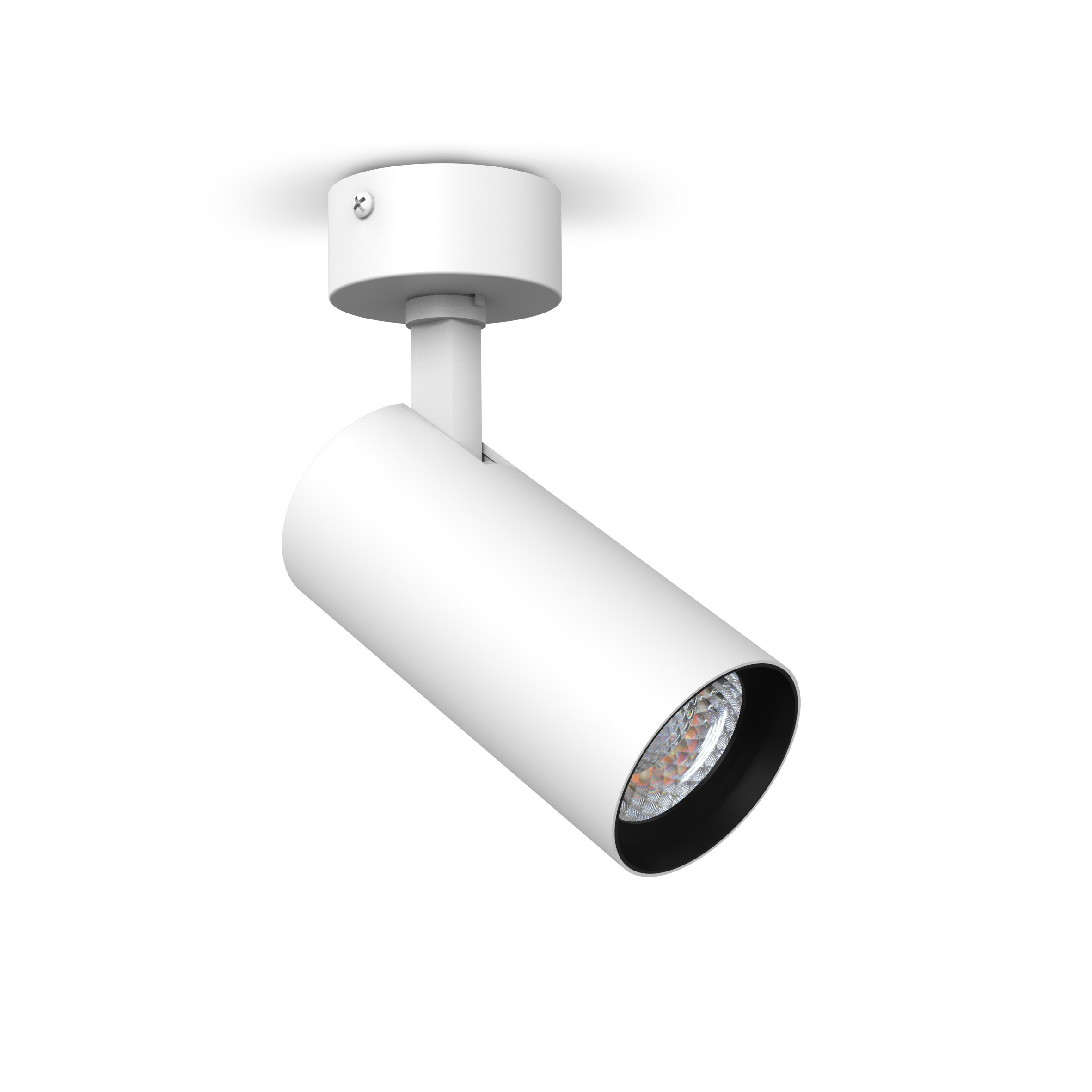

GRAEAE II
ITEM NO. 2013.203
Consumption13W
Current / Voltage350mA
LED Lumen1332 lm
Beam Angle 17° /25°/35°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

- 2013.202
- 26W
- 2918 lm
-
GRAEAE II

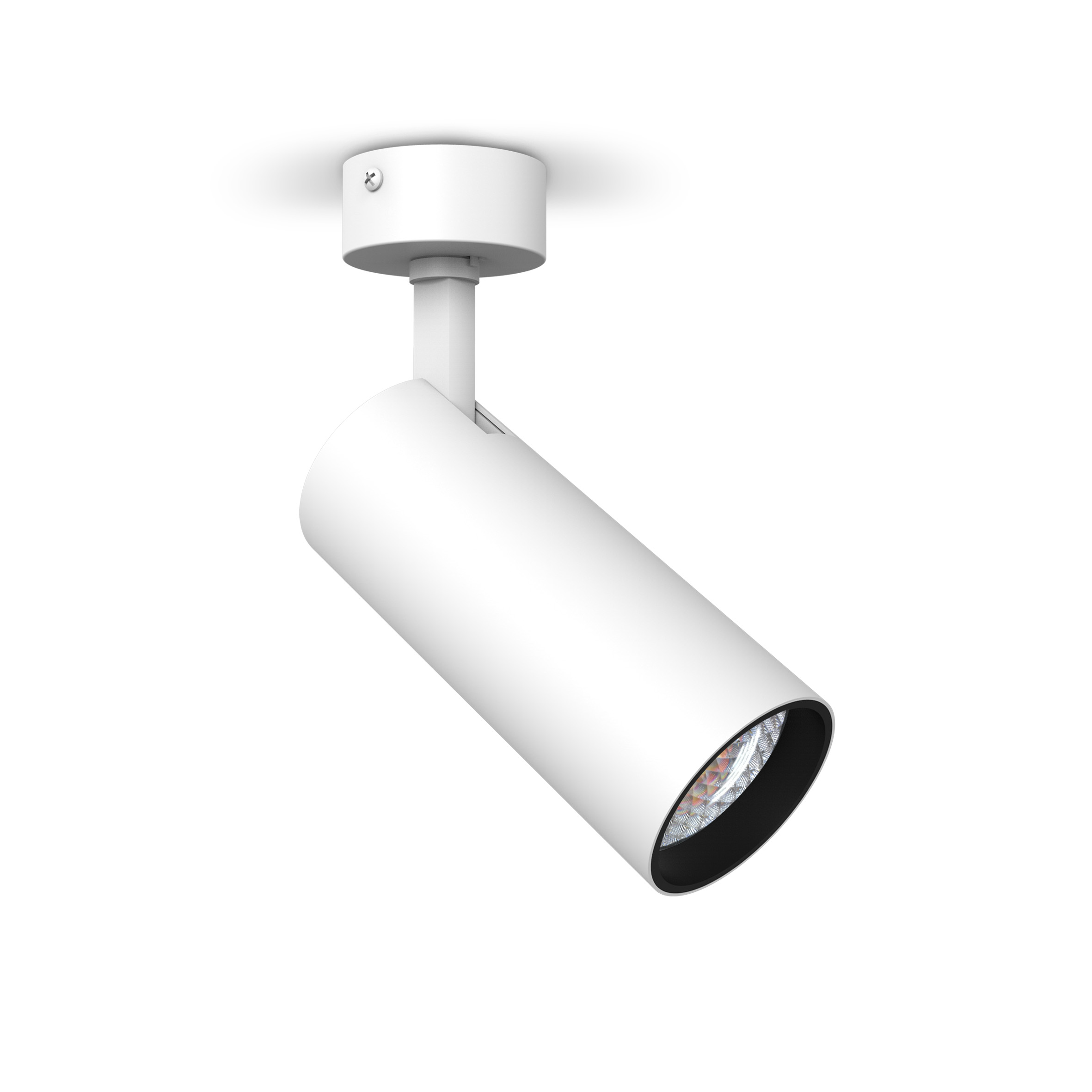

ITEM NO. 2013.202
Consumption26W
Current / Voltage700mA
LED Lumen2918 lm
Beam Angle 18° /23°/36°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

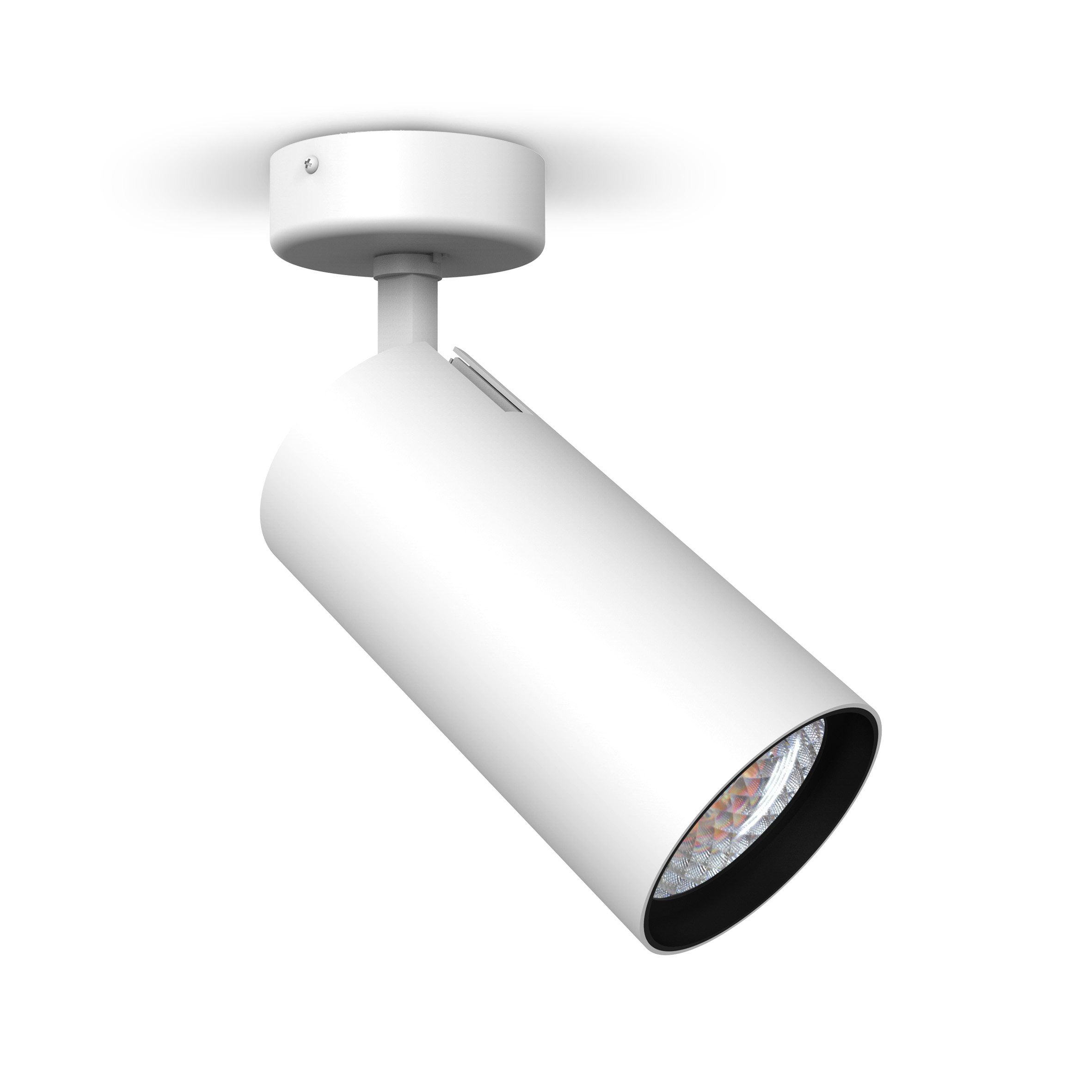

- 2013.201
- 38W
- 4339 lm
-
GRAEAE II
ITEM NO. 2013.201
Consumption38W
Current / Voltage1050mA
LED Lumen4339 lm
Beam Angle 18° /23°/38°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

- 2013.137
- 7W
- 656 lm
-

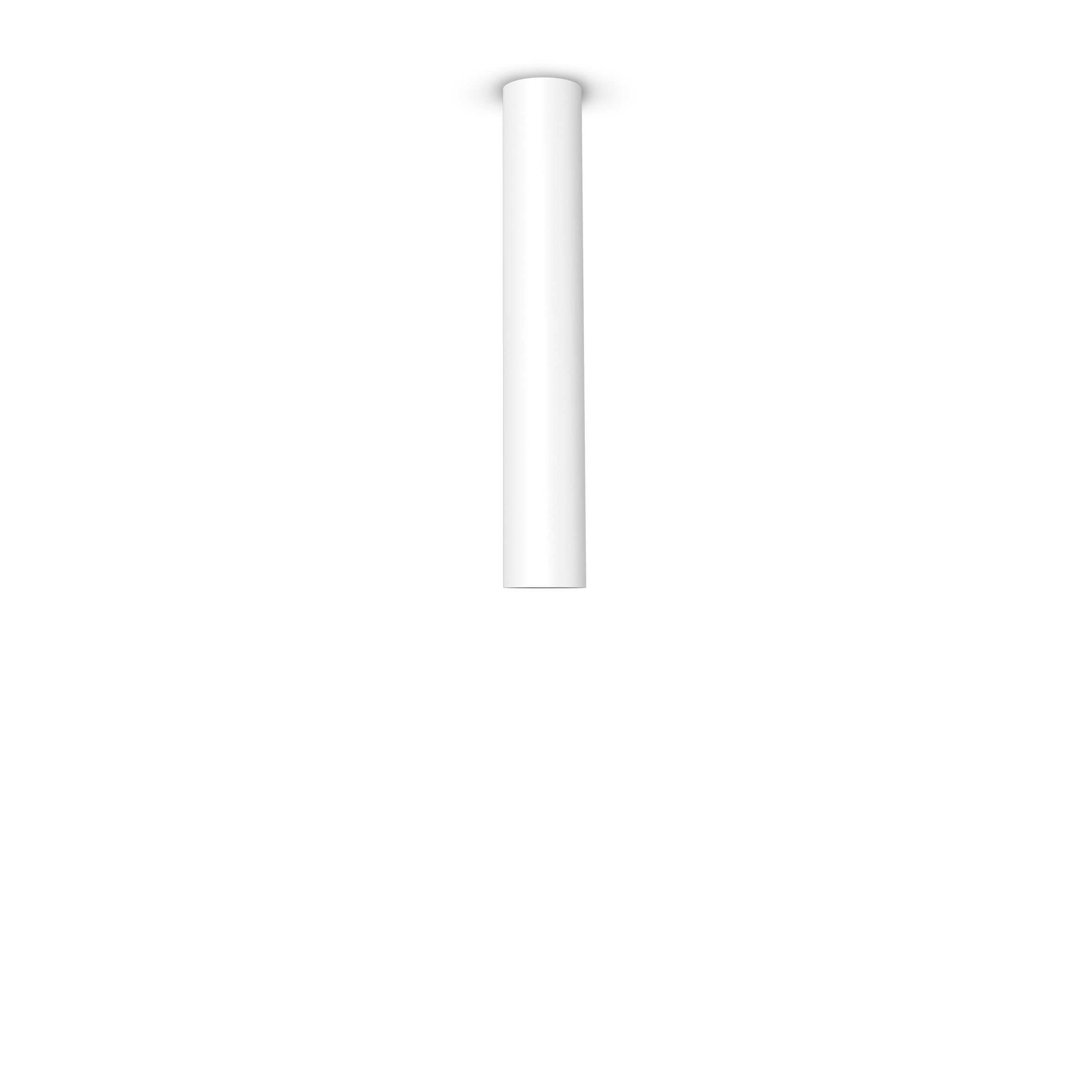

GRAEAE II
ITEM NO. 2013.137
Consumption7W
Current / Voltage350mA
LED Lumen656 lm
Beam Angle 18° /23°/35°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

- 2013.138
- 7W
- 656 lm
-

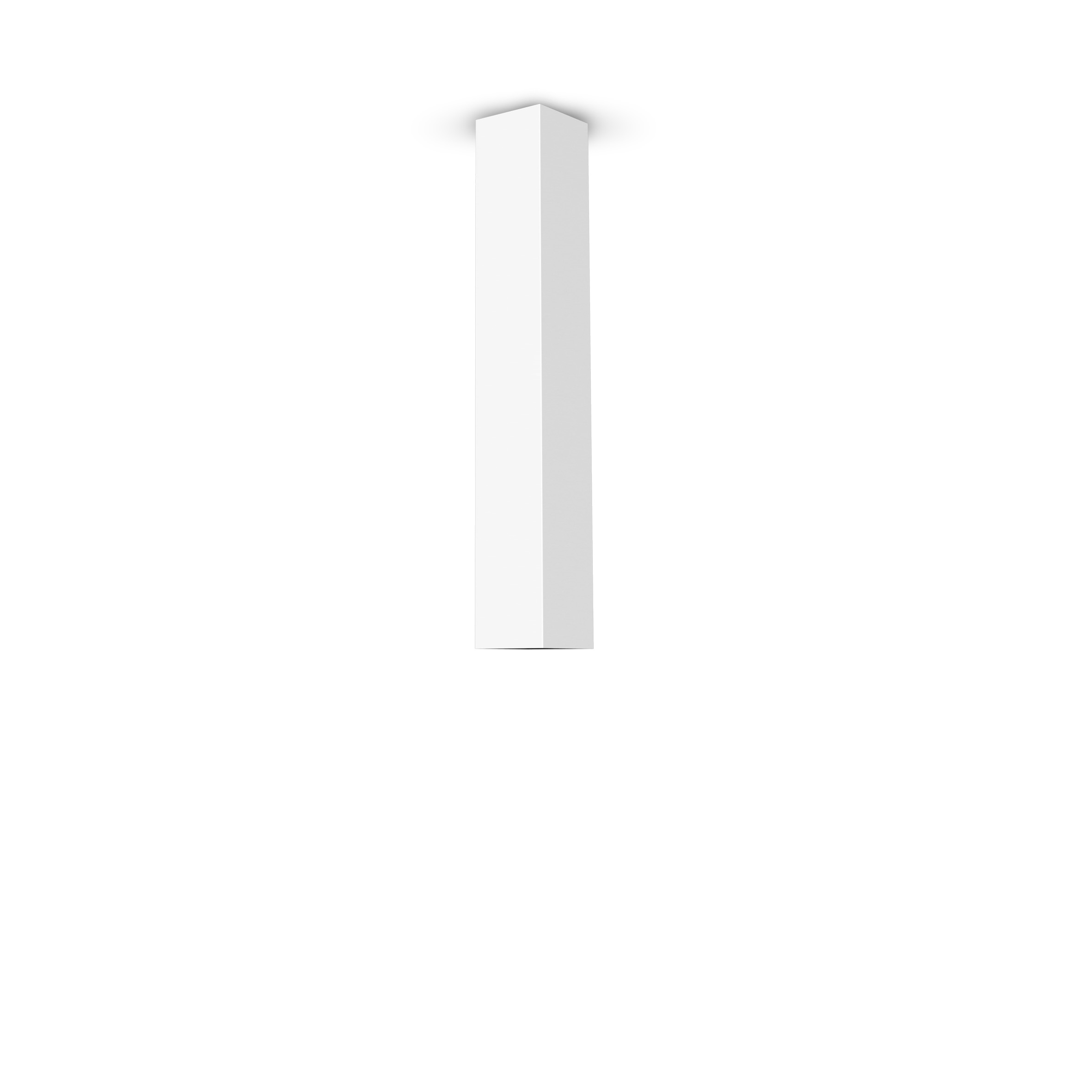

GRAEAE II
ITEM NO. 2013.138
Consumption7W
Current / Voltage350mA
LED Lumen656 lm
Beam Angle 18° /23°/35°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

- 2013.128
- 13W
- 1332 lm
-
GRAEAE II
ITEM NO. 2013.128
Consumption13W
Current / Voltage350mA
LED Lumen1332 lm
Beam Angle 17° /25°/35°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

- 2013.127
- 26W
- 2918 lm
-

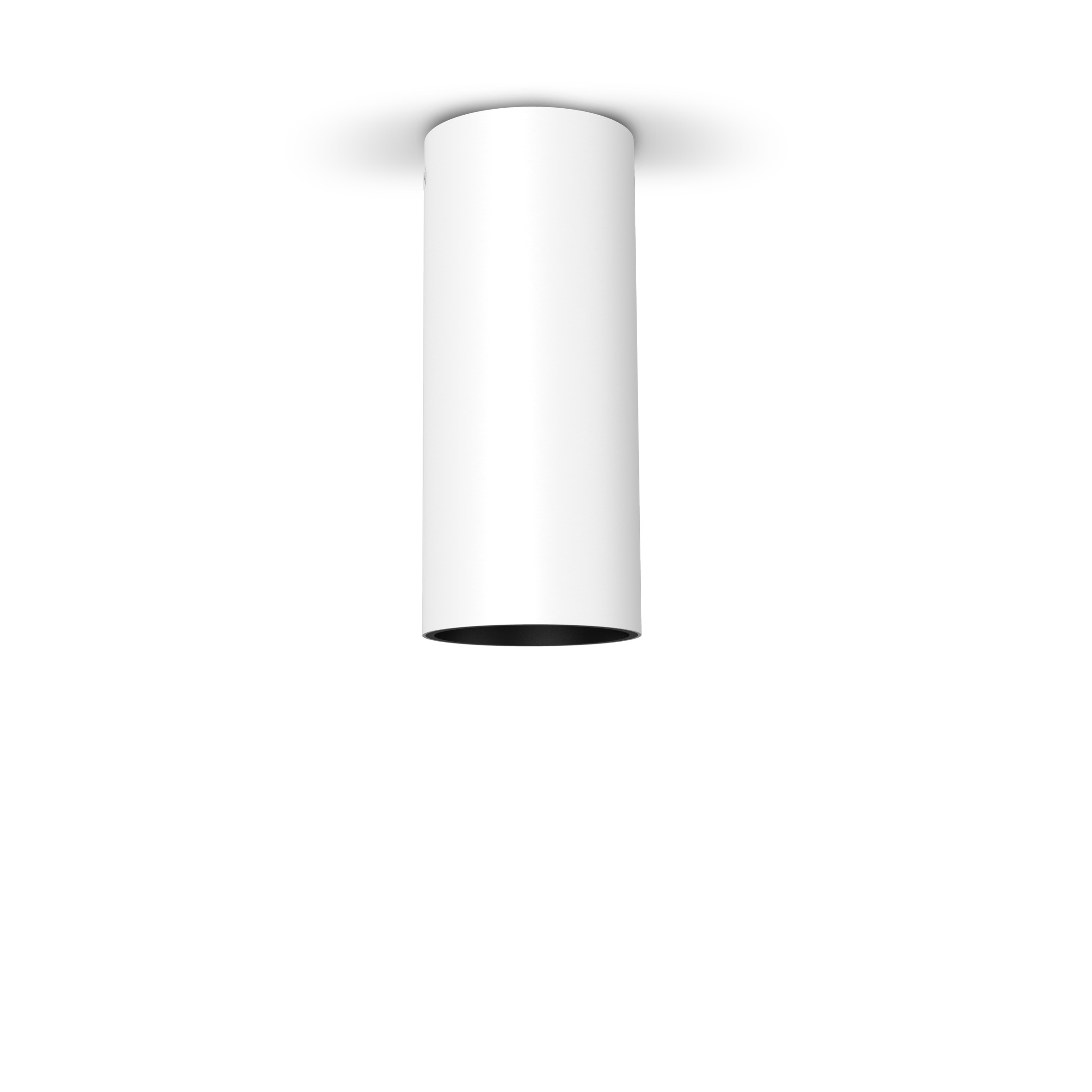

GRAEAE II
ITEM NO. 2013.127
Consumption26W
Current / Voltage700mA
LED Lumen2918 lm
Beam Angle 18° /23°/36°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

- 2013.126
- 38W
- 4339 lm
-
GRAEAE II

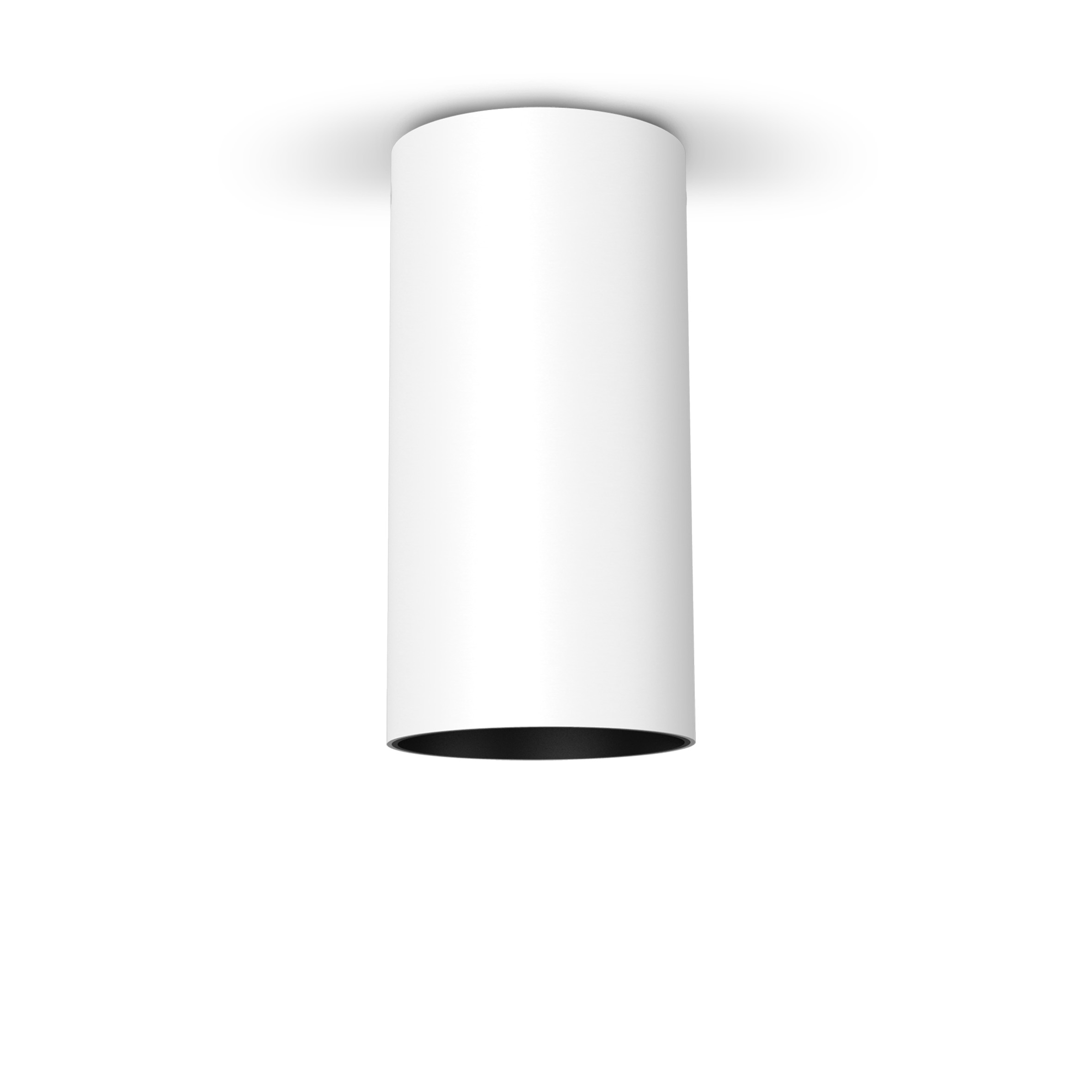

ITEM NO. 2013.126
Consumption38W
Current / Voltage1050mA
LED Lumen4339 lm
Beam Angle 18° /23°/38°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

- 2016.116
- 7W
- 656 lm
-

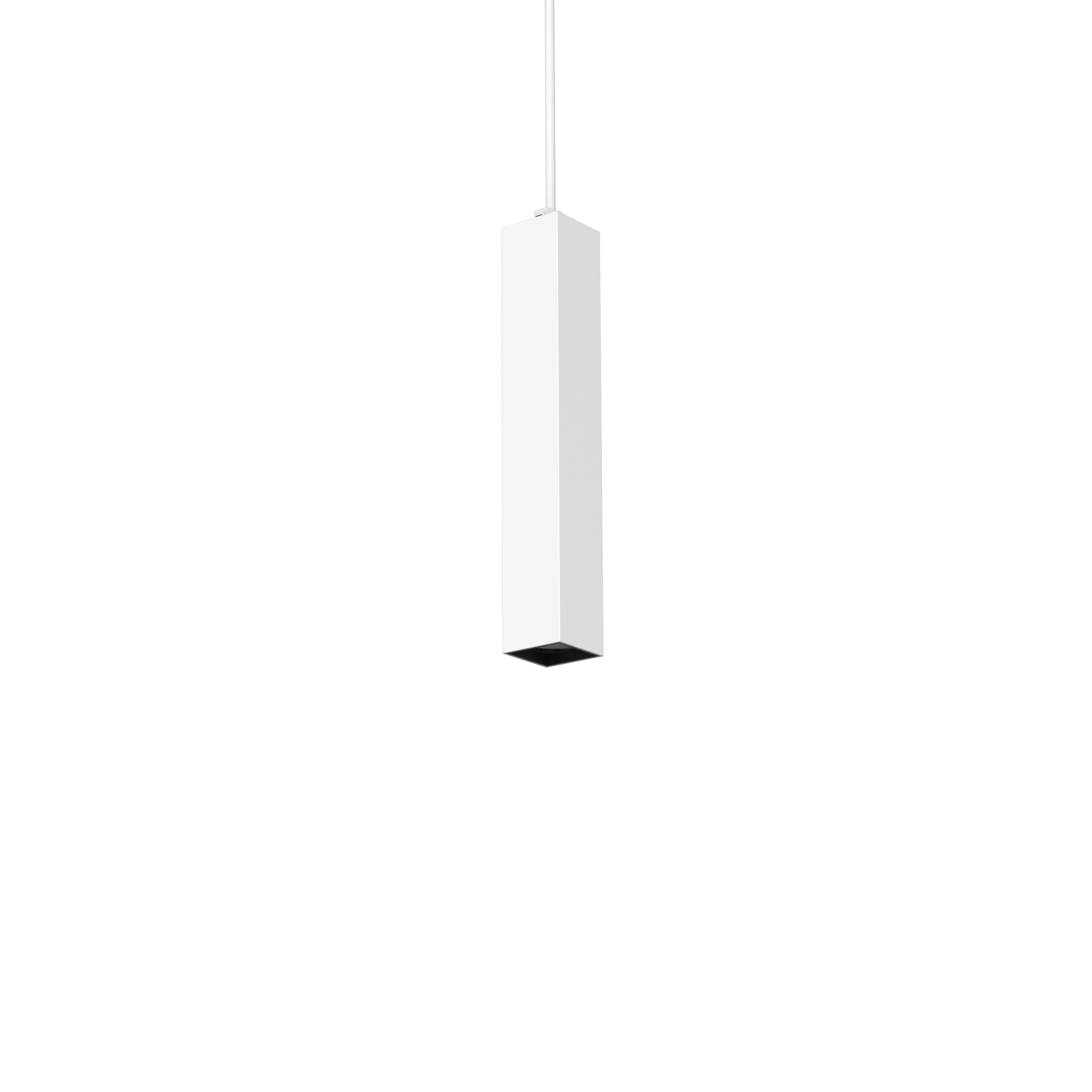

GRAEAE II
ITEM NO. 2016.116
Consumption7W
Current / Voltage350mA
LED Lumen656 lm
Beam Angle 18° /23°/35°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

- 2116.115
- 13W
- 1332 lm
-
GRAEAE II

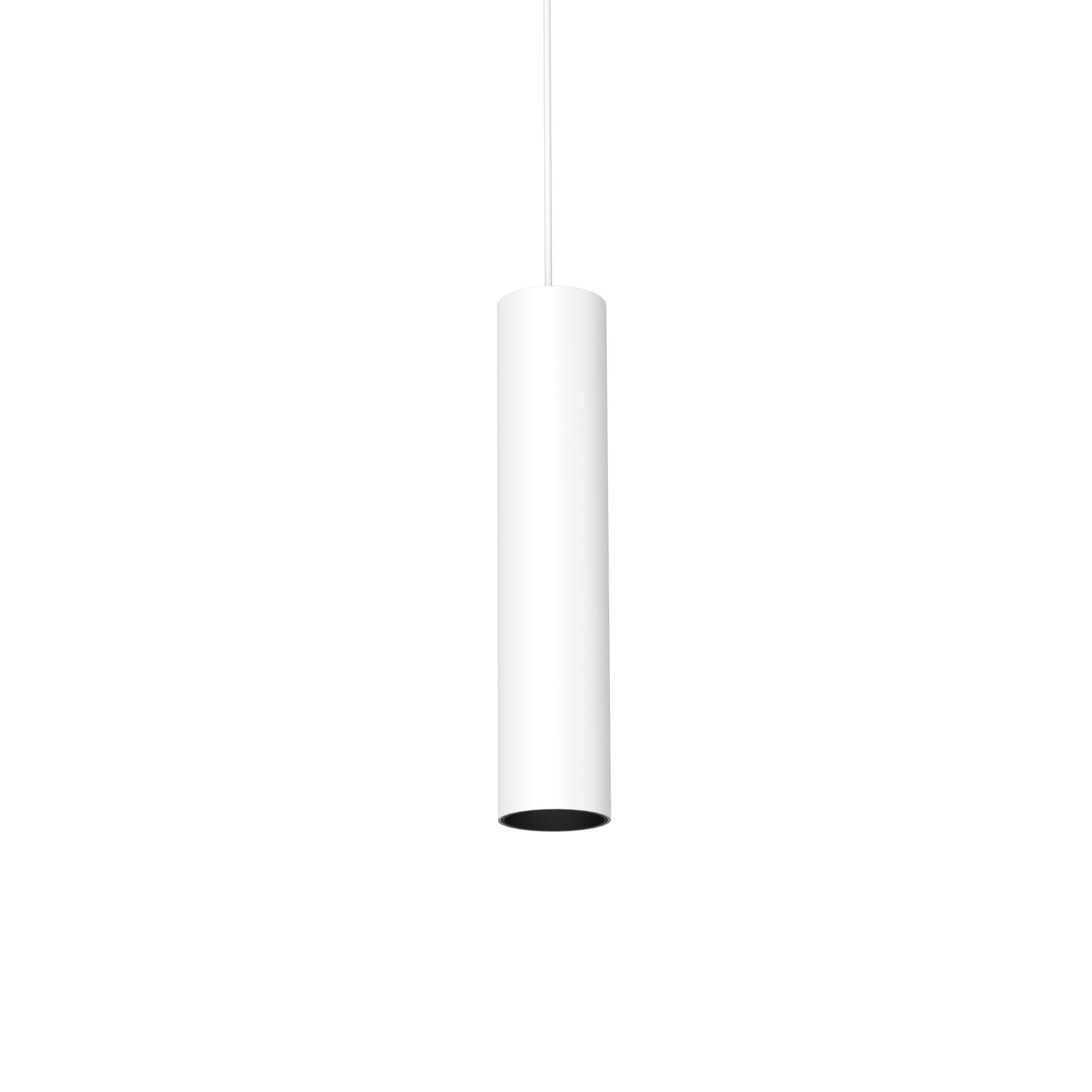

ITEM NO. 2116.115
Consumption13W
Current / Voltage350mA
LED Lumen1332 lm
Beam Angle 17° /24°/36°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

- 1816.102
- 26W
- 2918 lm
-
GRAEAE II
ITEM NO. 1816.102
Consumption26W
Current / Voltage700mA
LED Lumen2918 lm
Beam Angle 10°/20°/30°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue
