- Article number
- Led Consumption
- Lumen
- Cut Out

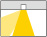

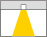

- Light Distribution

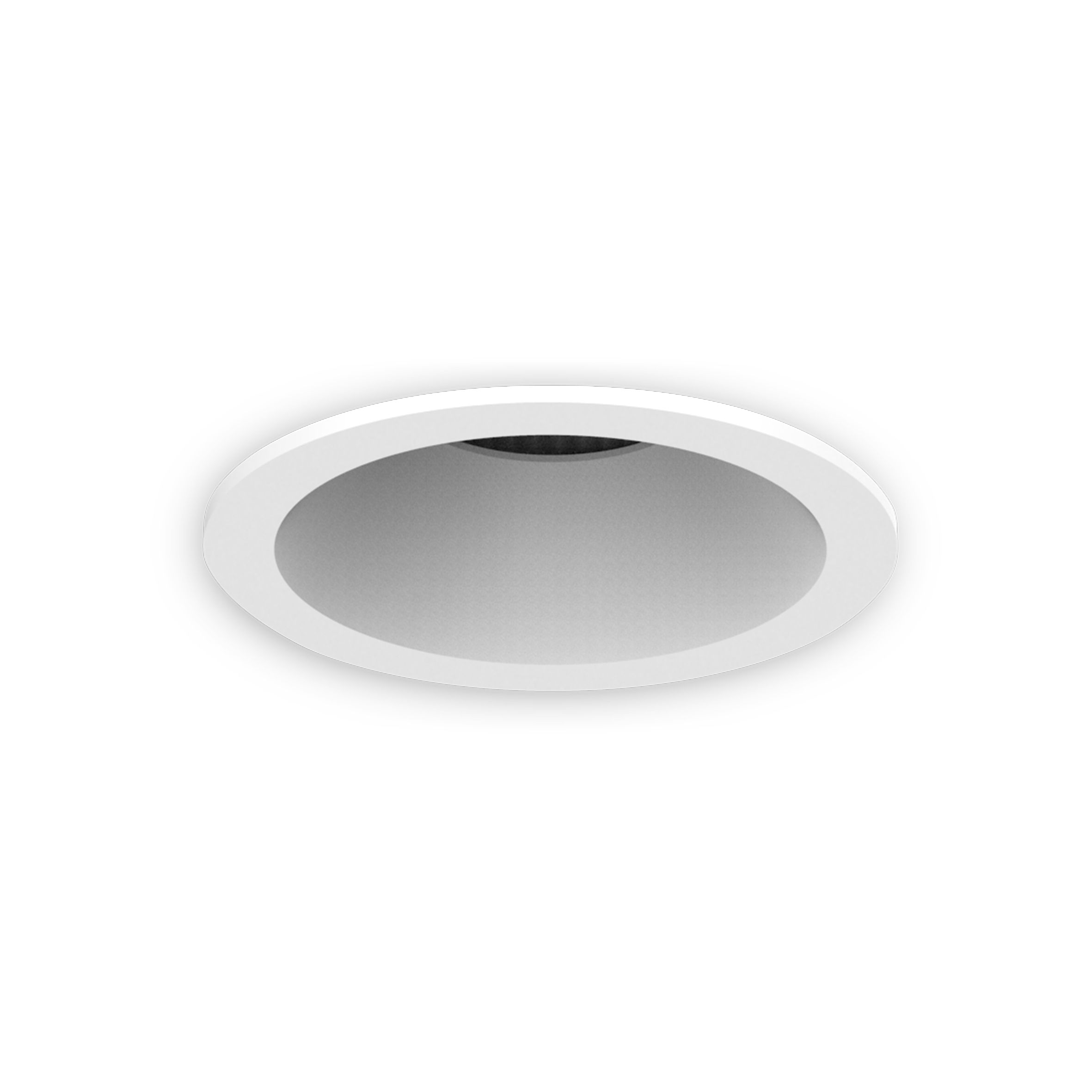

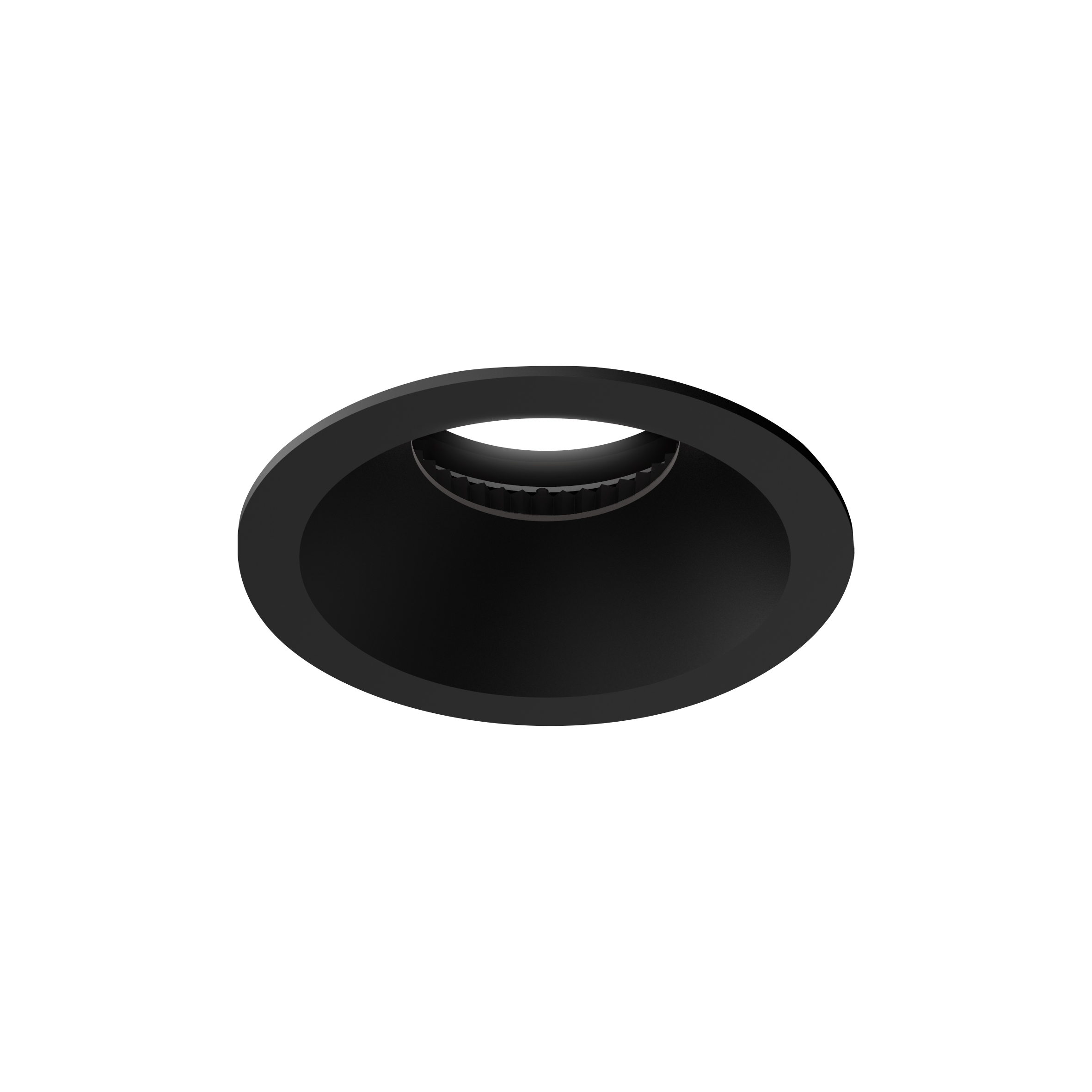

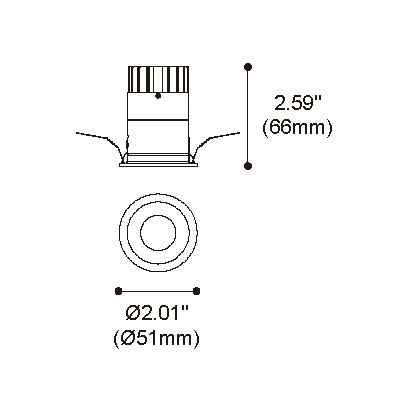

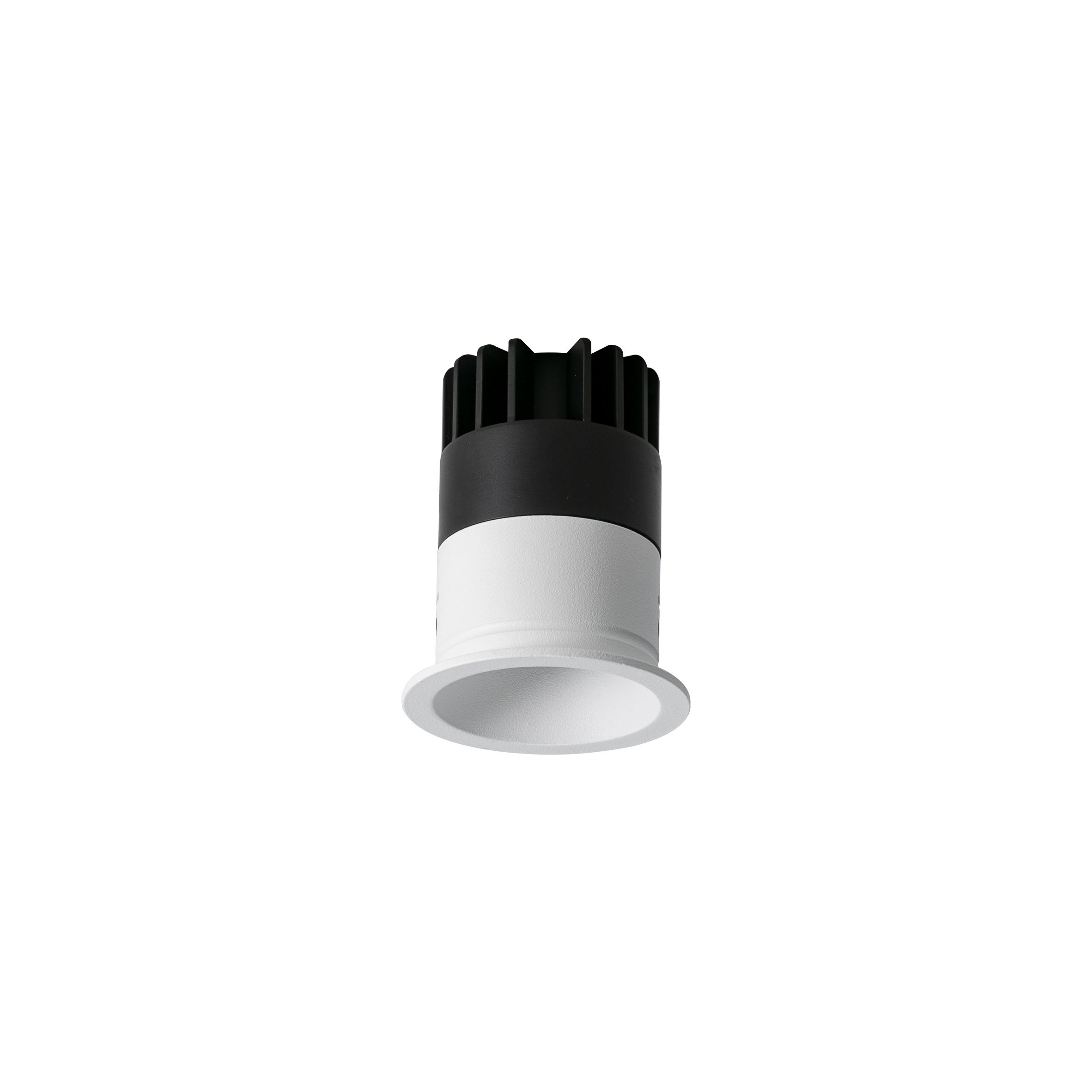

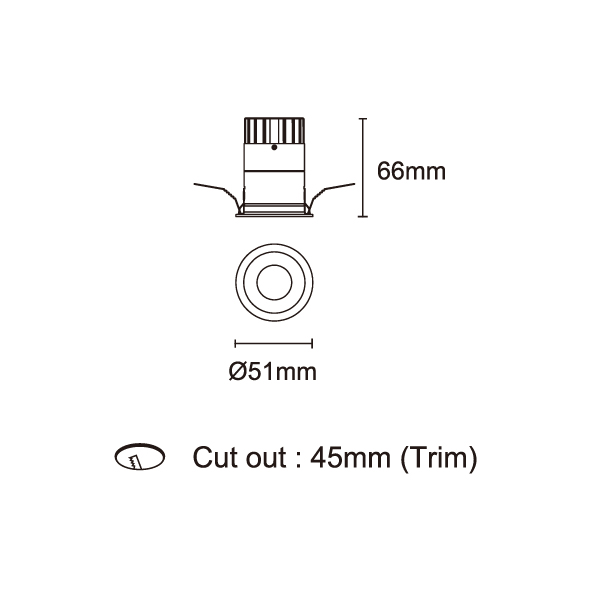

- 2118.564-ACOT-96-IP
- 7W
- 547lm

-
STAR-50
ITEM NO. 2118.564-ACOT-96-IP
Consumption7W
Current / Voltage350mA
LED Lumen547lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<13
IPIP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 2118.565-ACOT-96
- 7W
- 525lm

-
STAR-50

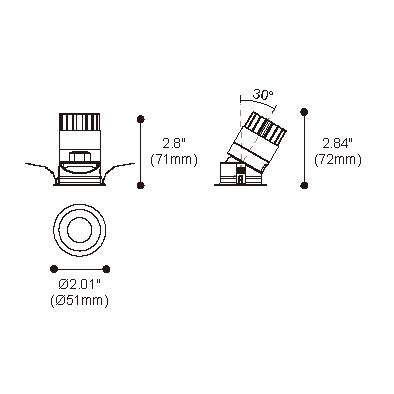

ITEM NO. 2118.565-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen525lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<14
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

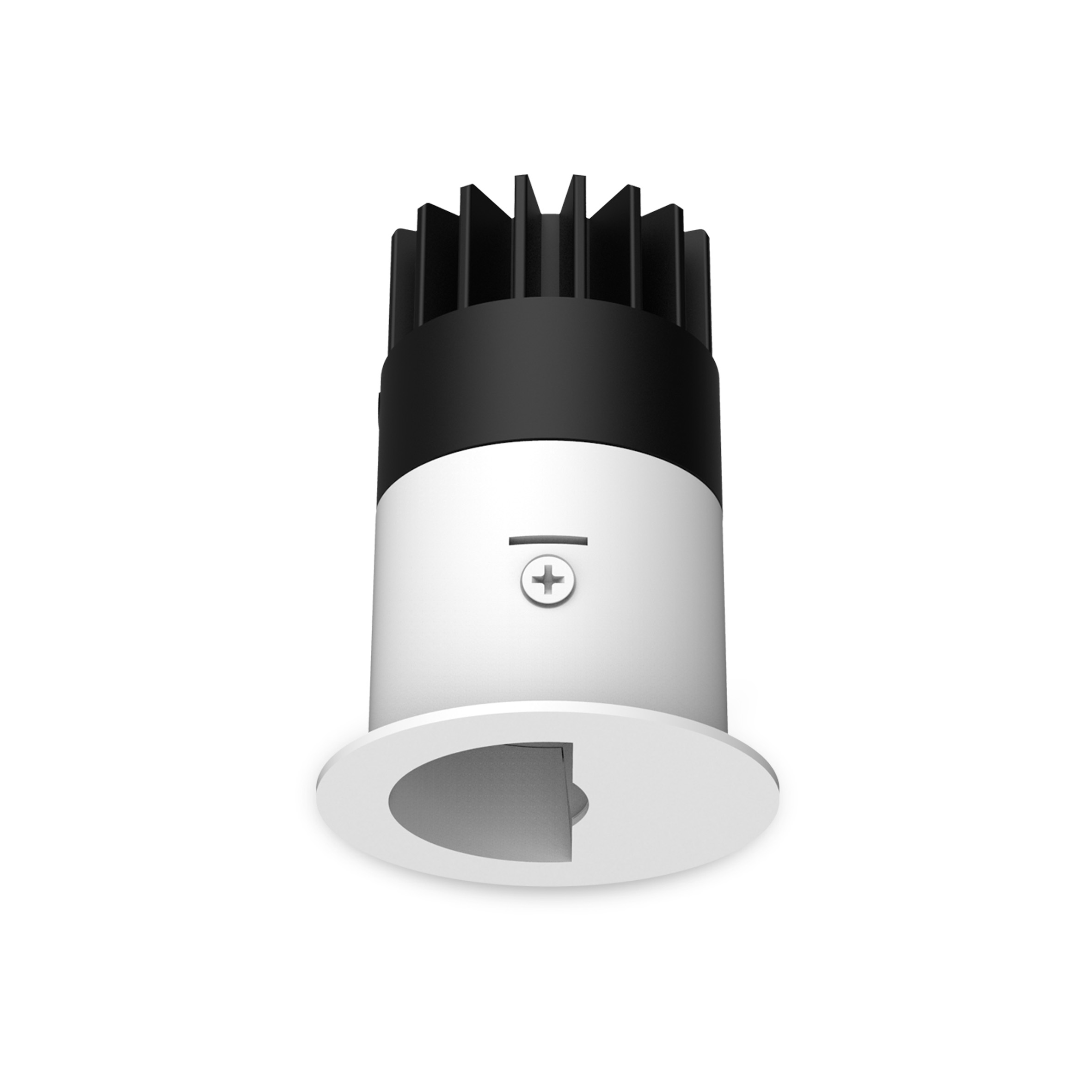

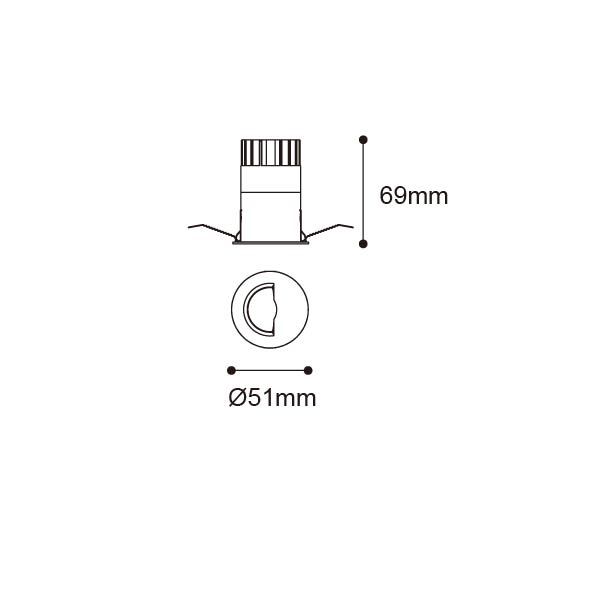

- 2318.100-ACOT-96
- 7W
- 295lm

-
STAR-50
ITEM NO. 2318.100-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen295lm

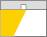

Beam Angle Wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IPIP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

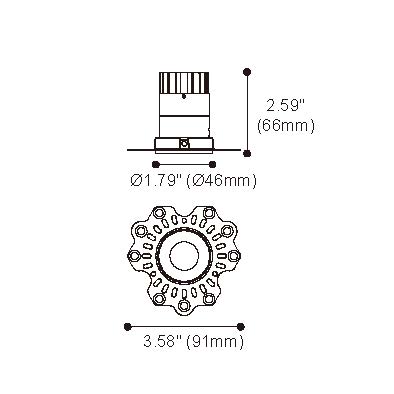

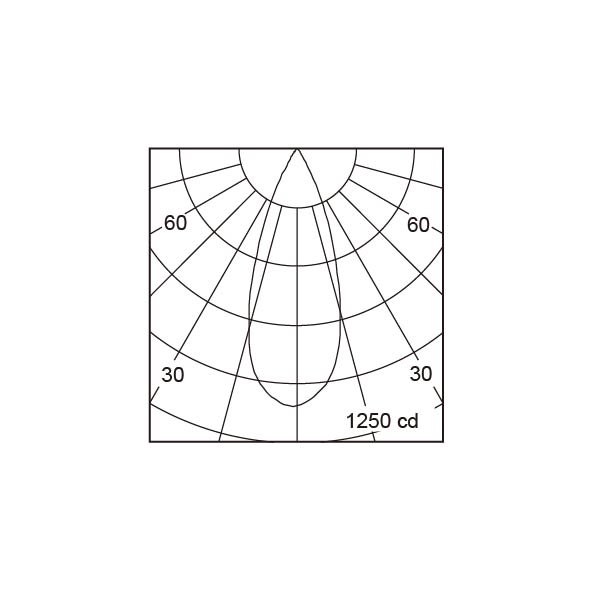

- 2118.659F-ACOT-96
- 7W
- 547lm

-
STAR-50

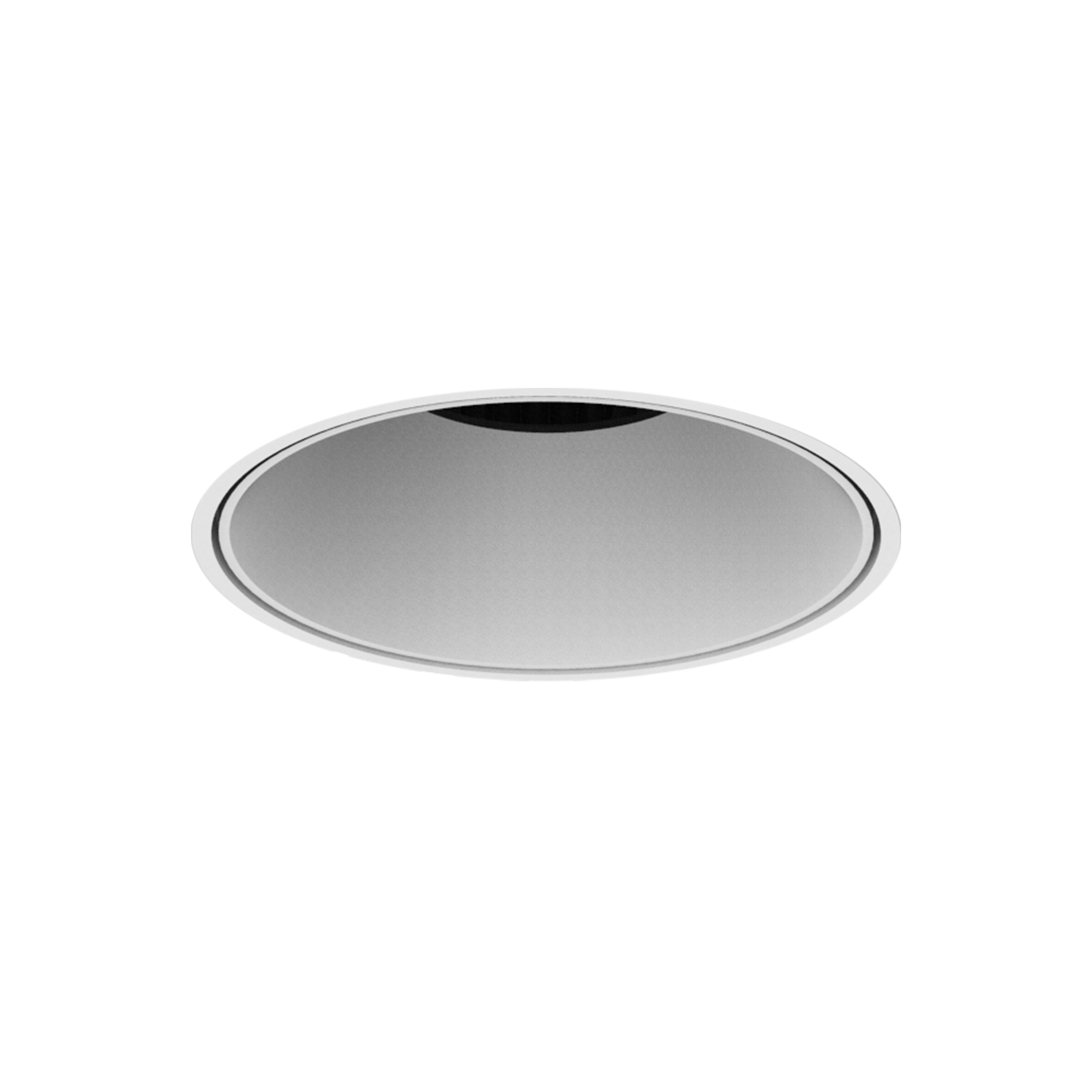

ITEM NO. 2118.659F-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen547lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<14
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue
- 2118.660F-ACOT-96
- 7W
- 525lm

-
STAR-50

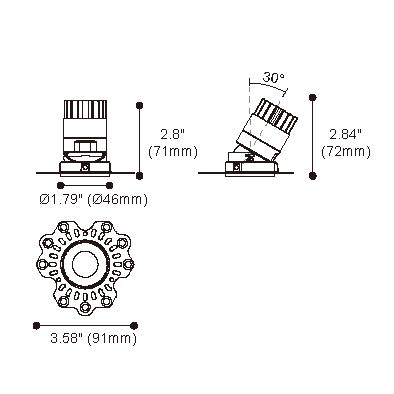

ITEM NO. 2118.660F-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen525lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<14
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

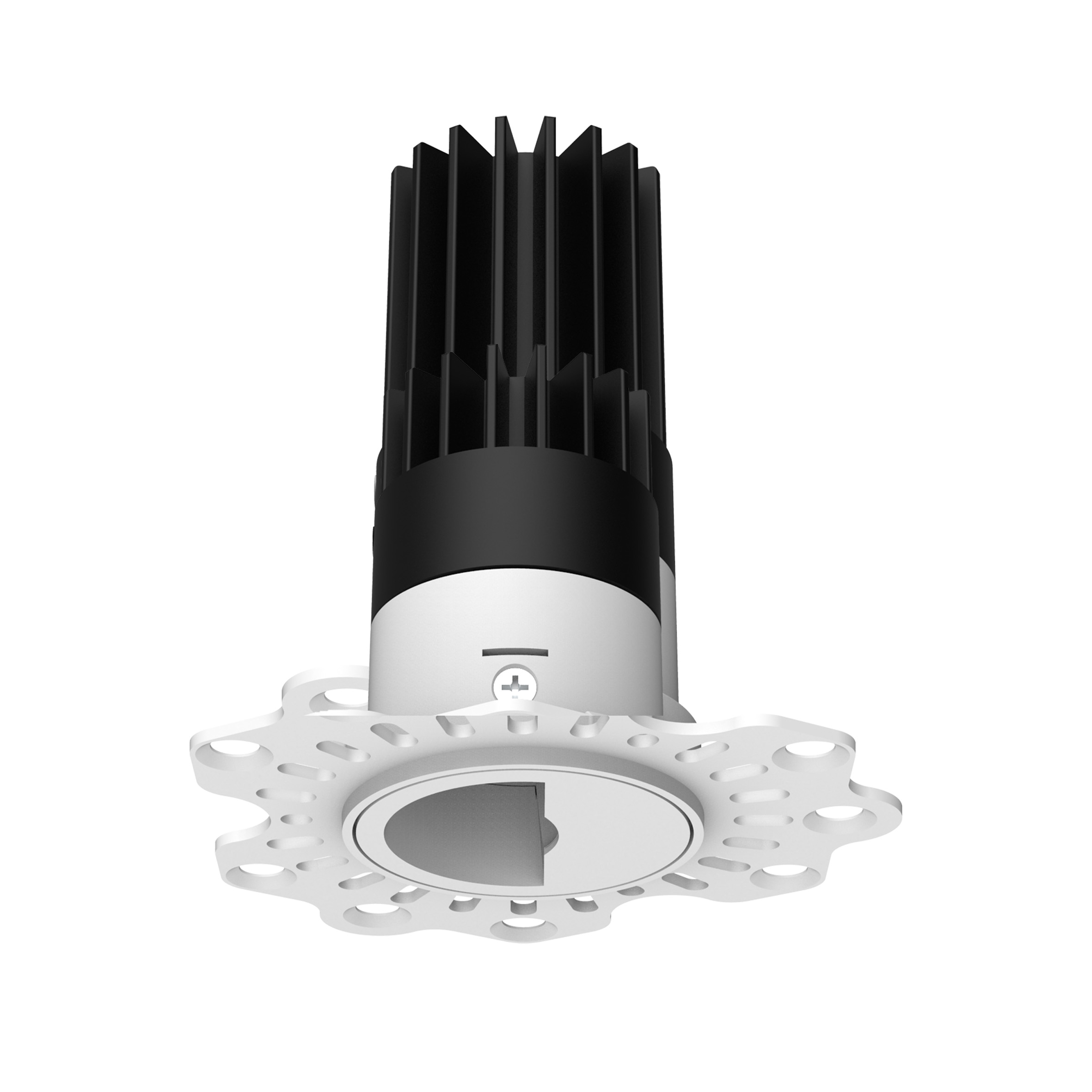

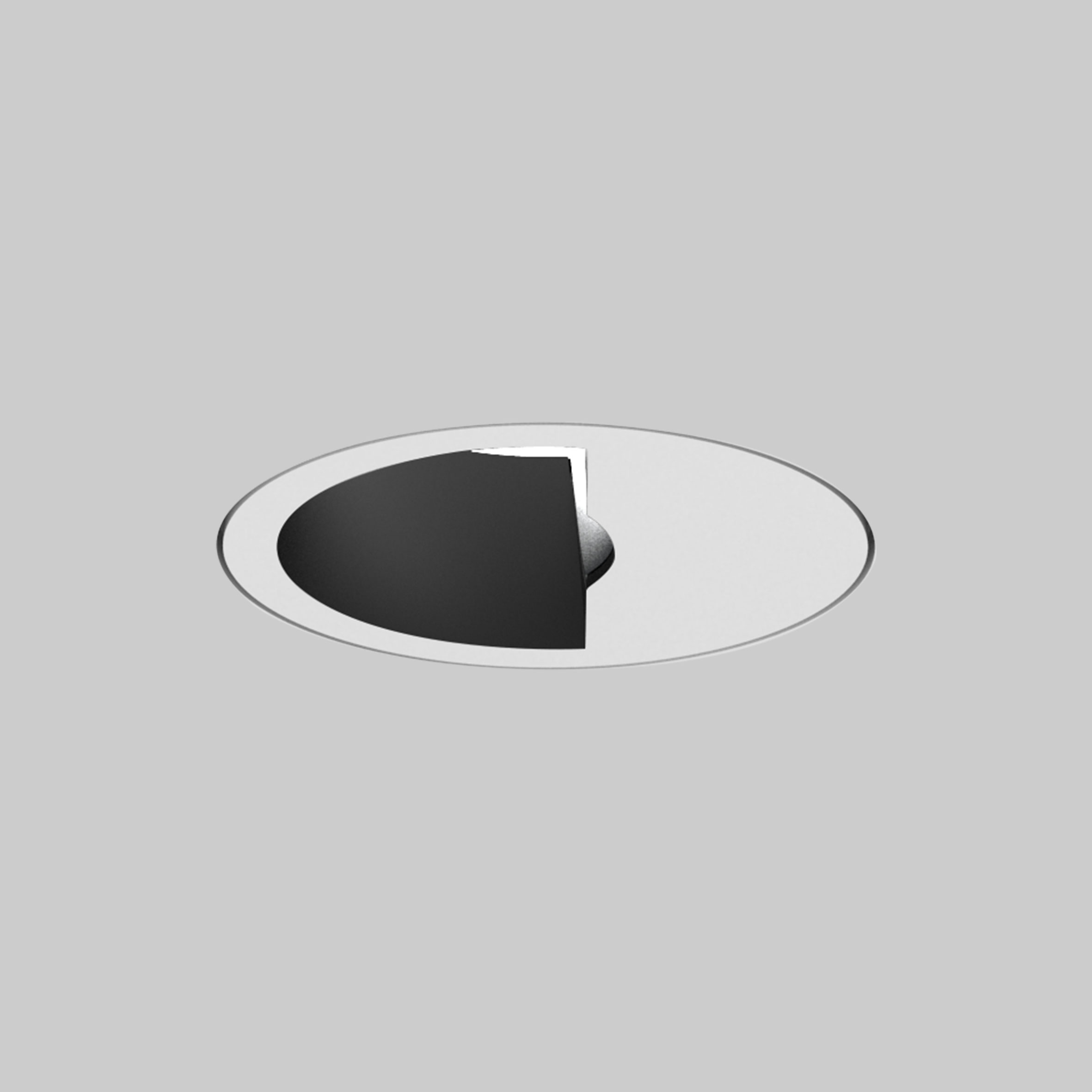

- 2318.200F-ACOT-96
- 7W
- 295lm

-
STAR-50

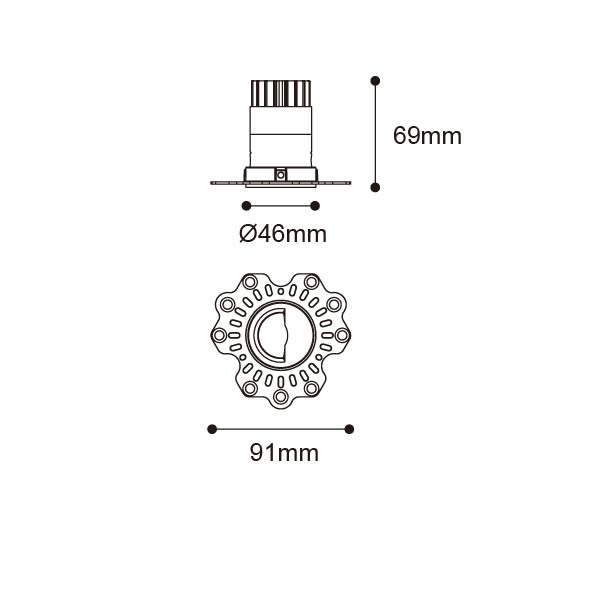

ITEM NO. 2318.200F-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen295lm
Beam Angle Wallwash
CCT3000k
*Other CCT Also Available
CRI90+
UGR
IPIP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

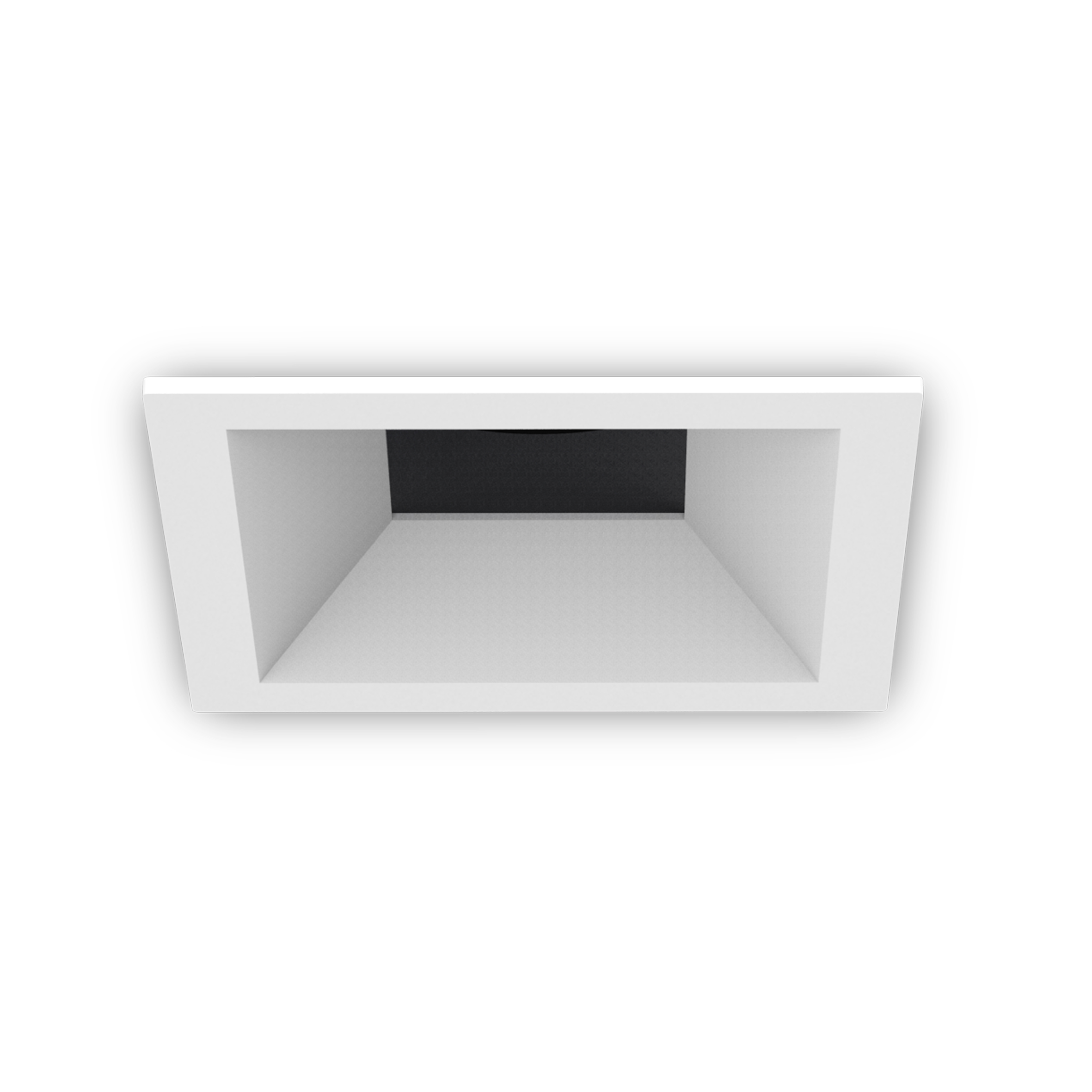

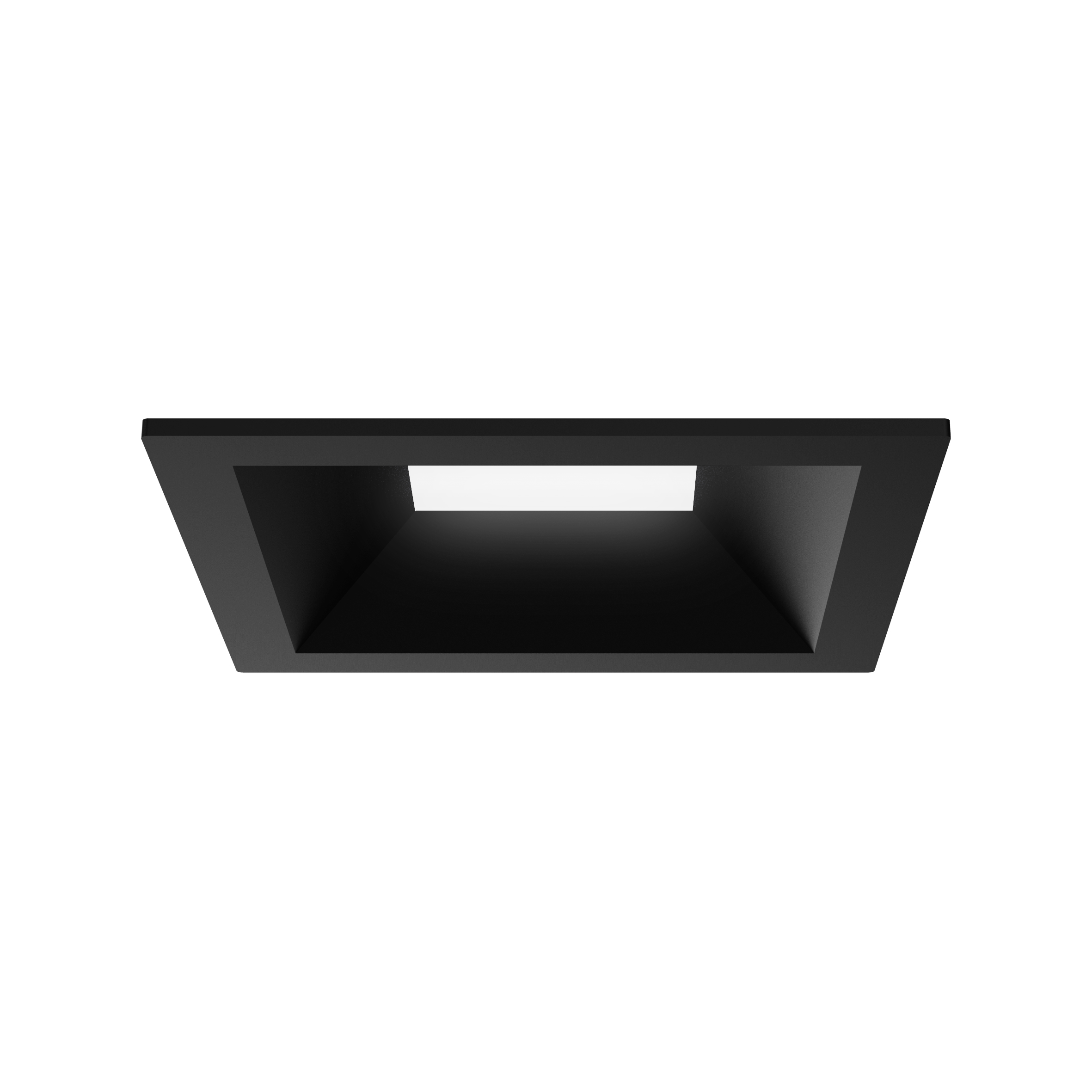

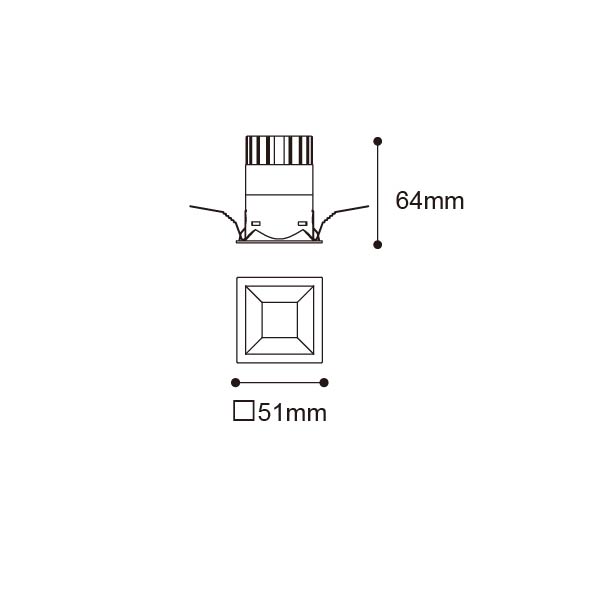

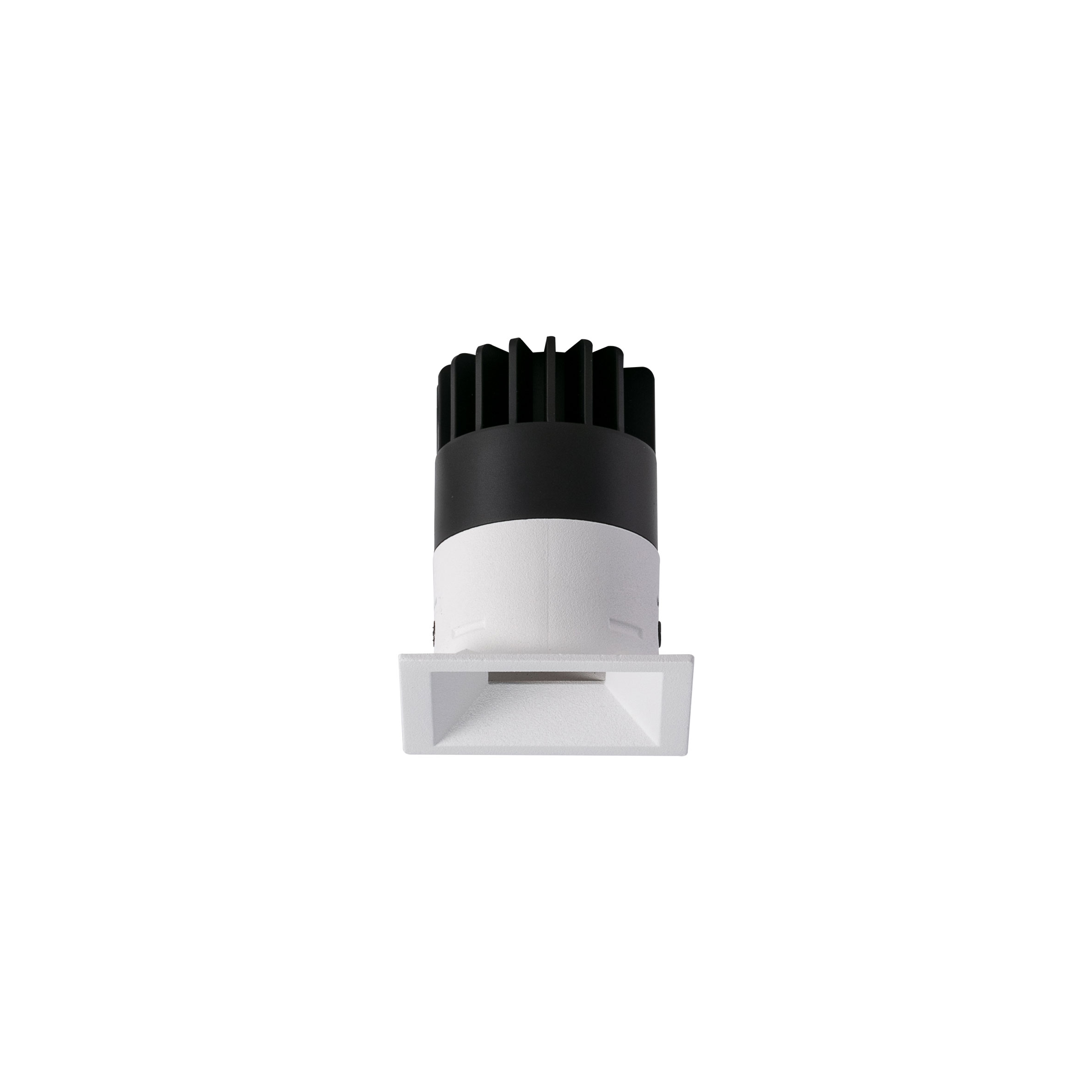

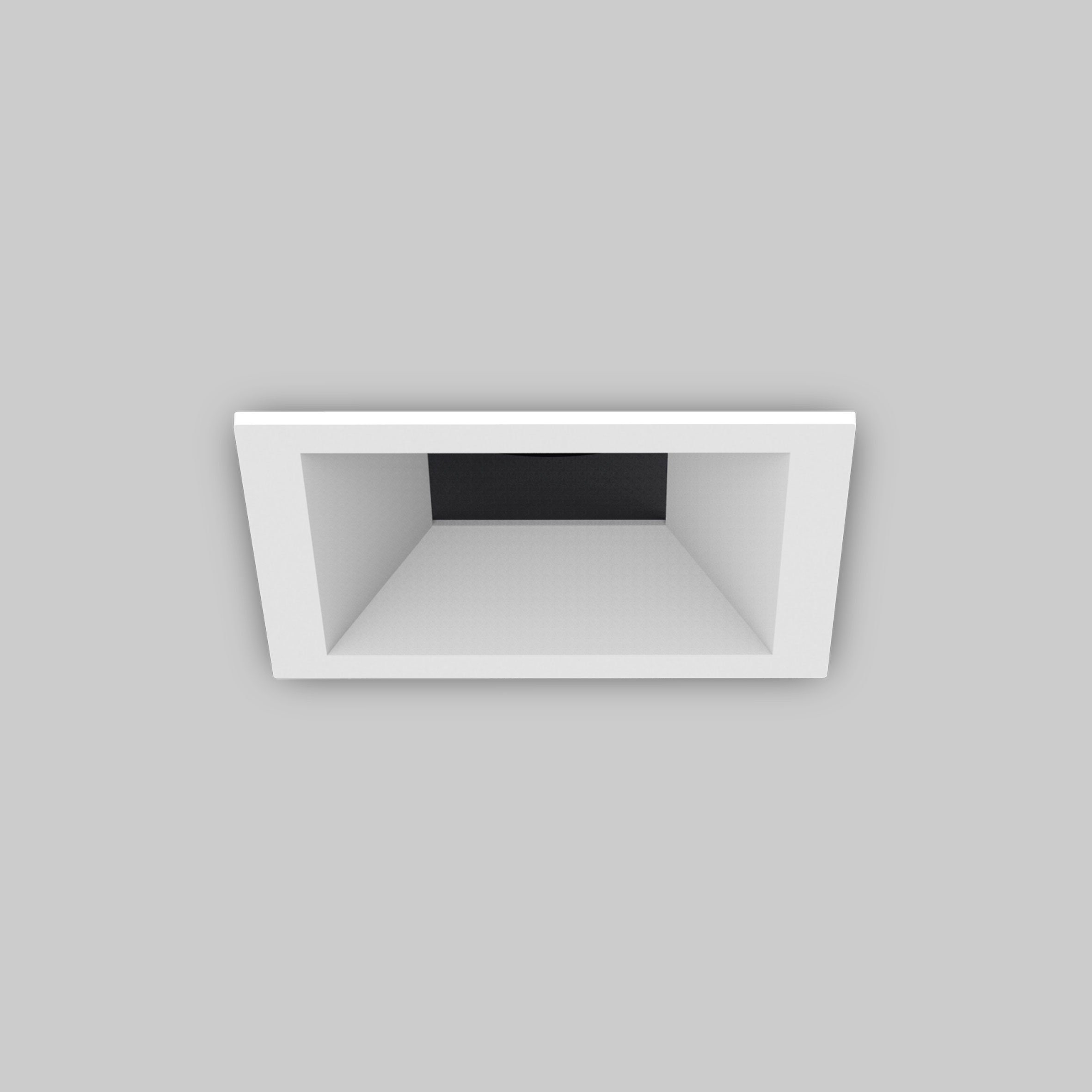

- 2218.117-ACOT-96-IP
- 7W
- 656lm

-
STAR-50
ITEM NO. 2218.117-ACOT-96-IP
Consumption7W
Current / Voltage350mA
LED Lumen656lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<18
IPIP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

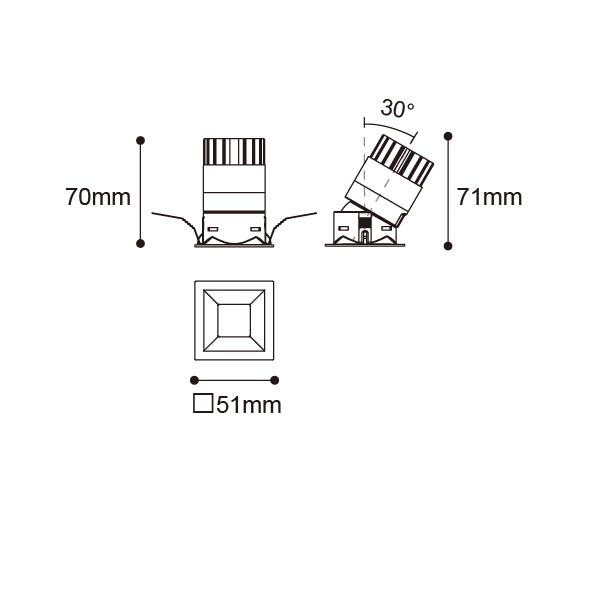

- 2218.118-ACOT-96
- 7W
- 490lm

-
STAR-50

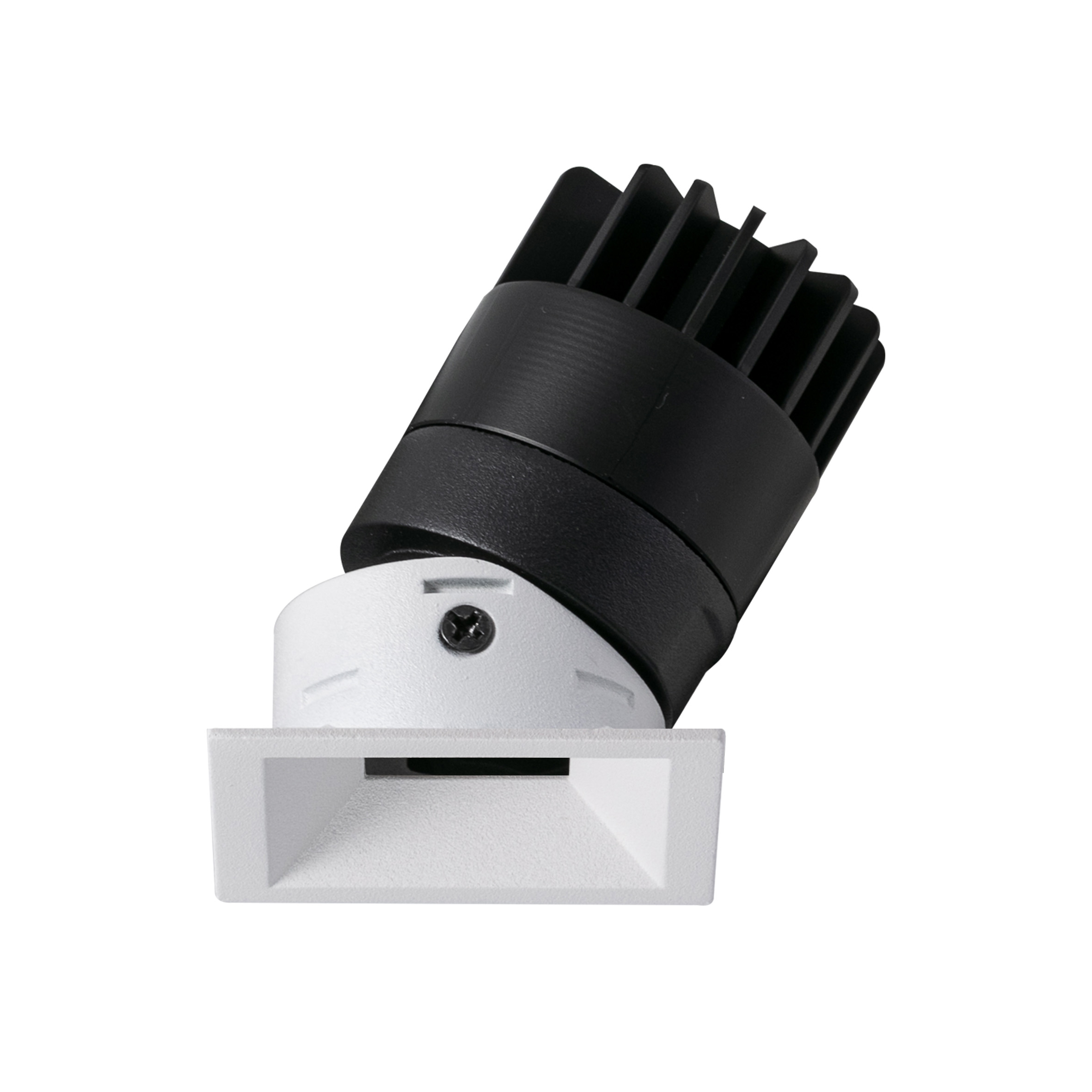

ITEM NO. 2218.118-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen490lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<17
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

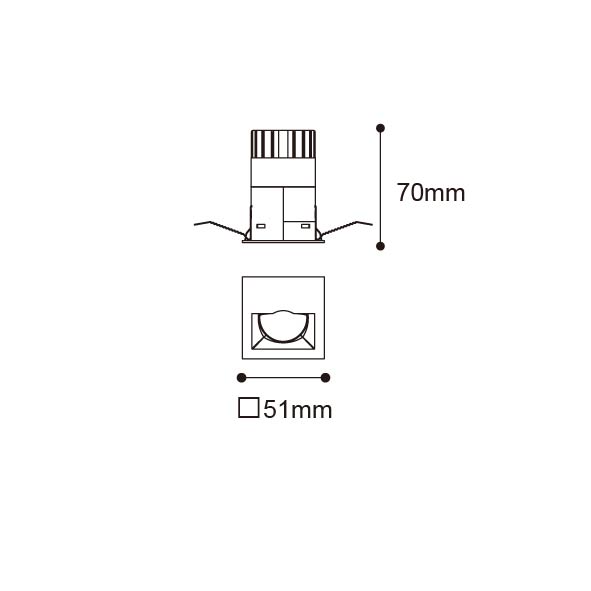

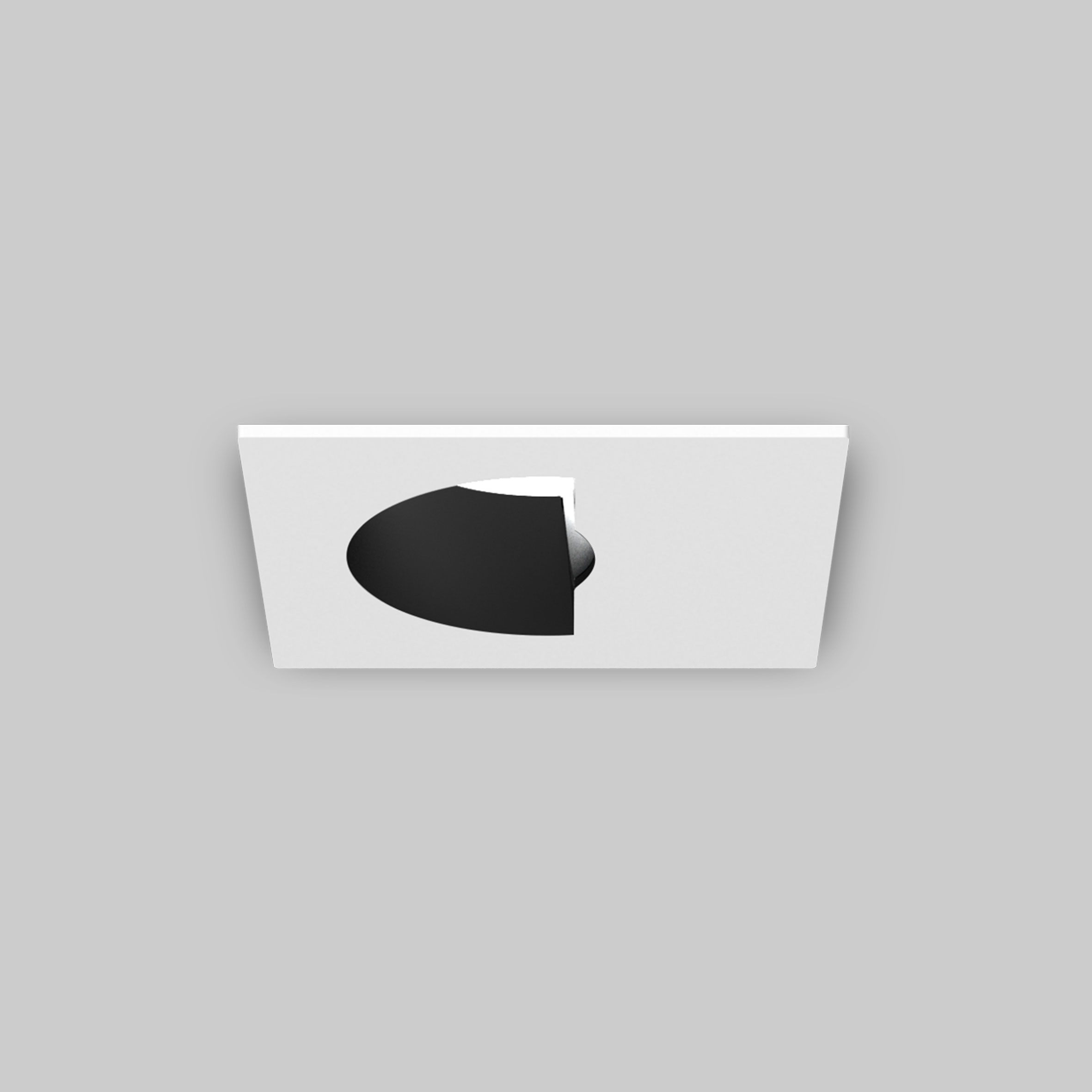

- 2318.104-ACOT-96
- 7W
- 656lm

-
STAR-50

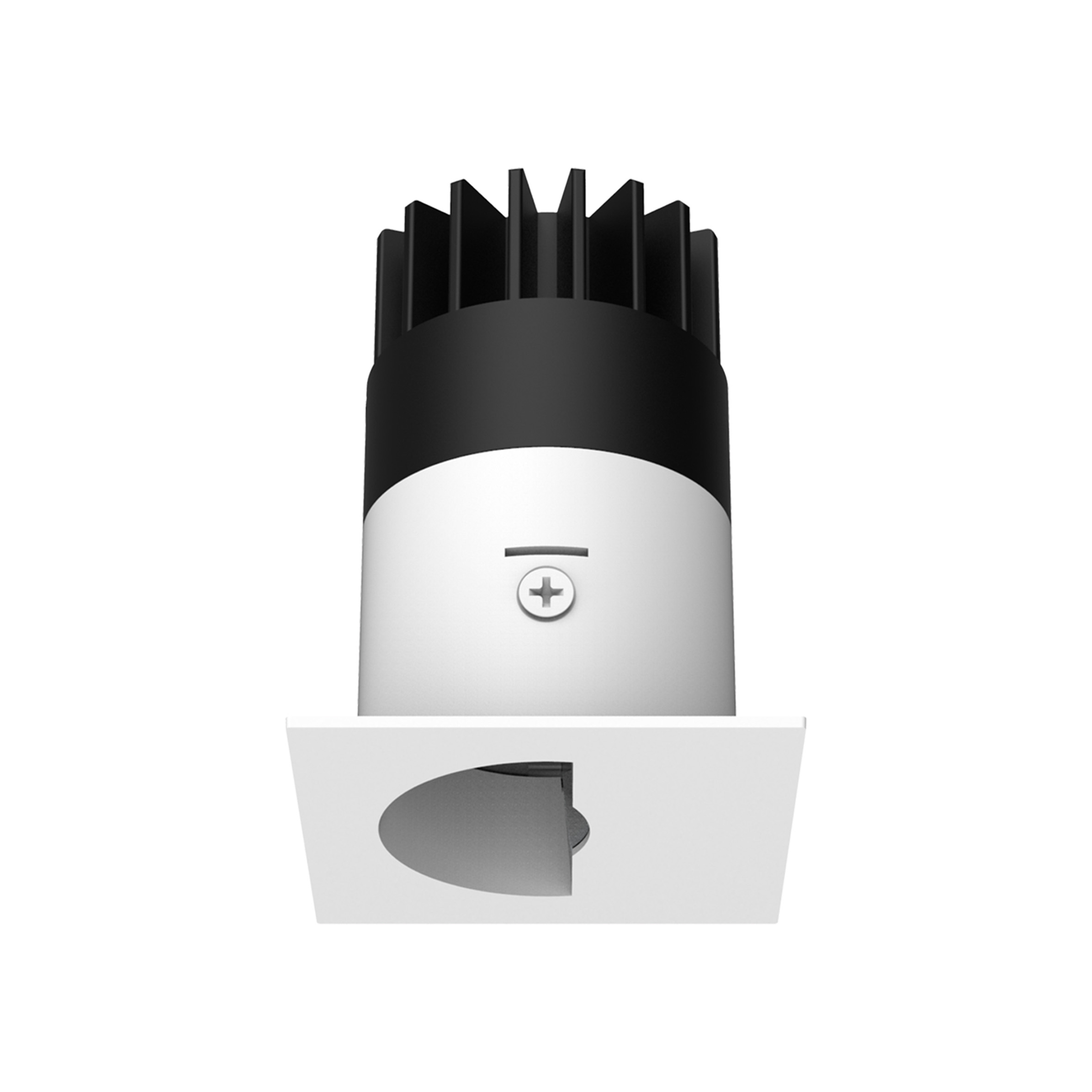

ITEM NO. 2318.104-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen656lm
Beam Angle Wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IPIP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

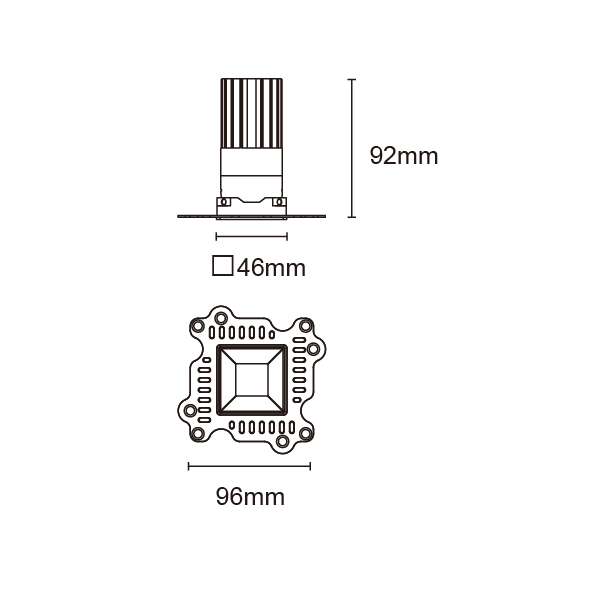

- 2218.208A-ACOT-96
- 7W
- 520lm

-
STAR-50

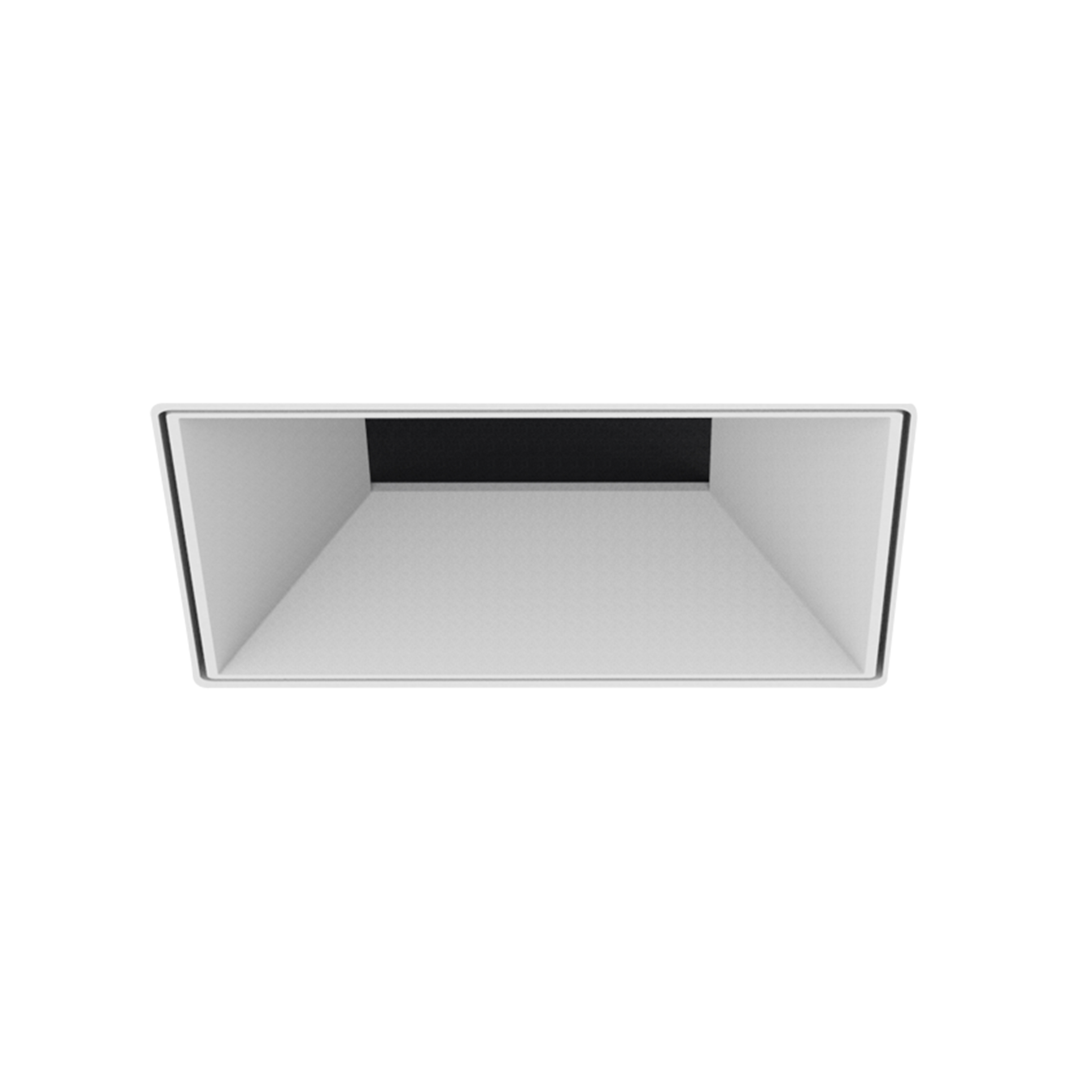

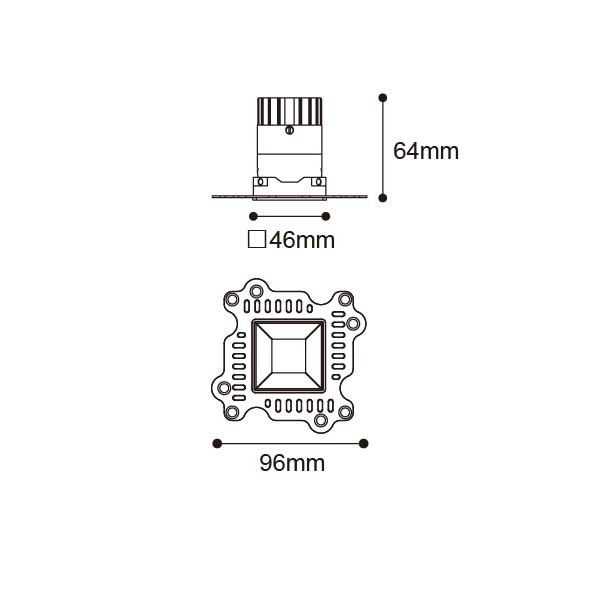

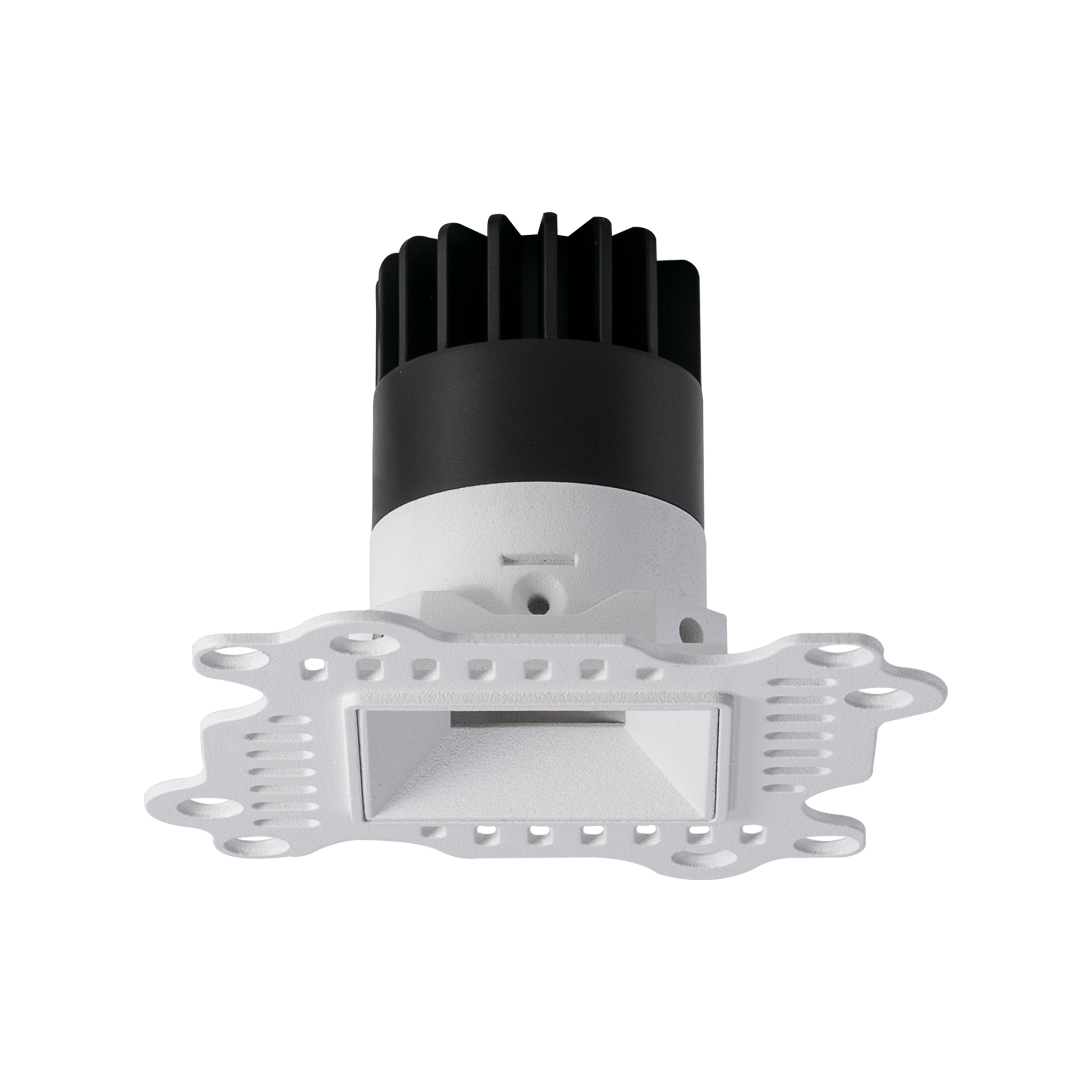

ITEM NO. 2218.208A-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen520lm
Beam Angle 20° /25° /35° /50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<18
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

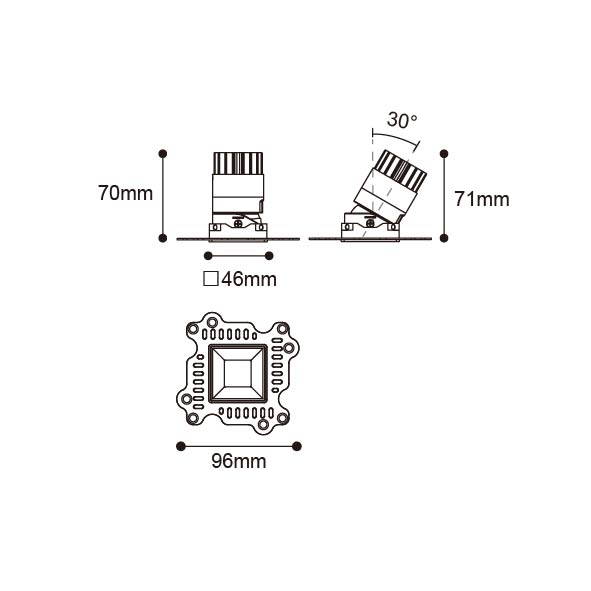

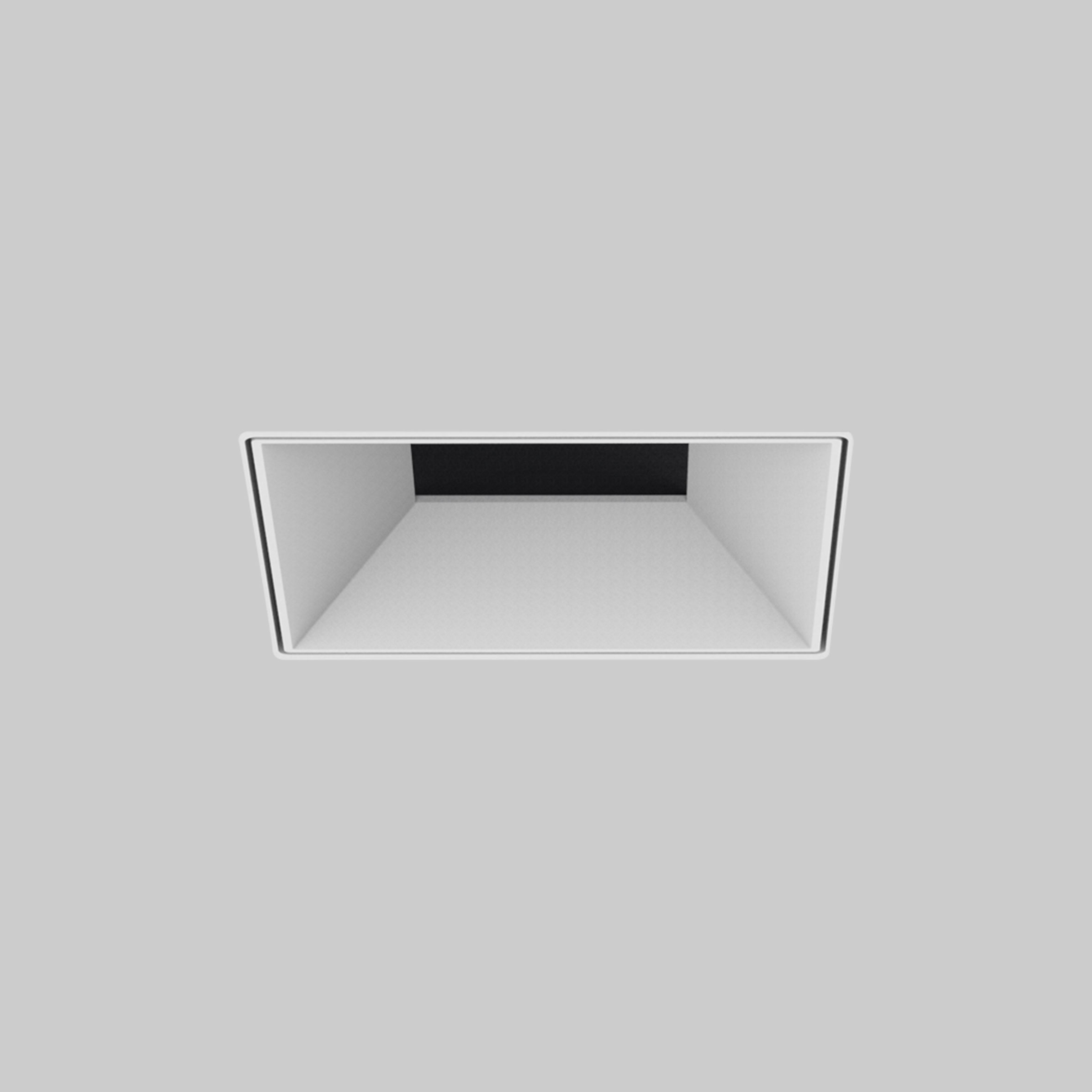

- 2218.209A-ACOT-96
- 7W
- 656lm

-
STAR-50

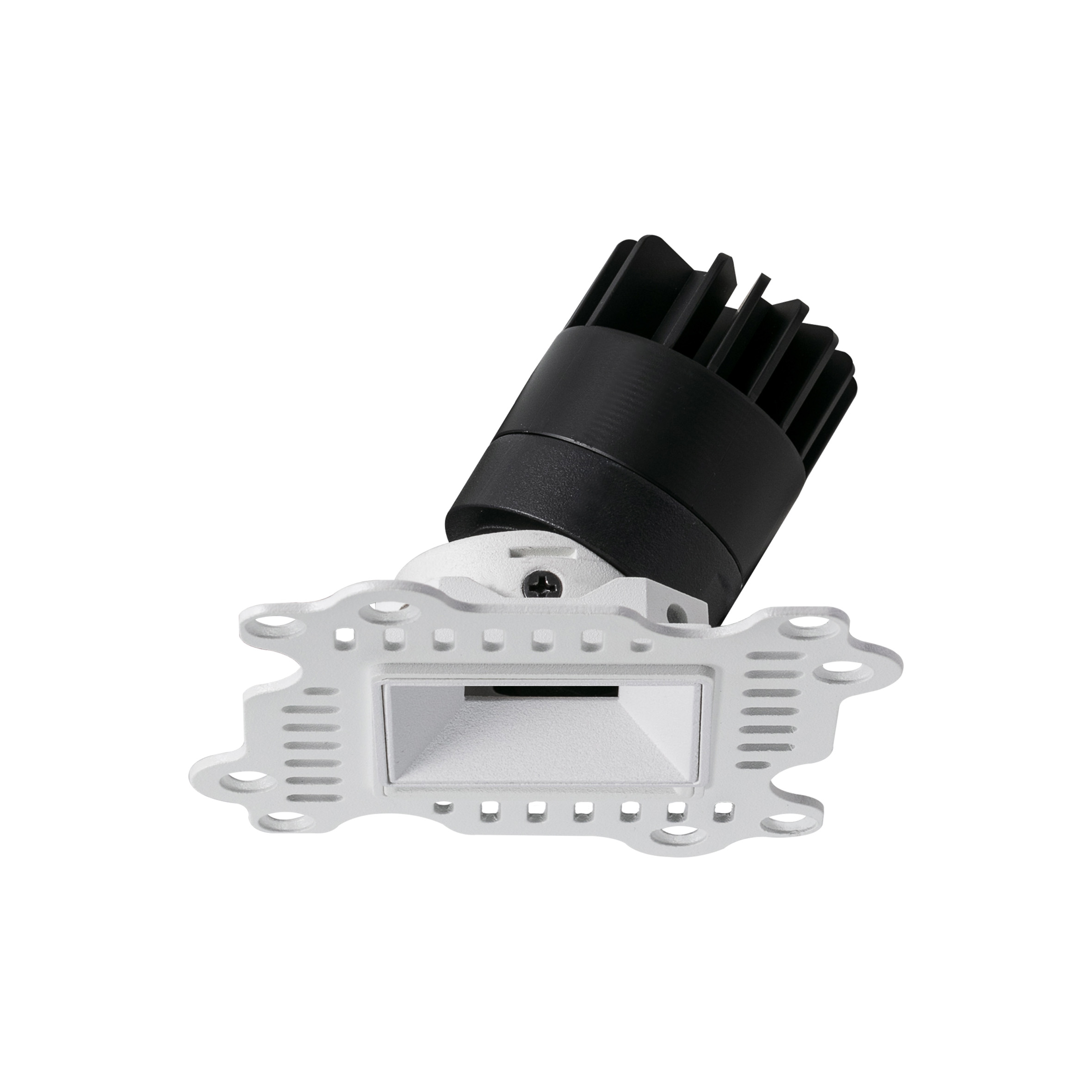

ITEM NO. 2218.209A-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen656lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<17
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

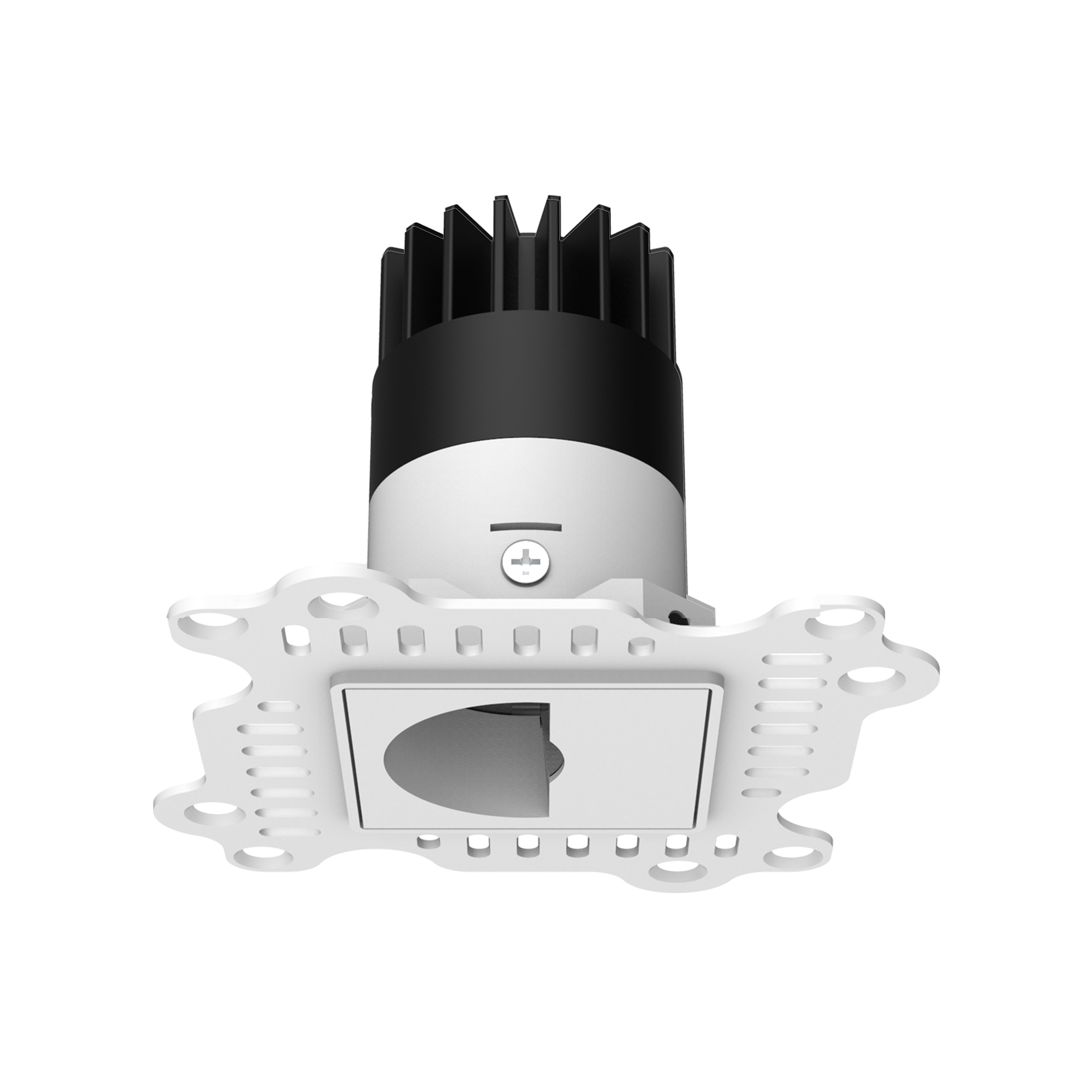

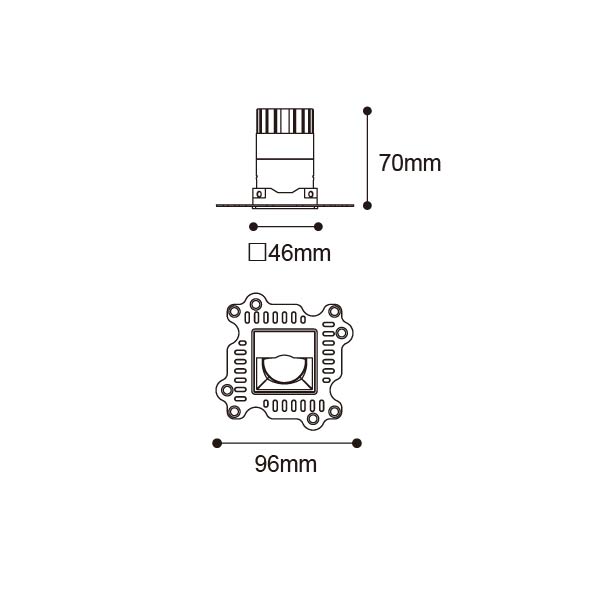

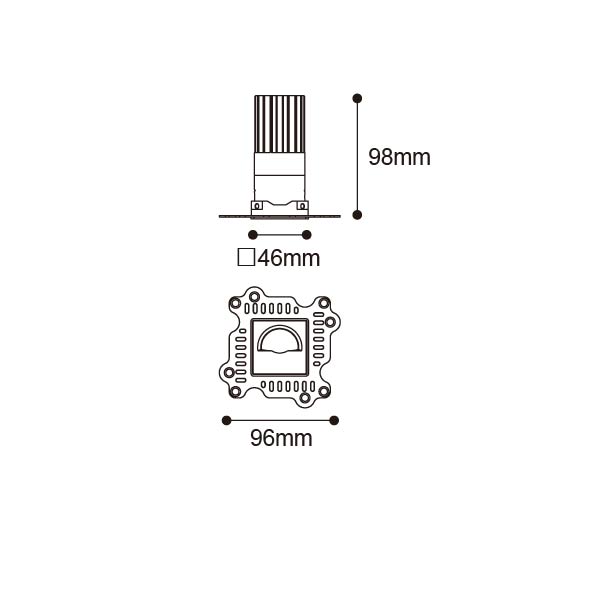

- 2318.204A-ACOT-96
- 7W
- 656lm

-
STAR-50
ITEM NO. 2318.204A-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen656lm
Beam Angle Wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IPIP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

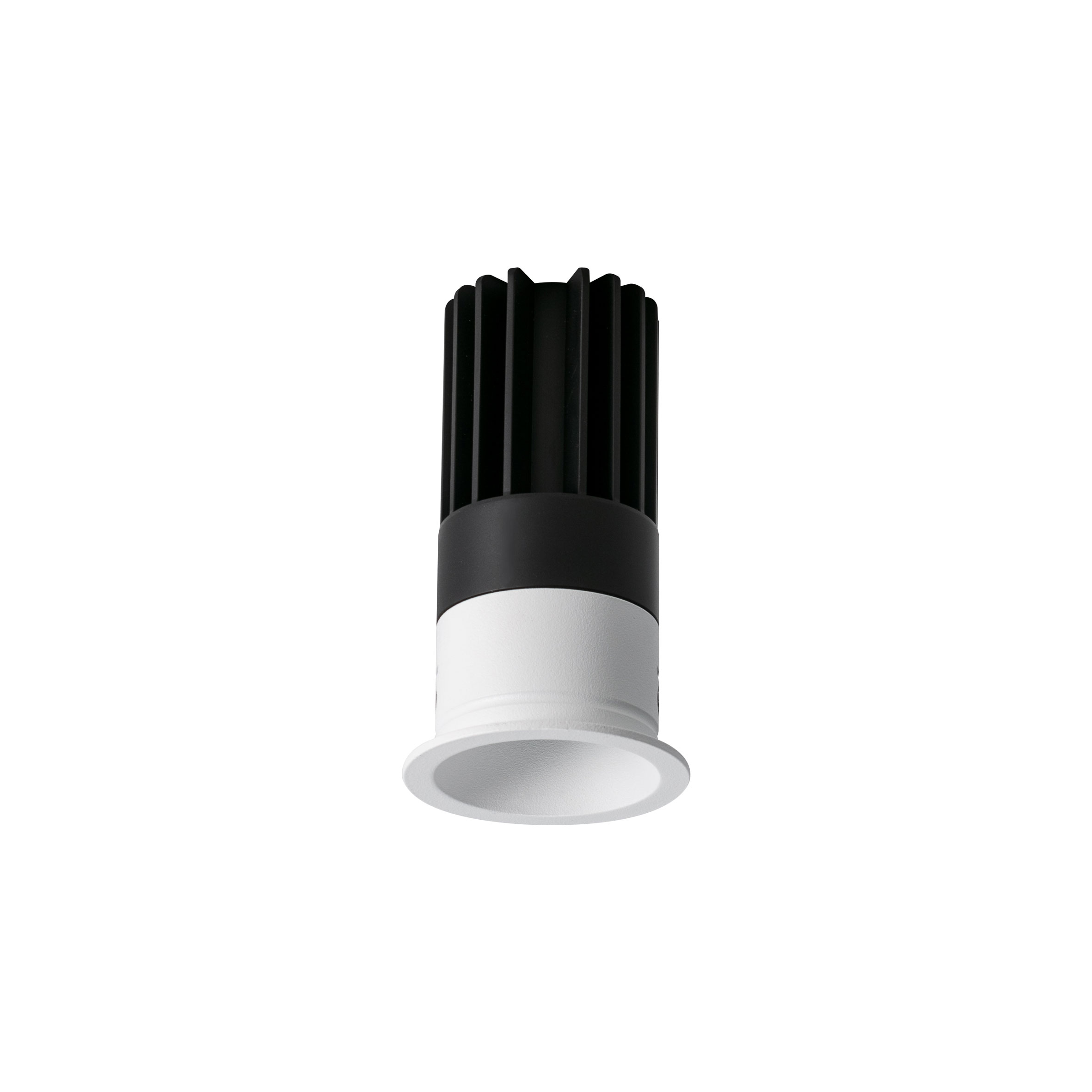

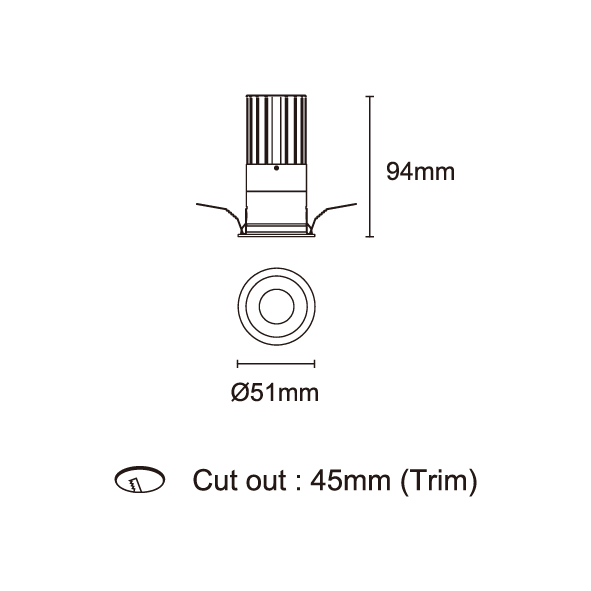

- 2118.564-ACOT-97-IP
- 10W
- 697lm

-
STAR-50
ITEM NO. 2118.564-ACOT-97-IP
Consumption10W
Current / Voltage250mA
LED Lumen697lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<16
IPIP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 2118.565-ACOT-97
- 10W
- 642lm

-
STAR-50
ITEM NO. 2118.565-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen642lm
Beam Angle 20°/25°/35°/40°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<16
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

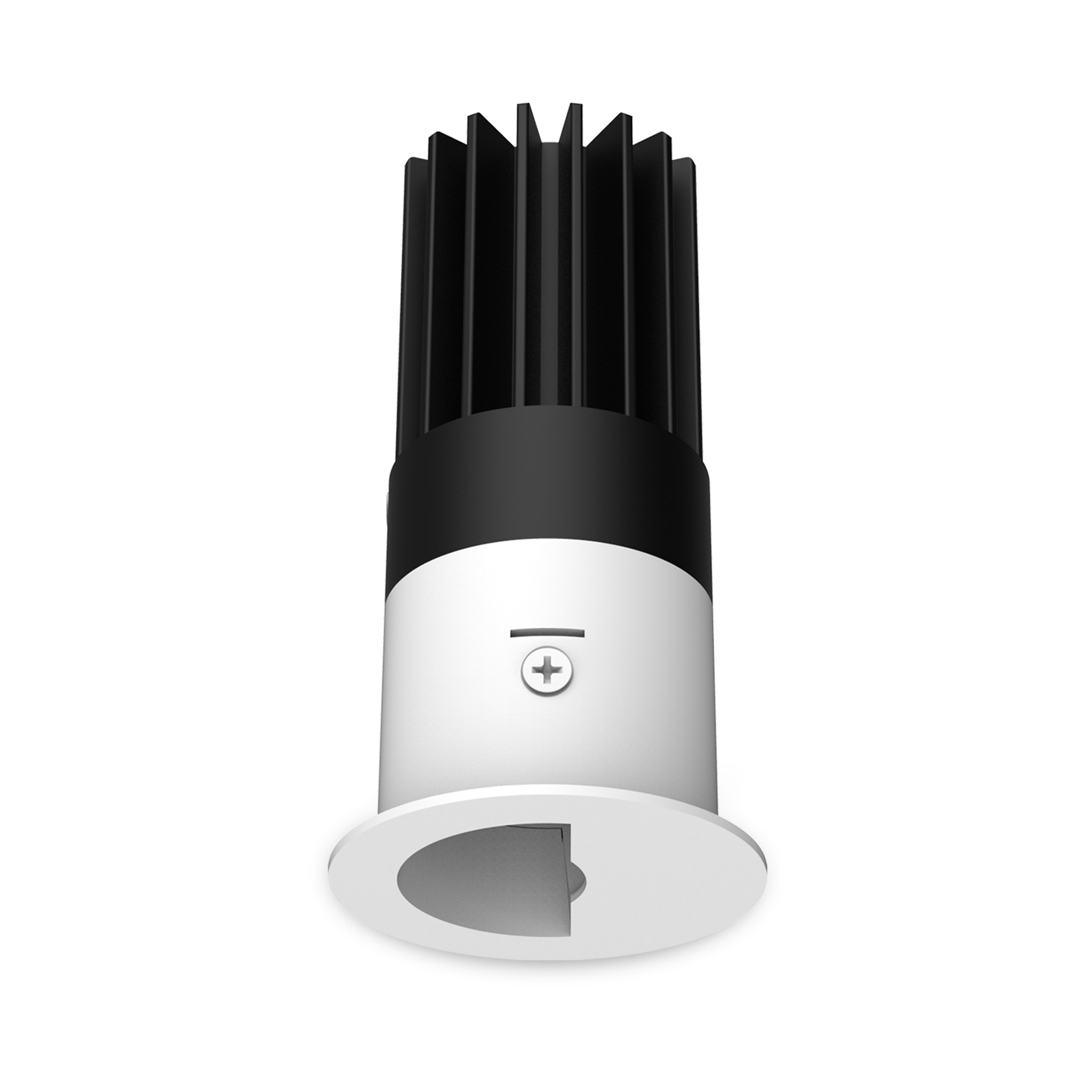

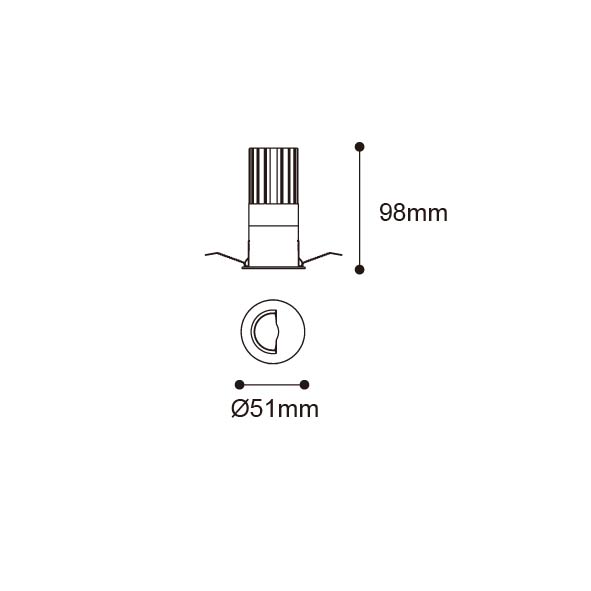

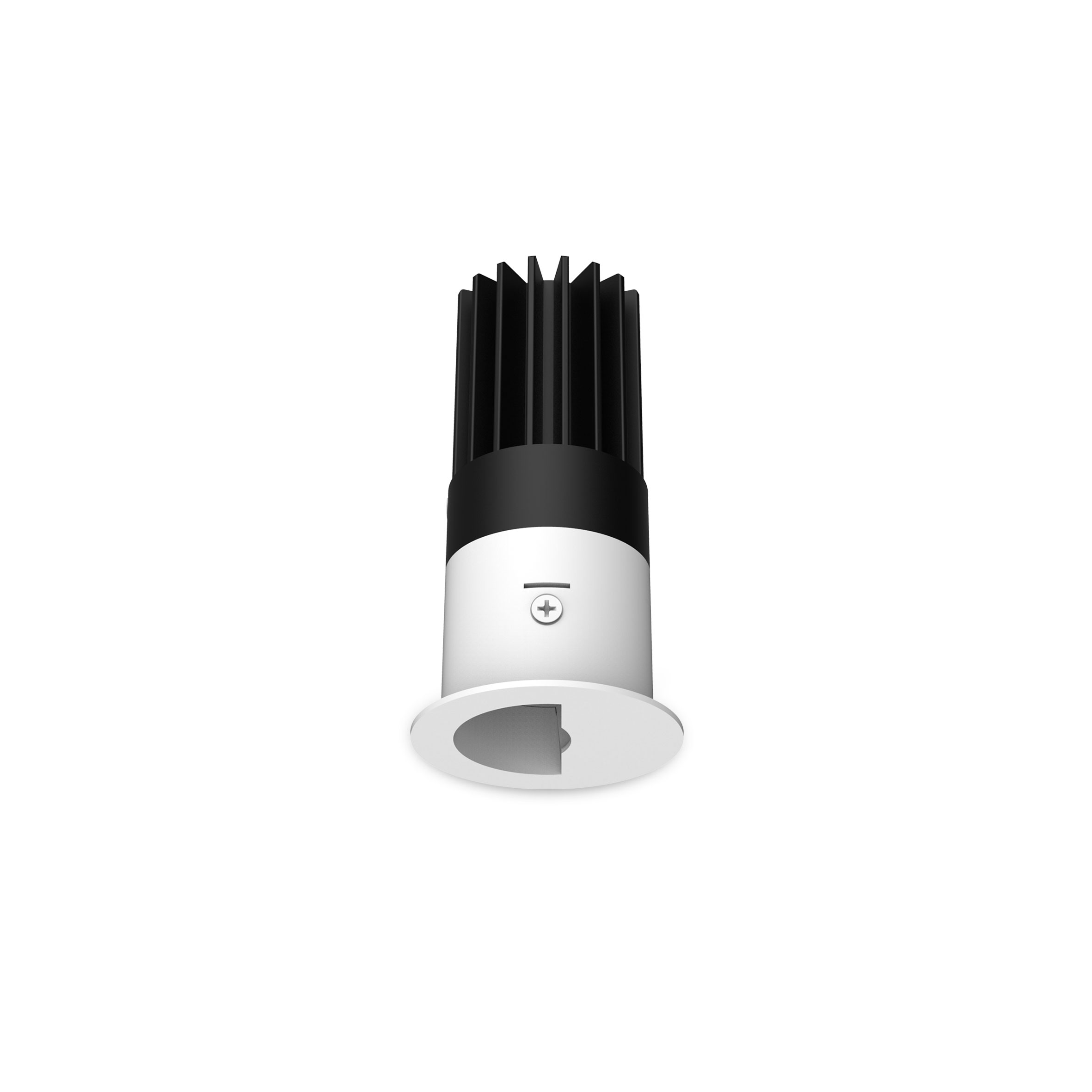

- 2318.100-ACOT-97
- 10W
- 913lm

-
STAR-50
ITEM NO. 2318.100-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen913lm
Beam Angle Wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IPIP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 2118.659F-ACOT-97
- 10W
- 697lm

-
STAR-50
ITEM NO. 2118.659F-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen697lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<16
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

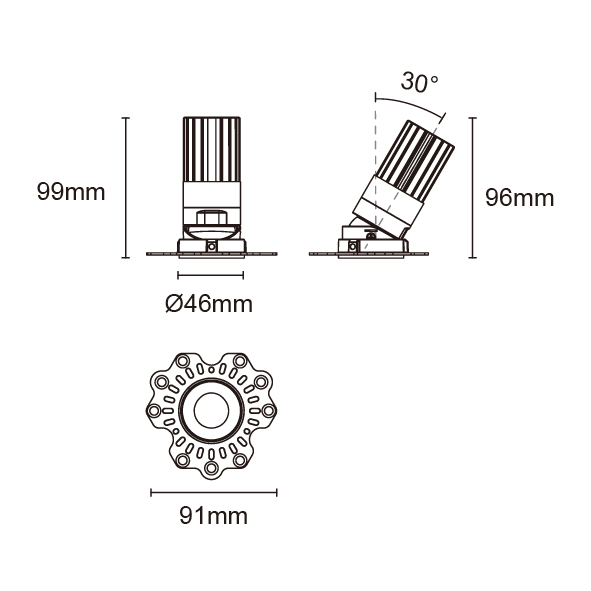

- 2118.660F-ACOT-97
- 10W
- 642lm

-
STAR-50
ITEM NO. 2118.660F-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen642lm
Beam Angle 20°/25°/35°/40°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<16
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

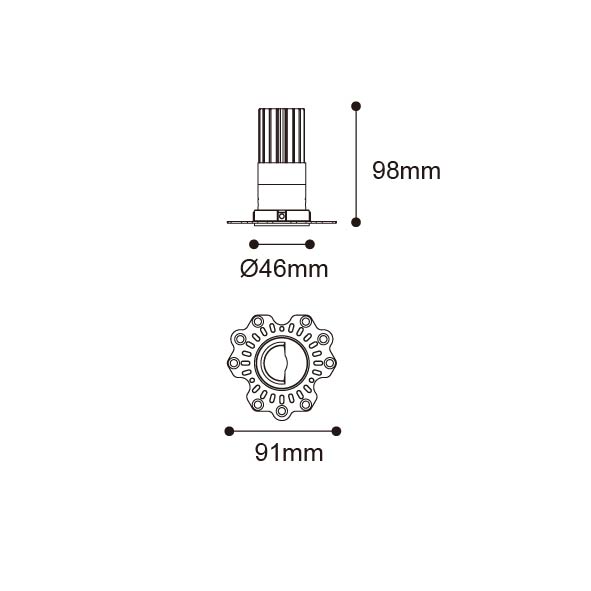

- 2318.200F-ACOT-97
- 10W
- 419lm

-
STAR-50

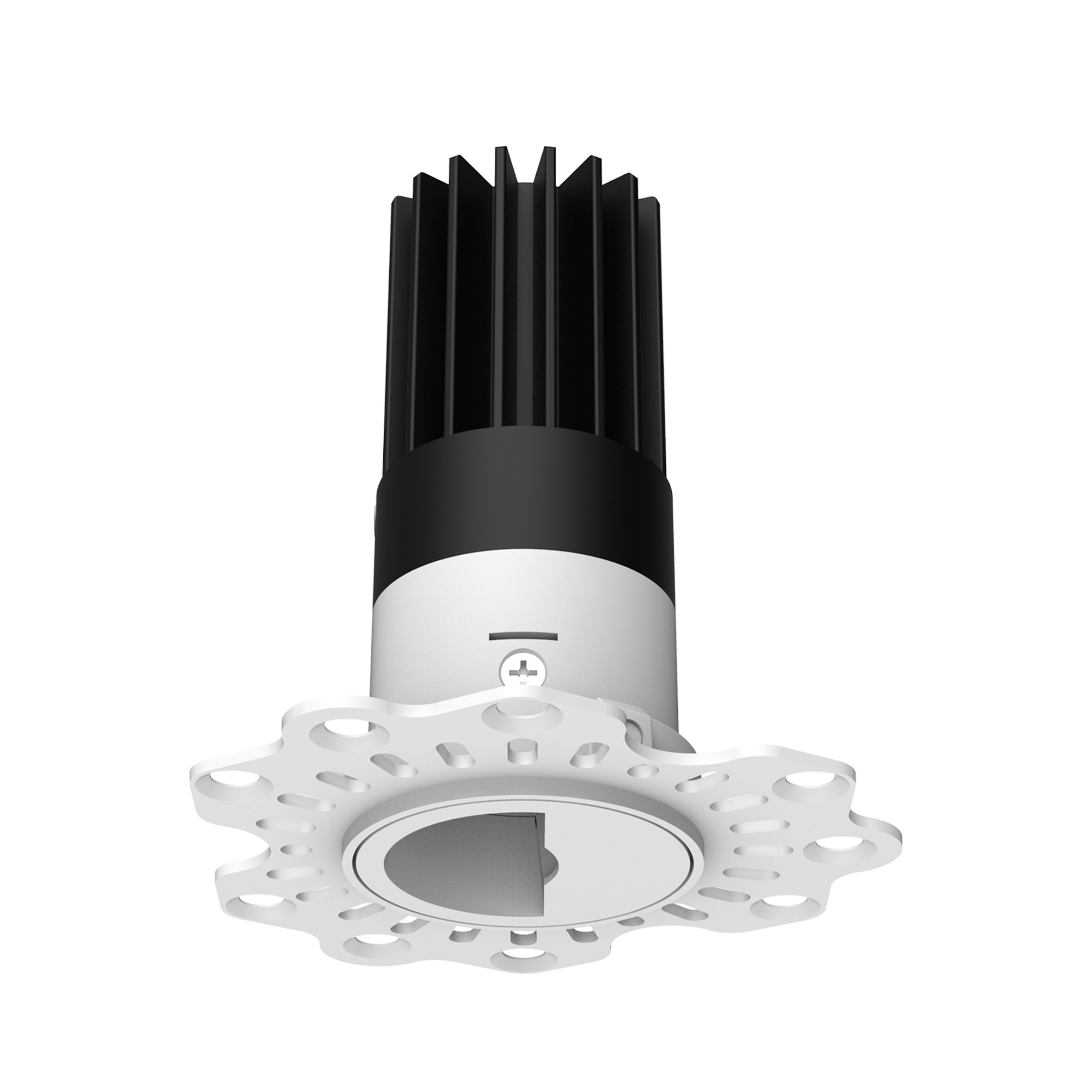

ITEM NO. 2318.200F-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen419lm
Beam Angle Wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IPIP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

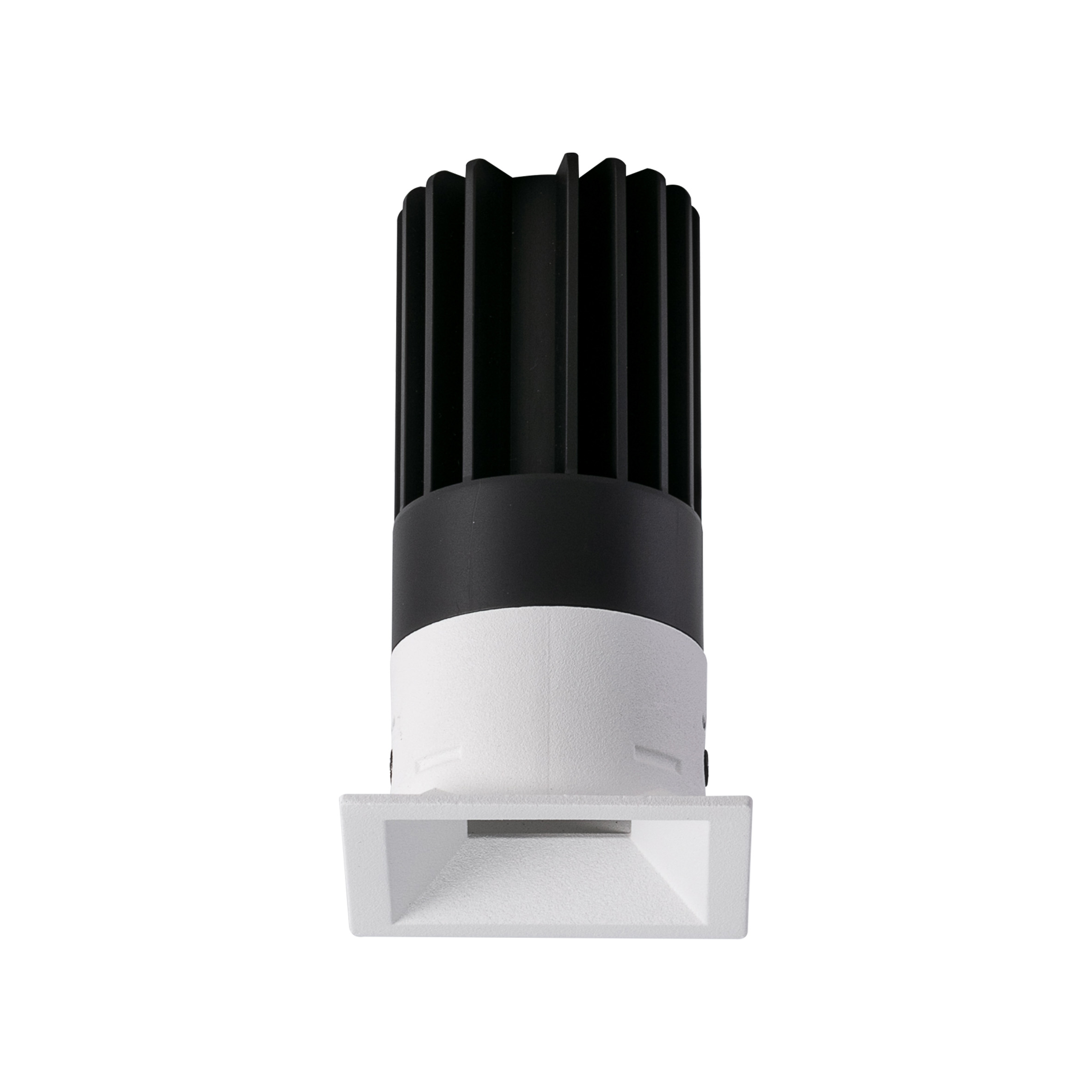

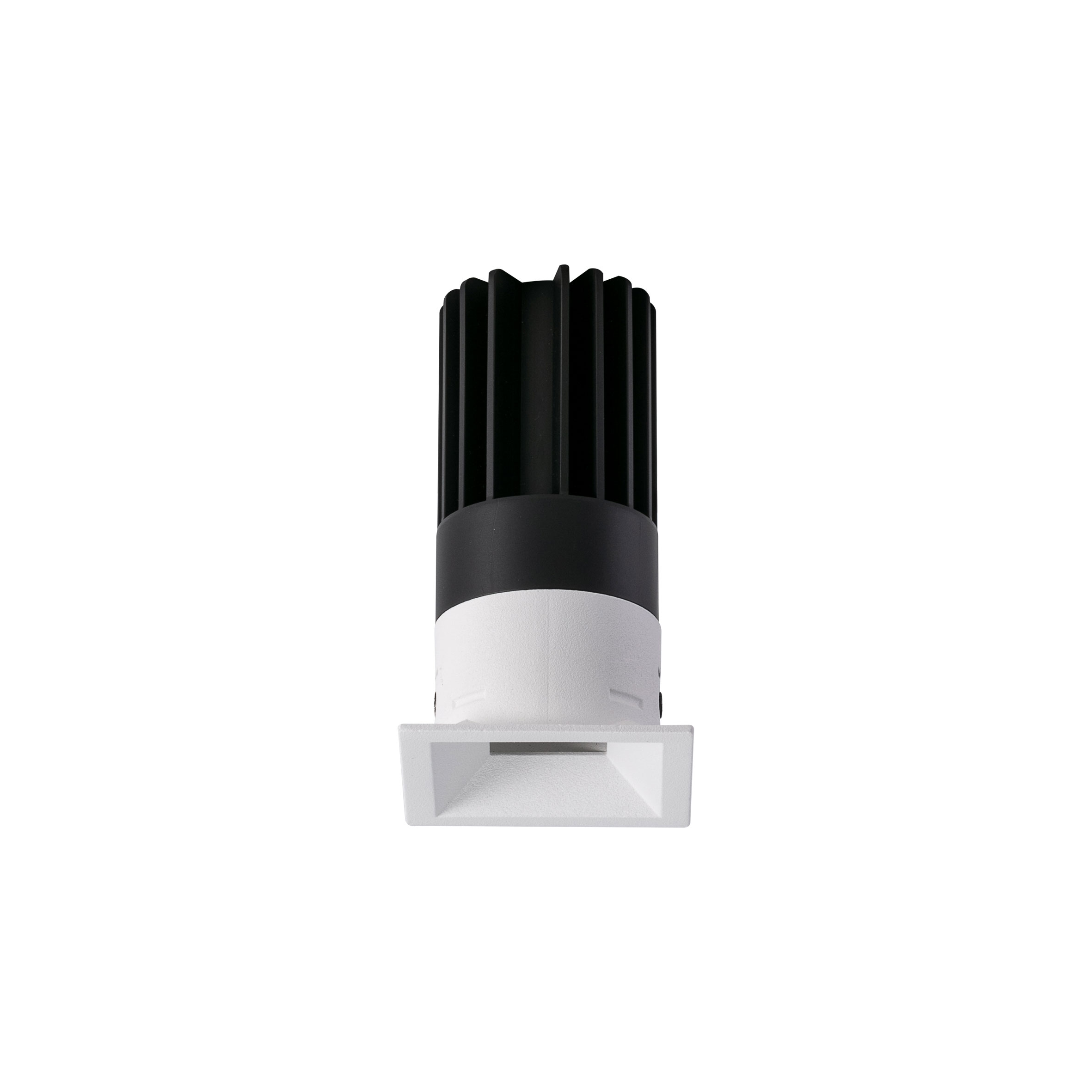

- 2218.117-ACOT-97-IP
- 10W
- 913lm

-
STAR-50

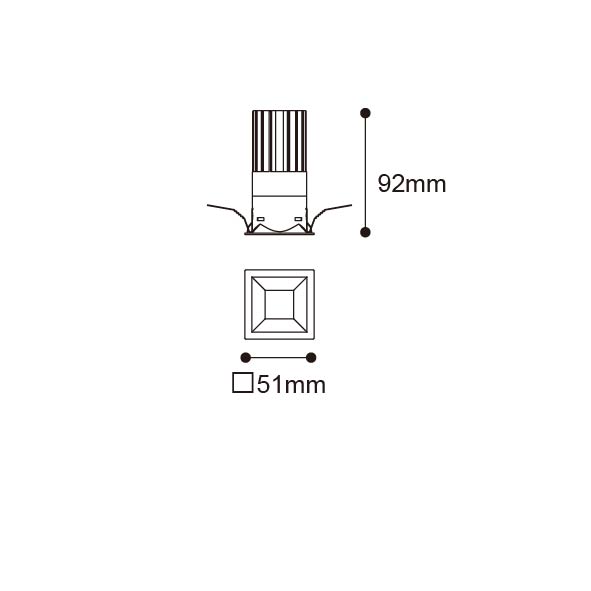

ITEM NO. 2218.117-ACOT-97-IP
Consumption10W
Current / Voltage250mA
LED Lumen913lm
Beam Angle 20° /25° /35° /50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<19
IPIP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

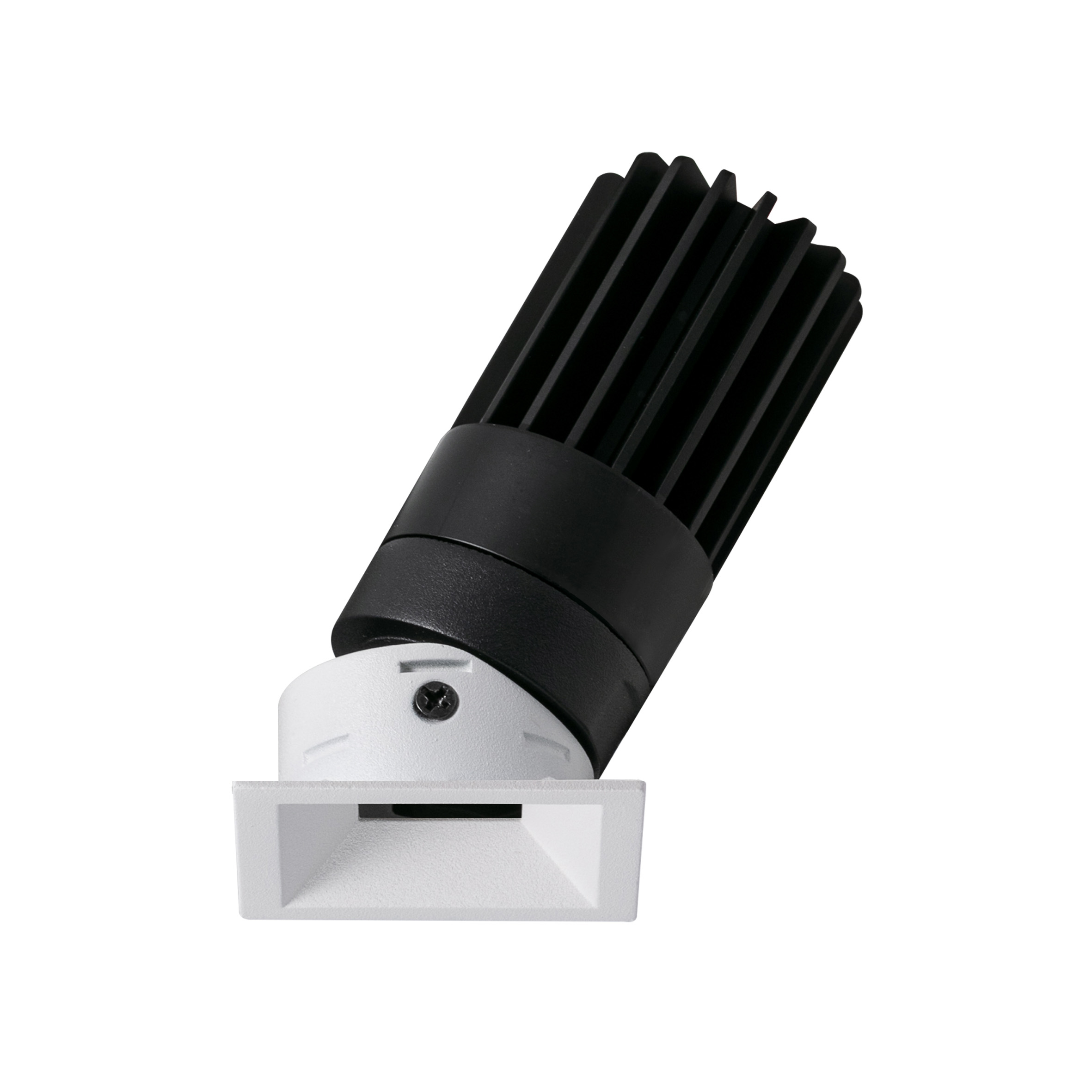

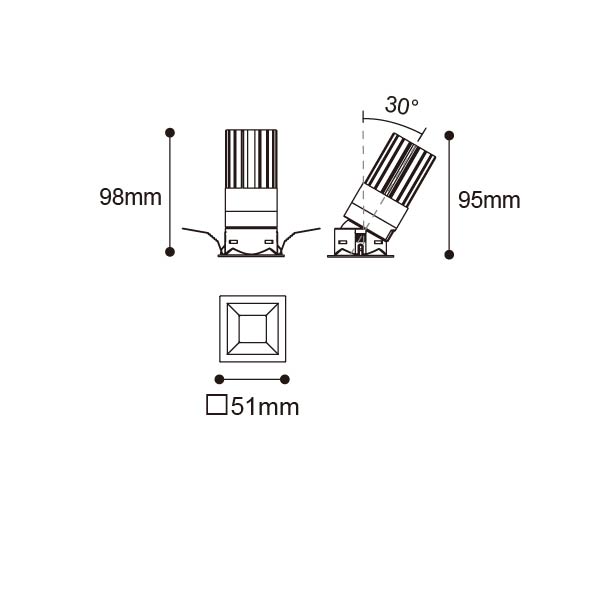

- 2218.118-ACOT-97
- 10W
- 655lm

-
STAR-50
ITEM NO. 2218.118-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen655lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<18
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

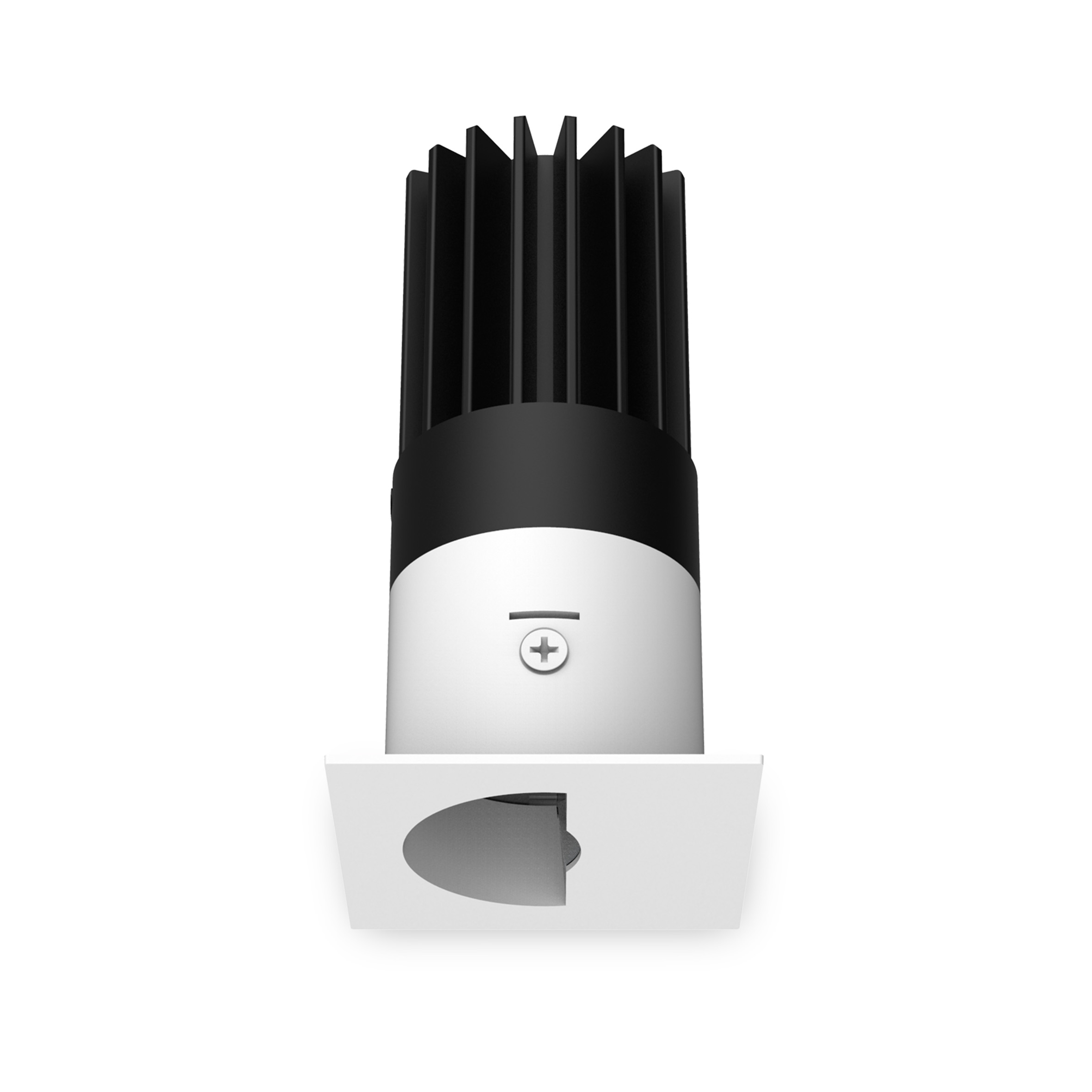

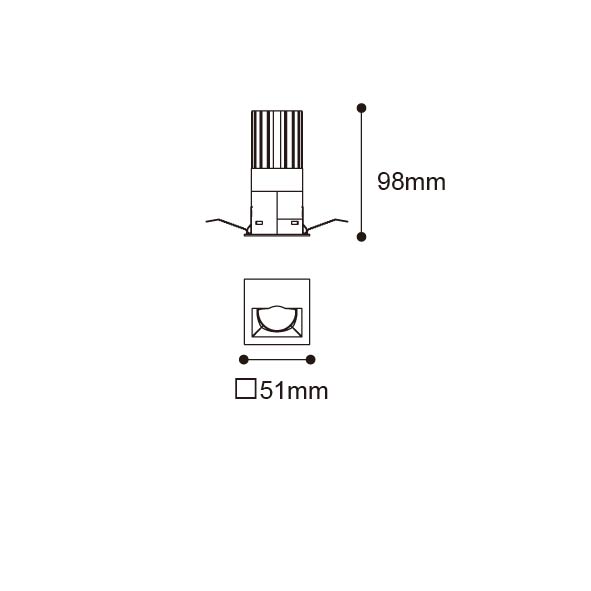

- 2318.104-ACOT-97
- 10W
- 913lm

-
STAR-50
ITEM NO. 2318.104-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen913lm
Beam Angle Wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IPIP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue
- 2218.208A-ACOT-97
- 10W
- 724lm

-
STAR-50

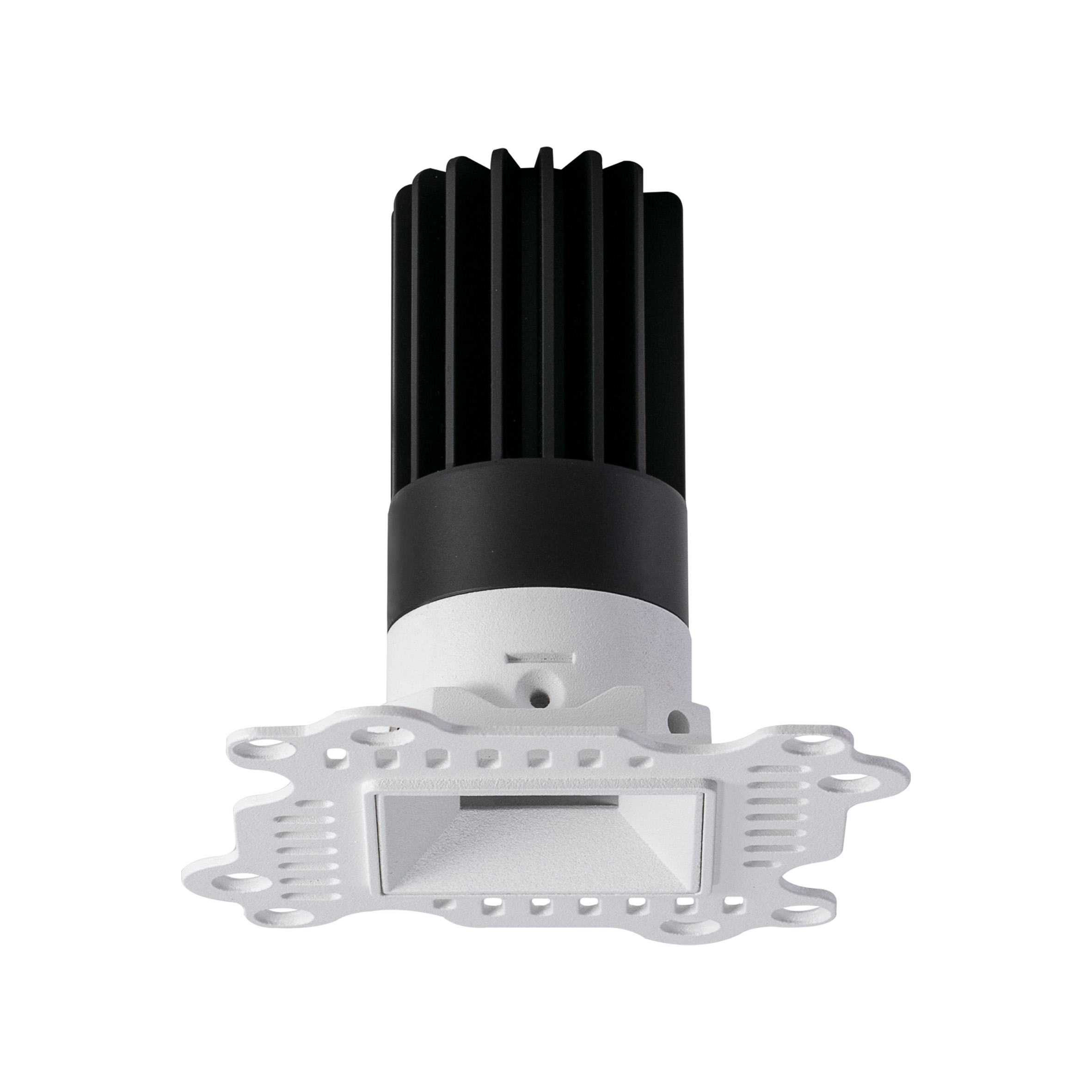

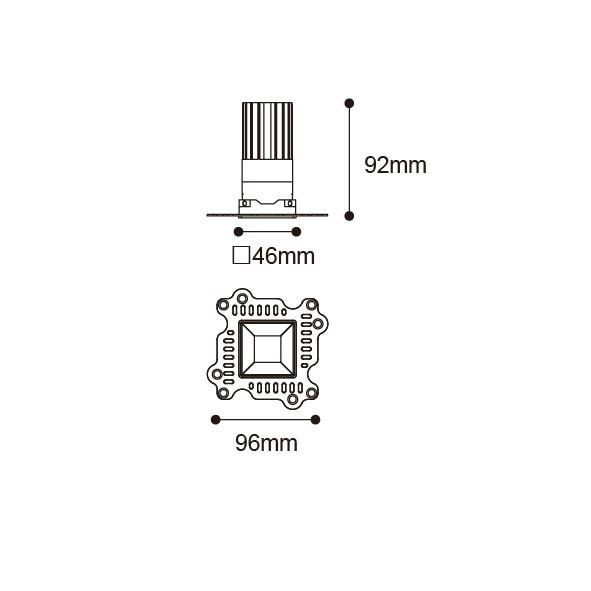

ITEM NO. 2218.208A-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen724lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<19
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

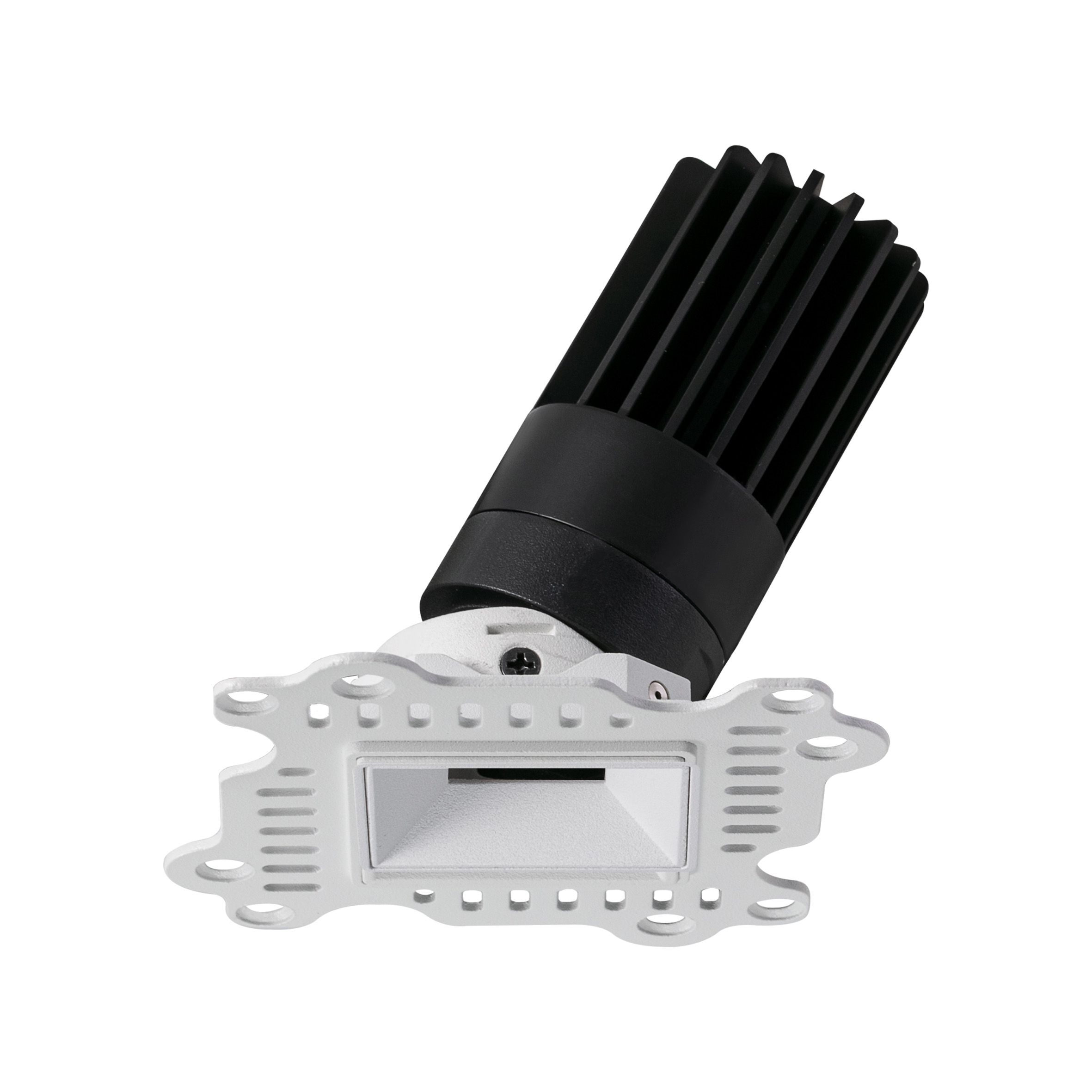

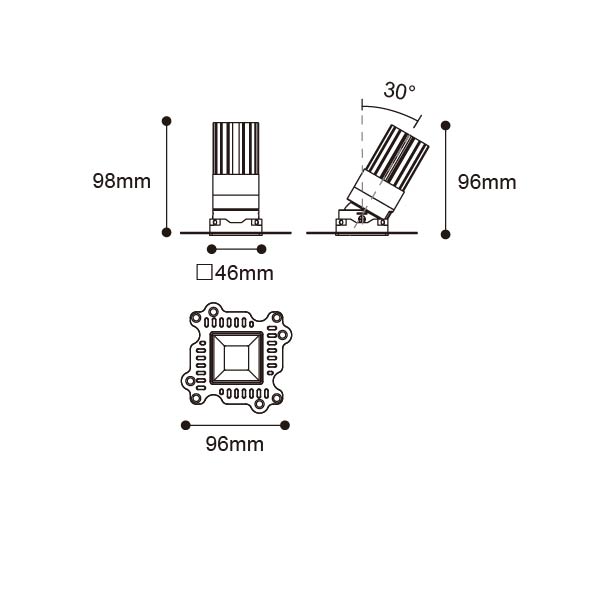

- 2218.209A-ACOT-97
- 10W
- 913lm

-
STAR-50
ITEM NO. 2218.209A-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen913lm
Beam Angle 20°/25°/35°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR<18
IPIP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

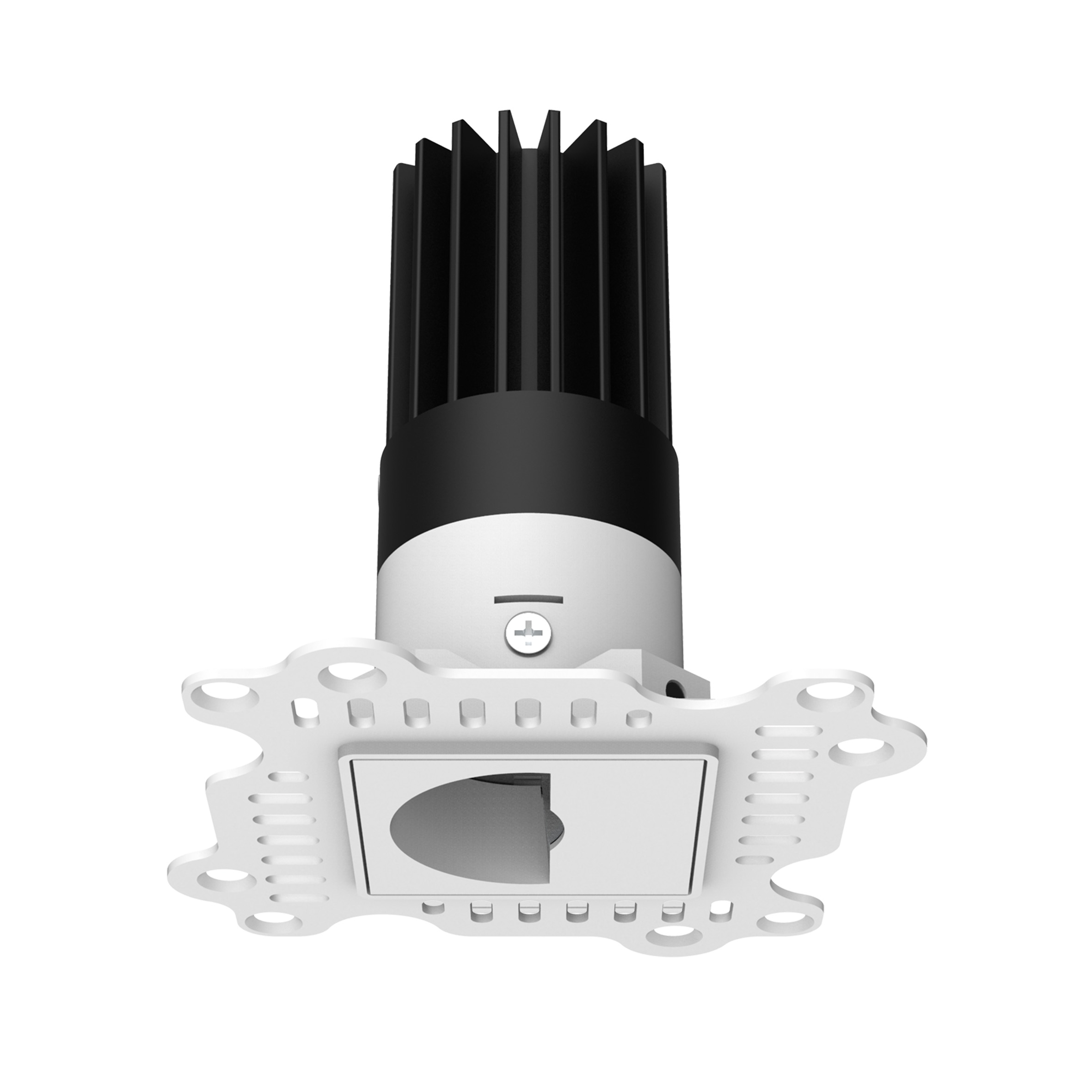

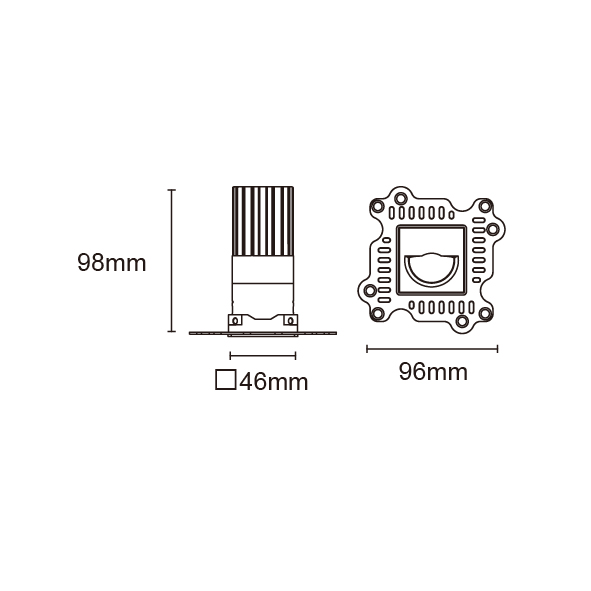

- 2318.204A-ACOT-97
- 10W
- 913lm

-
STAR-50
ITEM NO. 2318.204A-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen913lm
Beam Angle Wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IPIP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

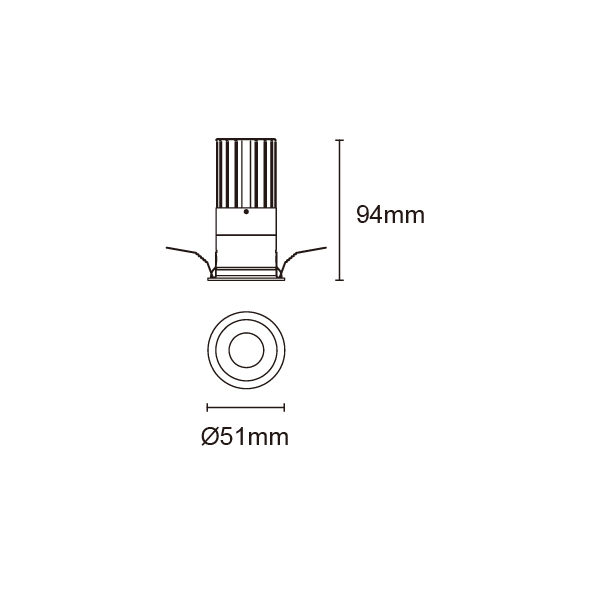

- 2118.564-LEE-18-IP
- 10W
- 774lm

-
STAR-50
ITEM NO. 2118.564-LEE-18-IP
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 13°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
- E-catalogue

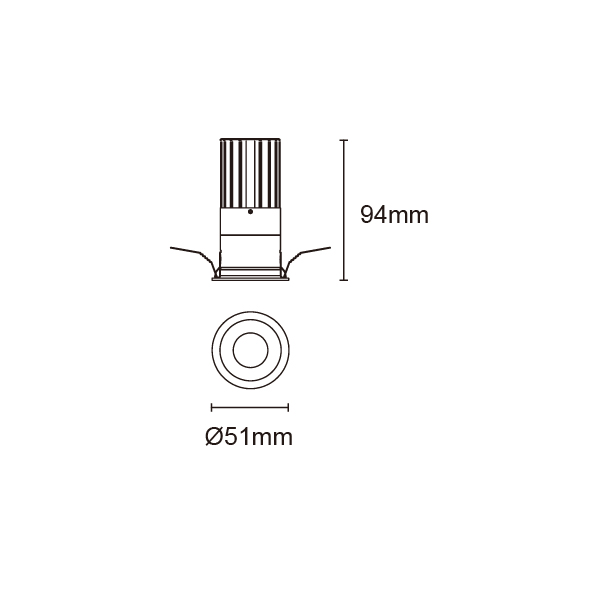

- 2118.564-ACOT-97-DW-IP
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2118.564-ACOT-97-DW-IP
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 25°/30°/40°/45°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2118.564-ACOT-97-WCW-IP
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2118.564-ACOT-97-WCW-IP
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/35°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2118.659F-LEE-18
- 10W
- 774lm

-
STAR-50

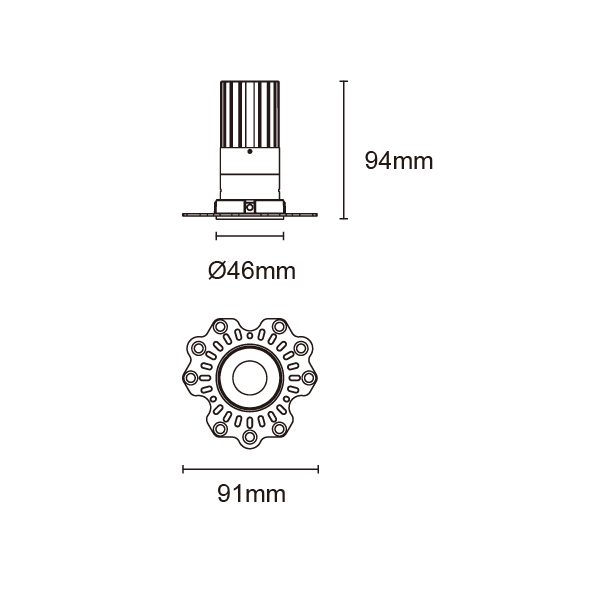

ITEM NO. 2118.659F-LEE-18
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 13°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

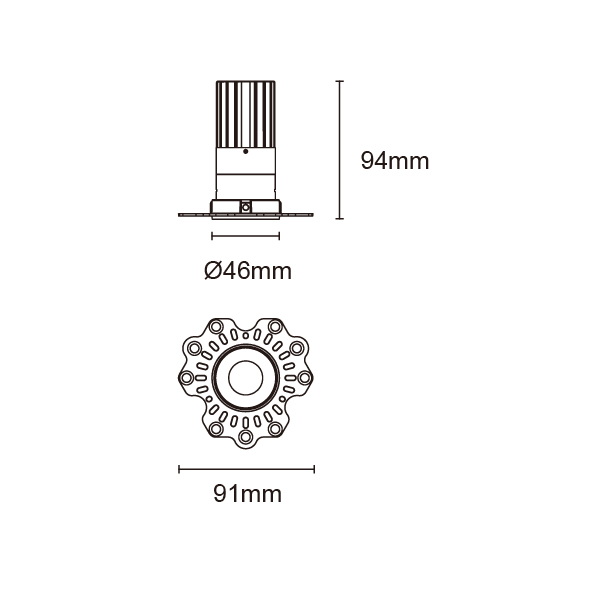

- 2118.659F-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2118.659F-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 25°/30°/40°/45°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2118.659F-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2118.659F-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/35°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

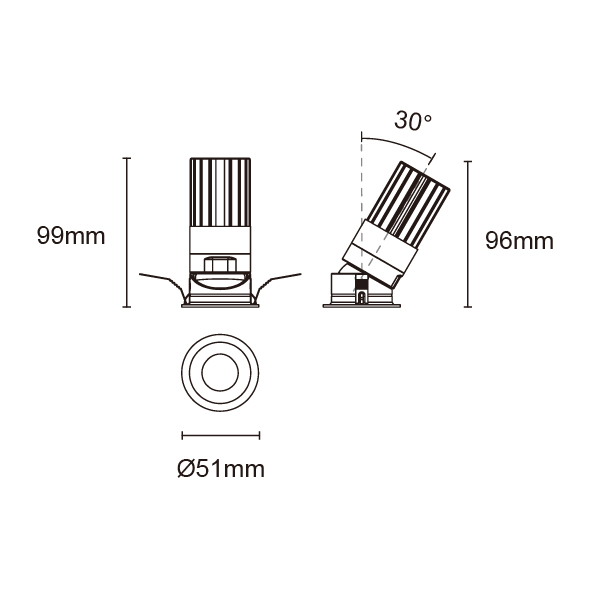

- 2118.565-LEE-18
- 10W
- 774lm

-
STAR-50
ITEM NO. 2118.565-LEE-18
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 13°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

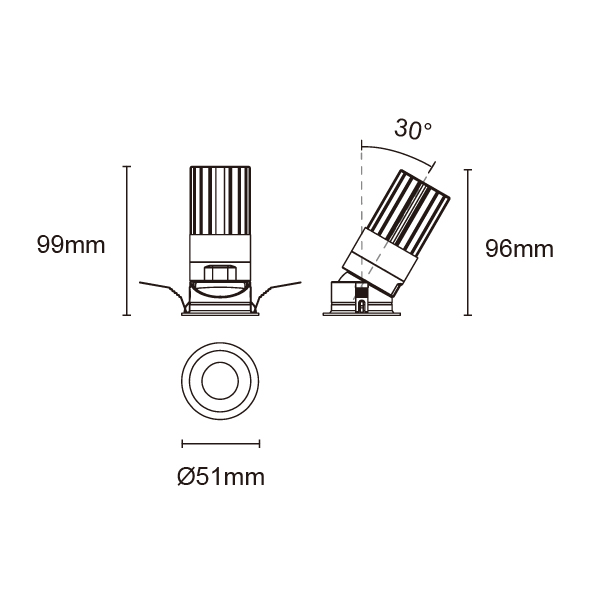

- 2118.565-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2118.565-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 20°/25°/35°/40°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2118.565-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2118.565-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/35°/40°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

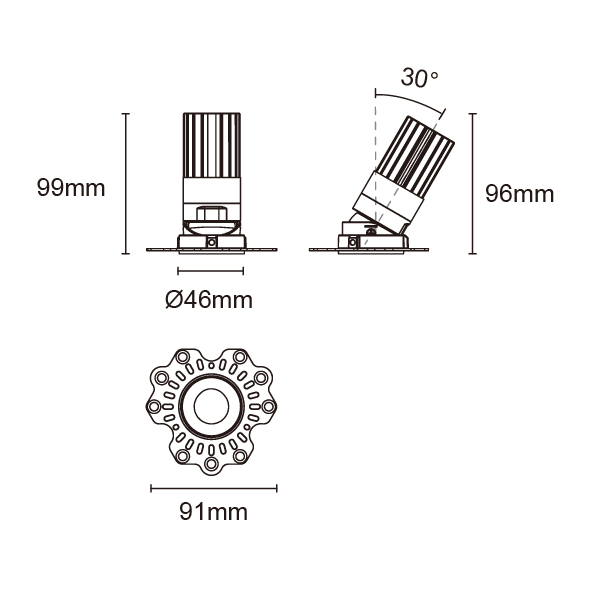

- 2118.660F-LEE-18
- 10W
- 774lm

-
STAR-50
ITEM NO. 2118.660F-LEE-18
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 13°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2118.660F-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2118.660F-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 20°/25°/35°/40°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2118.660F-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2118.660F-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/35°/40°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

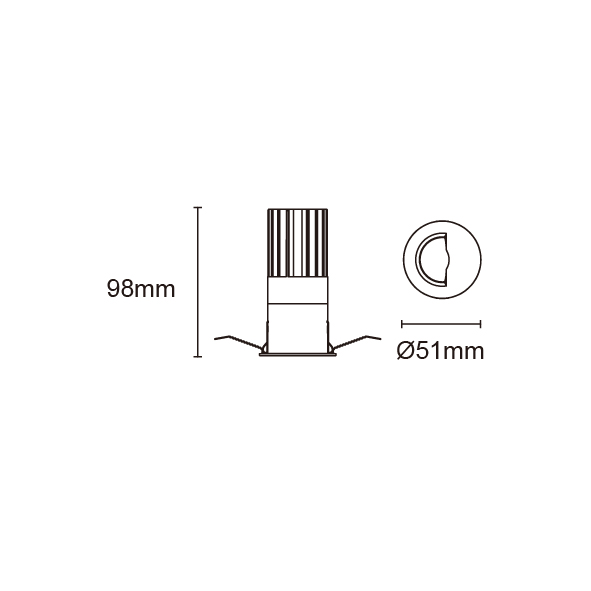

- 2318.100-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2318.100-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle Wallwash
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2318.100-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2318.100-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle Wallwash
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2318.200F-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50

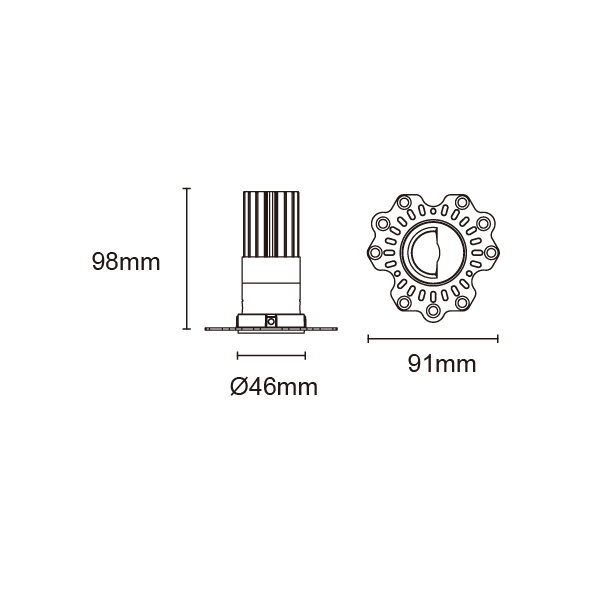

ITEM NO. 2318.200F-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle Wallwash
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2318.200F-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2318.200F-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle Wallwash
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

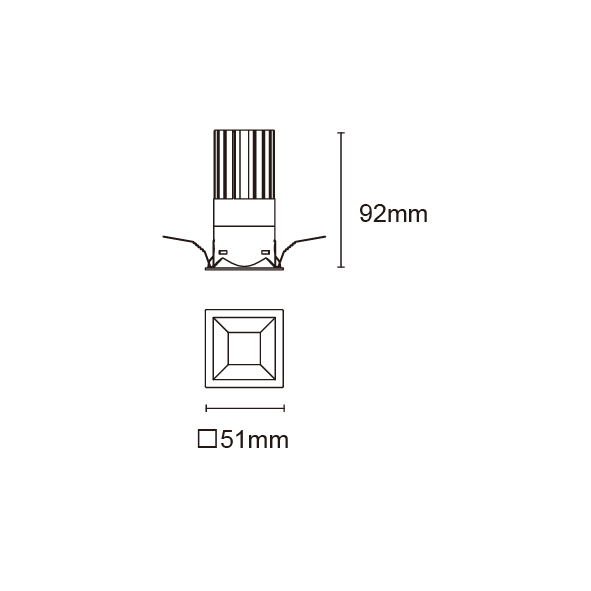

- 2218.117-LEE-18-IP
- 10W
- 774lm

-
STAR-50
ITEM NO. 2218.117-LEE-18-IP
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

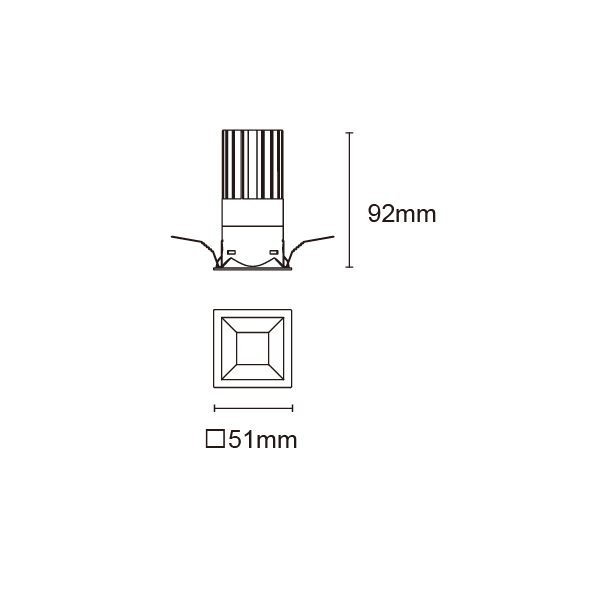

- 2218.117-ACOT-97-DW-IP
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2218.117-ACOT-97-DW-IP
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 25°/30°/35°/40°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.117-ACOT-97-WCW-IP
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2218.117-ACOT-97-WCW-IP
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/35°/40°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

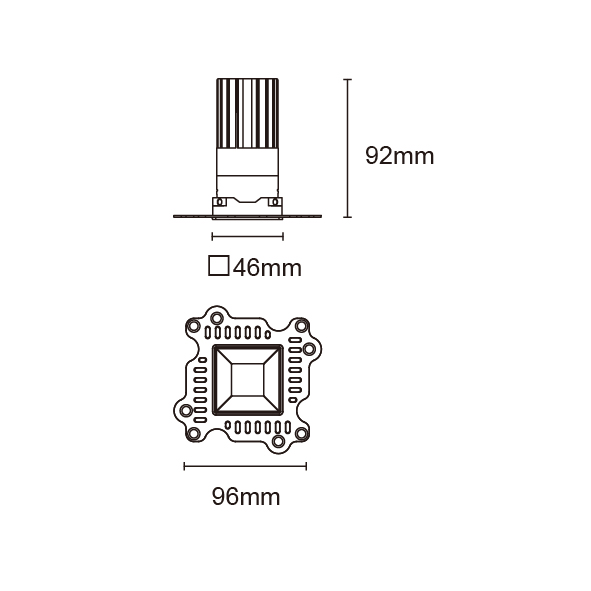

- 2218.208A-LEE-18
- 10W
- 774lm

-
STAR-50
ITEM NO. 2218.208A-LEE-18
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.208A-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2218.208A-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 20°/30°/35°/40°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.208A-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2218.208A-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/35°/40°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

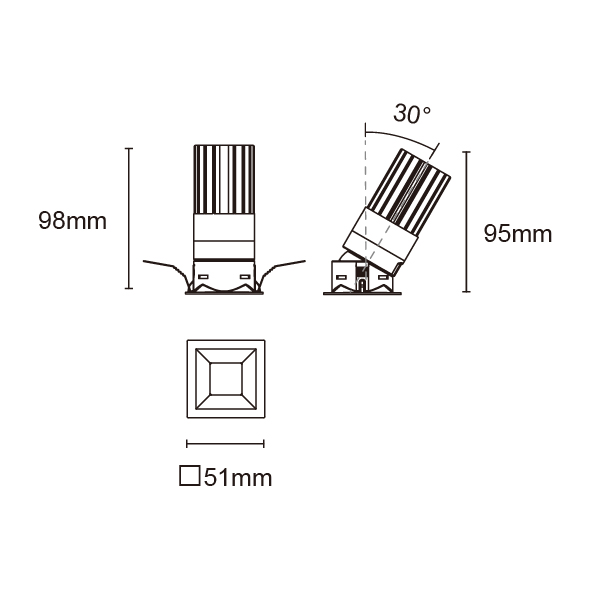

- 2218.118-LEE-18
- 10W
- 774lm

-
STAR-50
ITEM NO. 2218.118-LEE-18
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.118-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50

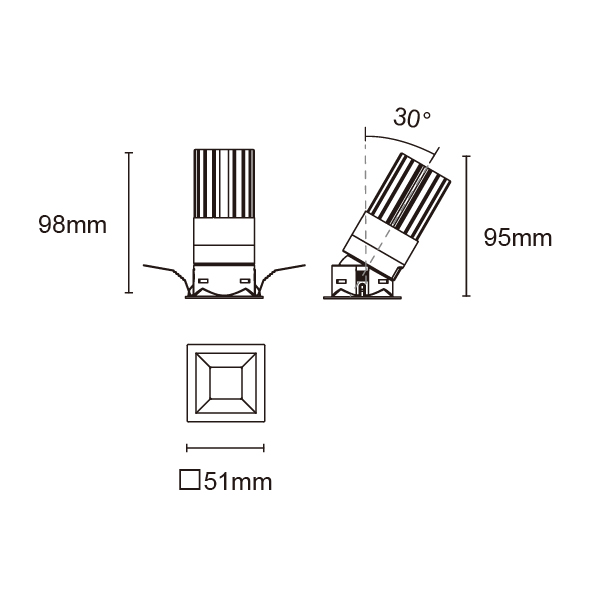

ITEM NO. 2218.118-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 20°/25°/35°/40°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.118-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2218.118-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/35°/40°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download

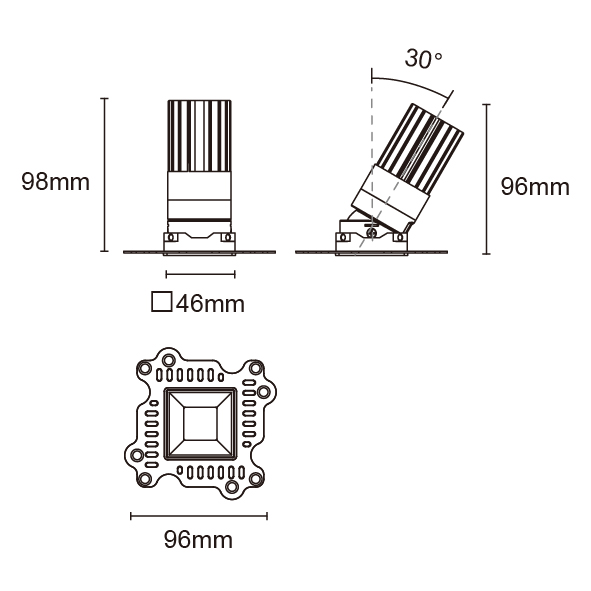

- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.209A-LEE-18
- 10W
- 774lm

-
STAR-50
ITEM NO. 2218.209A-LEE-18
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

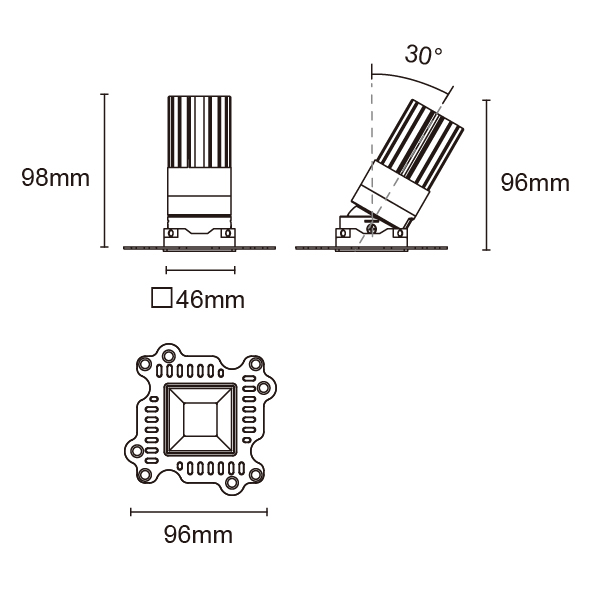

- 2218.209A-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2218.209A-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 20°/25°/35°/40°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.209A-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2218.209A-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/35°/40°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

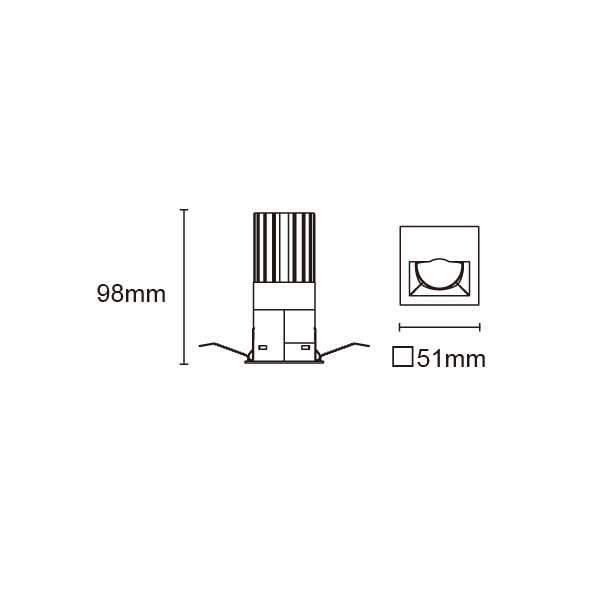

- 2318.104-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2318.104-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle Wallwash
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2318.104-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2318.104-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle Wallwash
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2318.204A-ACOT-97-DW
- 10W
- 14-611lm

-
STAR-50
ITEM NO. 2318.204A-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle Wallwash
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2318.204A-ACOT-97-WCW
- 10W
- 740-951lm

-
STAR-50
ITEM NO. 2318.204A-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle Wallwash
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download

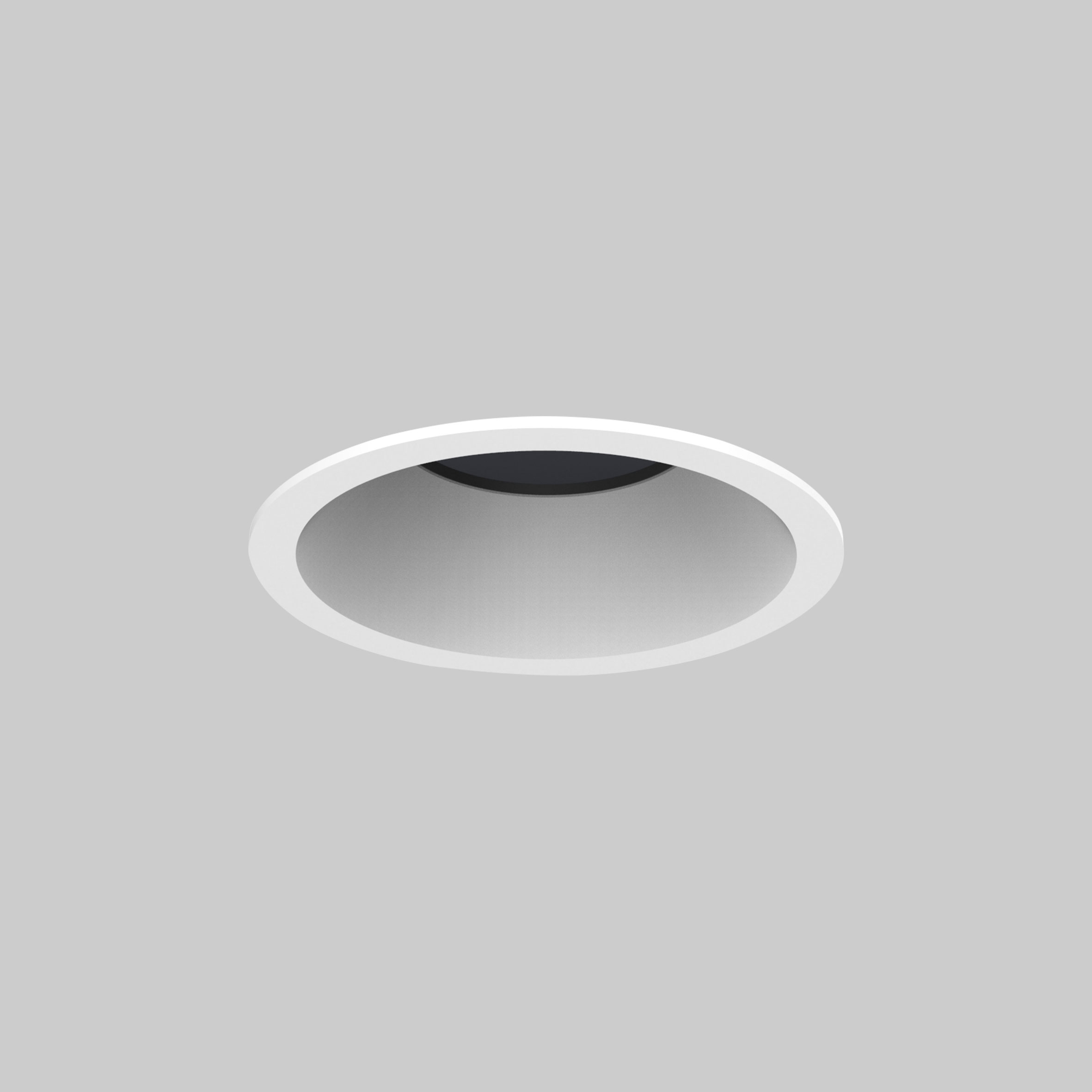

- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

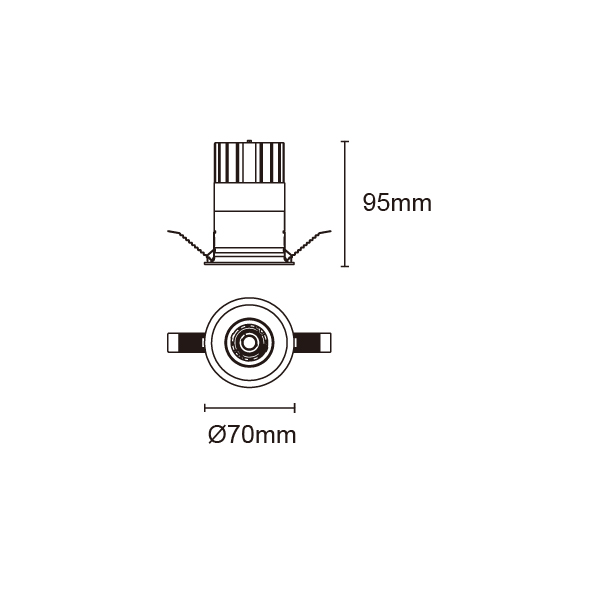

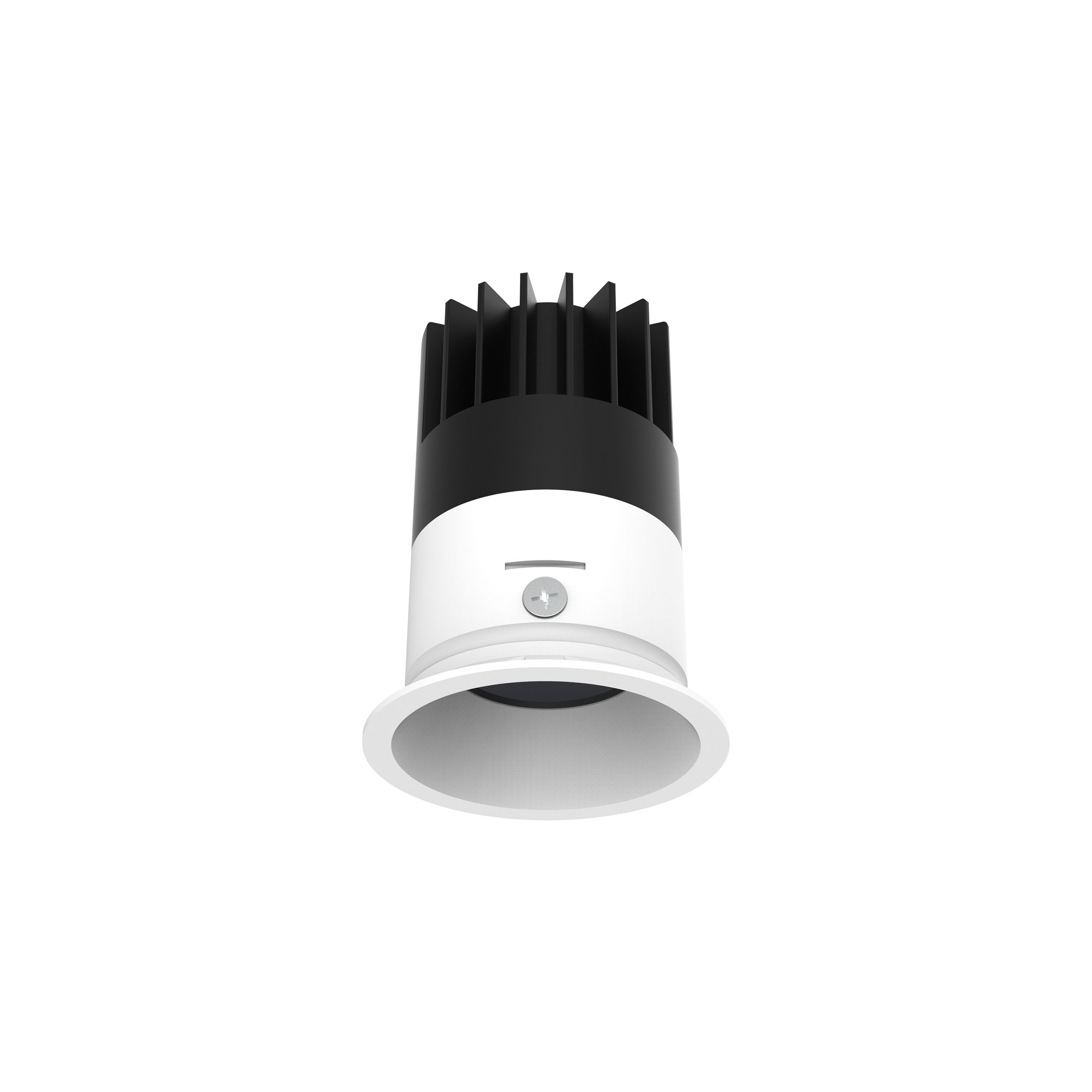

- 2418.144-LEE-27-HE-IP
- 14W
- 2047lm

-
STAR-70

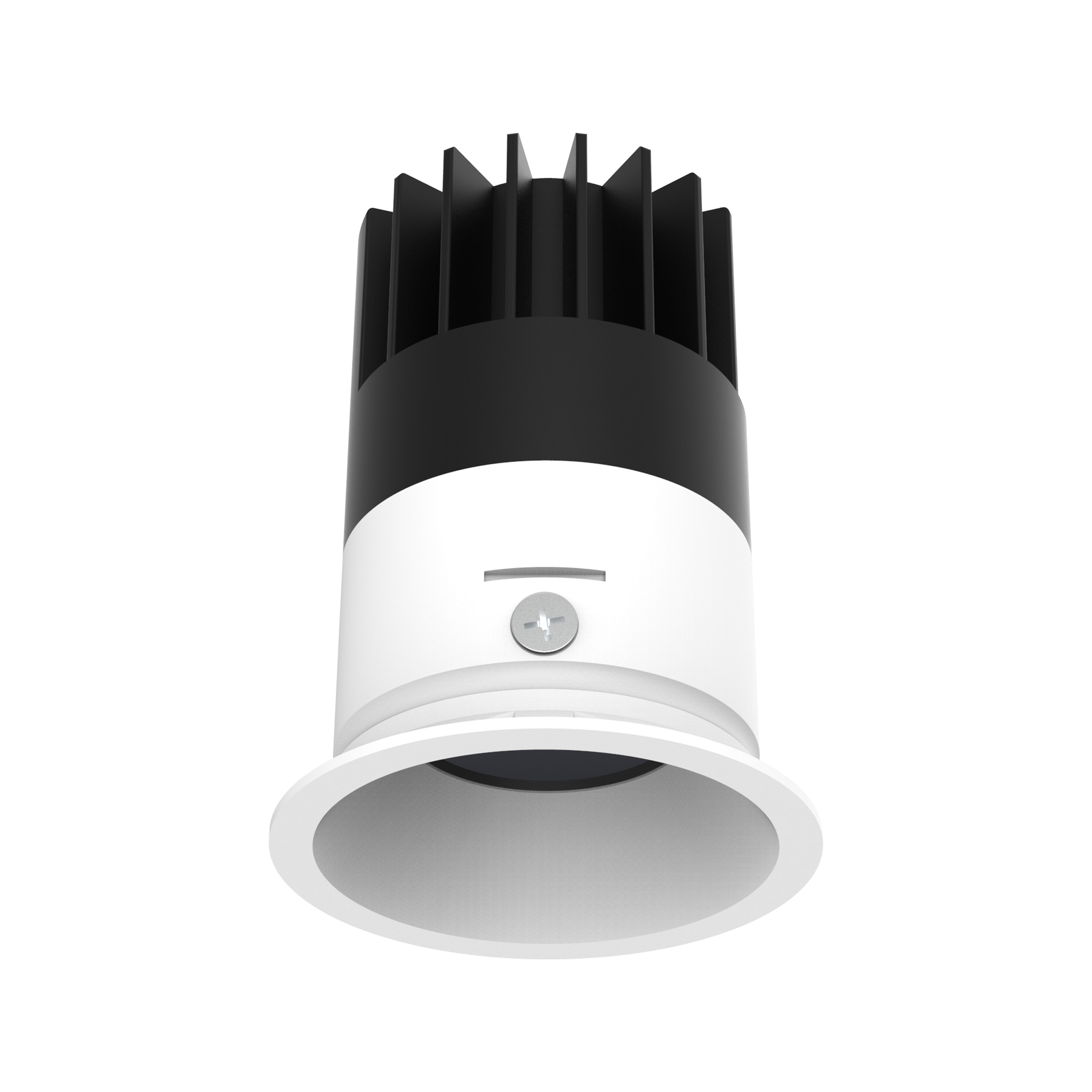

ITEM NO. 2418.144-LEE-27-HE-IP
Consumption14W
Current / Voltage400mA
LED Lumen2047lm
Beam Angle 22°/32°/42°/54°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

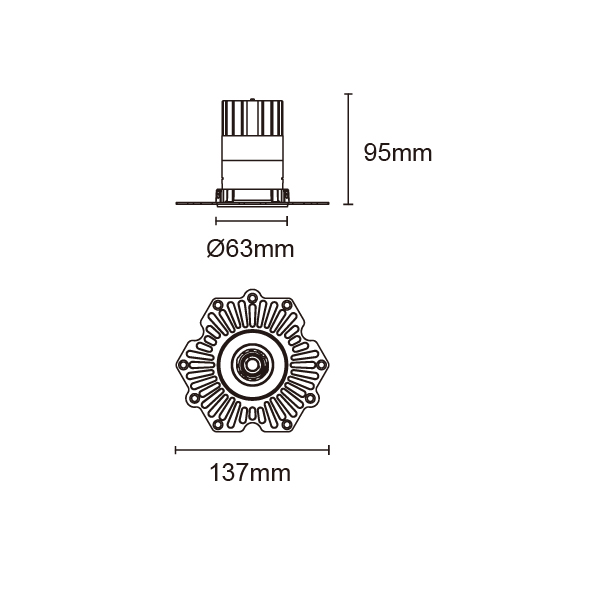

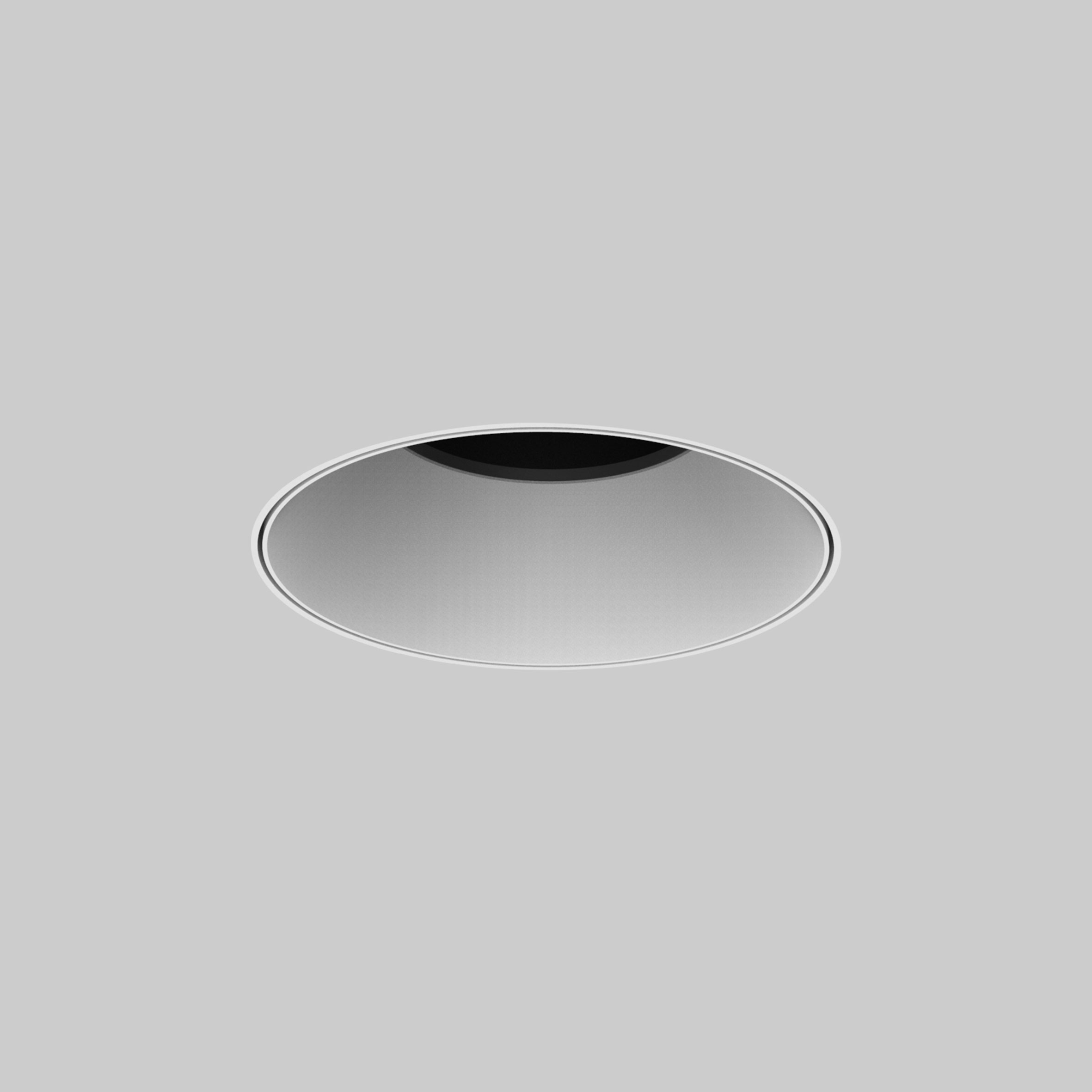

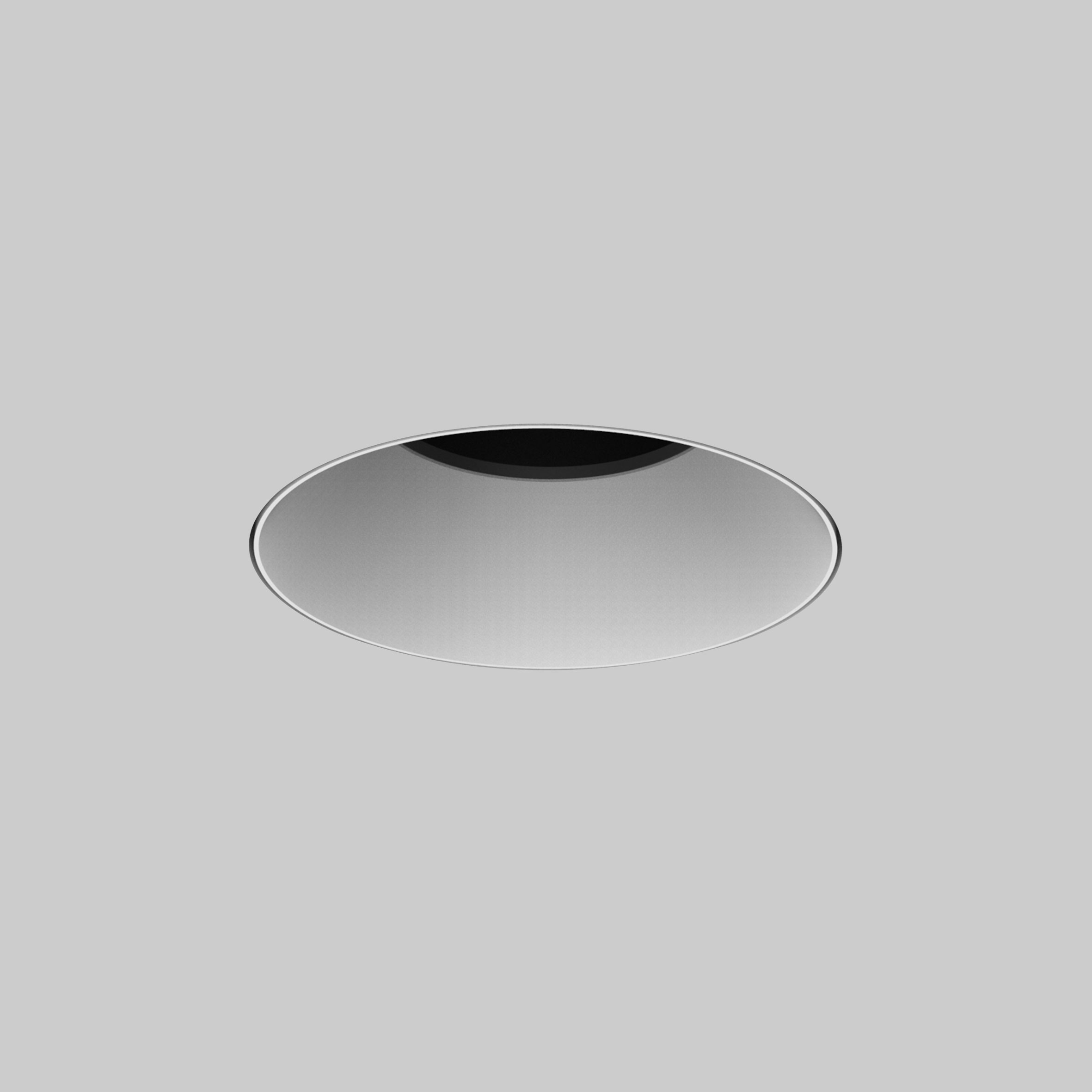

- 2418.211F-LEE-27-HE
- 14W
- 2047lm

-
STAR-70

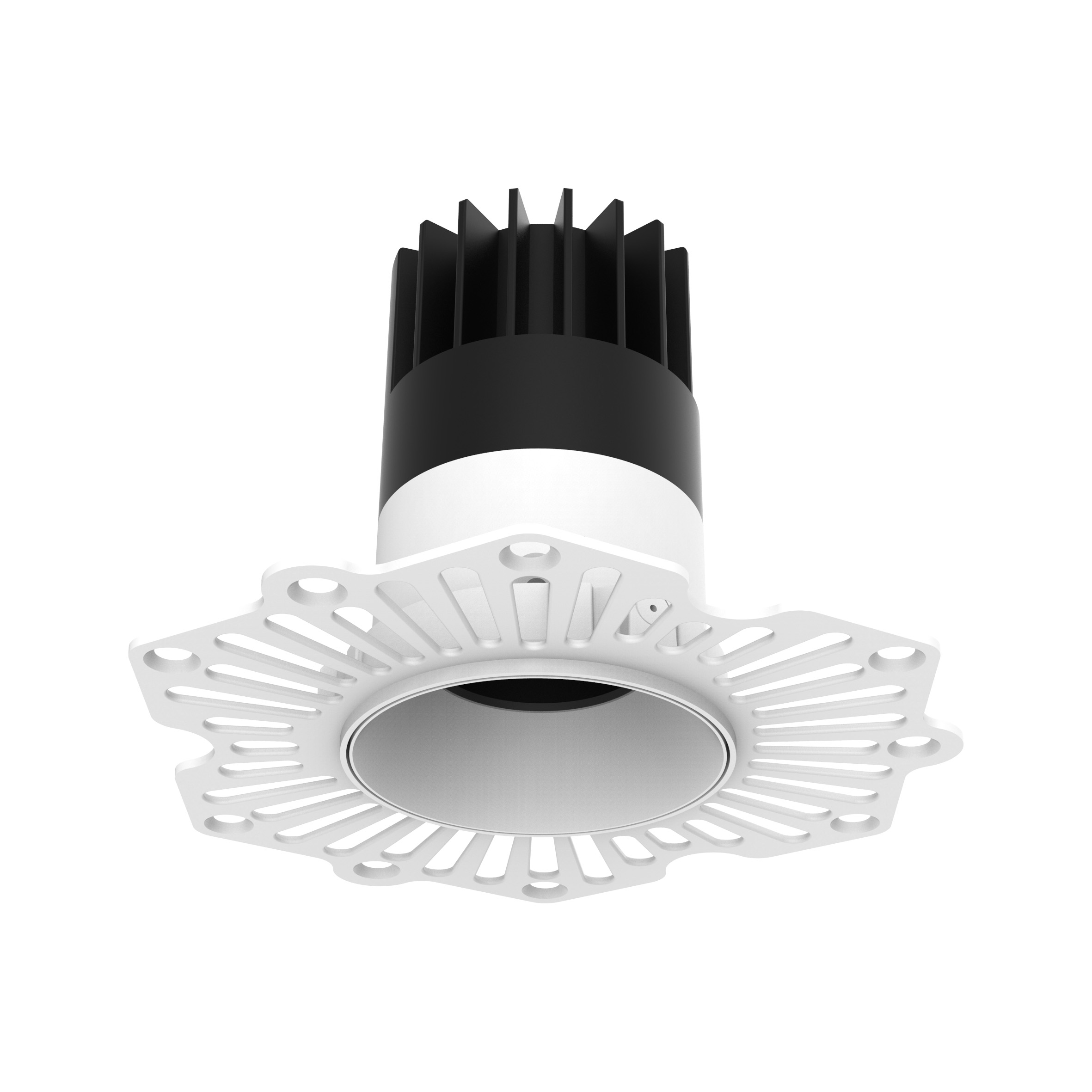

ITEM NO. 2418.211F-LEE-27-HE
Consumption14W
Current / Voltage400mA
LED Lumen2047lm
Beam Angle 22°/32°/42°/54°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

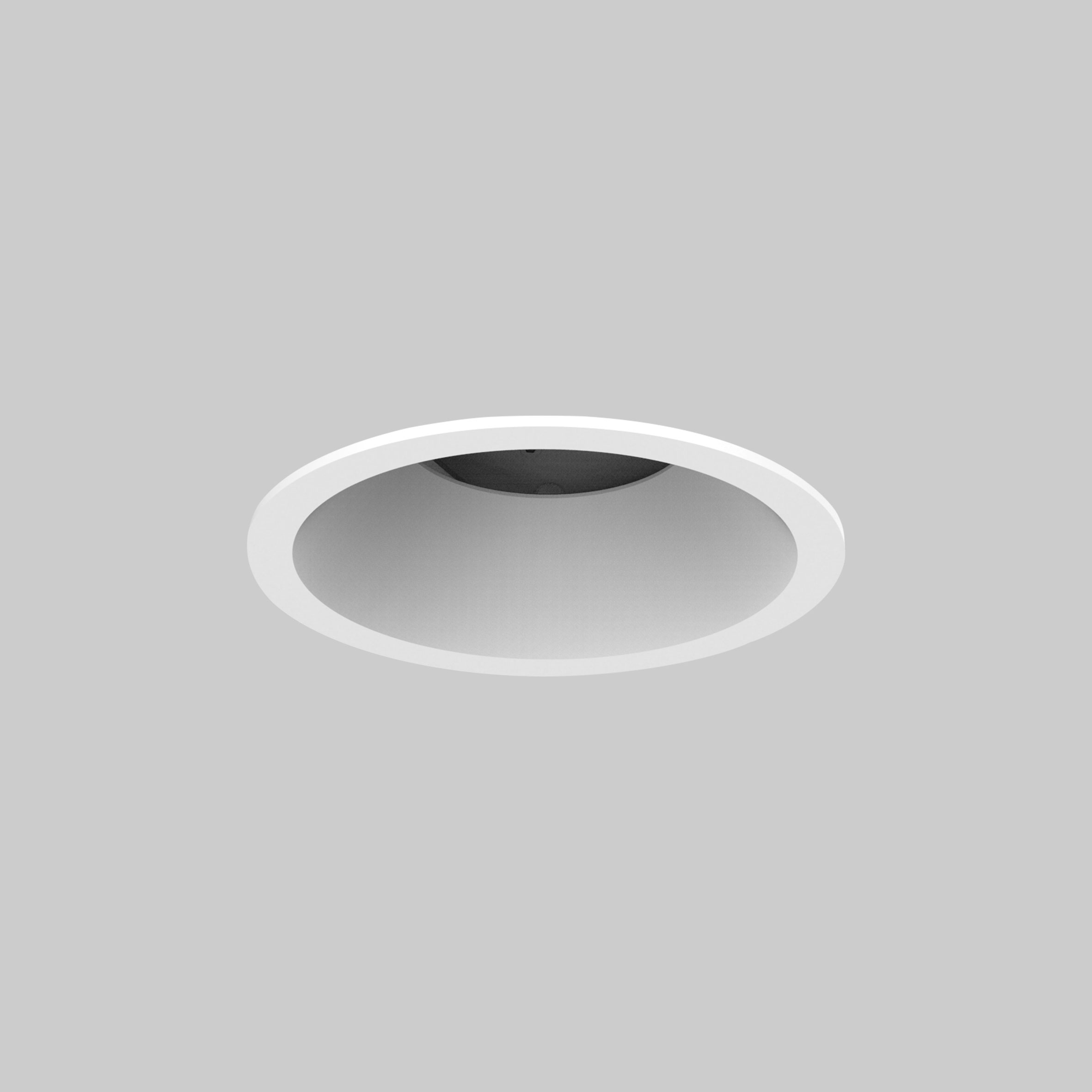

- 2418.145-LEE-27-HE
- 14W
- 2047lm

-
STAR-70

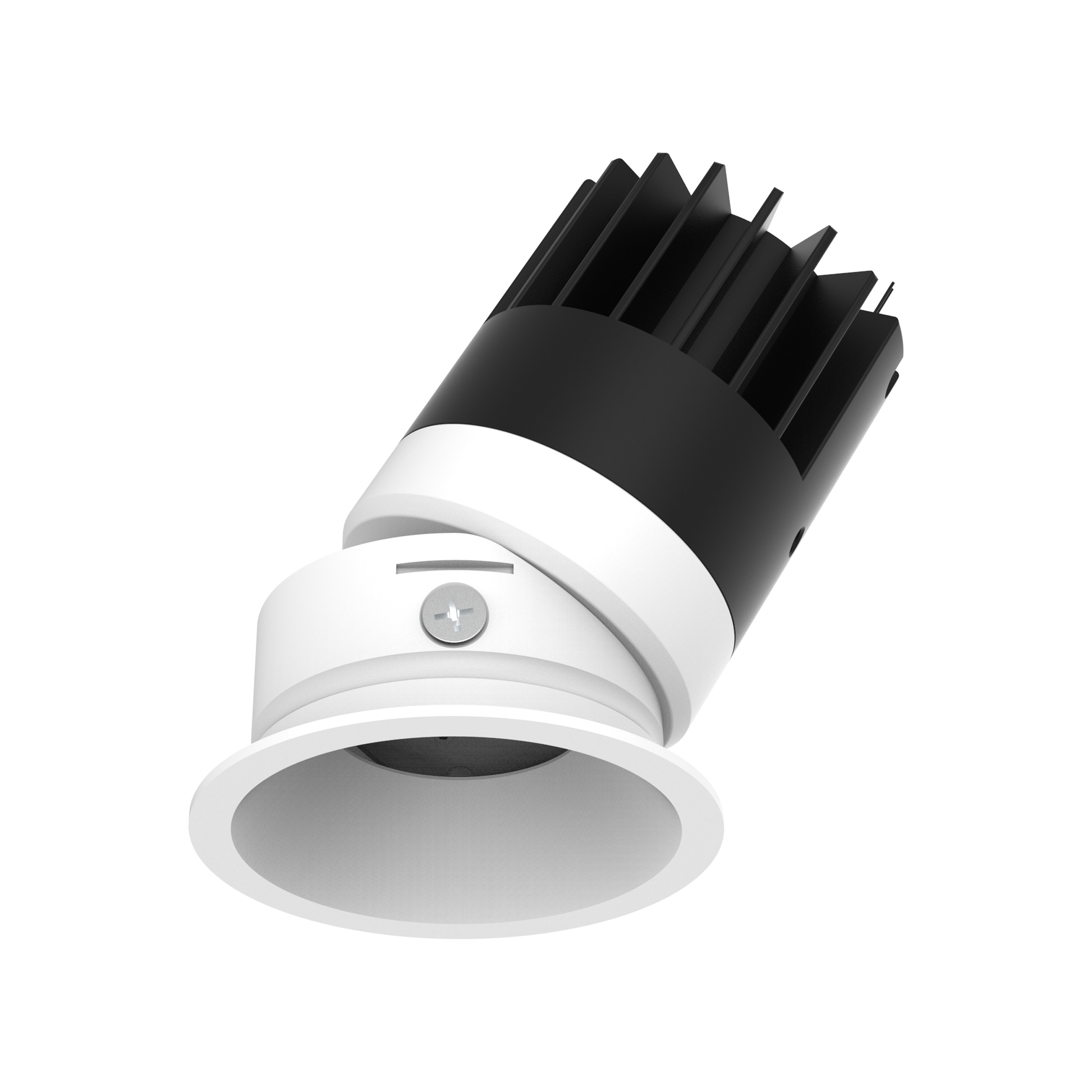

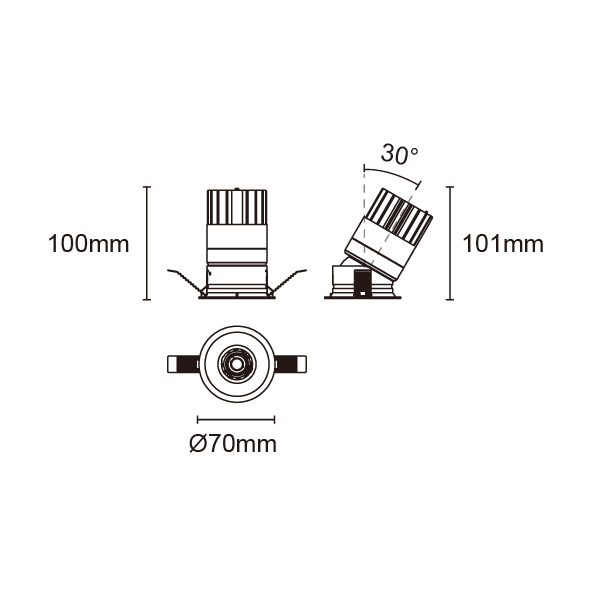

ITEM NO. 2418.145-LEE-27-HE
Consumption14W
Current / Voltage400mA
LED Lumen2047lm
Beam Angle 21°/32°/42°/54°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.145-LEE-27-DW
- 12W
- 1185lm

-
STAR-70
ITEM NO. 2418.145-LEE-27-DW
Consumption12W
Current / Voltage350mA
LED Lumen1185lm
Beam Angle 15°/24°/36°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.145-LEE-27-WCW
- 15W
- 1281-1522lm

-
STAR-70
ITEM NO. 2418.145-LEE-27-WCW
Consumption15W
Current / Voltage400mA
LED Lumen1281-1522lm
Beam Angle 15°/24°/36°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

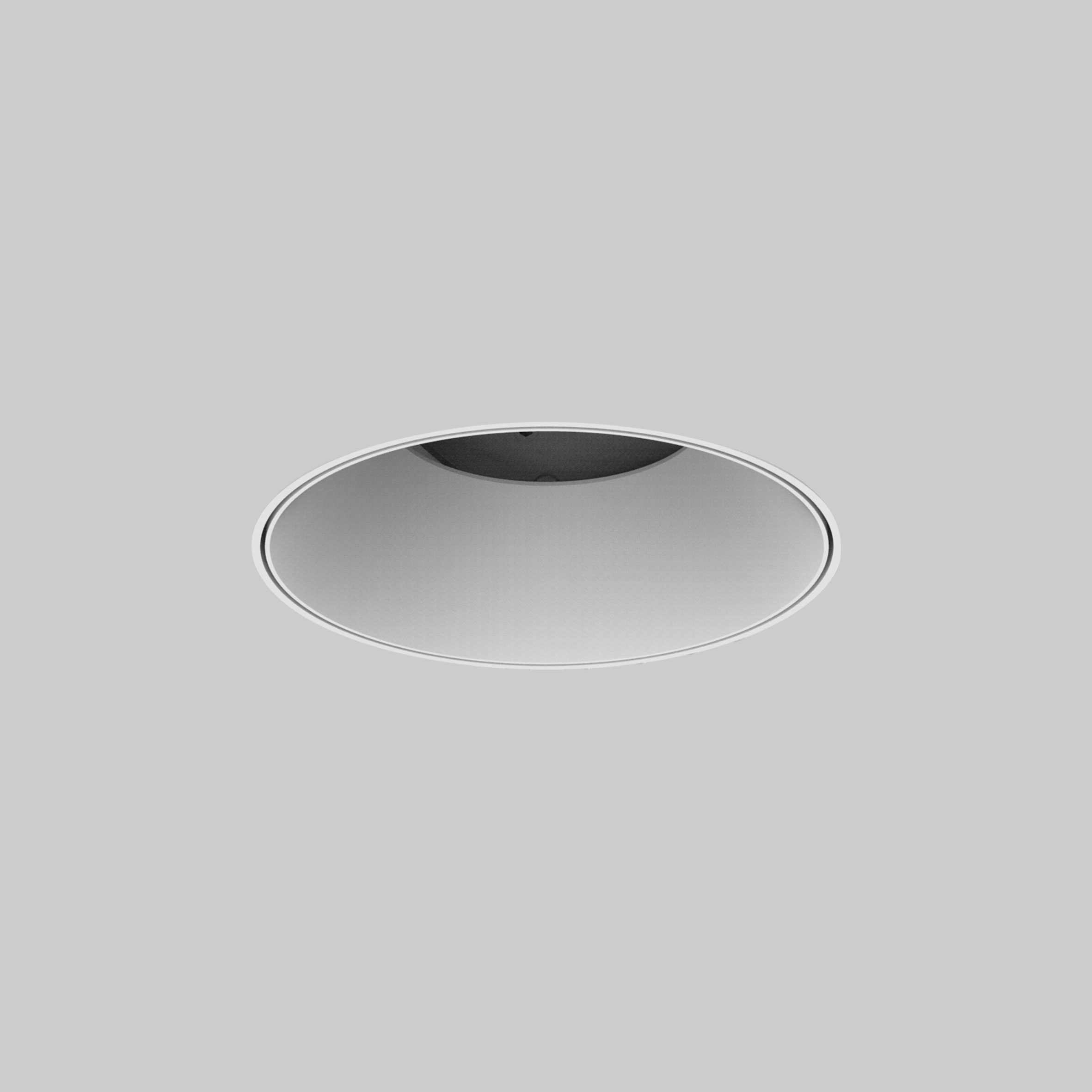

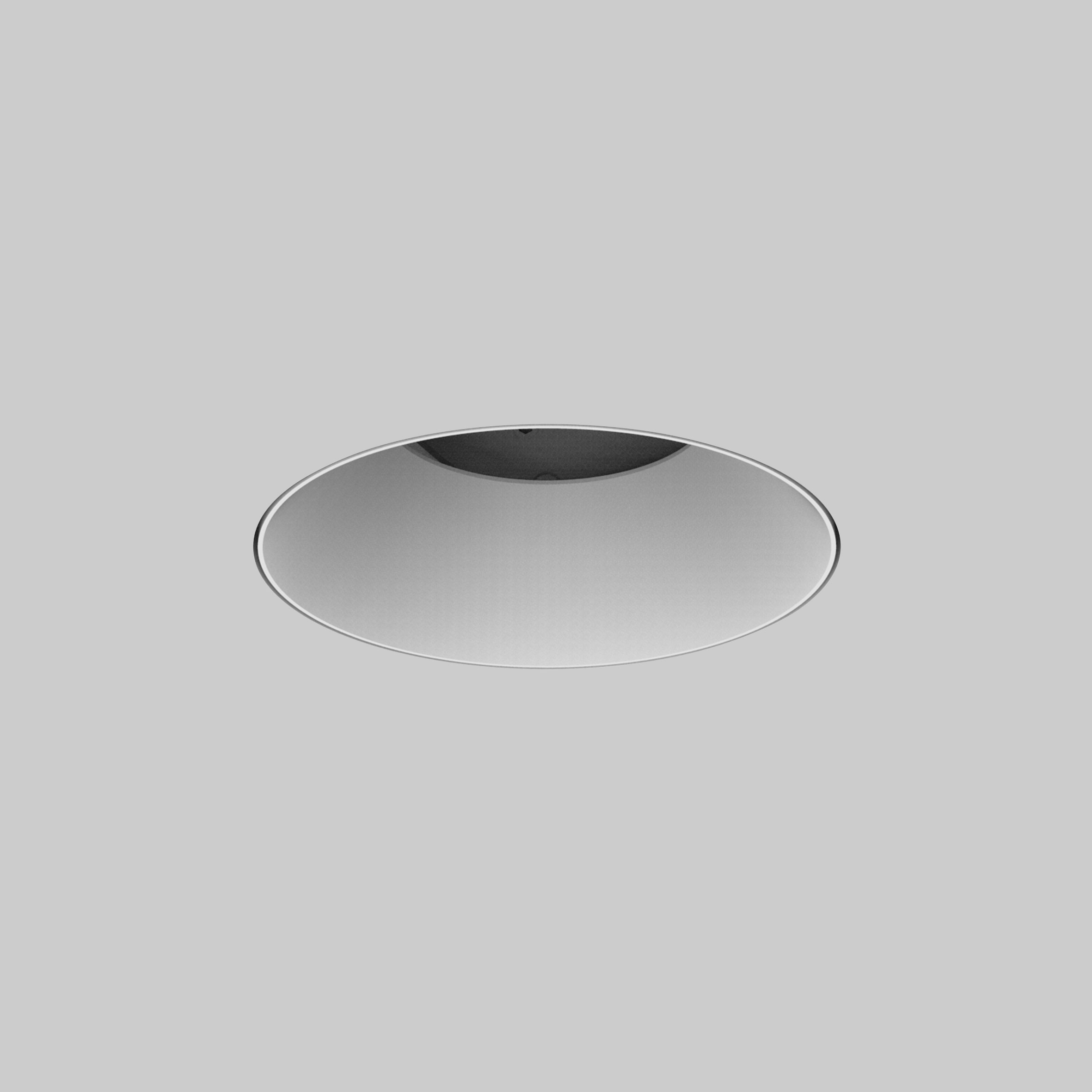

- 2418.212F-LEE-27-HE
- 14W
- 2047lm

-
STAR-70

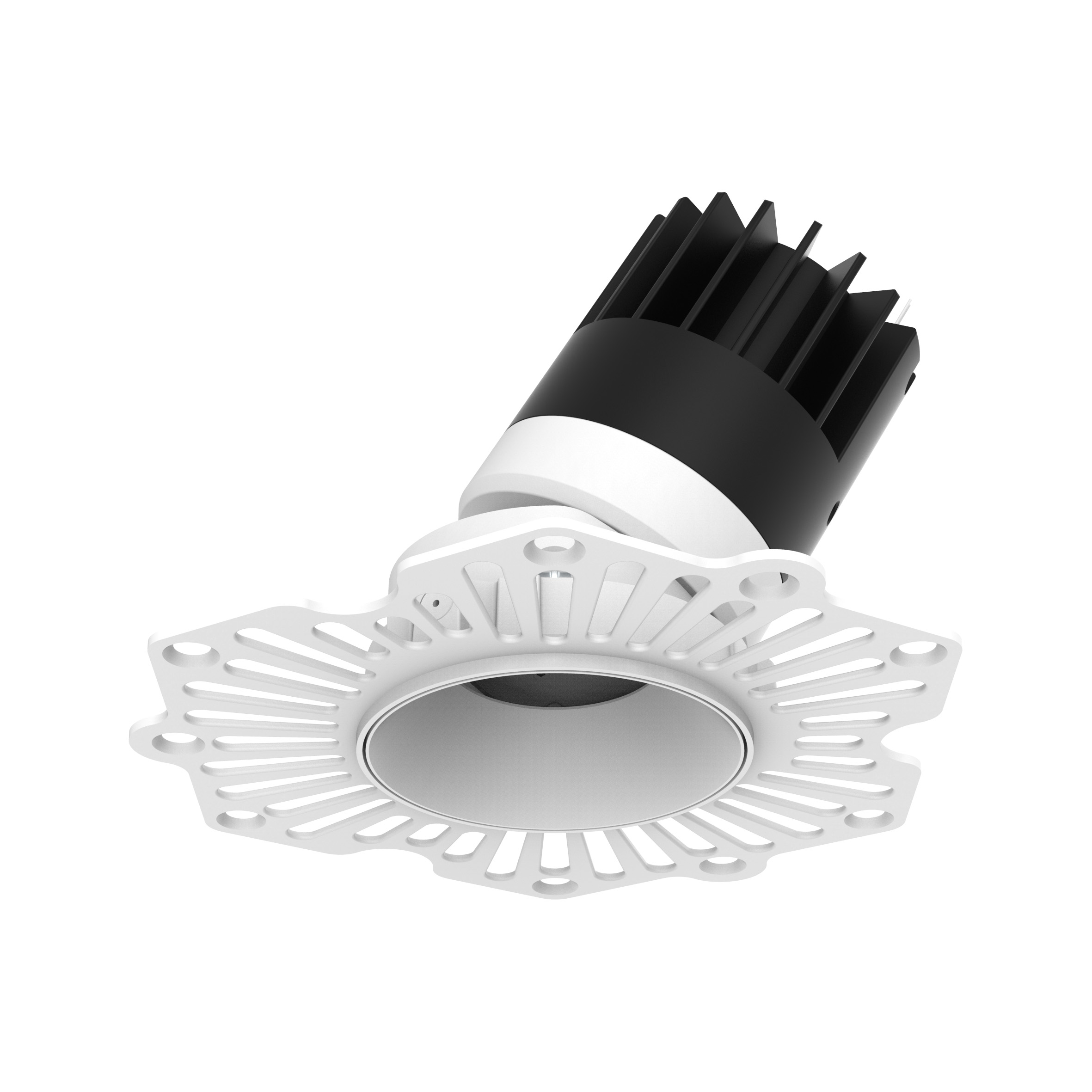

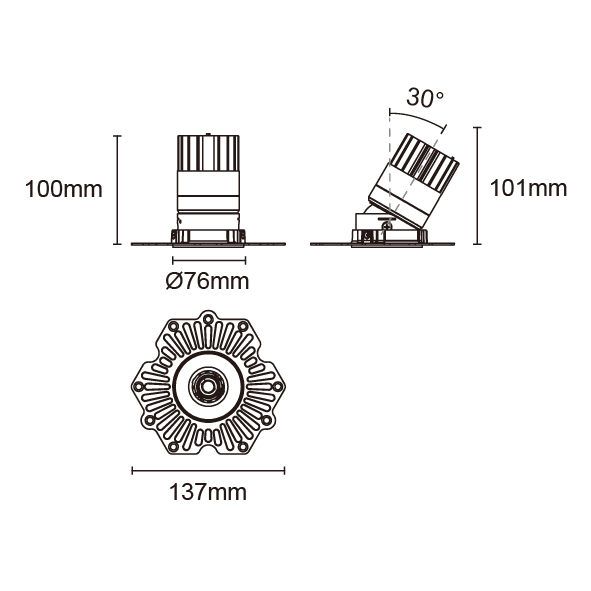

ITEM NO. 2418.212F-LEE-27-HE
Consumption14W
Current / Voltage400mA
LED Lumen2047lm
Beam Angle 21°/32°/42°/54°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.212F-LEE-27-DW
- 12W
- 1185lm

-
STAR-70
ITEM NO. 2418.212F-LEE-27-DW
Consumption12W
Current / Voltage350mA
LED Lumen1185lm
Beam Angle 15°/24°/36°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.212F-LEE-27-WCW
- 15W
- 1281-1522lm

-
STAR-70
ITEM NO. 2418.212F-LEE-27-WCW
Consumption15W
Current / Voltage400mA
LED Lumen1281-1522lm
Beam Angle 15°/24°/36°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.146-LEE-27-HE
- 14W
- 2047lm

-
STAR-70

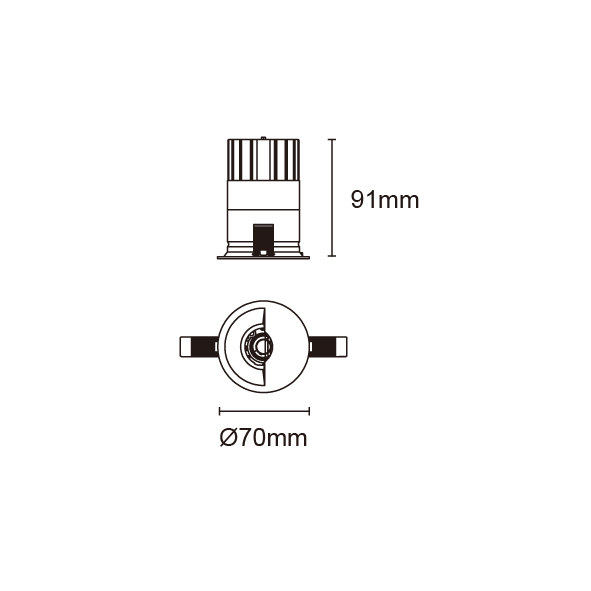

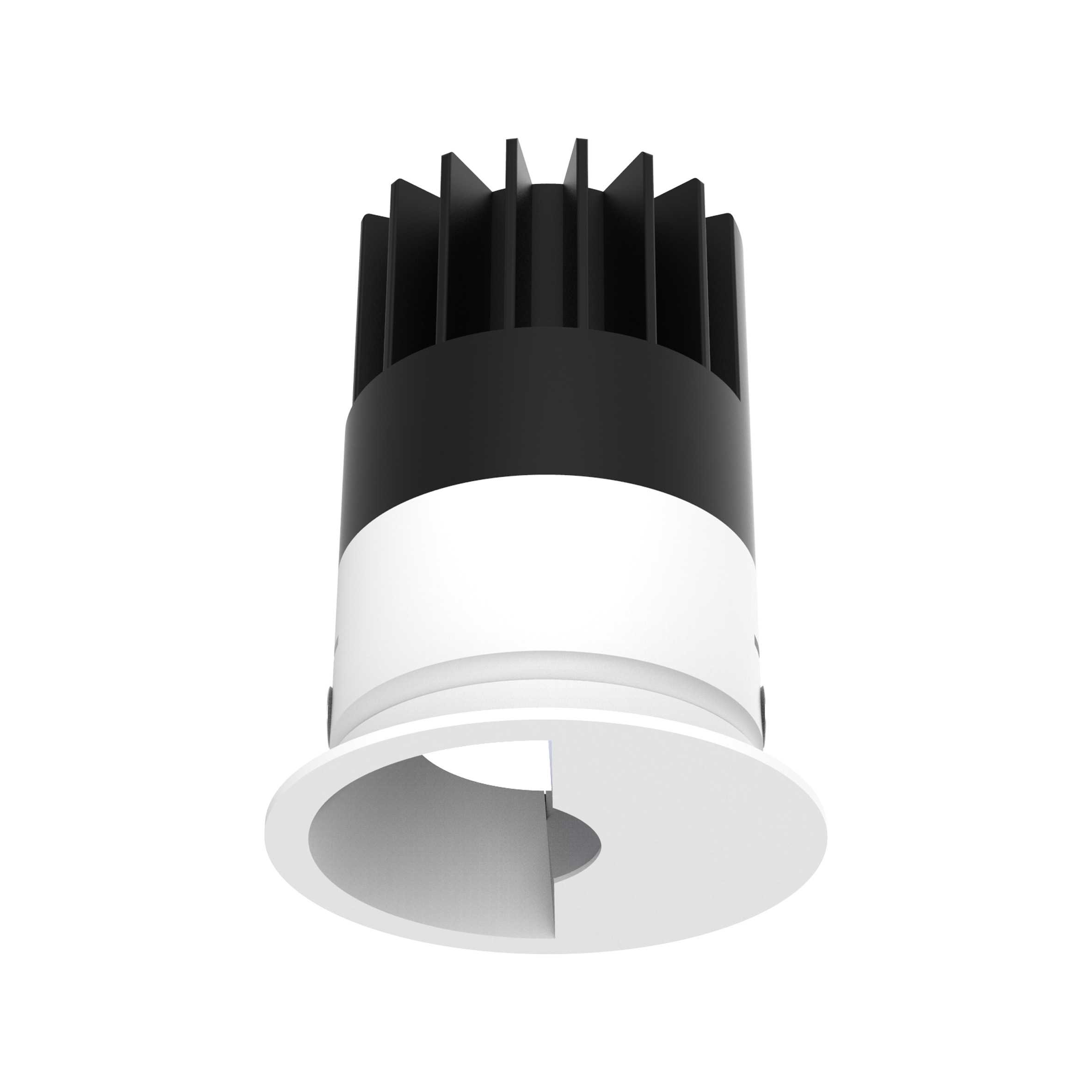

ITEM NO. 2418.146-LEE-27-HE
Consumption14W
Current / Voltage400mA
LED Lumen2047lm
Beam Angle wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.146-LEE-27-DW
- 12W
- 1185lm

-
STAR-70
ITEM NO. 2418.146-LEE-27-DW
Consumption12W
Current / Voltage350mA
LED Lumen1185lm
Beam Angle wallwash
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.146-LEE-27-WCW
- 15W
- 1281-1522lm

-
STAR-70
ITEM NO. 2418.146-LEE-27-WCW
Consumption15W
Current / Voltage400mA
LED Lumen1281-1522lm
Beam Angle wallwash
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

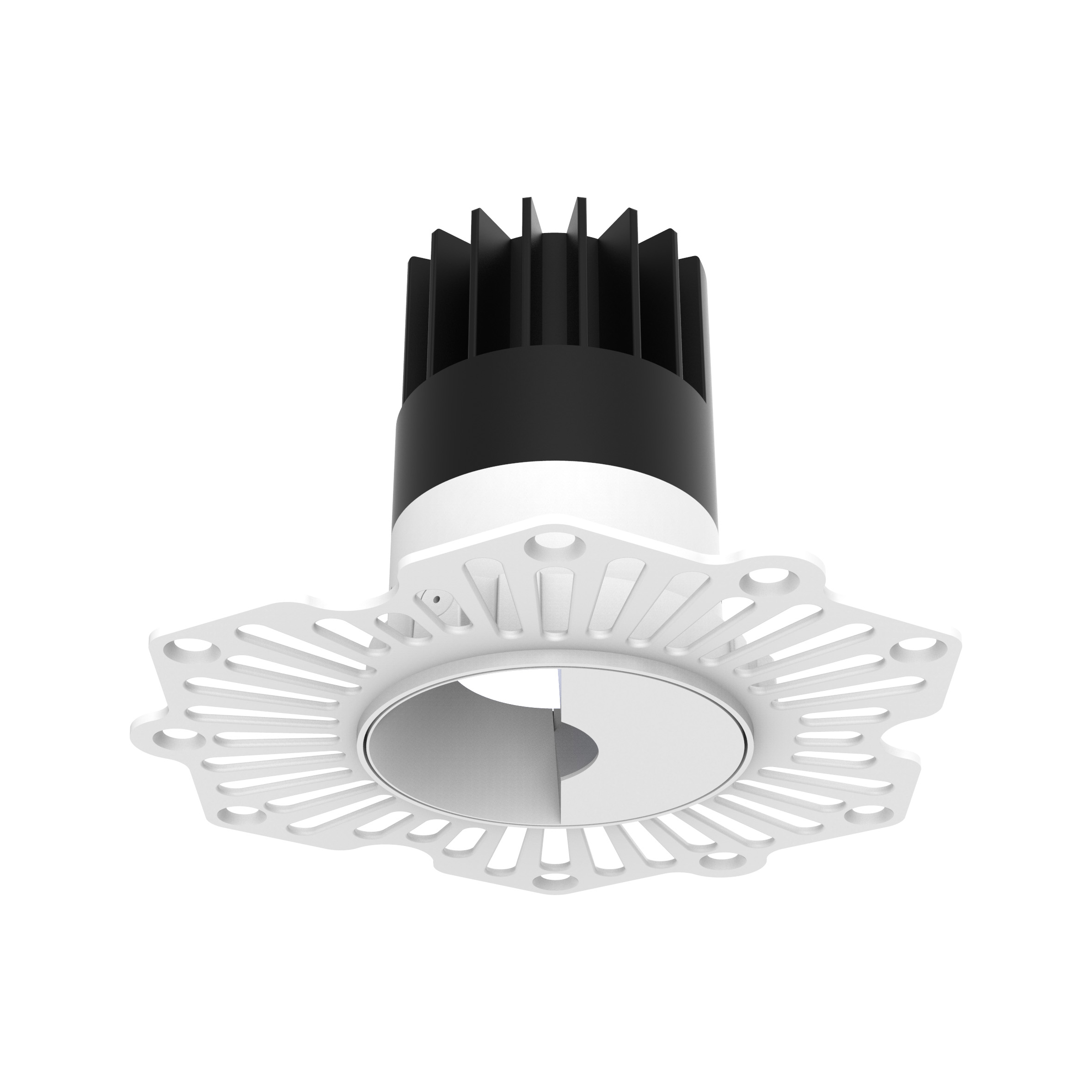

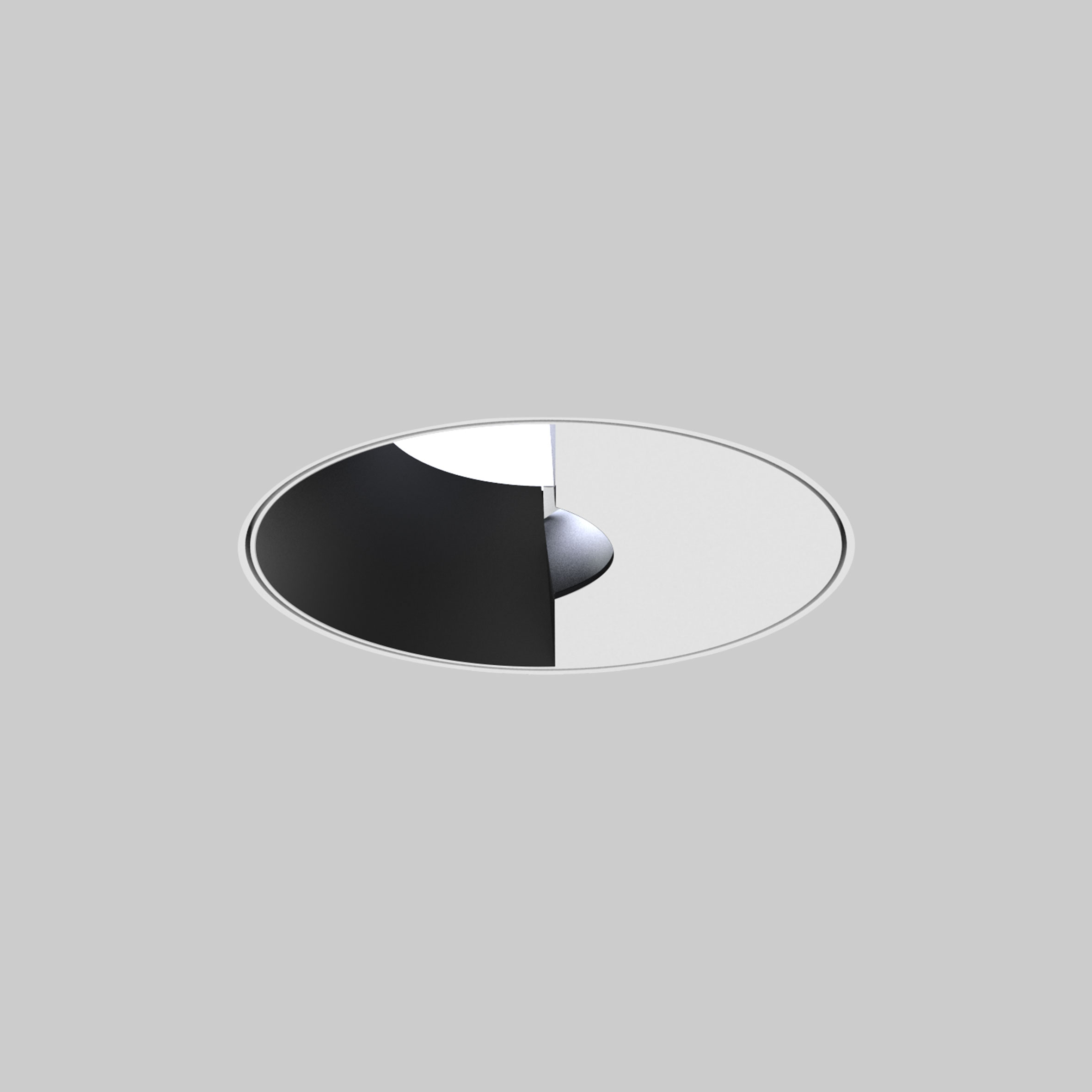

- 2418.213F-LEE-27-HE
- 14W
- 2047lm

-
STAR-70

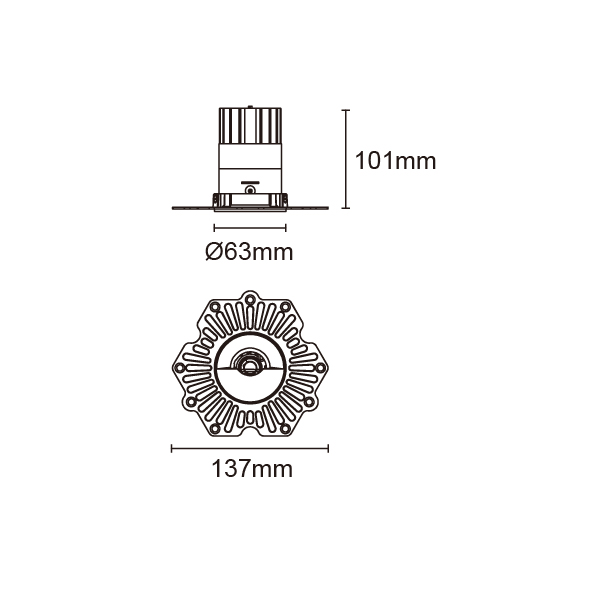

ITEM NO. 2418.213F-LEE-27-HE
Consumption14W
Current / Voltage400mA
LED Lumen2047lm
Beam Angle wallwash
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.213F-LEE-27-DW
- 12W
- 1185lm

-
STAR-70
ITEM NO. 2418.213F-LEE-27-DW
Consumption12W
Current / Voltage350mA
LED Lumen1185lm
Beam Angle wallwash
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.213F-LEE-27-WCW
- 15W
- 1281-1522lm

-
STAR-70
ITEM NO. 2418.213F-LEE-27-WCW
Consumption15W
Current / Voltage400mA
LED Lumen1281-1522lm
Beam Angle wallwash
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.161-LEE-19-HE
- 18W
- 2504lm

-
STAR-88

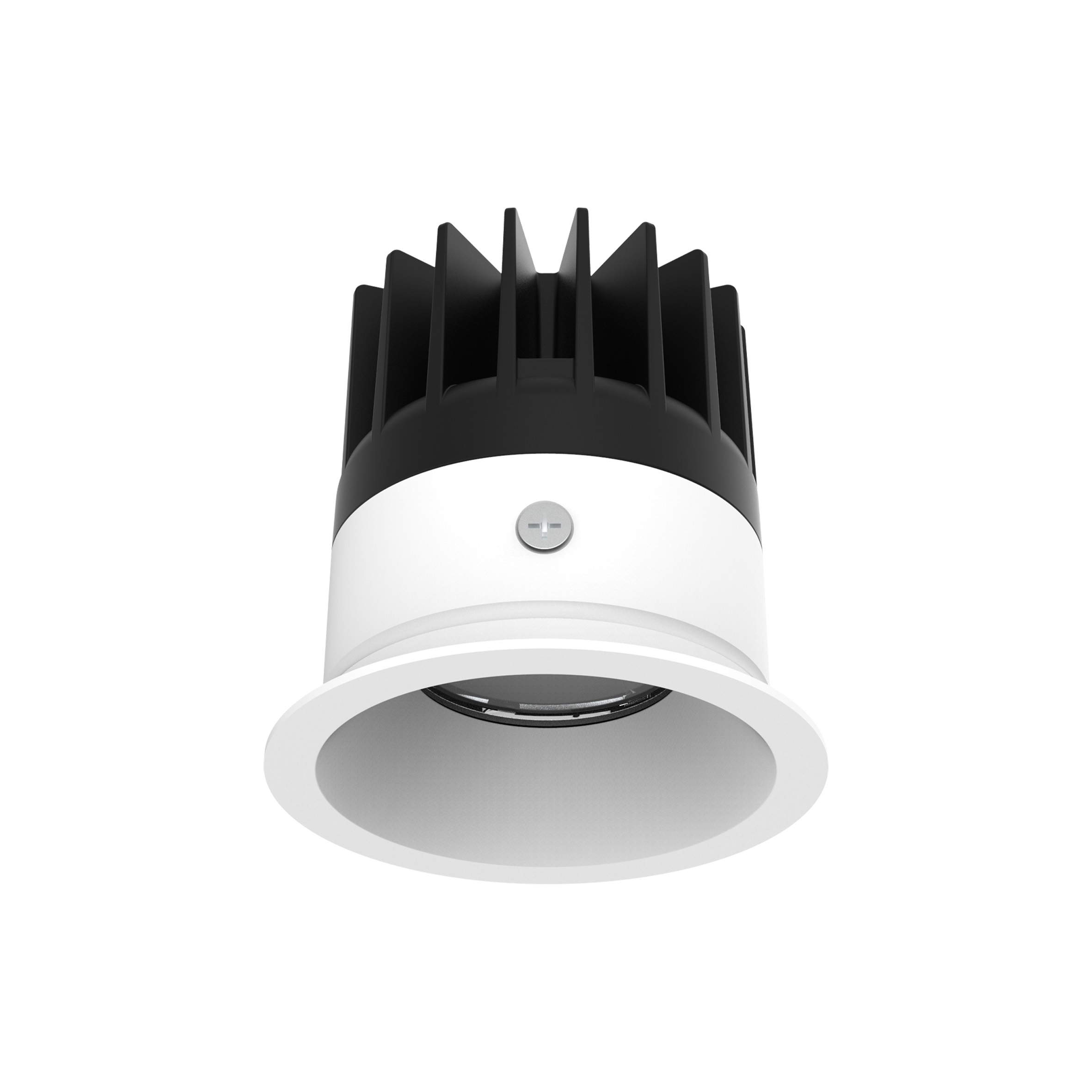

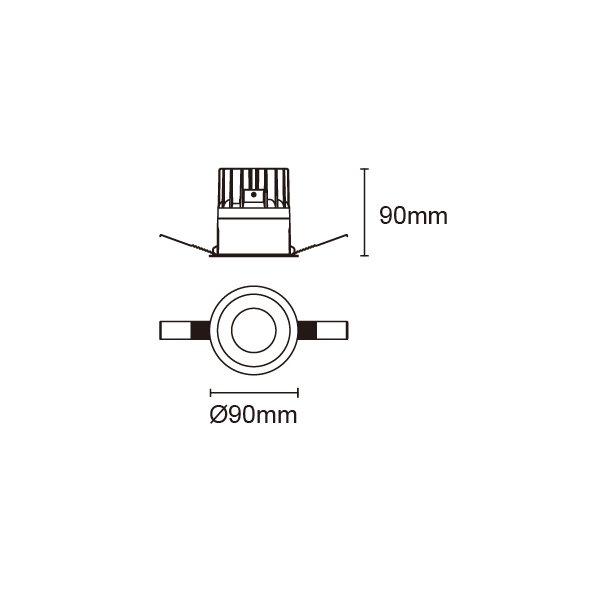

ITEM NO. 2218.161-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 18°/25°/41°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.161-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.161-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

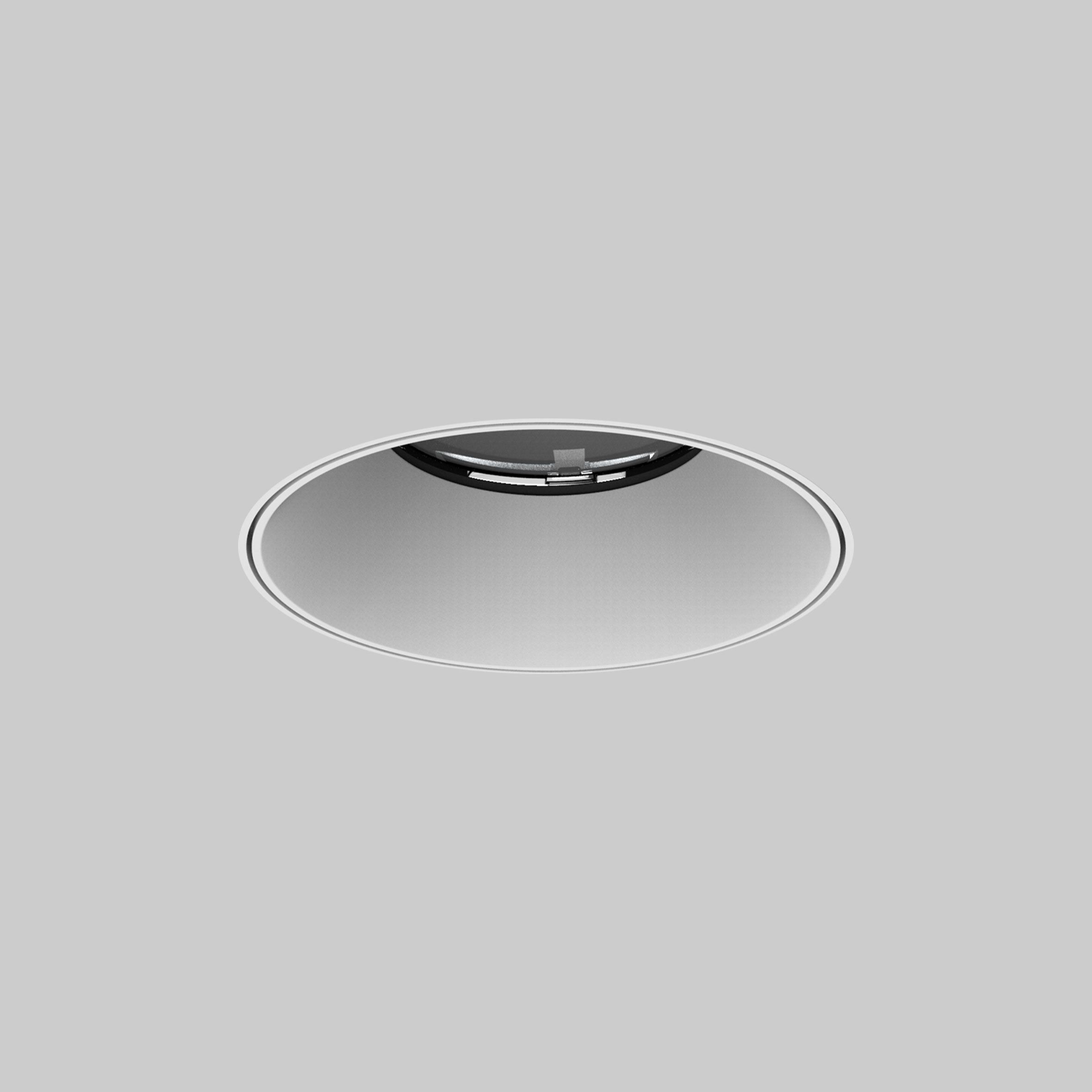

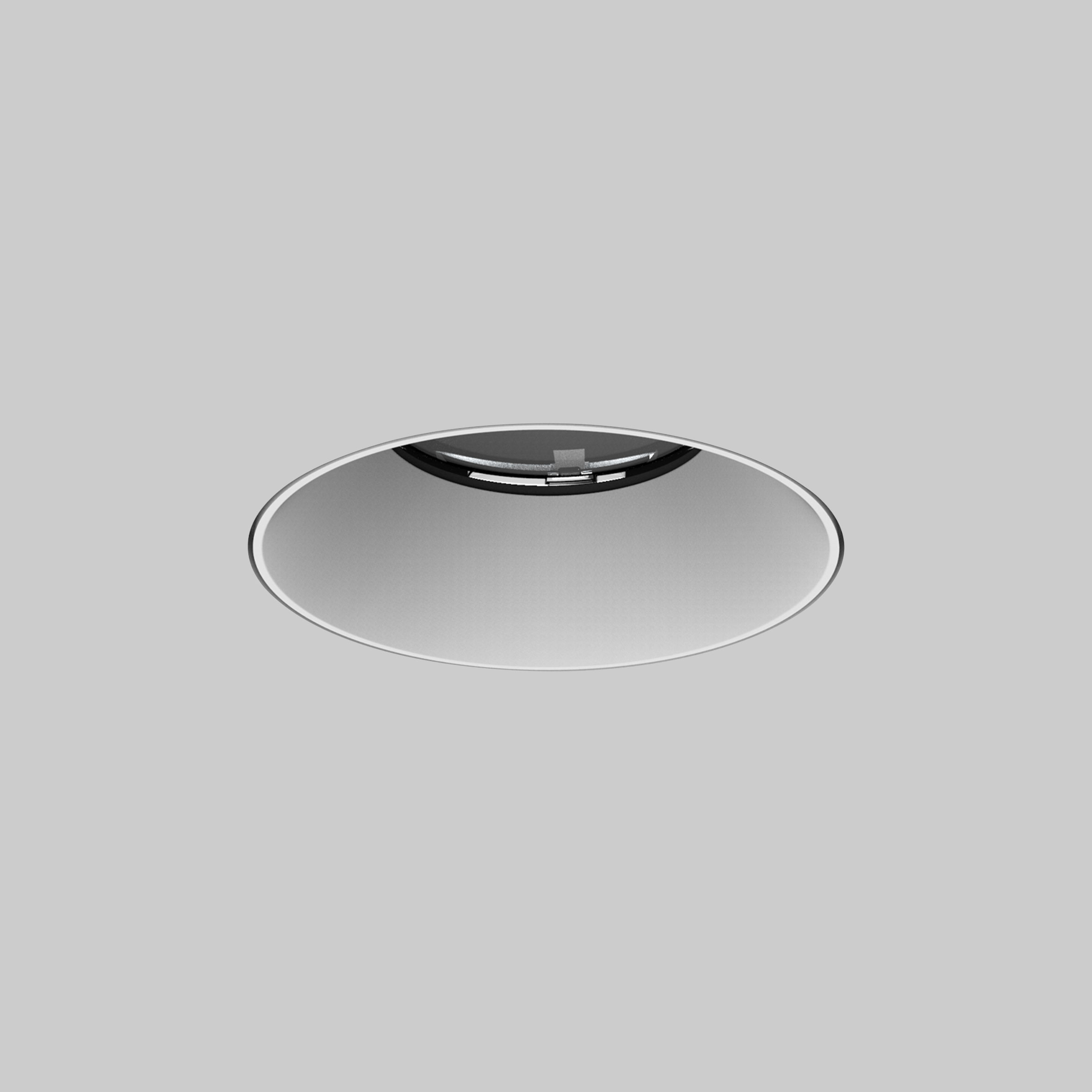

- 2218.223F-LEE-19-HE
- 18W
- 2504lm

-
STAR-88

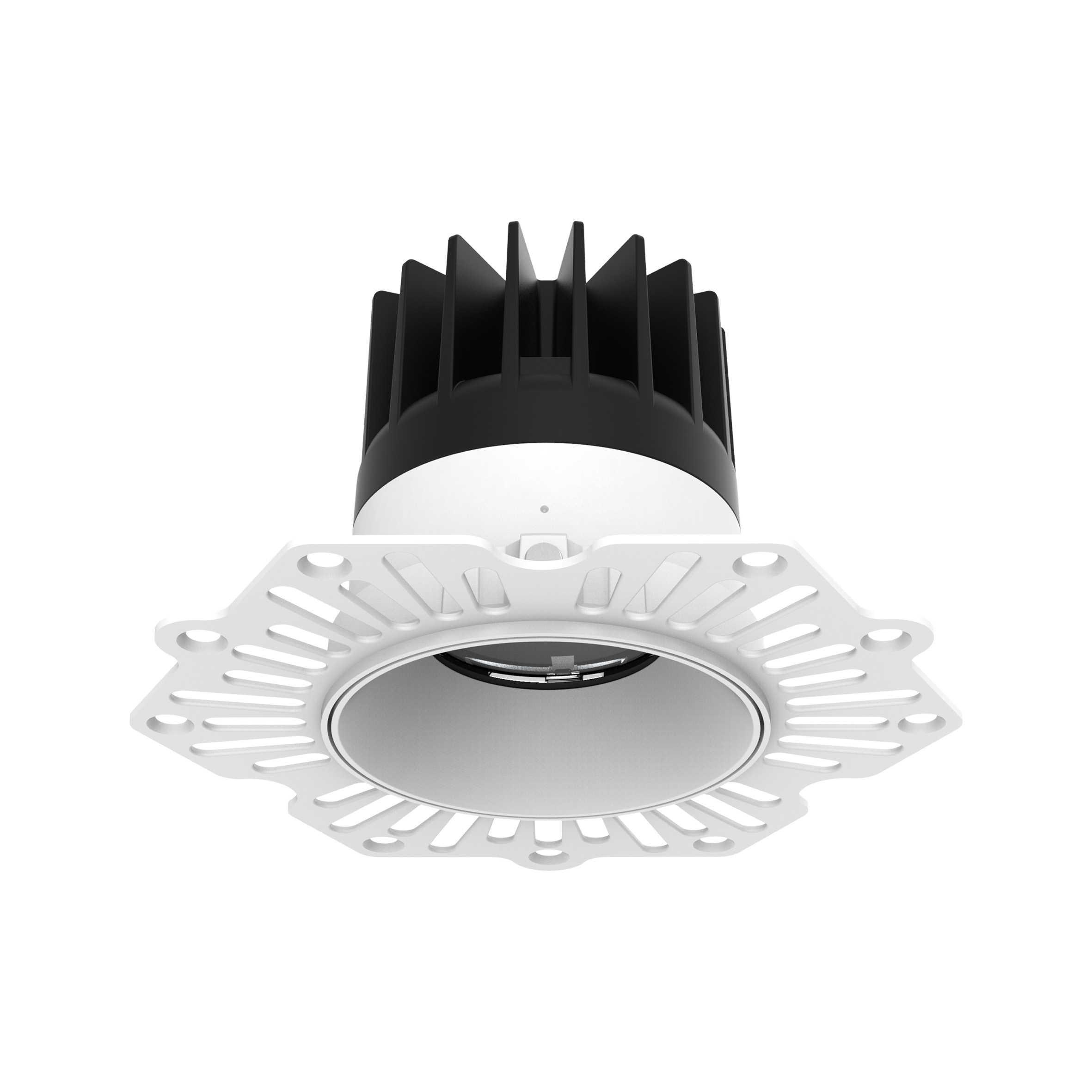

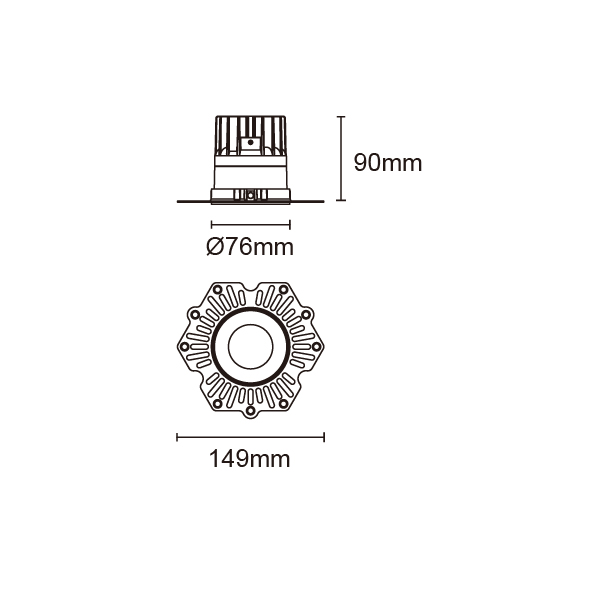

ITEM NO. 2218.223F-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 18°/25°/41°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.223F-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.223F-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

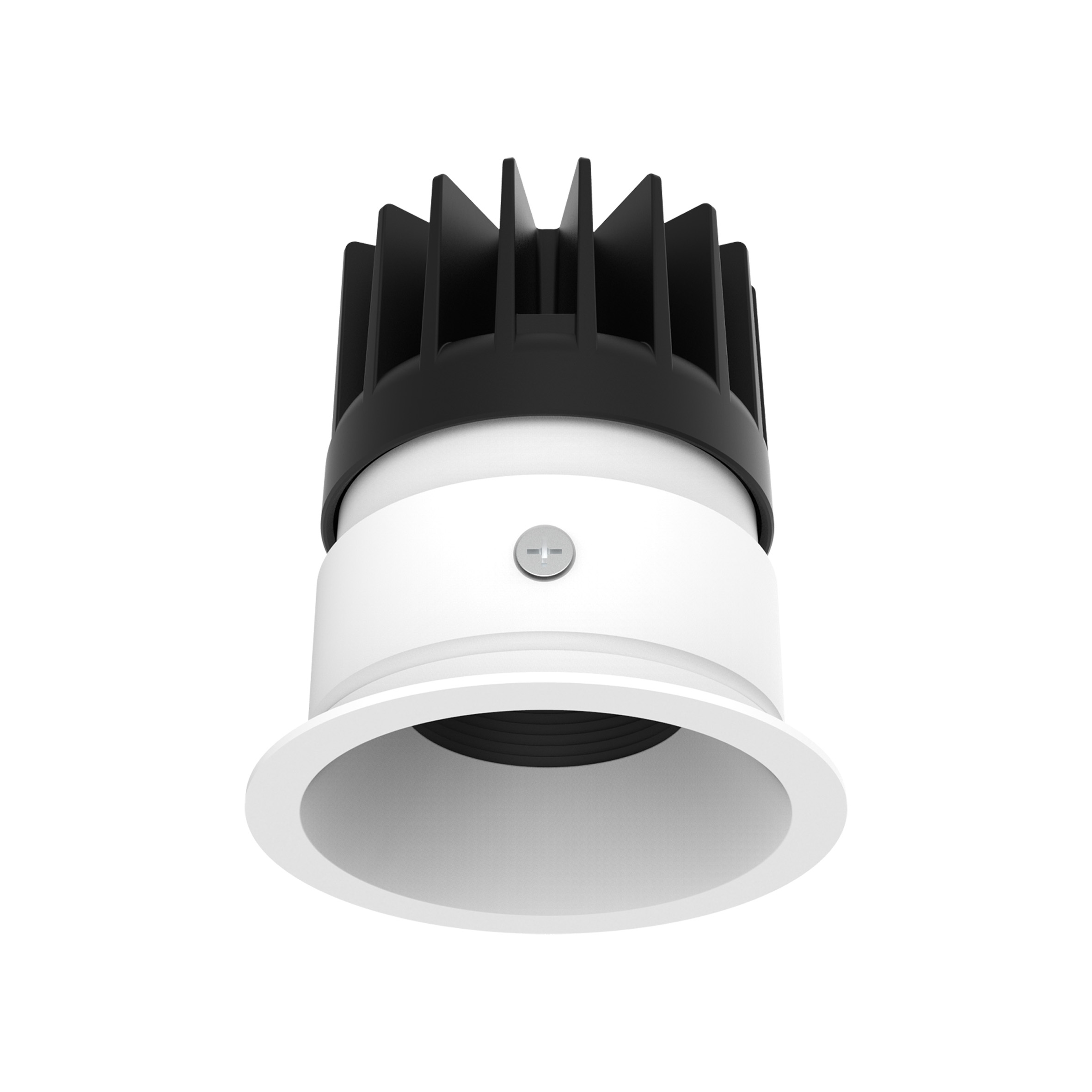

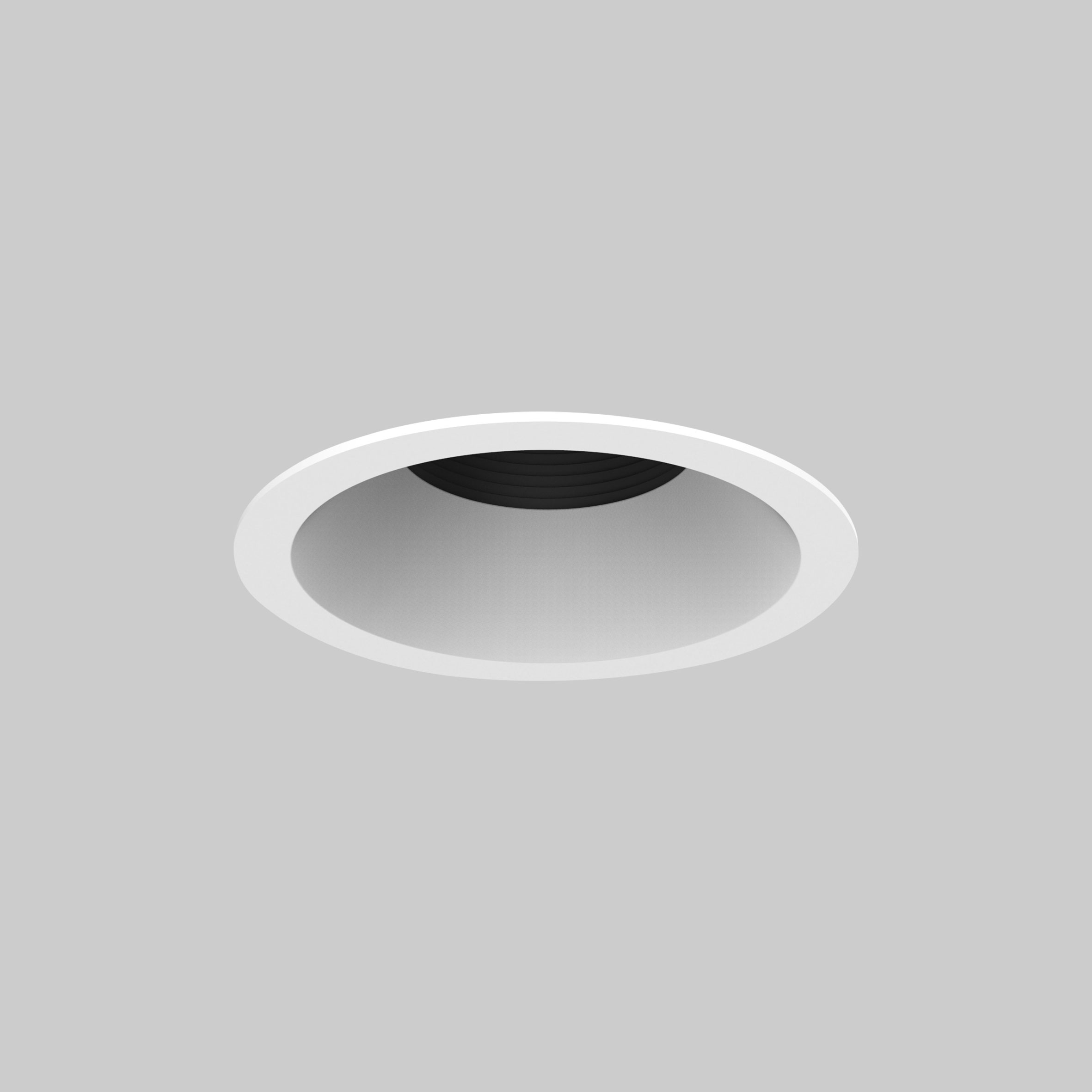

- 2218.165-LEE-19-HE
- 18W
- 2504lm

-
STAR-88
ITEM NO. 2218.165-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 18°/25°/40°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.165-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.165-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

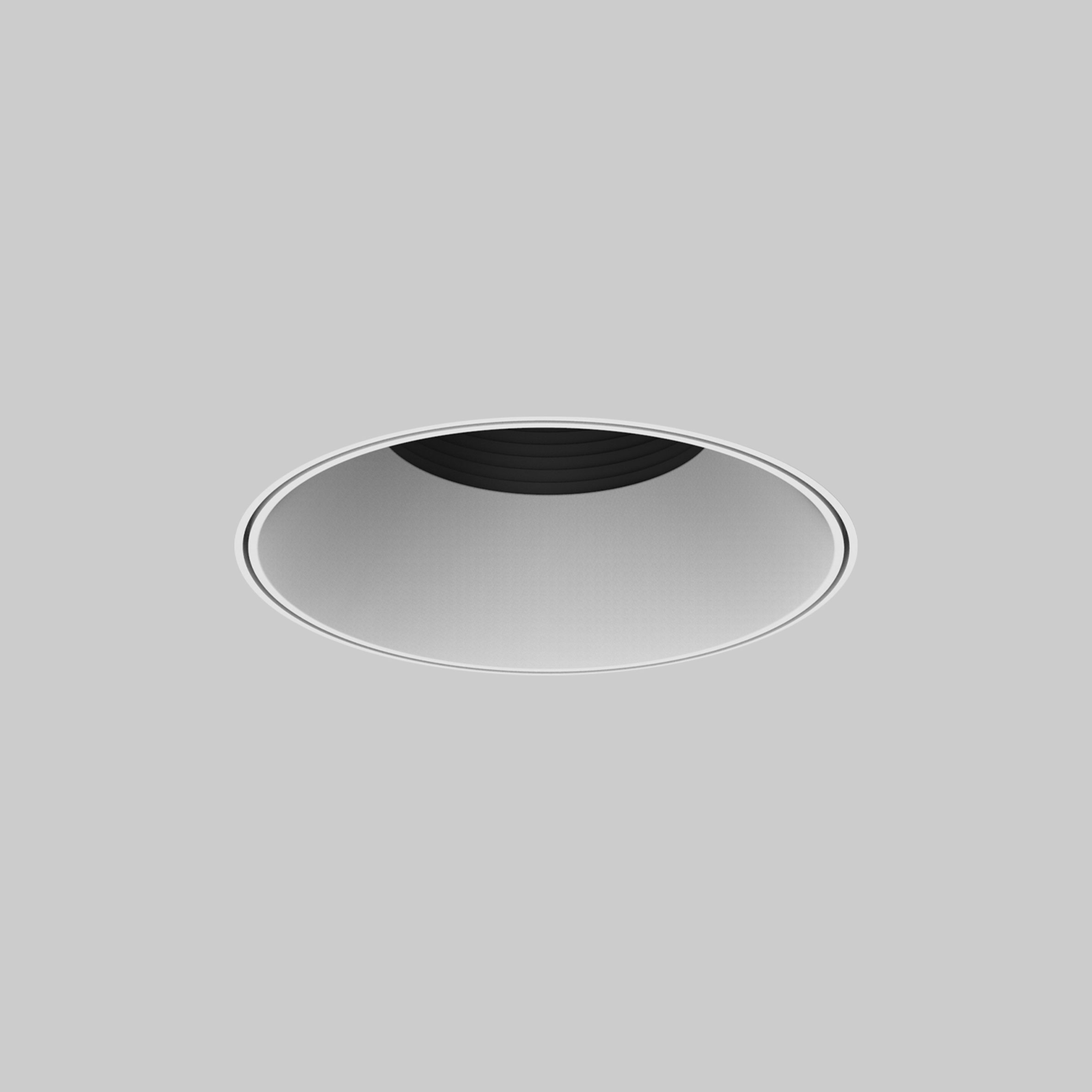

- 2218.227F-LEE-19-HE
- 18W
- 2504lm

-
STAR-88

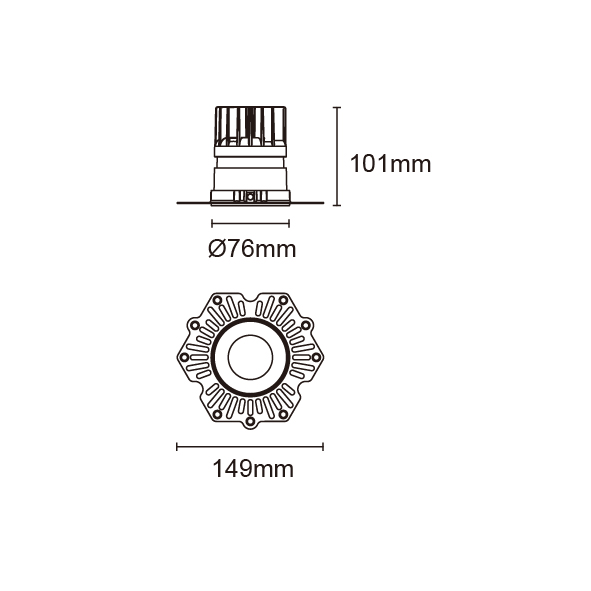

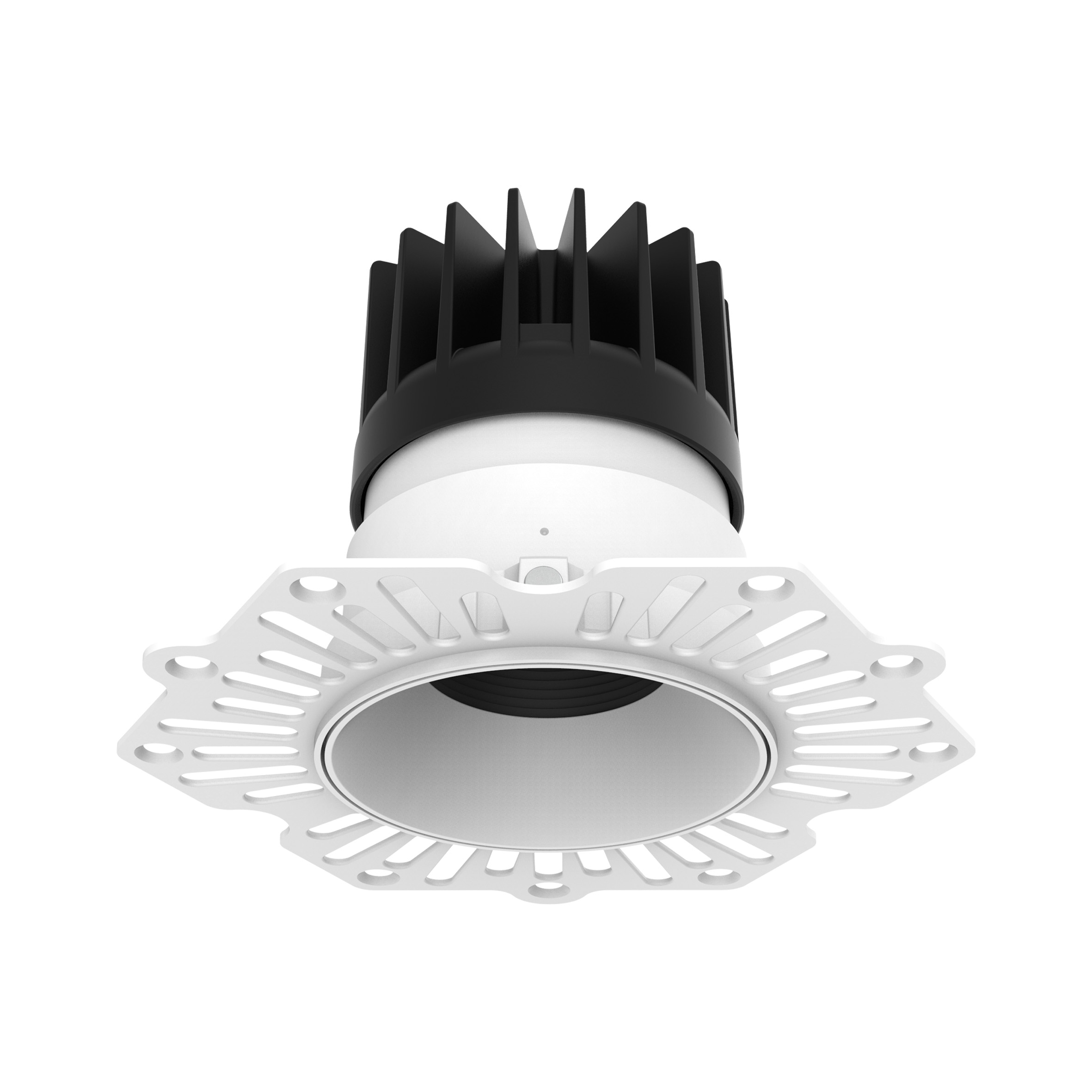

ITEM NO. 2218.227F-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 18°/25°/40°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue
- 2218.227F-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.227F-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

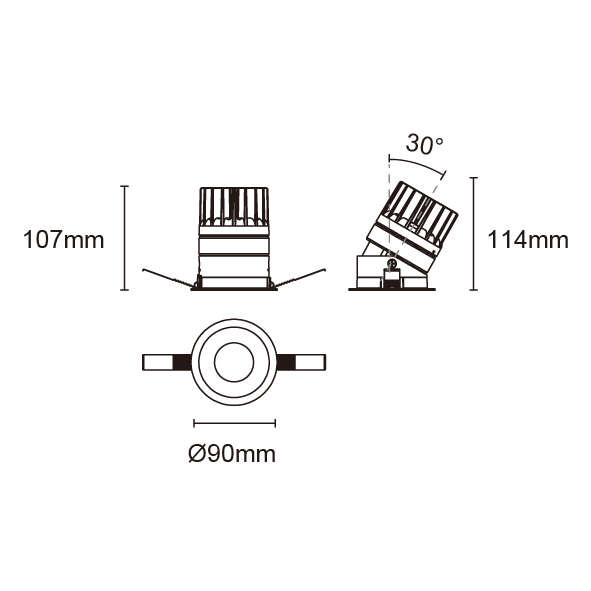

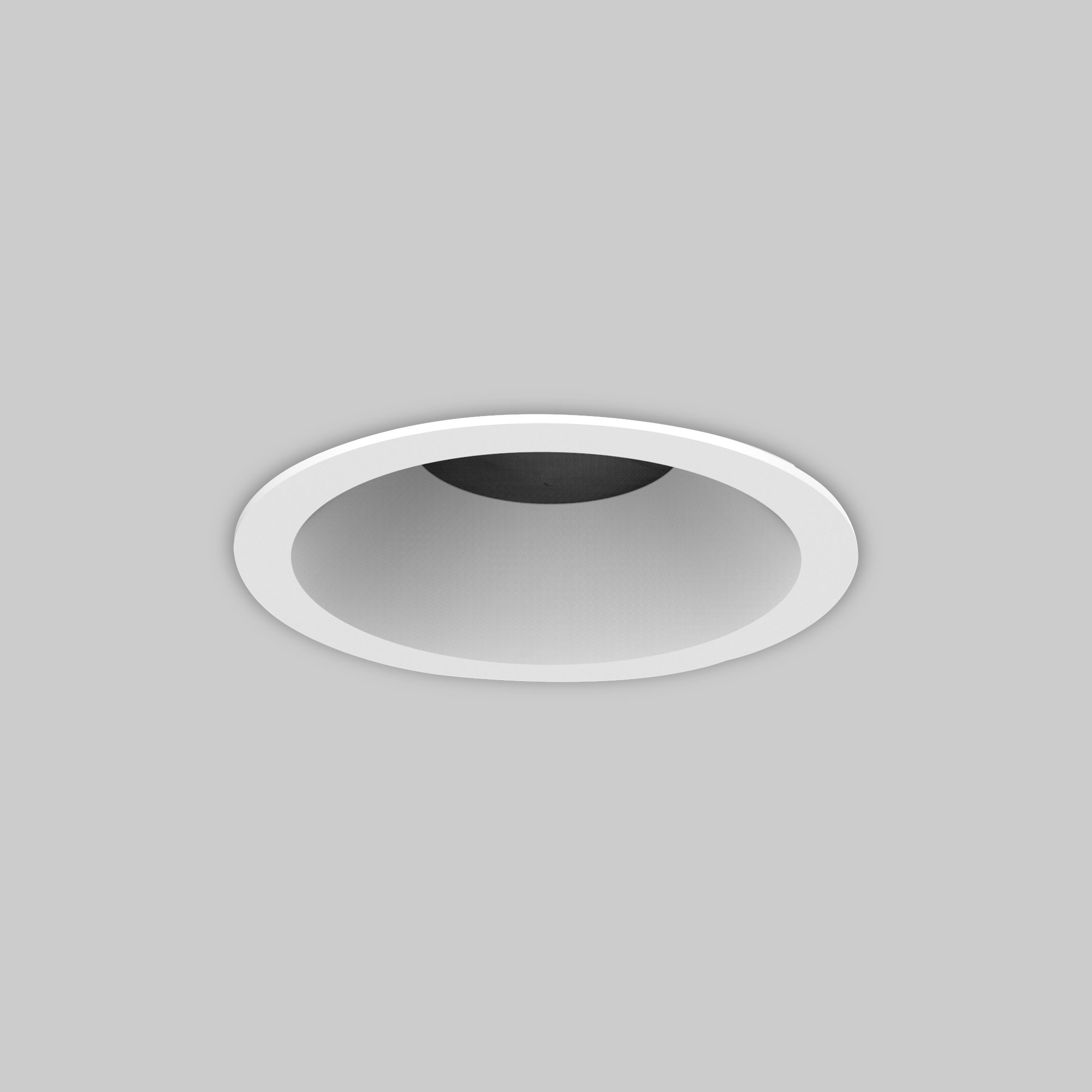

- 2418.148-LEE-19-HE
- 18W
- 2504lm

-
STAR-88

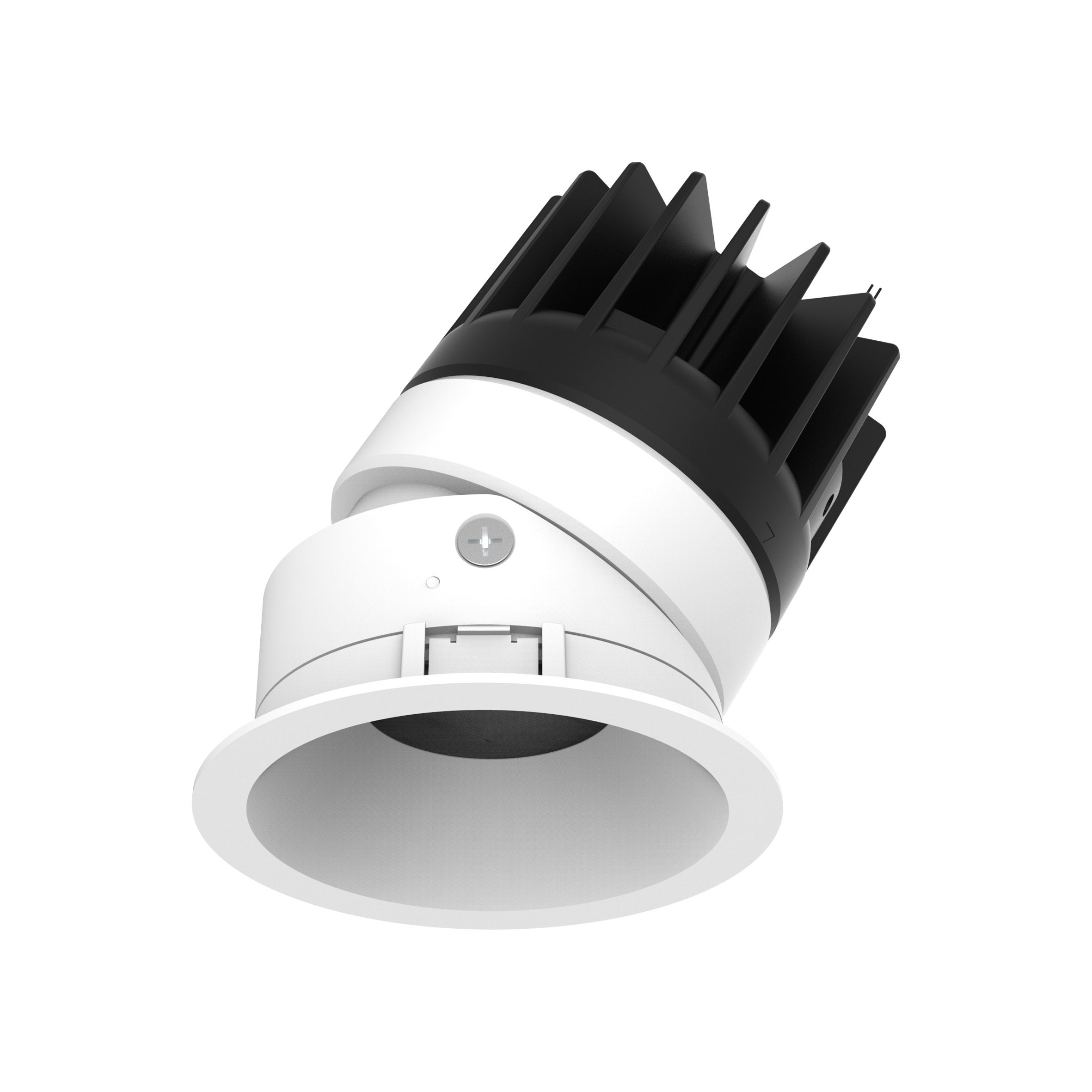

ITEM NO. 2418.148-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 19°/25°/40°/53°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.148-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.148-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

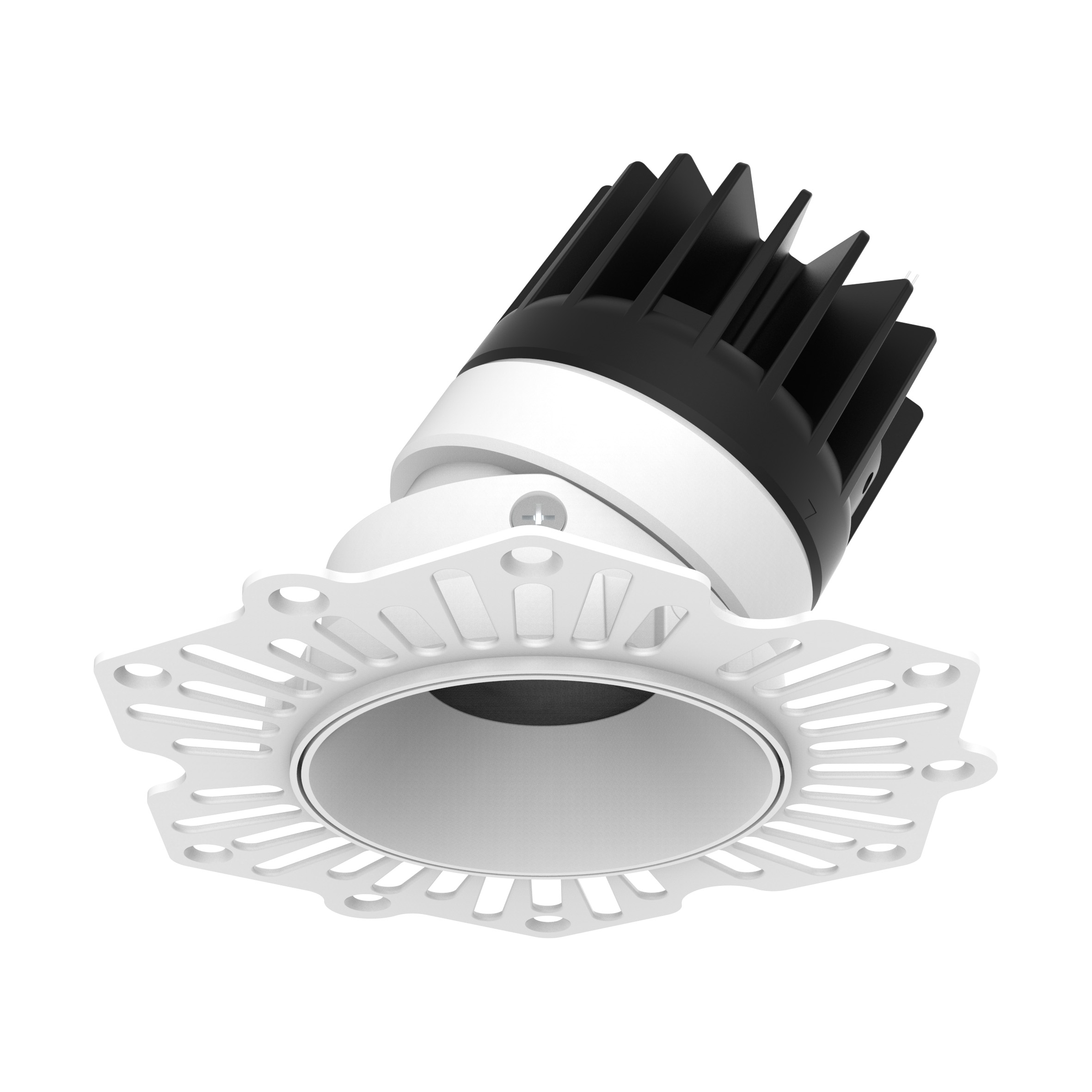

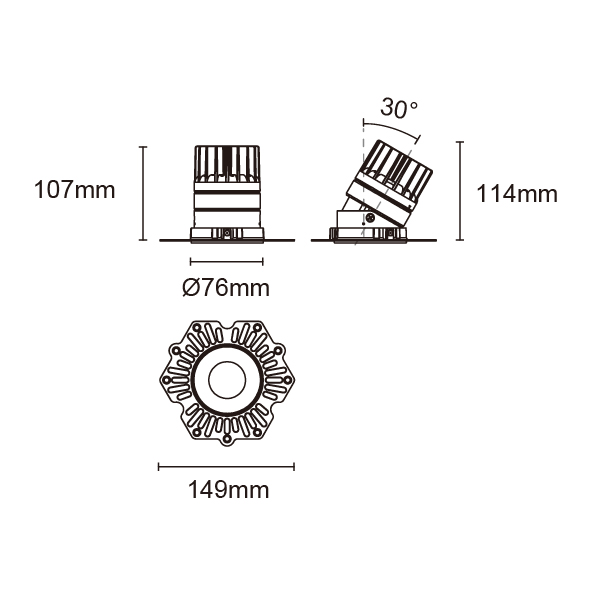

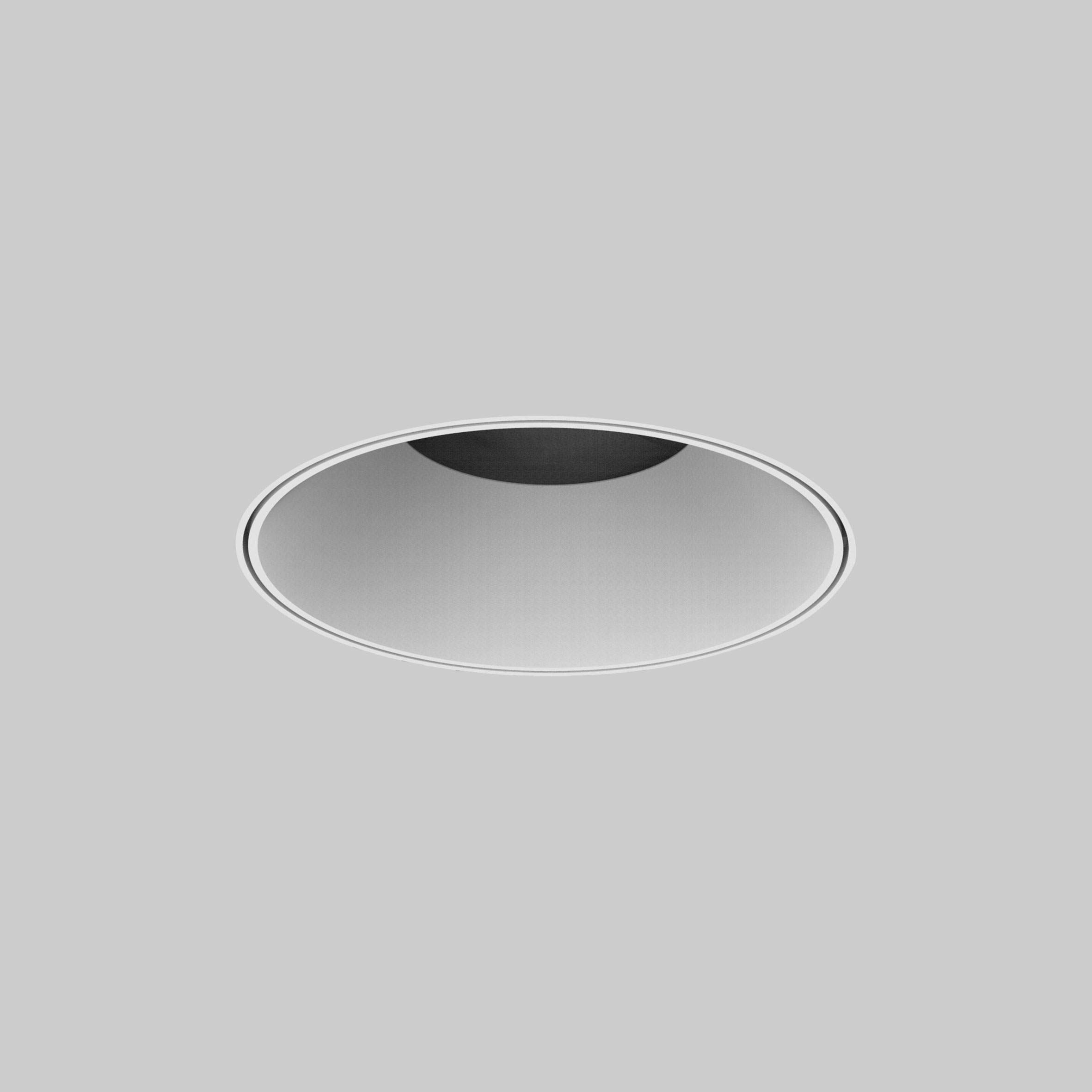

- 2418.214F-LEE-19-HE
- 18W
- 2504lm

-
STAR-88
ITEM NO. 2418.214F-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 19°/25°/40°/53°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.214F-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.214F-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

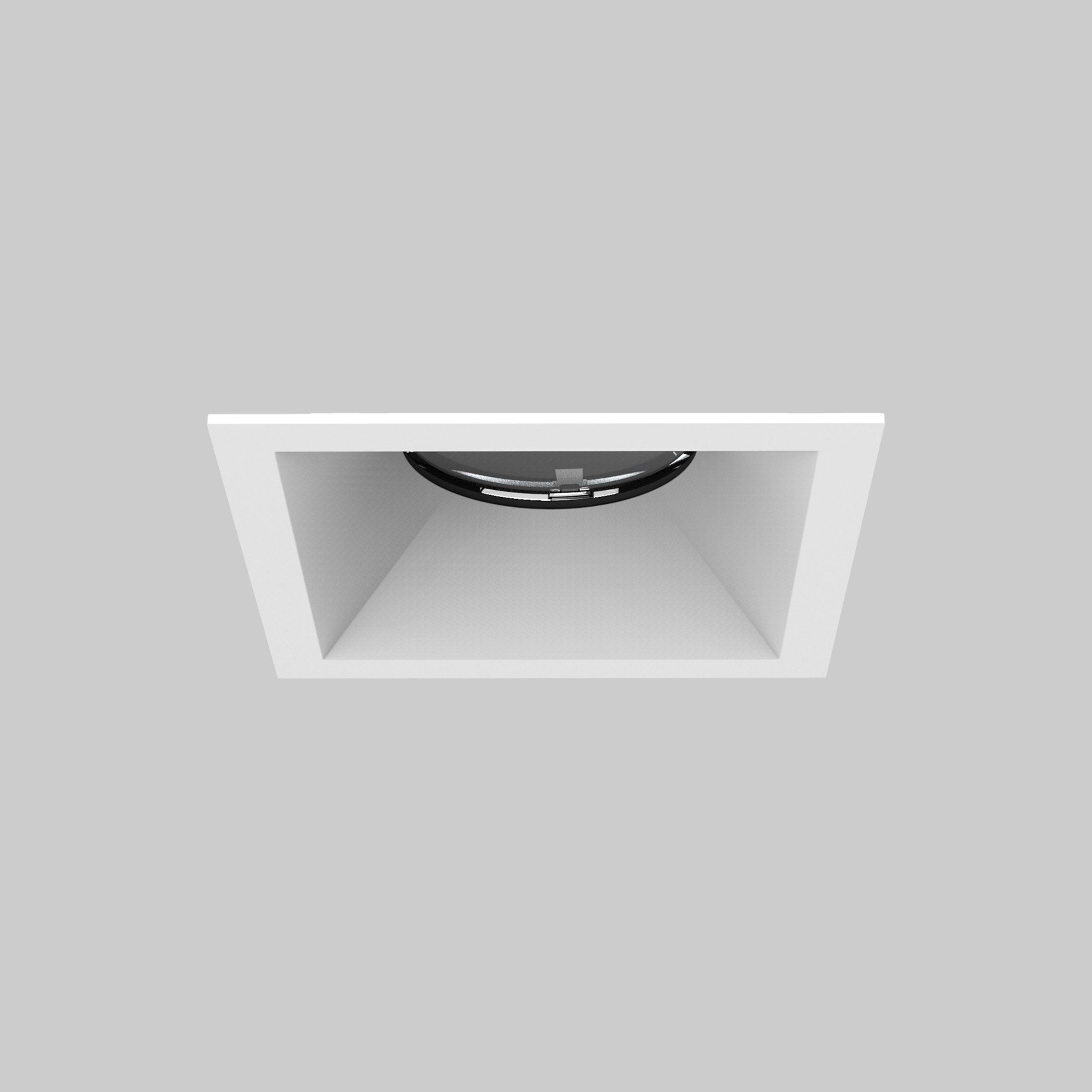

- 2218.163-LEE-19-HE
- 18W
- 2504lm

-
STAR-88

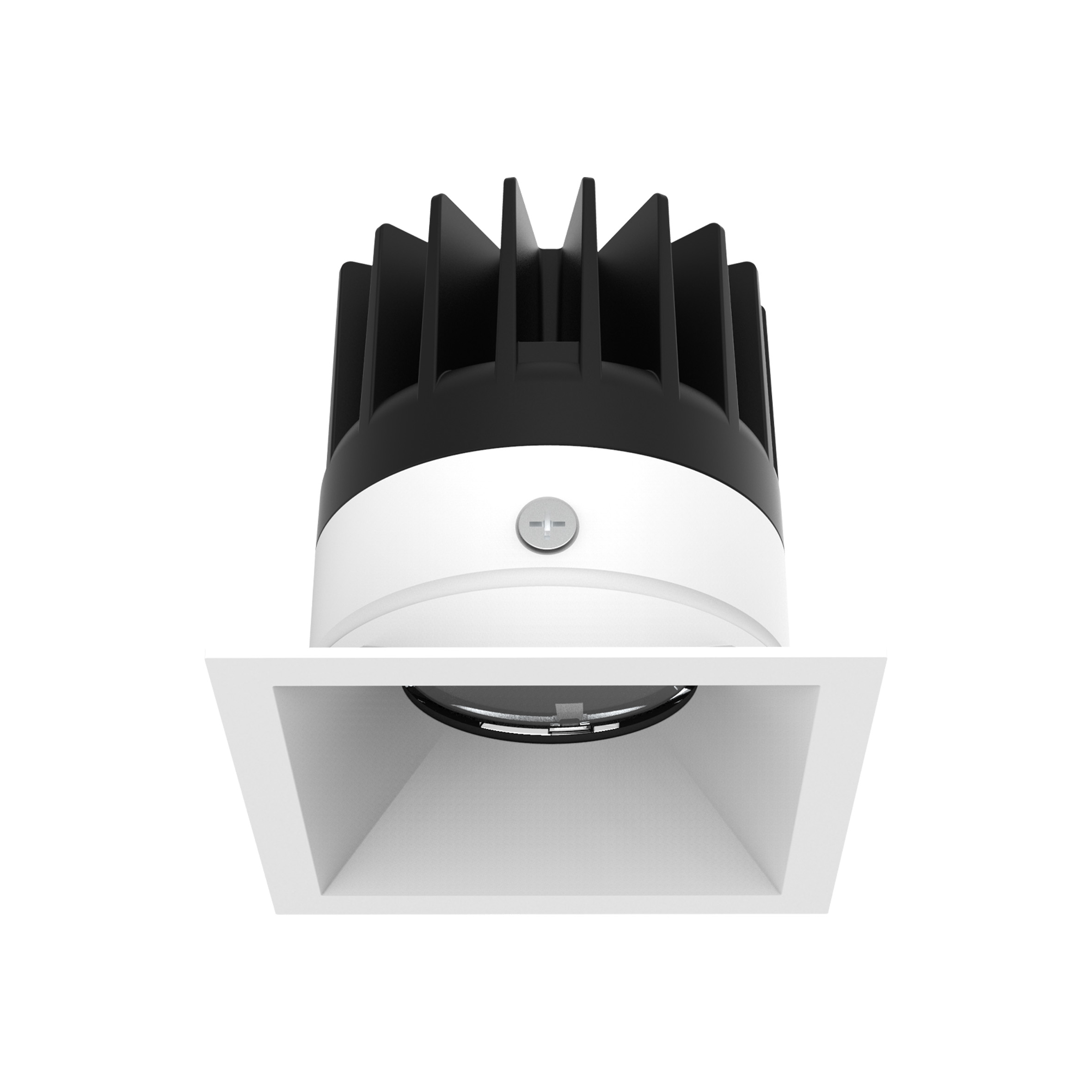

ITEM NO. 2218.163-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 19°/25°/41°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.163-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.163-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

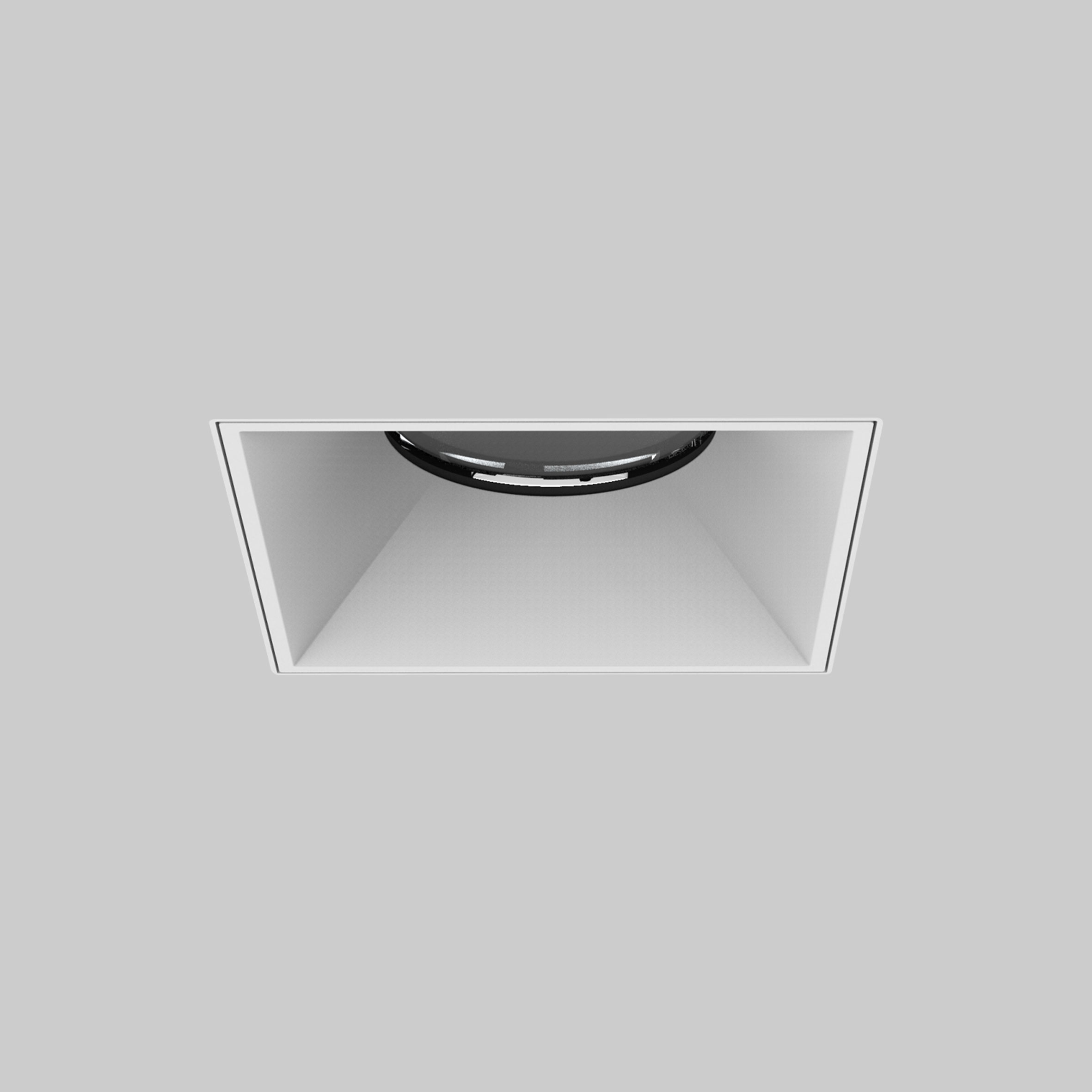

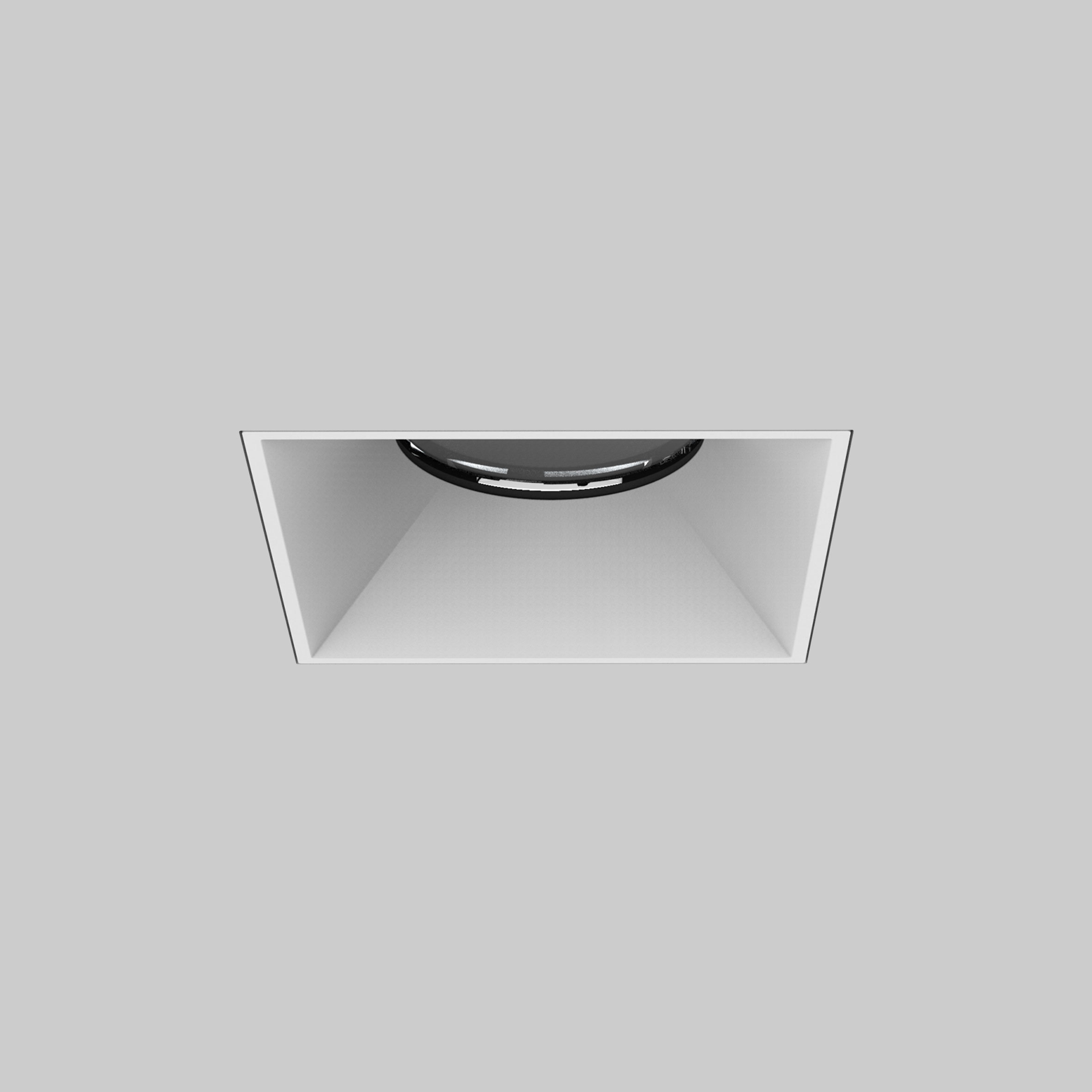

- 2218.225A-LEE-19-HE
- 18W
- 2504lm

-
STAR-88

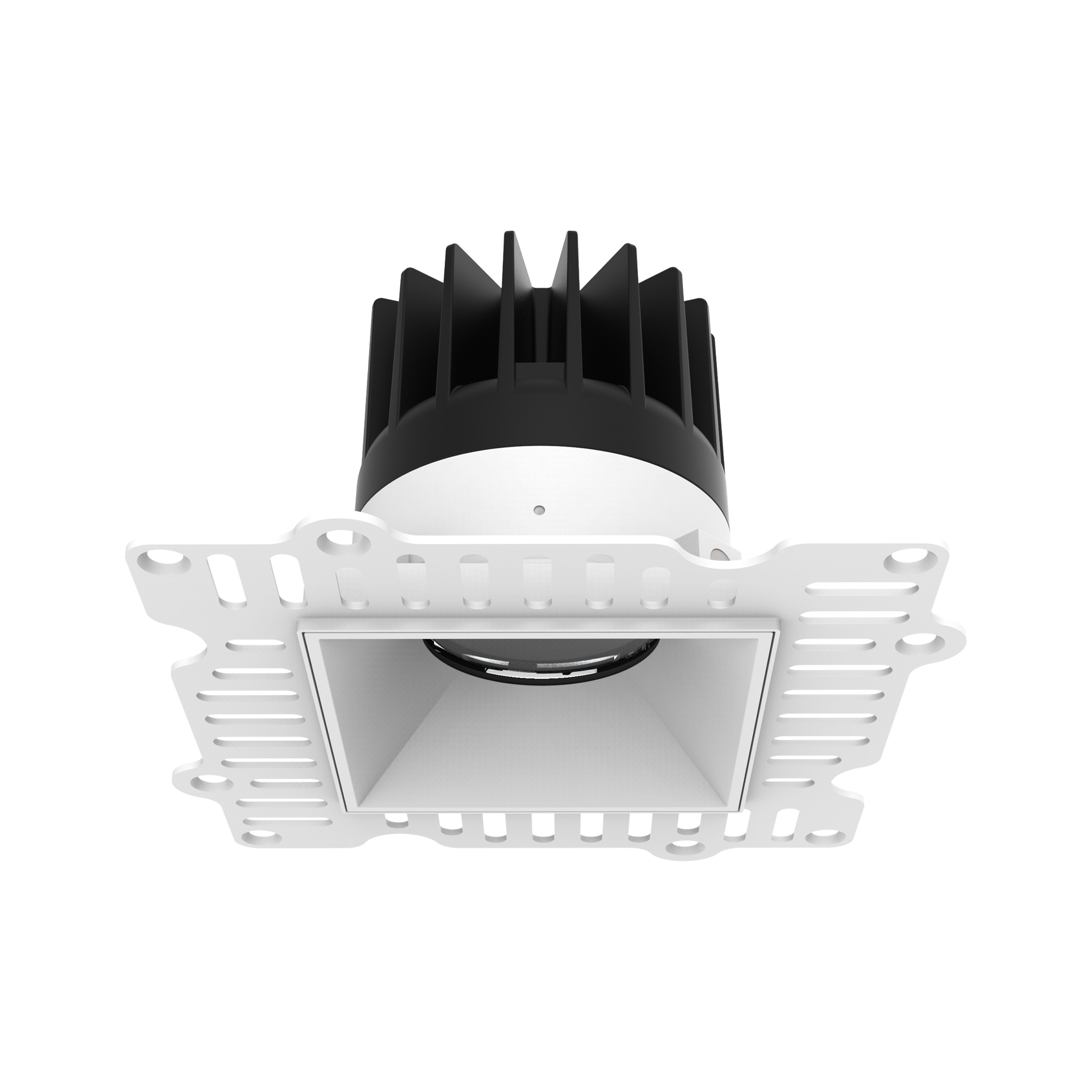

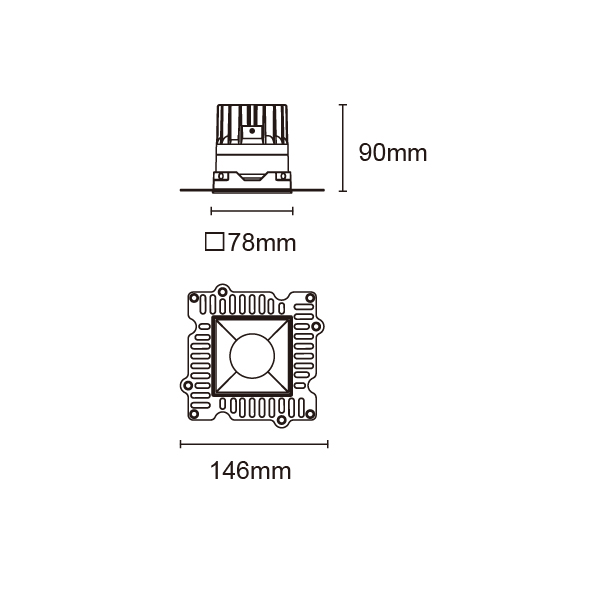

ITEM NO. 2218.225A-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 19°/25°/41°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.225A-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.225A-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

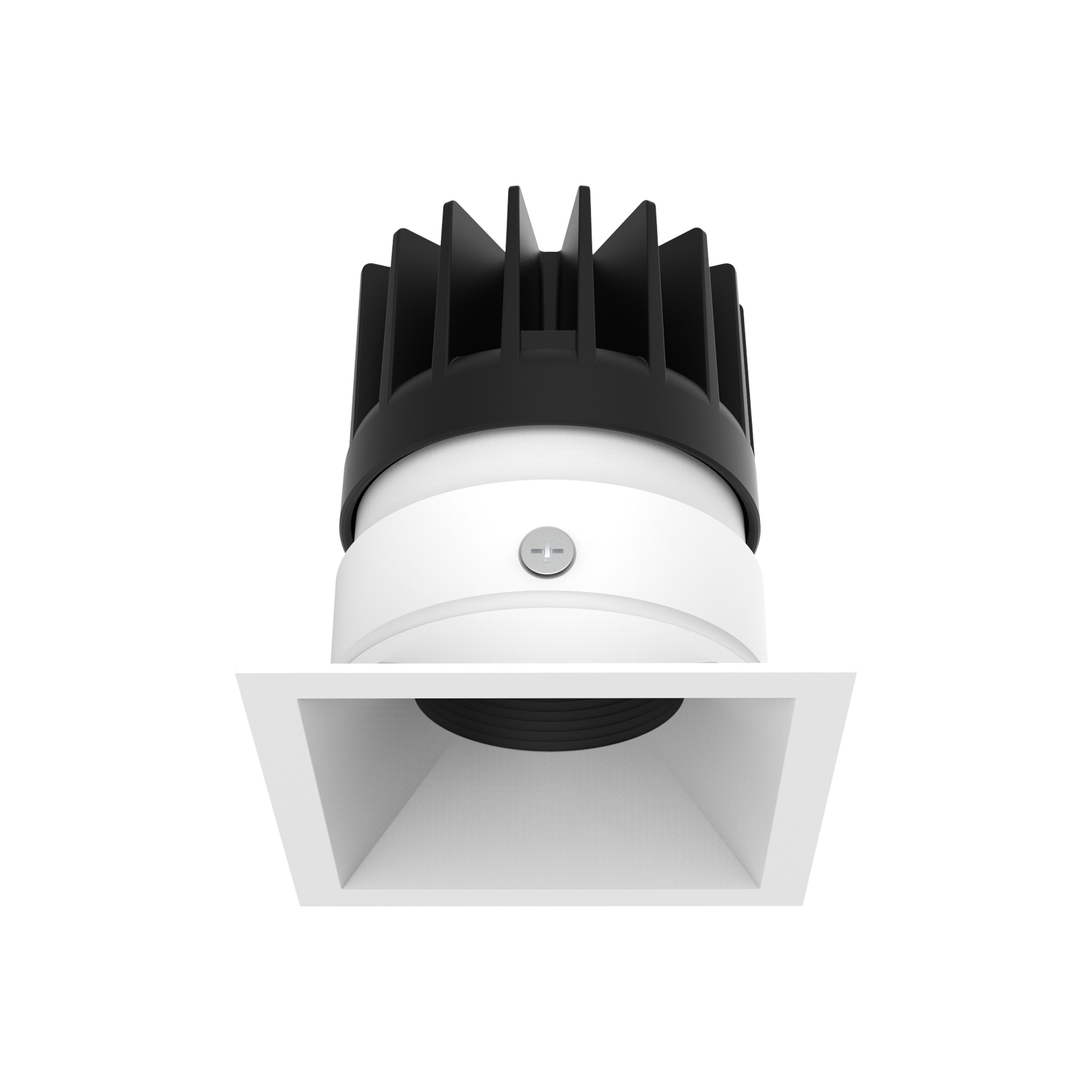

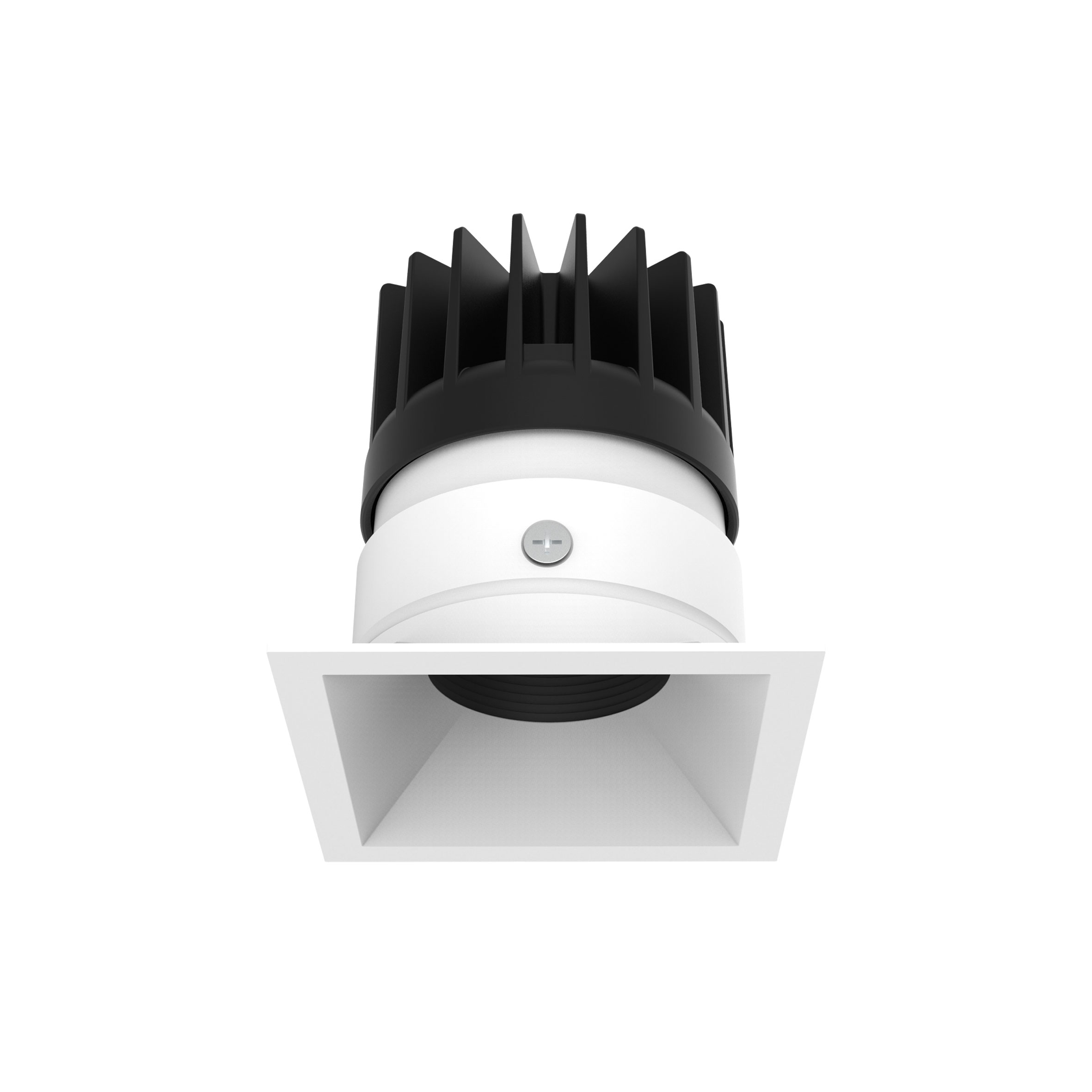

- 2218.167-LEE-19-HE
- 18W
- 2504lm

-
STAR-88

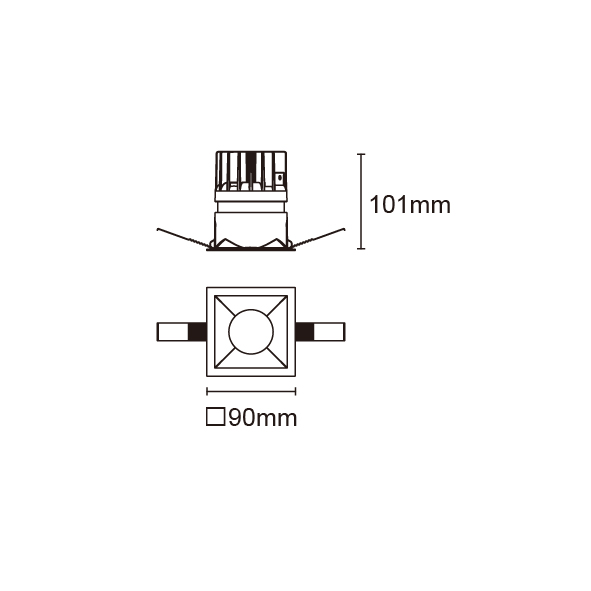

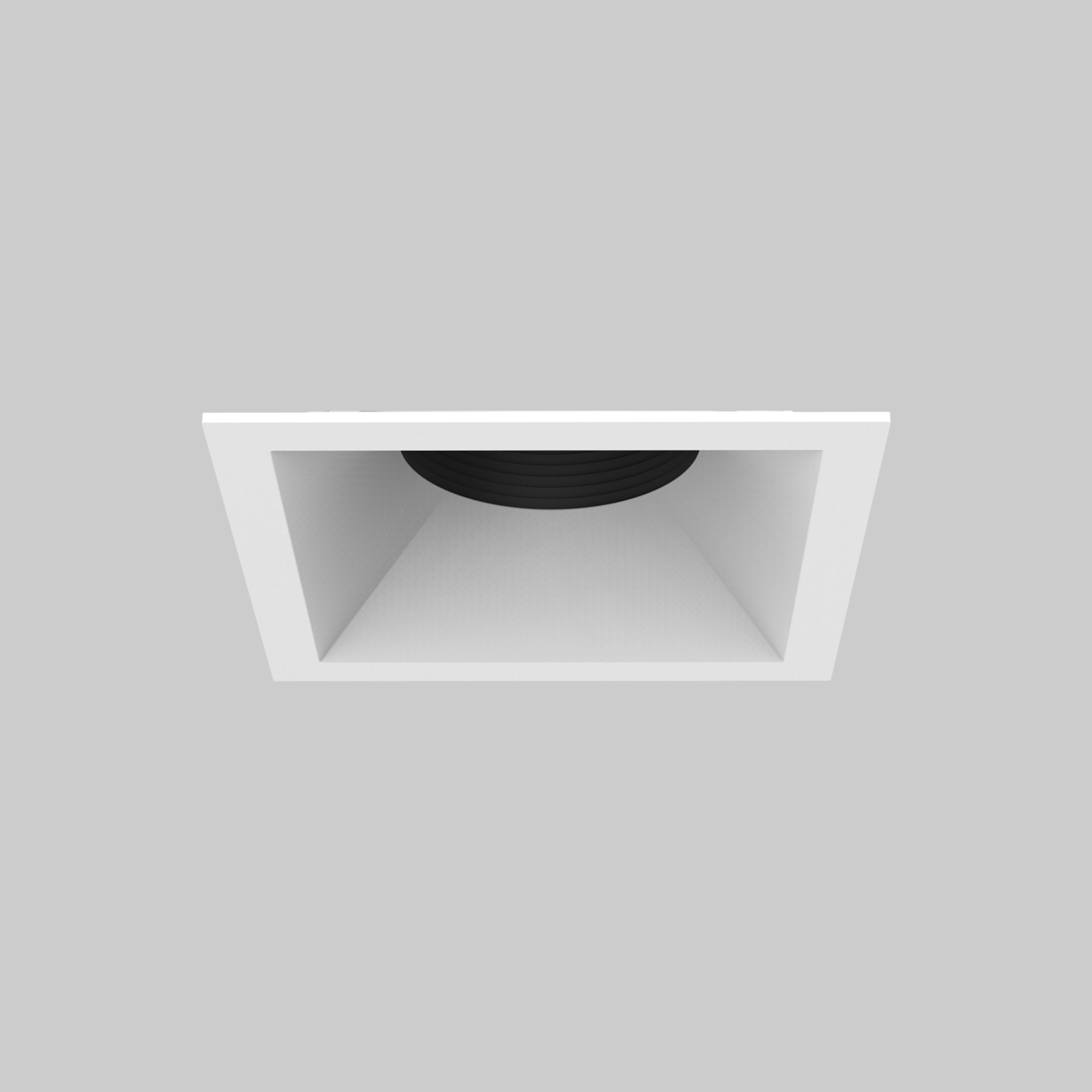

ITEM NO. 2218.167-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 19°/25°/41°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.167-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.167-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

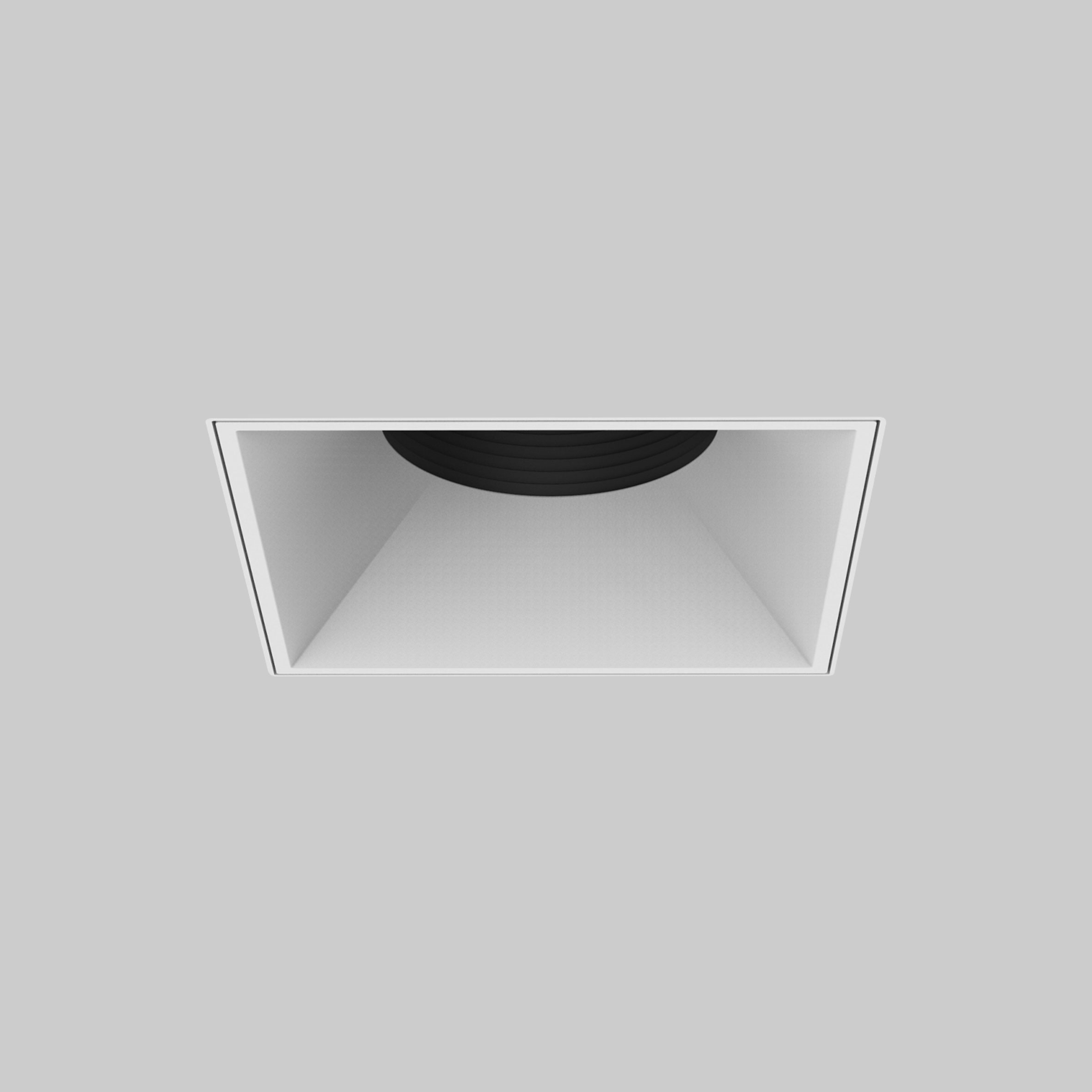

- 2218.229A-LEE-19-HE
- 18W
- 2504lm

-
STAR-88

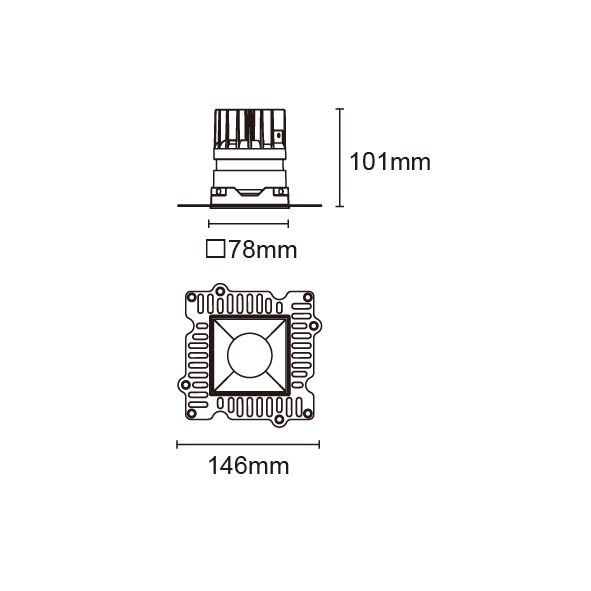

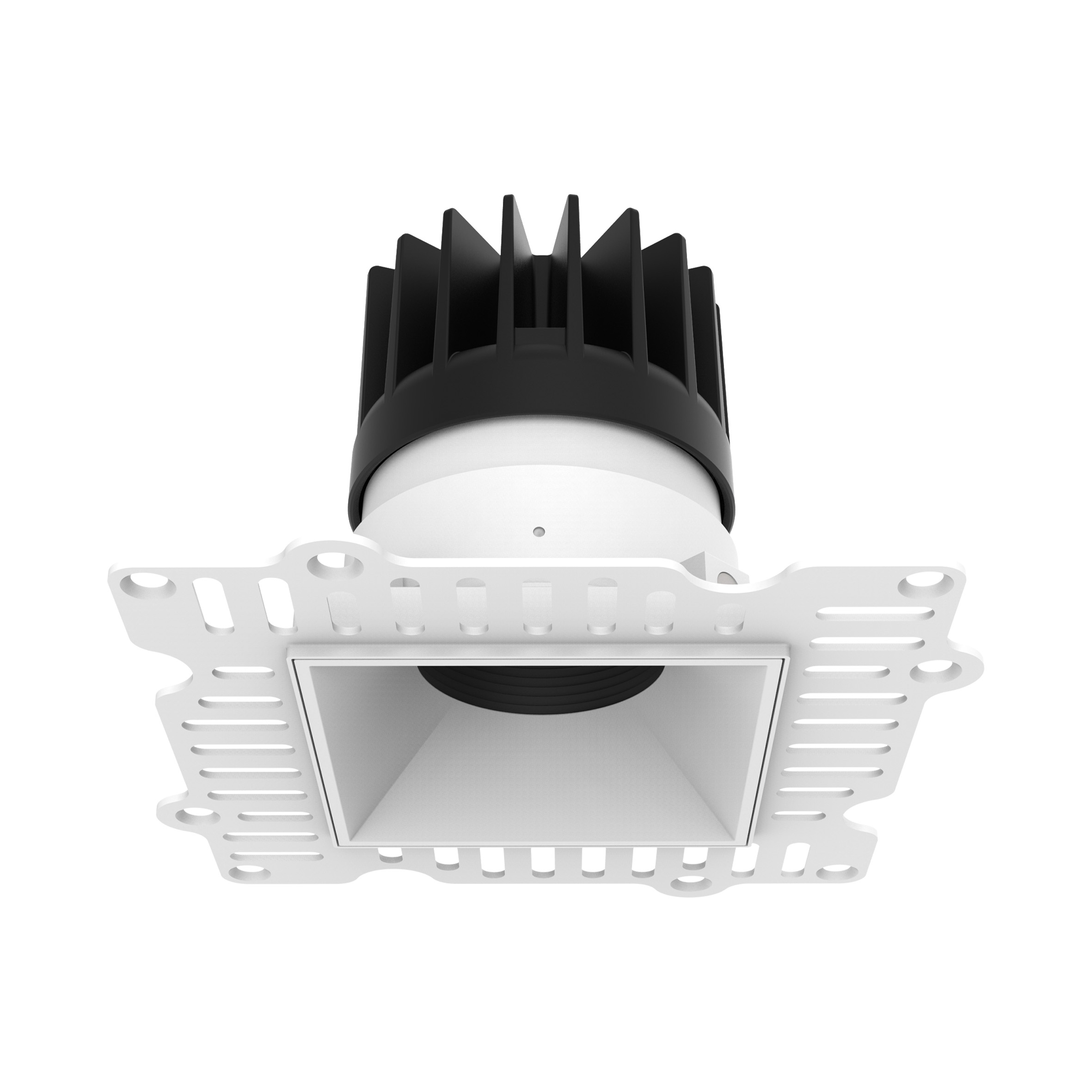

ITEM NO. 2218.229A-LEE-19-HE
Consumption18W
Current / Voltage500mA
LED Lumen2504lm
Beam Angle 19°/25°/41°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2218.229A-LEE-20
- 10W
- 774lm

-
STAR-88
ITEM NO. 2218.229A-LEE-20
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 8°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.144-LEE-27-DW-IP
- 12W
- 1185lm

-
STAR-70
ITEM NO. 2418.144-LEE-27-DW-IP
Consumption12W
Current / Voltage350 mA
LED Lumen1185lm
Beam Angle 15°/24°/36°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.144-LEE-27-WCW-IP
- 15W
- 1281-1522lm

-
STAR-70
ITEM NO. 2418.144-LEE-27-WCW-IP
Consumption15W
Current / Voltage400 mA
LED Lumen1281-1522lm
Beam Angle 15°/24°/36°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP54
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.211F-LEE-27-DW
- 12W
- 1185lm

-
STAR-70
ITEM NO. 2418.211F-LEE-27-DW
Consumption12W
Current / Voltage350mA
LED Lumen1185lm
Beam Angle 15°/24°/36°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2418.211F-LEE-27-WCW
- 15W
- 1281-1522lm

-
STAR-70
ITEM NO. 2418.211F-LEE-27-WCW
Consumption15W
Current / Voltage400mA
LED Lumen1281-1522lm
Beam Angle 15°/24°/36°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
IP44
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
