- Article number
- Led Consumption
- Lumen
- Cut Out
- Light Distribution

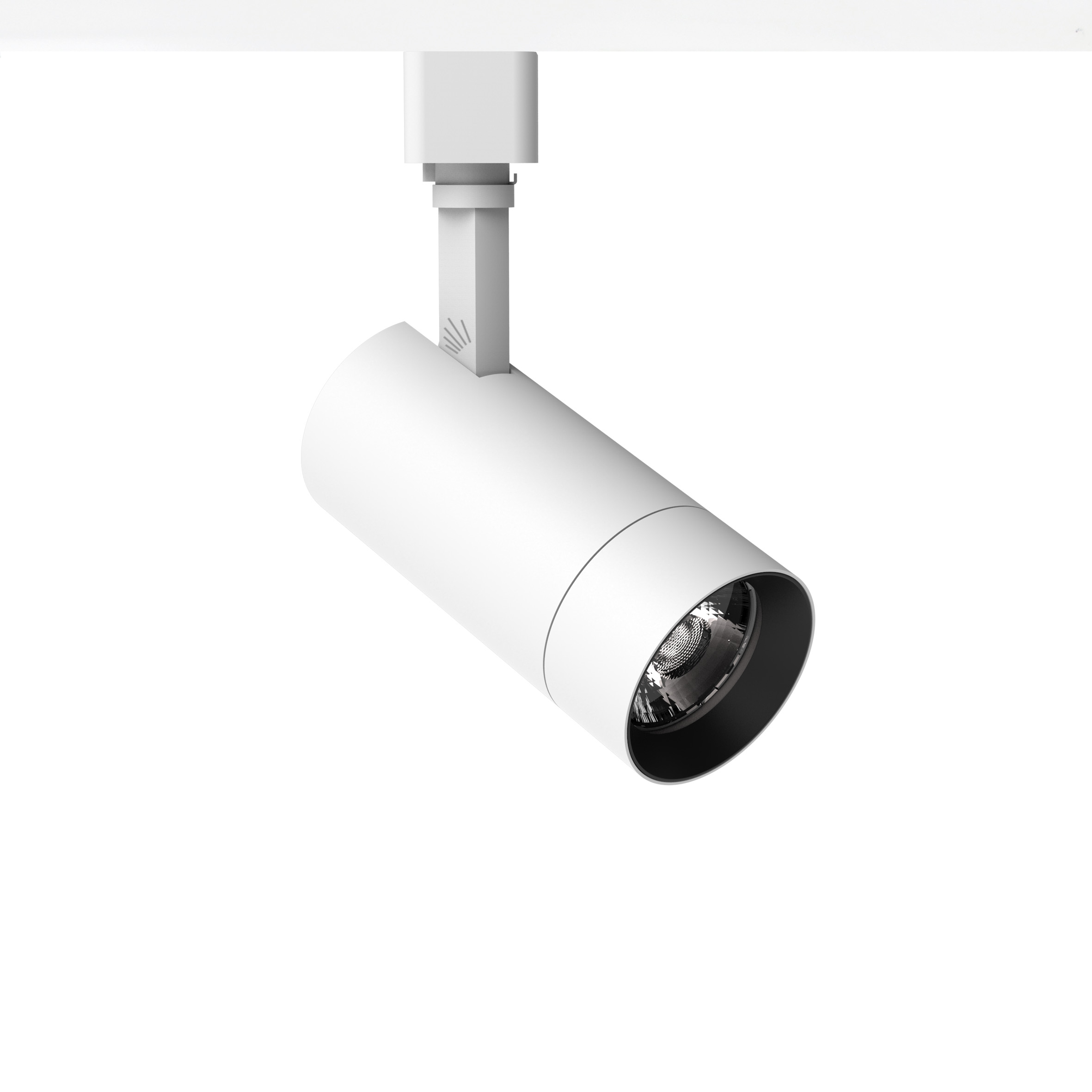

- 2319.201-H3AM-350
- 15W
- 1185 lm

-
ASTER-B

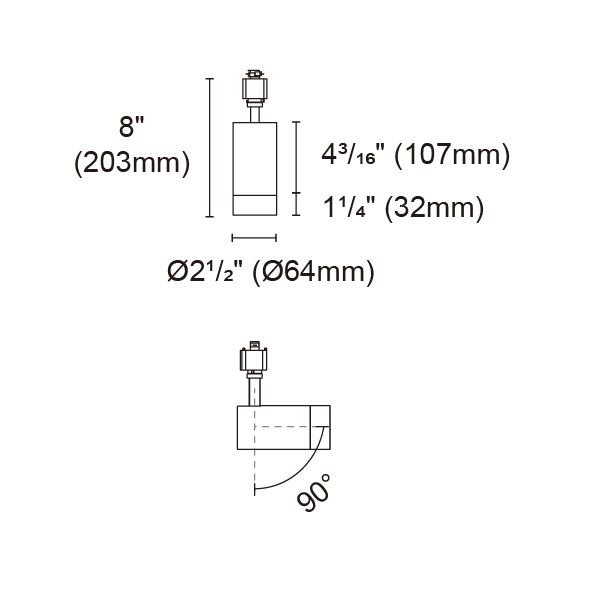

ITEM NO. 2319.201-H3AM-350
Consumption15W
Current / Voltage350 mA / 120VAC
LED Lumen1185 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

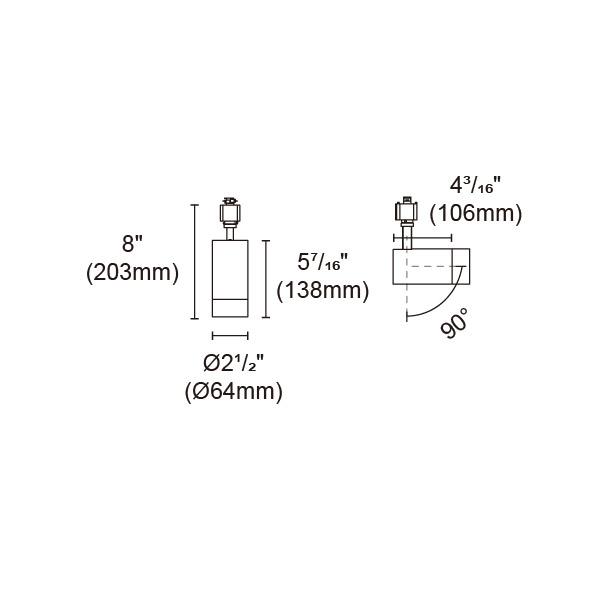

- 2319.201-H3AM-500
- 20W
- 1660 lm

-
ASTER-B
ITEM NO. 2319.201-H3AM-500
Consumption20W
Current / Voltage500 mA / 120VAC
LED Lumen1660 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 2319.201F-H3AM-350
- 15W
- 418 lm

-
ASTER-B

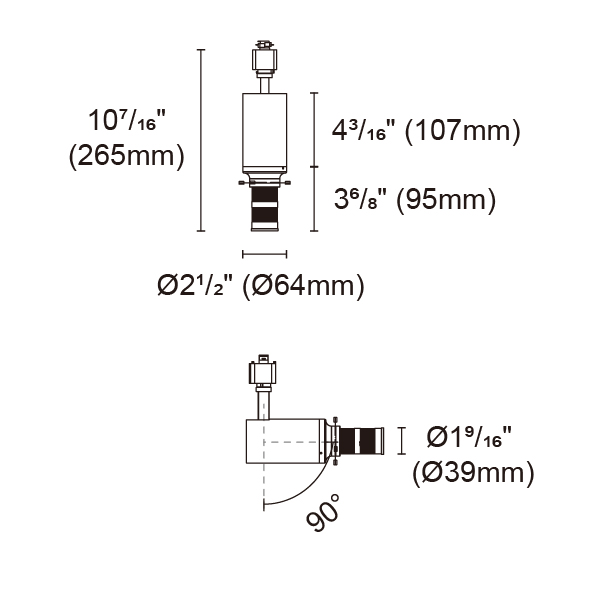

ITEM NO. 2319.201F-H3AM-350
Consumption15W
Current / Voltage350 mA /120VAC
LED Lumen418 lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 2319.201F-H3AM-500
- 20W
- 598 lm

-
ASTER-B
ITEM NO. 2319.201F-H3AM-500
Consumption20W
Current / Voltage500 mA / 120VAC
LED Lumen598 lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

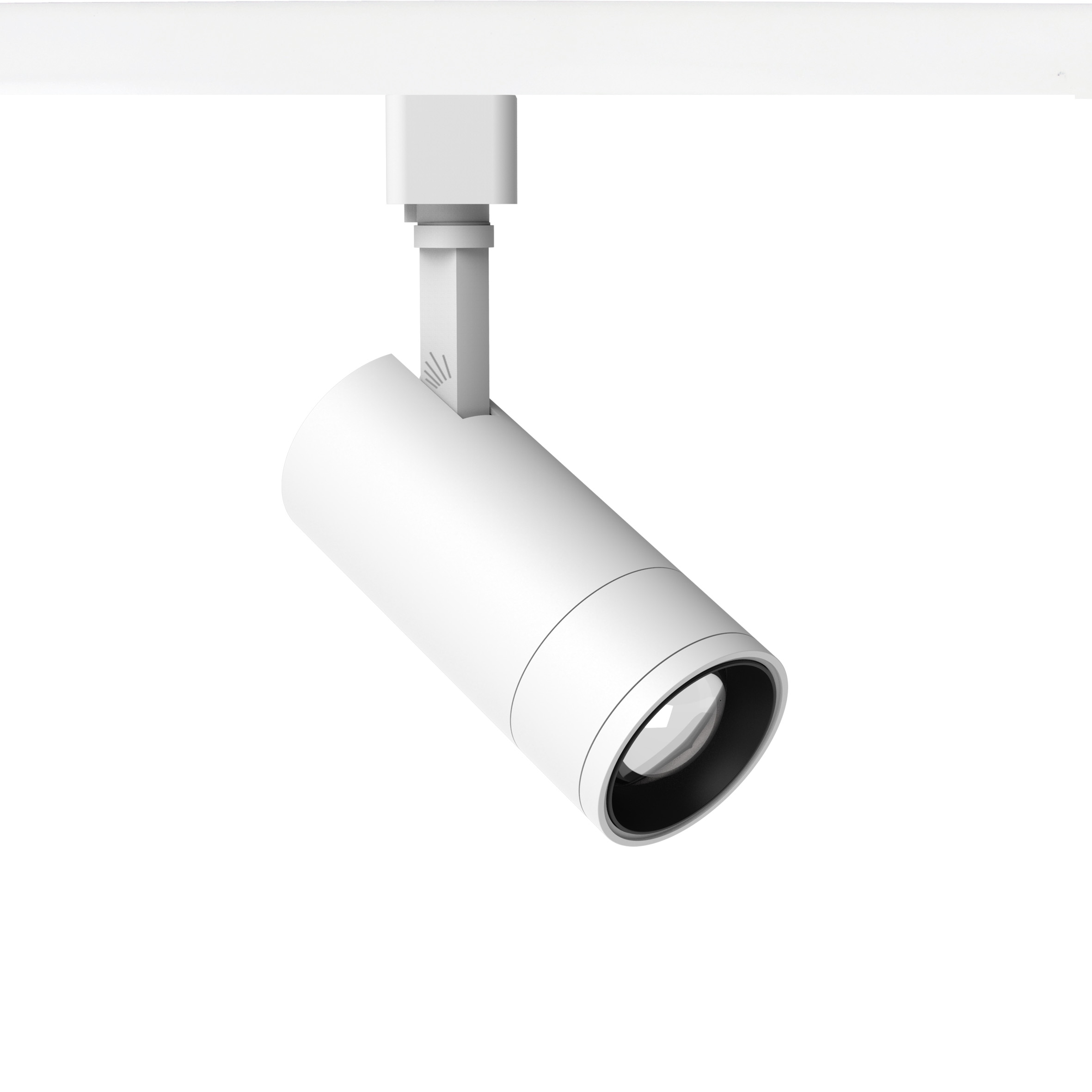

- 2319.201Z-H3AM-350
- 15W
- 815 lm

-
ASTER-B

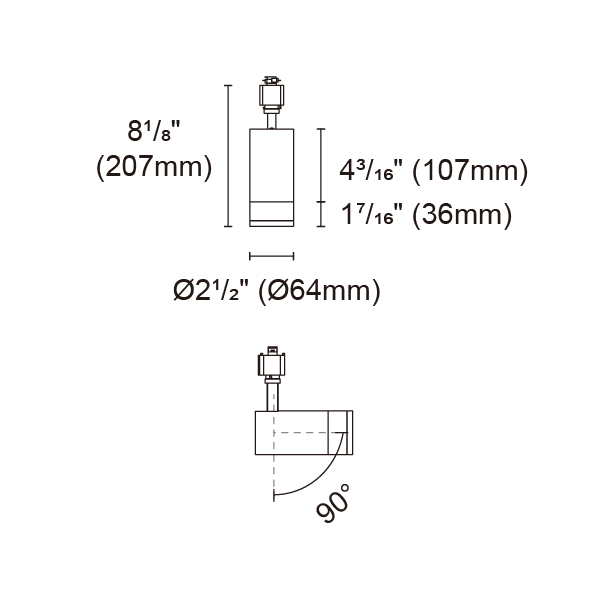

ITEM NO. 2319.201Z-H3AM-350
Consumption15W
Current / Voltage350mA / 120VAC
LED Lumen815 lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 2319.201Z-H3AM-500
- 20W
- 1141 lm

-
ASTER-B
ITEM NO. 2319.201Z-H3AM-500
Consumption20W
Current / Voltage500mA / 120VAC
LED Lumen1141 lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

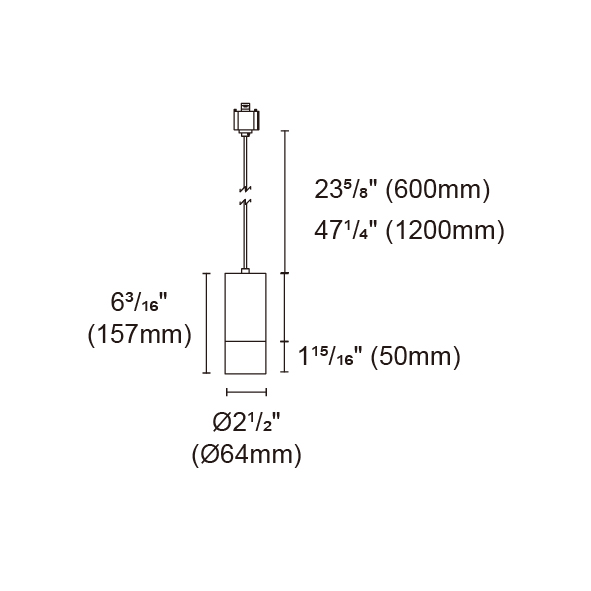

- 2319.204L-H3AM-C2-350
- 15W
- 1454 lm

-
ASTER-B
ITEM NO. 2319.204L-H3AM-C2-350
Consumption15W
Current / Voltage350mA / 120VAC
LED Lumen1454 lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-H3AM-C4-350
- 15W
- 1454 lm

-
ASTER-B

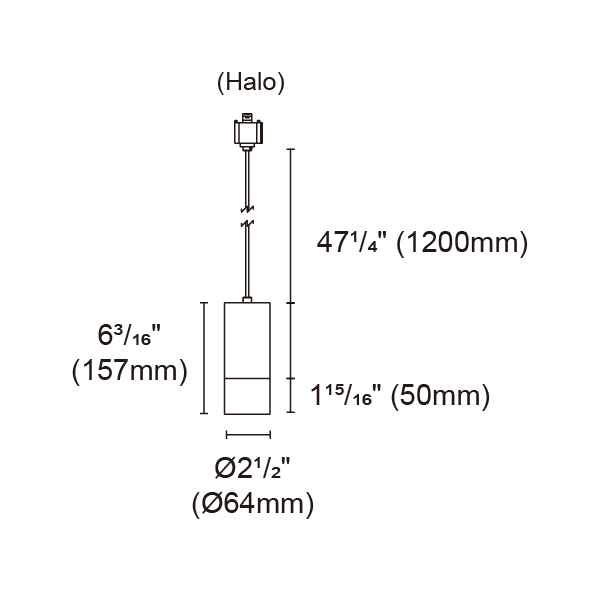

ITEM NO. 2319.204L-H3AM-C4-350
Consumption15W
Current / Voltage350mA / 120VAC
LED Lumen1454 lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-H3AM-C2-500
- 20W
- 2004 lm

-
ASTER-B
ITEM NO. 2319.204L-H3AM-C2-500
Consumption20W
Current / Voltage500mA / 120VAC
LED Lumen2004 lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-H3AM-C4-500
- 20W
- 2004 lm

-
ASTER-B
ITEM NO. 2319.204L-H3AM-C4-500
Consumption20W
Current / Voltage500mA / 120VAC
LED Lumen2004 lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

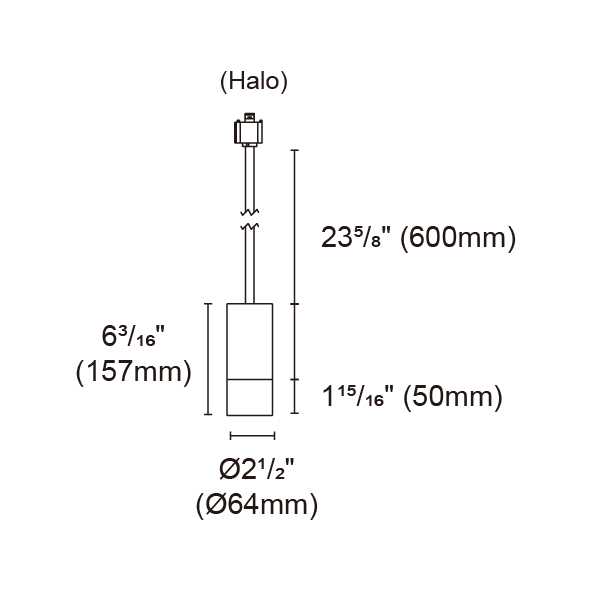

- 2319.204L-H3AM-P2-350
- 15W
- 1454 lm

-
ASTER-B

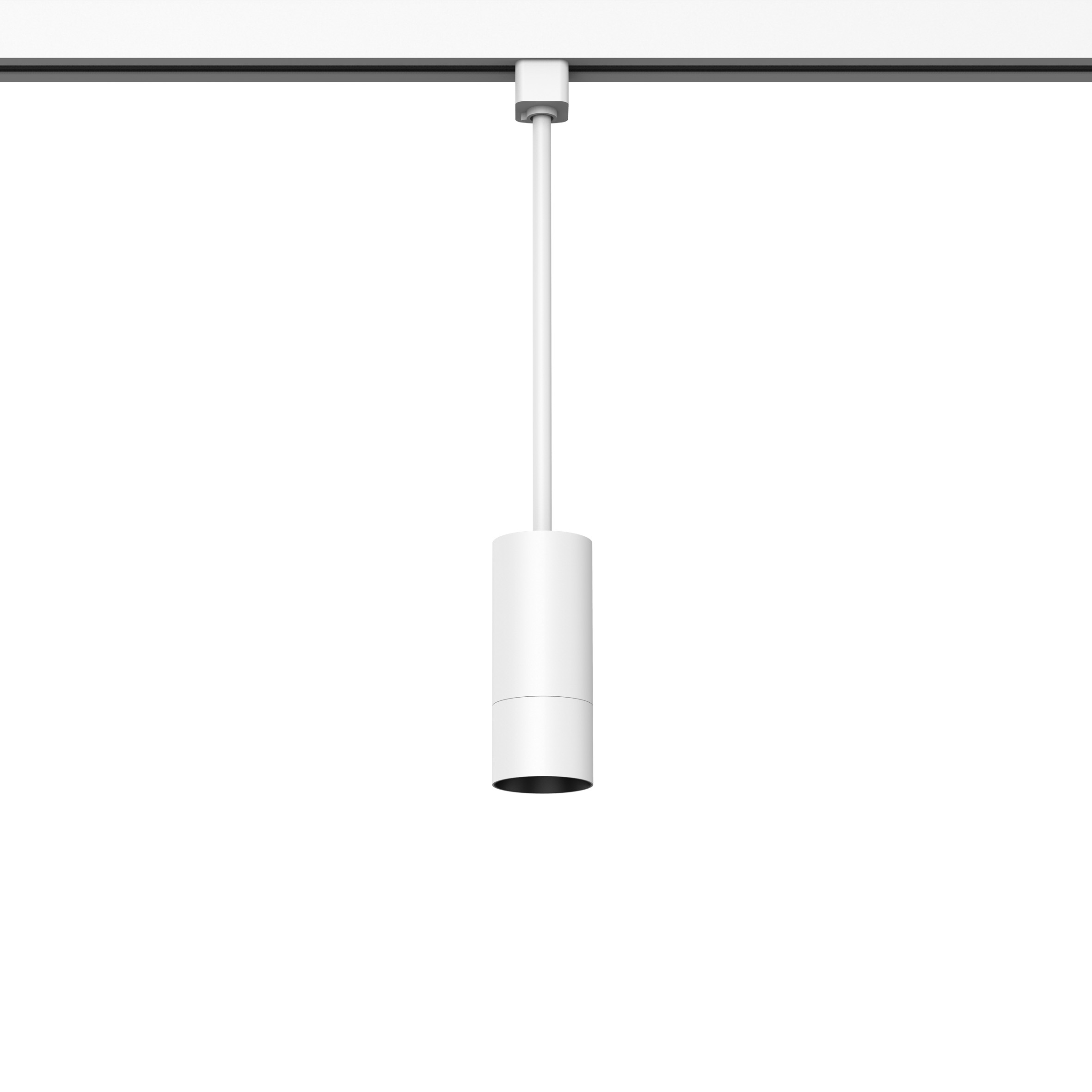

ITEM NO. 2319.204L-H3AM-P2-350
Consumption15W
Current / Voltage350mA / 120VAC
LED Lumen1454 lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-H3AM-P4-350
- 15W
- 1454 lm

-
ASTER-B

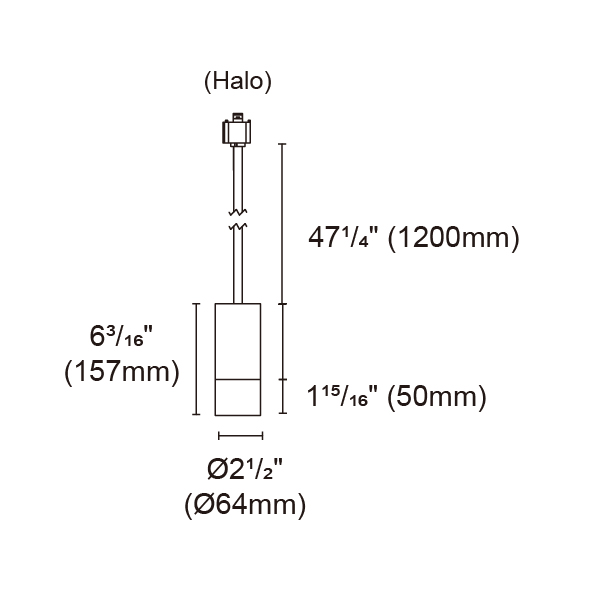

ITEM NO. 2319.204L-H3AM-P4-350
Consumption15W
Current / Voltage350mA / 120VAC
LED Lumen1454 lm
Beam Angle 15° /24° /36° /60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-H3AM-P2-500
- 20W
- 2004 lm

-
ASTER-B
ITEM NO. 2319.204L-H3AM-P2-500
Consumption20W
Current / Voltage500mA / 120VAC
LED Lumen2004 lm
Beam Angle 15° /24° /36° /60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-H3AM-P4-500
- 20W
- 2004 lm

-
ASTER-B
ITEM NO. 2319.204L-H3AM-P4-500
Consumption20W
Current / Voltage500mA / 120VAC
LED Lumen2004 lm
Beam Angle 15° /24° /36° /60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

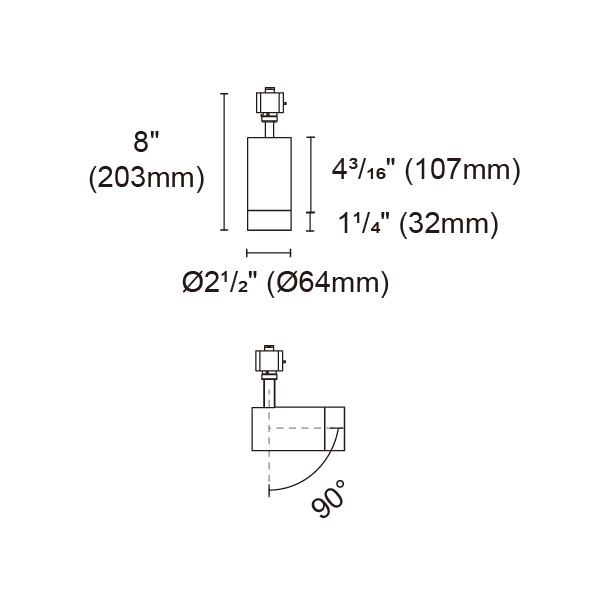

- 2319.201-J2AM-350
- 15W
- 1186lm

-
ASTER-B

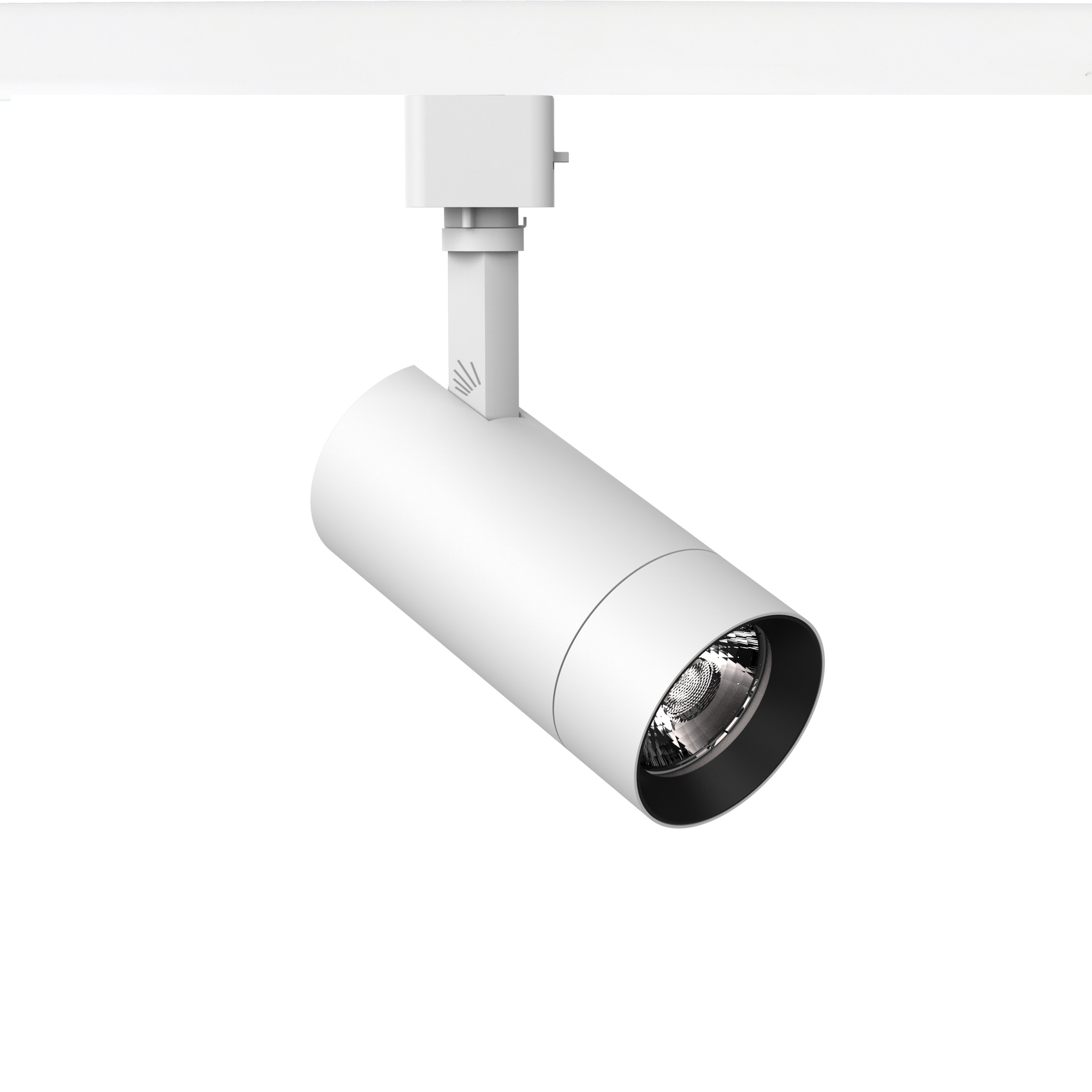

ITEM NO. 2319.201-J2AM-350
Consumption15W
Current / Voltage350mA / 120 VAC
LED Lumen1186lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue
- 2319.201-J2AM-500
- 20W
- 1661lm

-
ASTER-B
ITEM NO. 2319.201-J2AM-500
Consumption20W
Current / Voltage500mA / 120VAC
LED Lumen1661lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

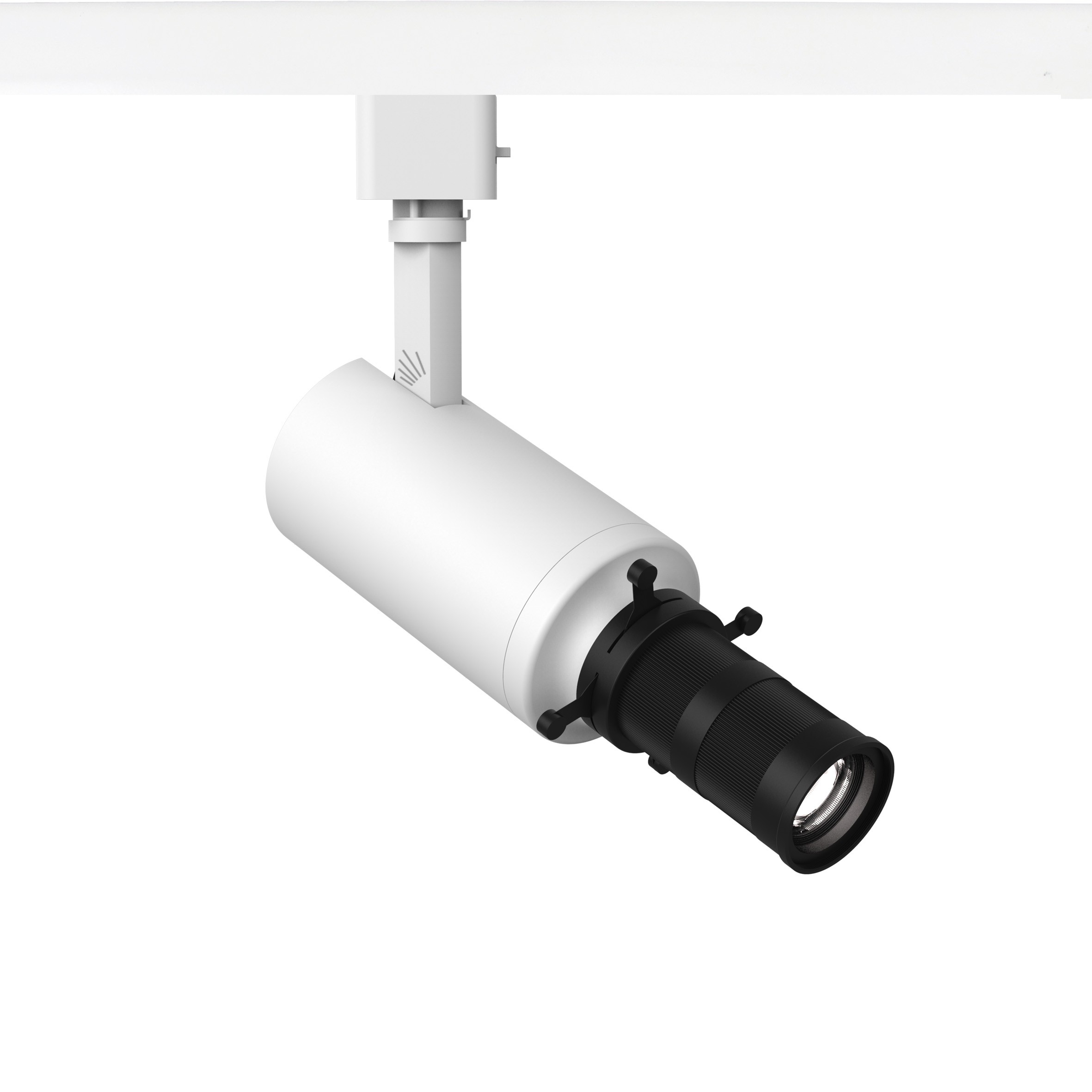

- 2319.201F-J2AM-350
- 15W
- 418lm

-
ASTER-B

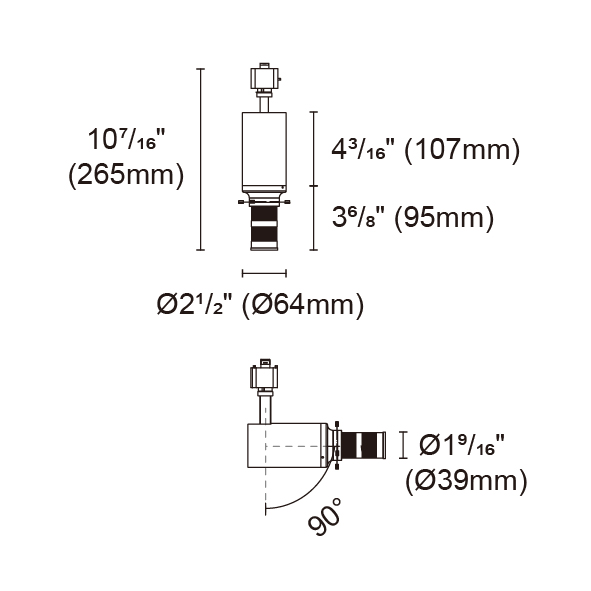

ITEM NO. 2319.201F-J2AM-350
Consumption15W
Current / Voltage350mA / 120 VAC
LED Lumen418lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue
- 2319.201F-J2AM-500
- 20W
- 598lm

-
ASTER-B
ITEM NO. 2319.201F-J2AM-500
Consumption20W
Current / Voltage500mA / 120 VAC
LED Lumen598lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

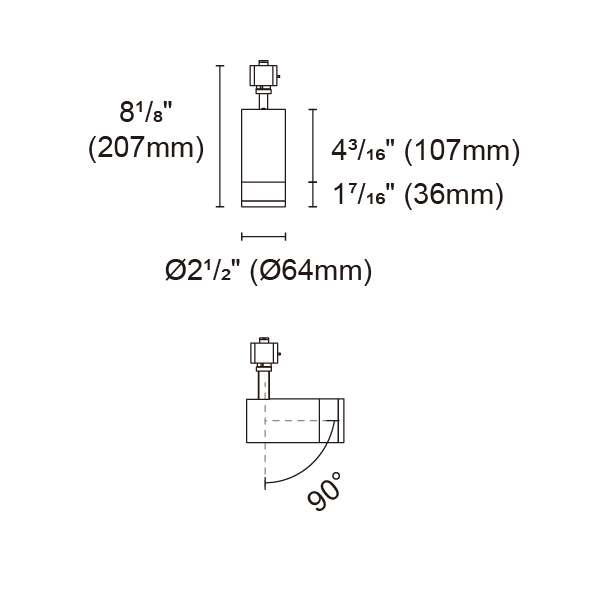

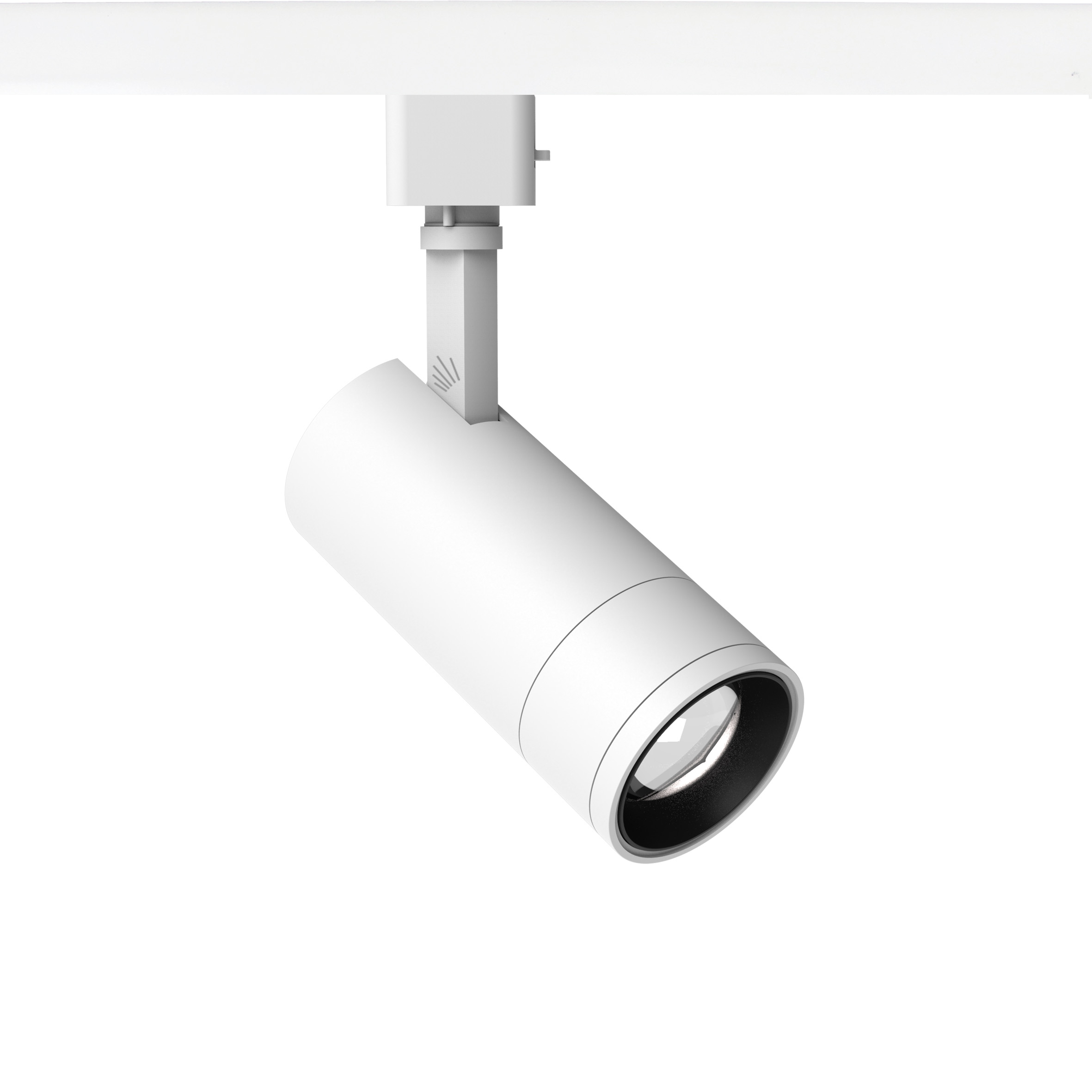

- 2319.201Z-J2AM-350
- 15W
- 815lm

-
ASTER-B
ITEM NO. 2319.201Z-J2AM-350
Consumption15W
Current / Voltage350mA / 120 VAC
LED Lumen815lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.201Z-J2AM-500
- 20W
- 1141lm

-
ASTER-B
ITEM NO. 2319.201Z-J2AM-500
Consumption20W
Current / Voltage500mA / 120 VAC
LED Lumen1141lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

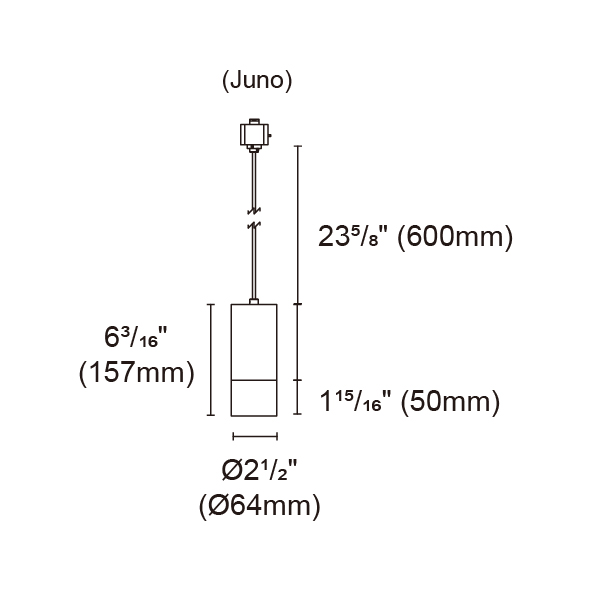

- 2319.204L-J2AM-C2-350
- 15W
- 1454lm

-
ASTER-B

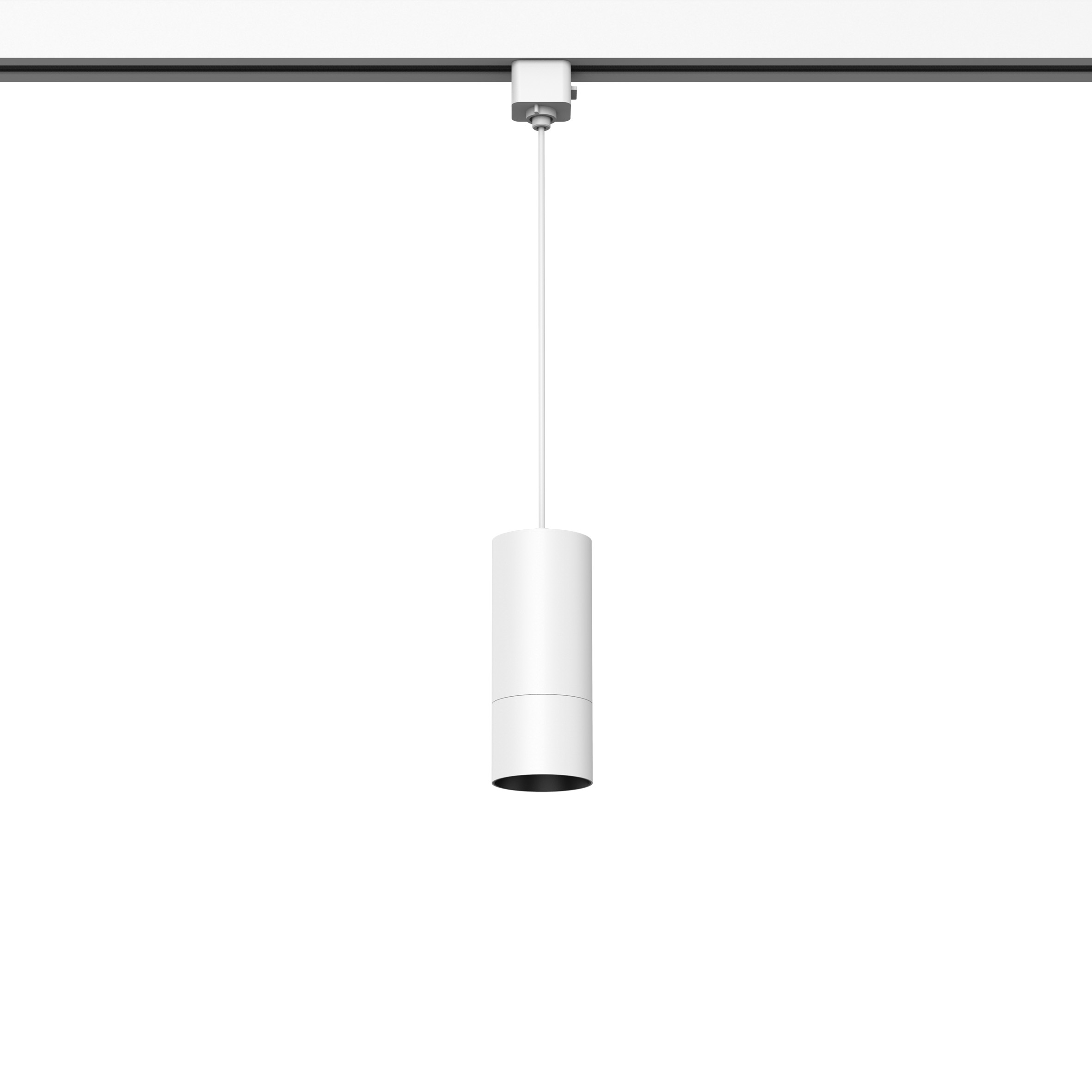

ITEM NO. 2319.204L-J2AM-C2-350
Consumption15W
Current / Voltage350mA / 120 VAC
LED Lumen1454lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-J2AM-C2-500
- 20W
- 2004lm

-
ASTER-B
ITEM NO. 2319.204L-J2AM-C2-500
Consumption20W
Current / Voltage500mA / 120 VAC
LED Lumen2004lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-J2AM-C4-350
- 15W
- 1454lm

-
ASTER-B
ITEM NO. 2319.204L-J2AM-C4-350
Consumption15W
Current / Voltage350mA / 120 VAC
LED Lumen1454lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-J2AM-C4-500
- 20W
- 2004lm

-
ASTER-B
ITEM NO. 2319.204L-J2AM-C4-500
Consumption20W
Current / Voltage500mA / 120 VAC
LED Lumen2004lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

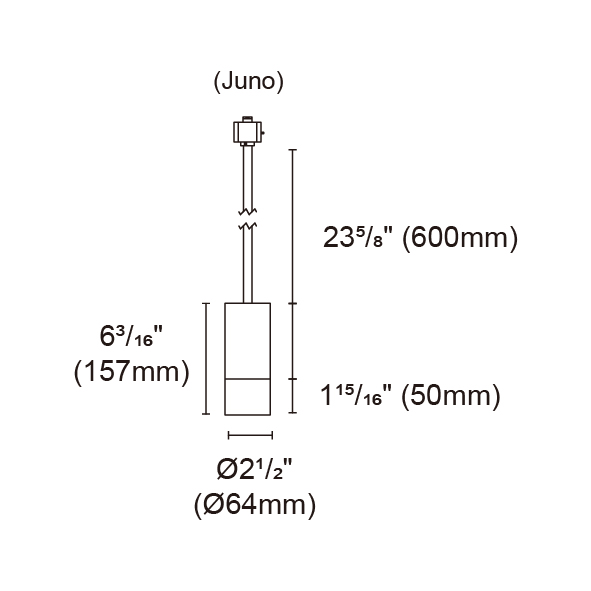

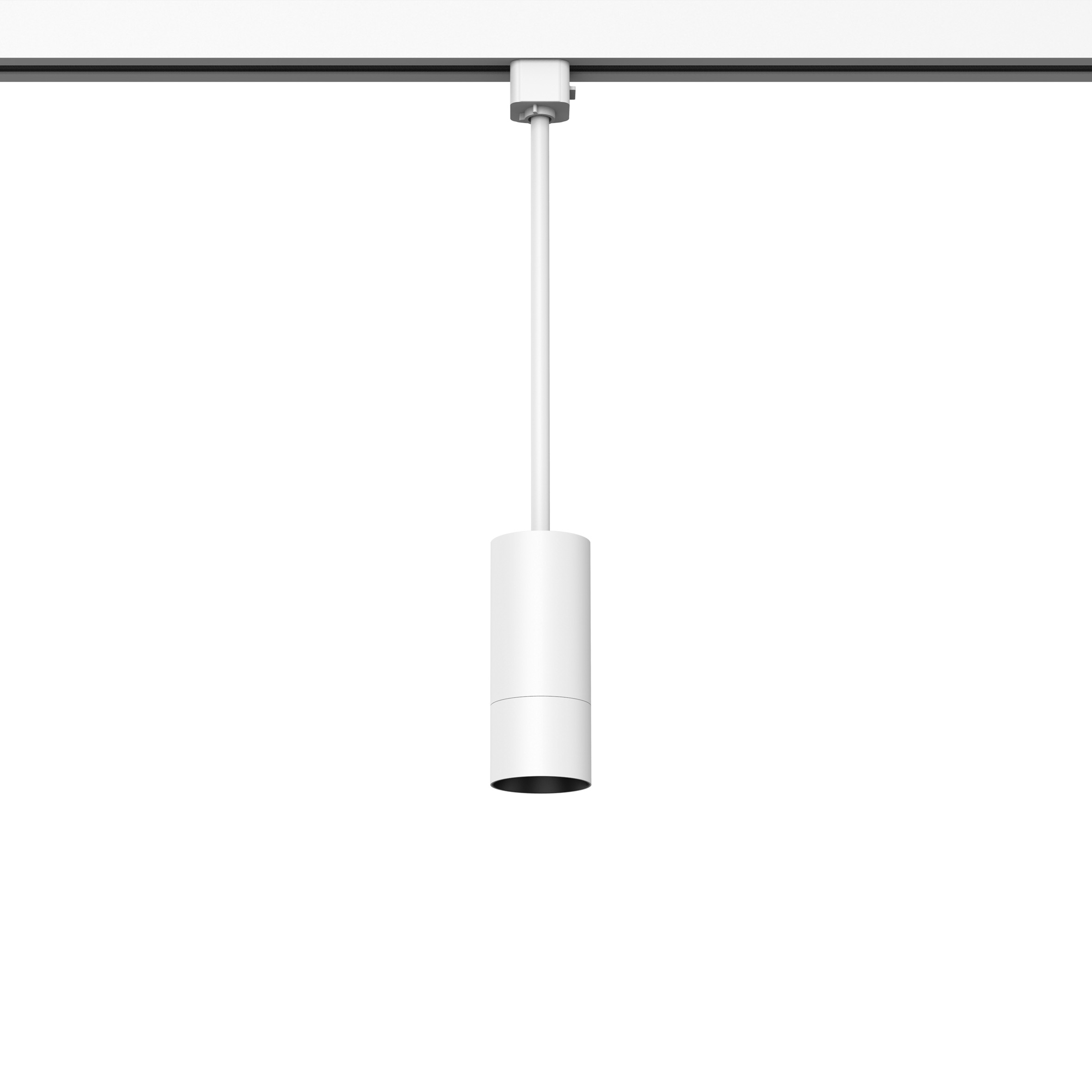

- 2319.204L-J2AM-P2-350
- 15W
- 1454lm

-
ASTER-B
ITEM NO. 2319.204L-J2AM-P2-350
Consumption15W
Current / Voltage350mA /120VAC
LED Lumen1454lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-J2AM-P2-500
- 20W
- 2004lm

-
ASTER-B
ITEM NO. 2319.204L-J2AM-P2-500
Consumption20W
Current / Voltage500mA / 120 VAC
LED Lumen2004lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

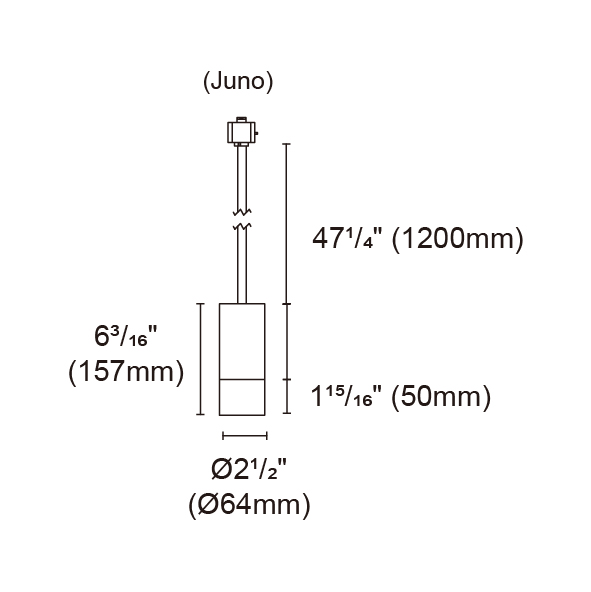

- 2319.204L-J2AM-P4-350
- 15W
- 1454lm

-
ASTER-B
ITEM NO. 2319.204L-J2AM-P4-350
Consumption15W
Current / Voltage350 mA / 120 VAC
LED Lumen1454lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.204L-J2AM-P4-500
- 20W
- 2004lm

-
ASTER-B
ITEM NO. 2319.204L-J2AM-P4-500
Consumption20W
Current / Voltage500 mA / 120 VAC
LED Lumen2004lm
Beam Angle 15°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

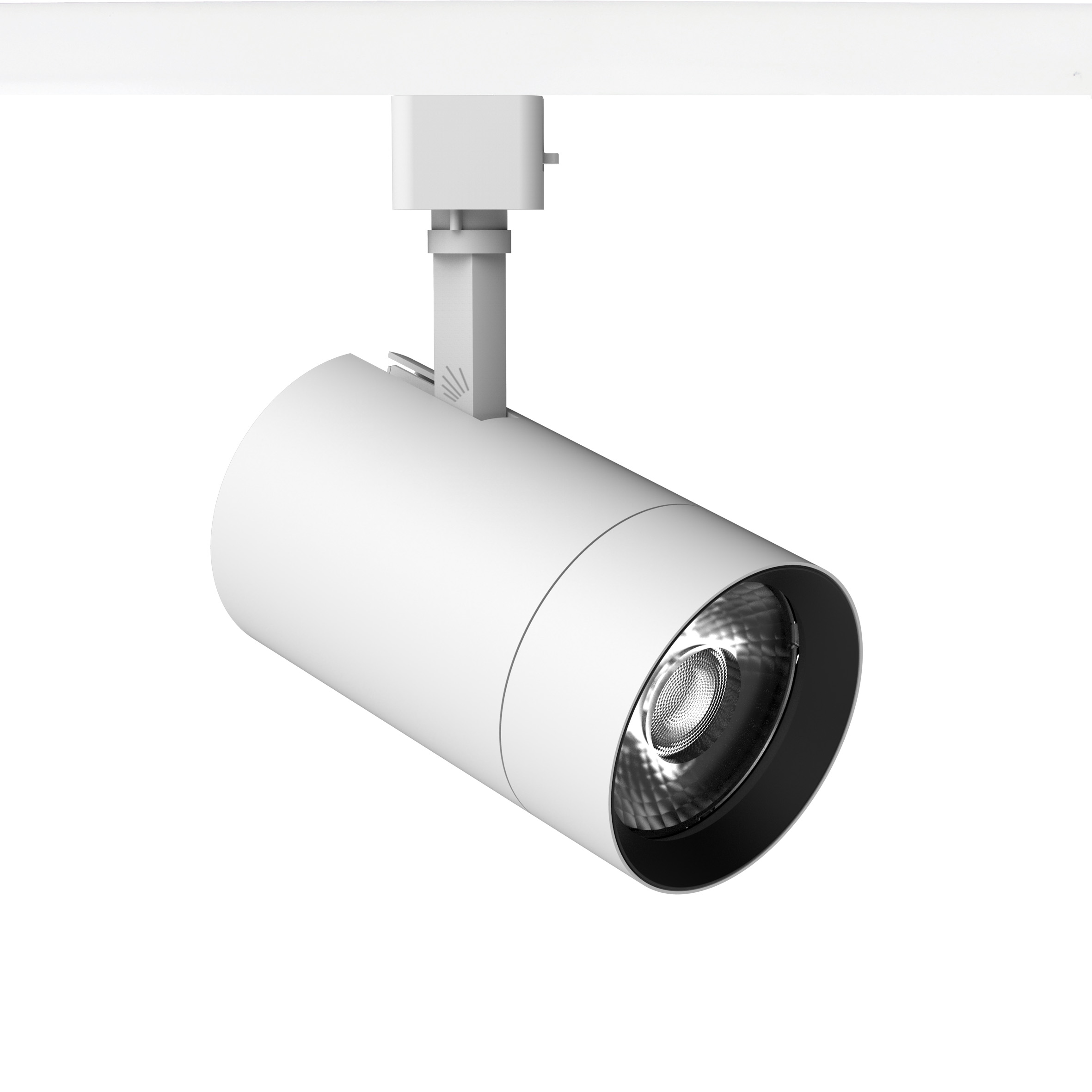

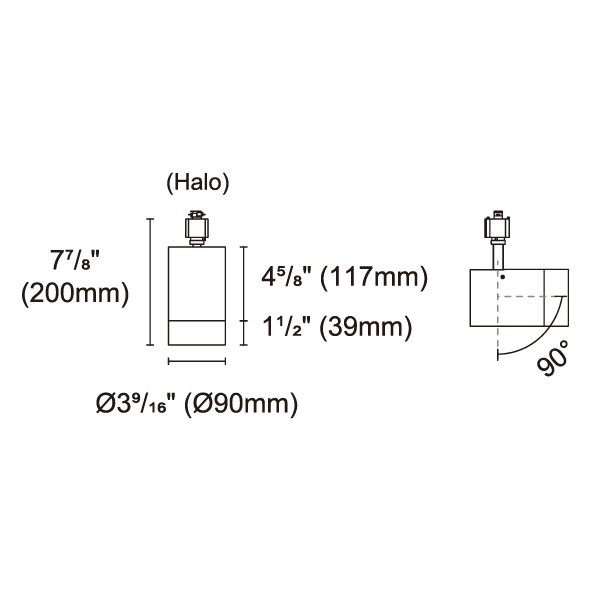

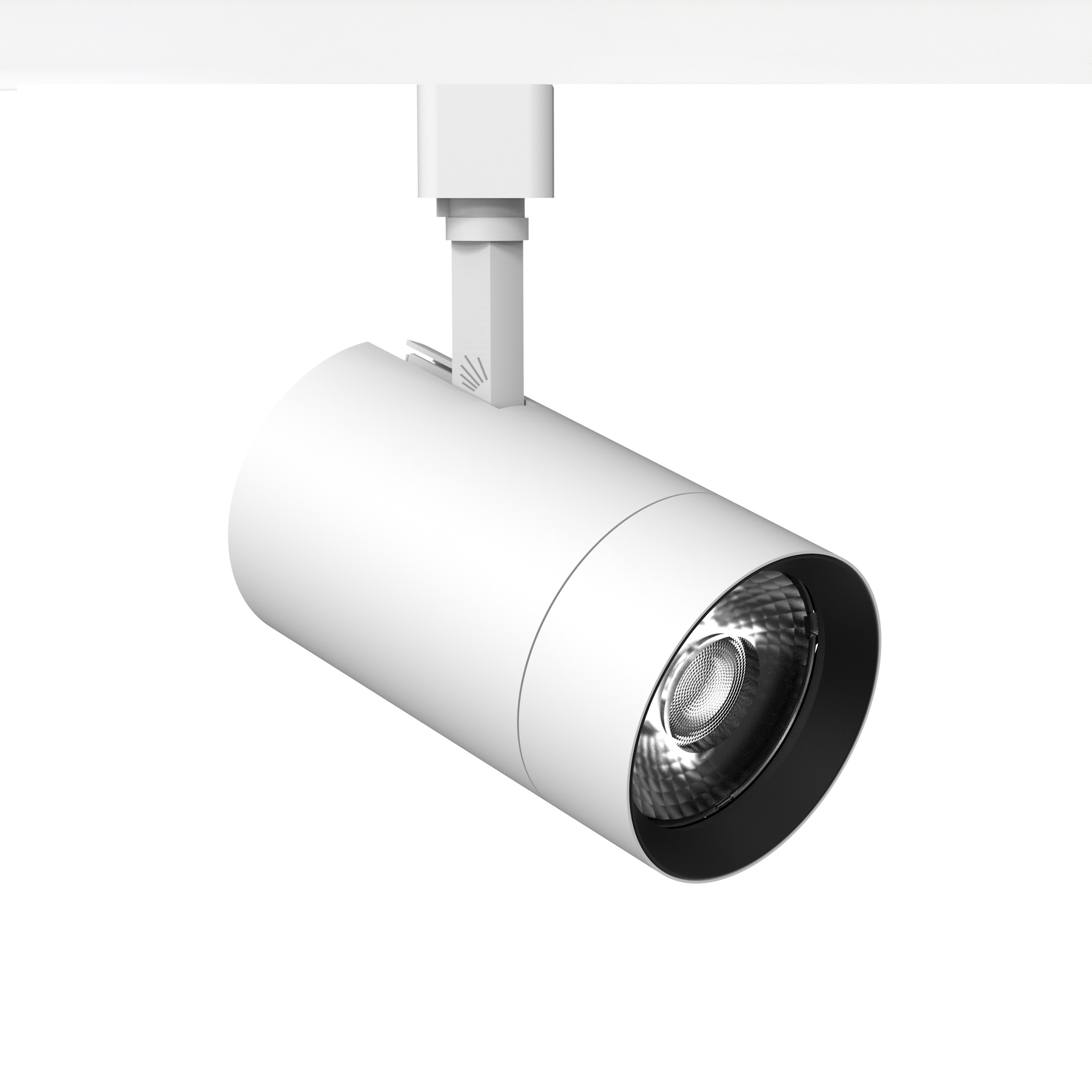

- 2319.222-H3AM-900
- 36W
- 2735 lm

-
ASTER-B
ITEM NO. 2319.222-H3AM-900
Consumption36W
Current / Voltage120VAC / 900 mA
LED Lumen2735 lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.222-J2AM-900
- 36W
- 2735 lm

-
ASTER-B

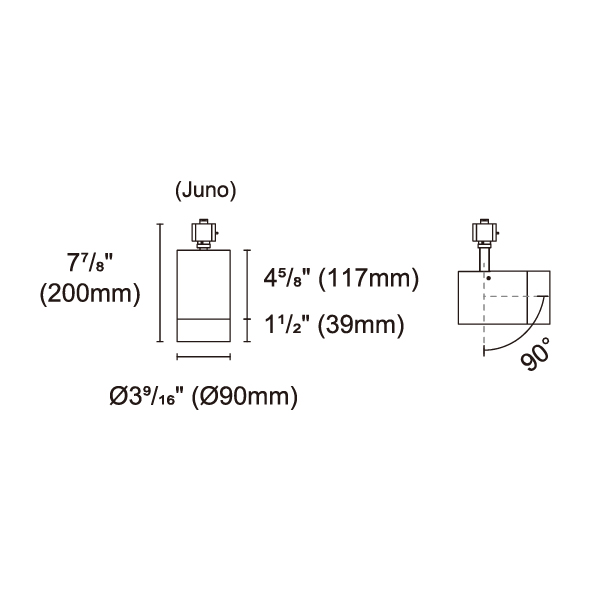

ITEM NO. 2319.222-J2AM-900
Consumption36W
Current / Voltage120VAC / 900 mA
LED Lumen2735 lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.222F-H3AM-850
- 33W
- 1082 lm

-
ASTER-B

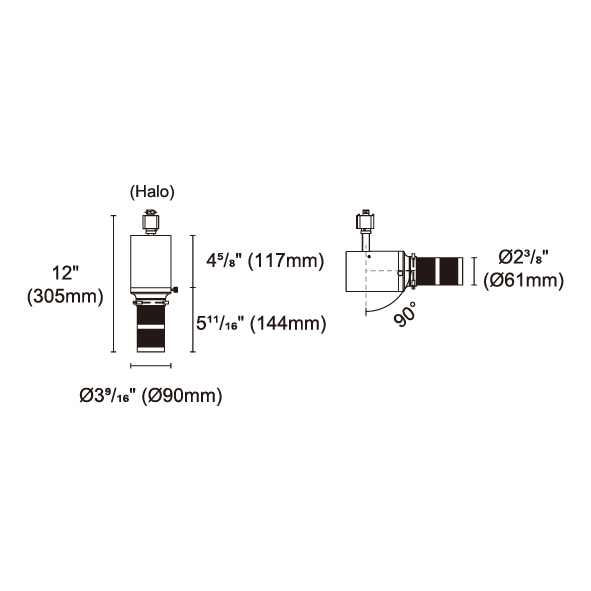

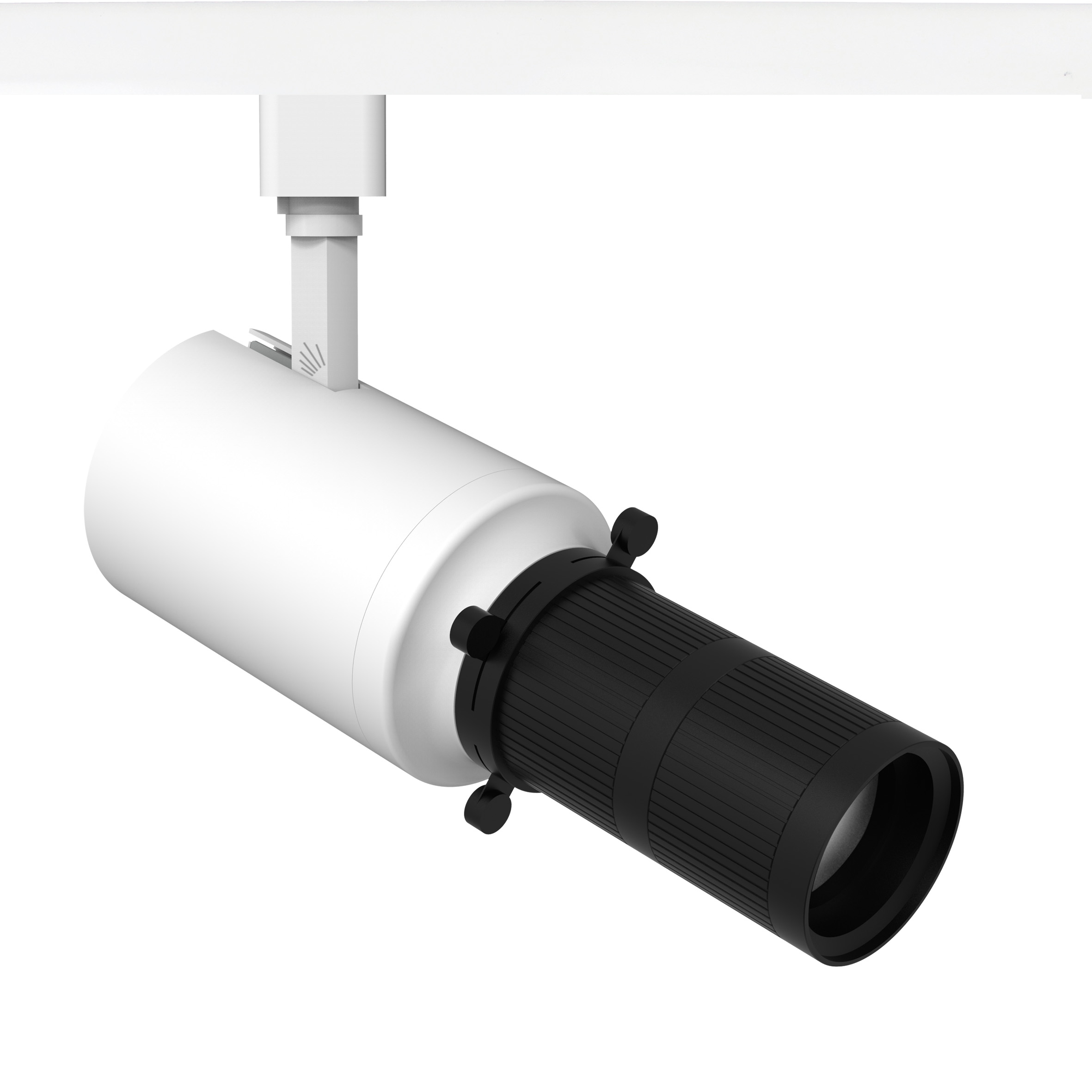

ITEM NO. 2319.222F-H3AM-850
Consumption33W
Current / Voltage120VAC / 850 mA
LED Lumen1082 lm
Beam Angle 25°~ 35°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.222Z-H3AM-900
- 36W
- 1882 lm

-
ASTER-B

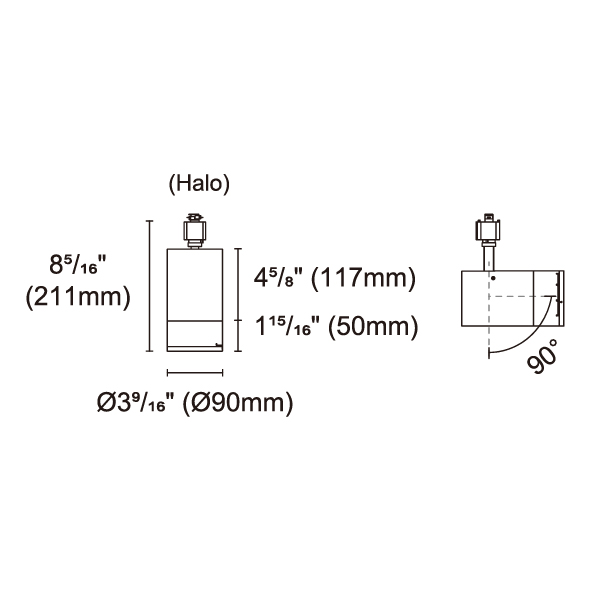

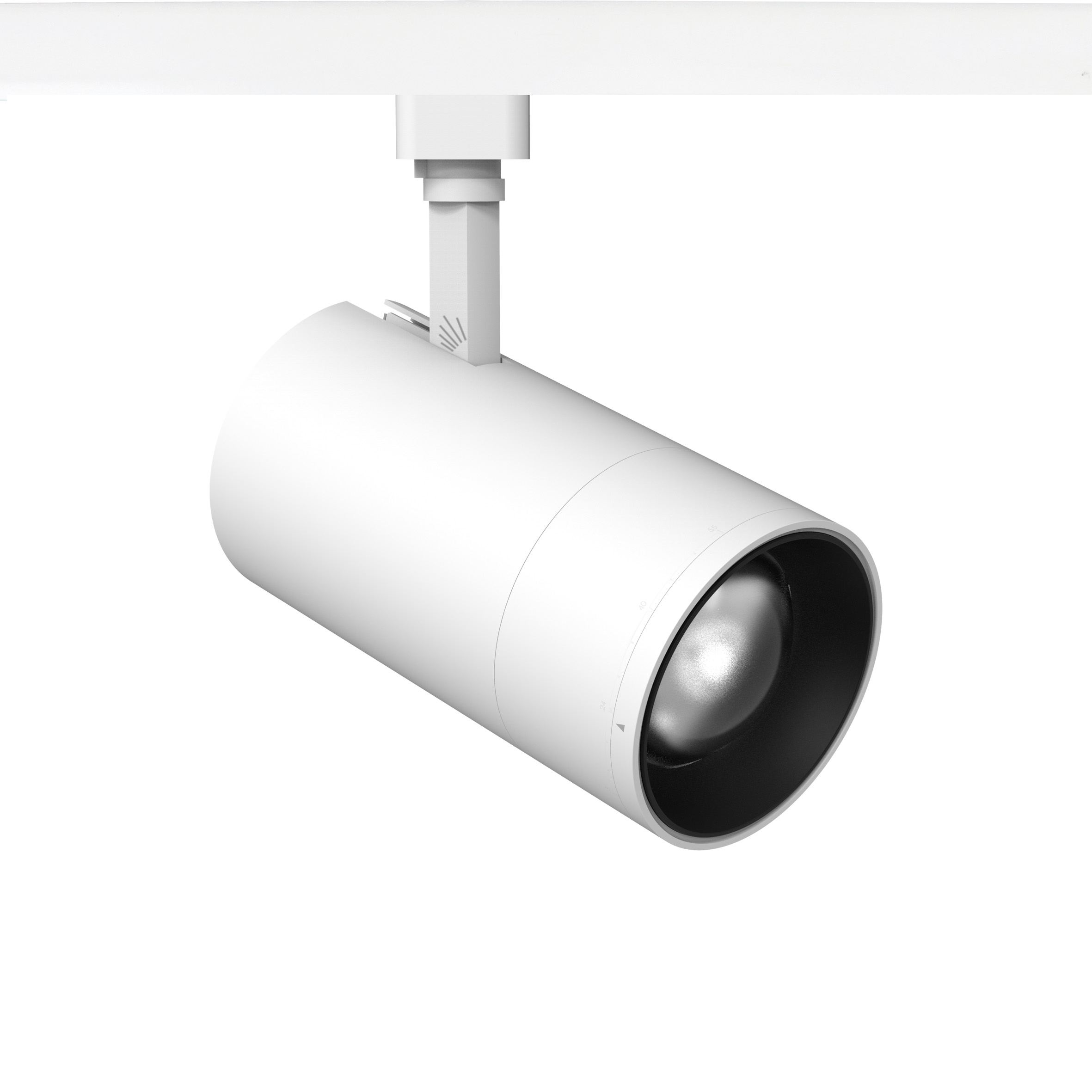

ITEM NO. 2319.222Z-H3AM-900
Consumption36W
Current / Voltage120VAC / 900 mA
LED Lumen1882 lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.222Z-J2AM-900
- 36W
- 1882 lm

-
ASTER-B

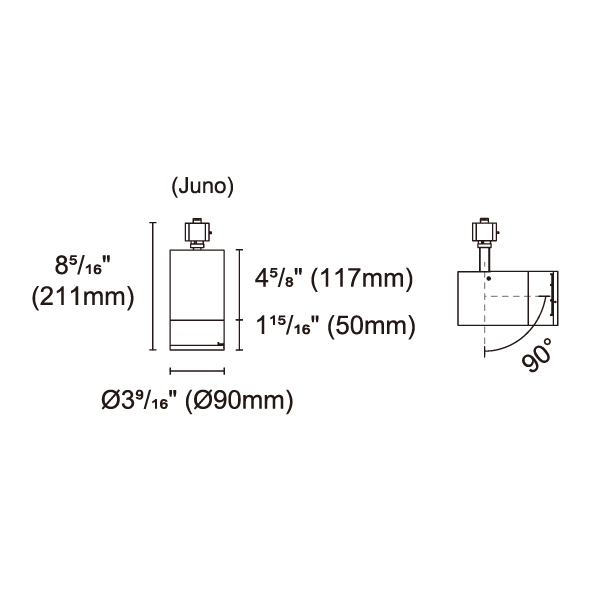

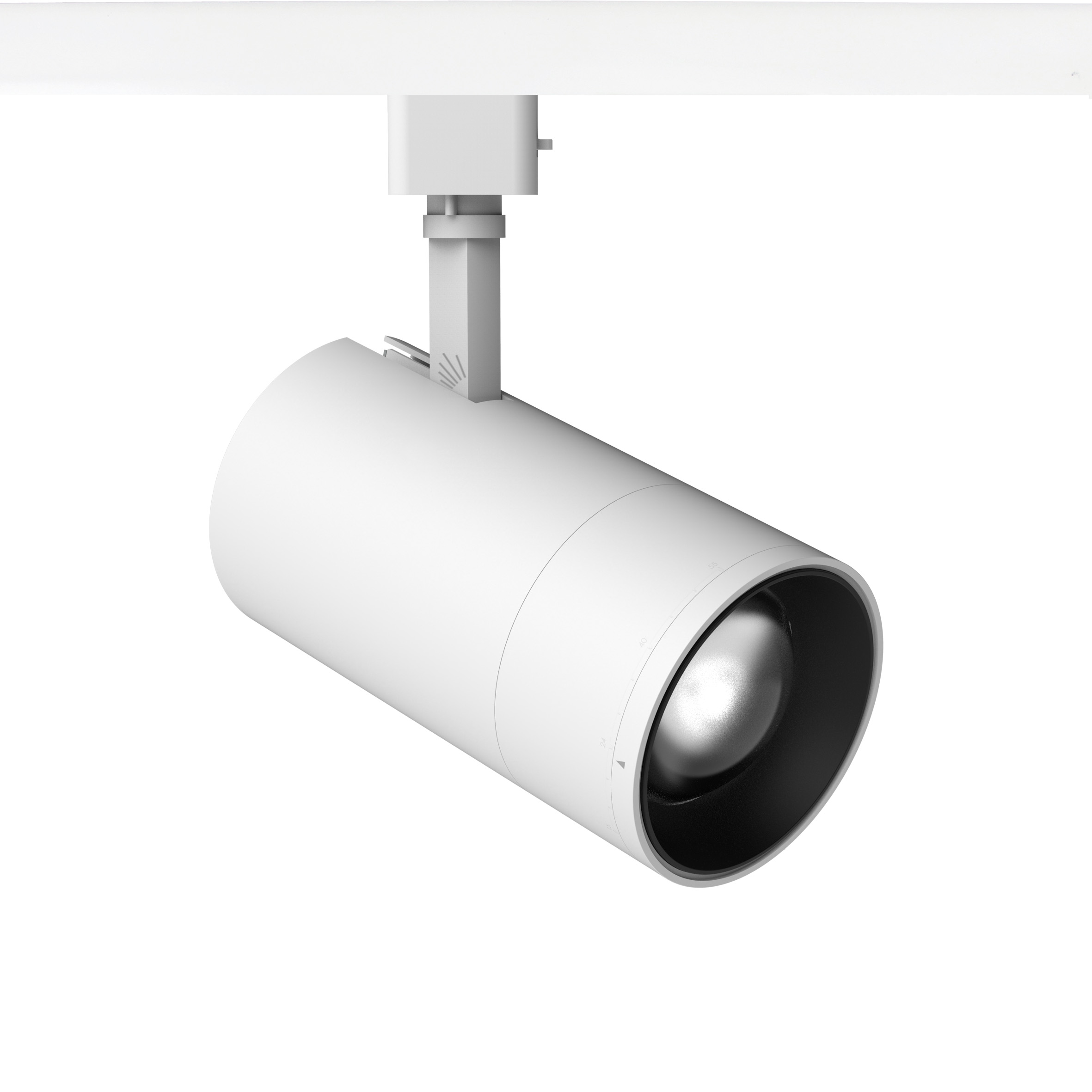

ITEM NO. 2319.222Z-J2AM-900
Consumption36W
Current / Voltage120VAC / 900 mA
LED Lumen1882 lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
IP
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
