- Article number
- Led Consumption
- Lumen
- Cut Out
- Light Distribution

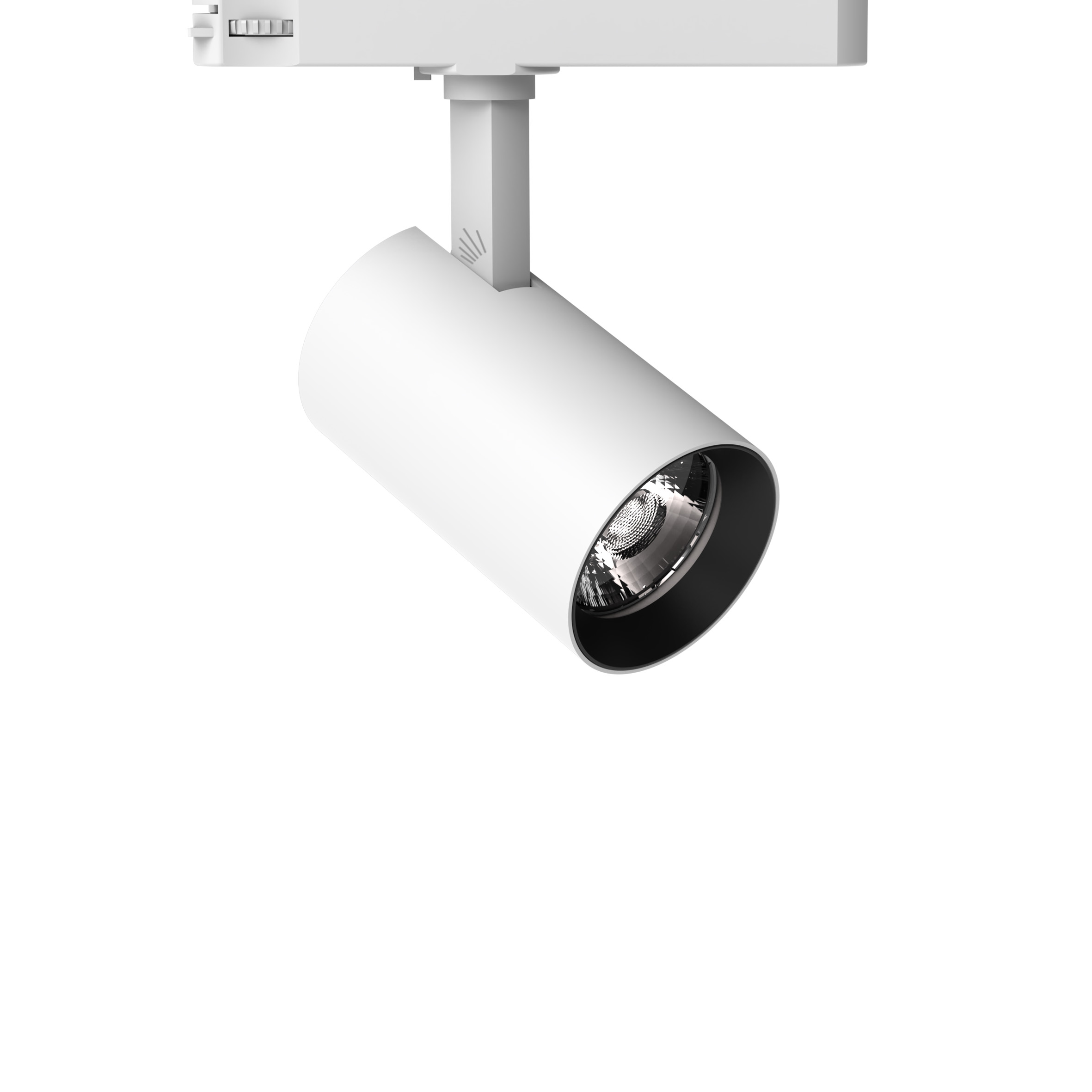

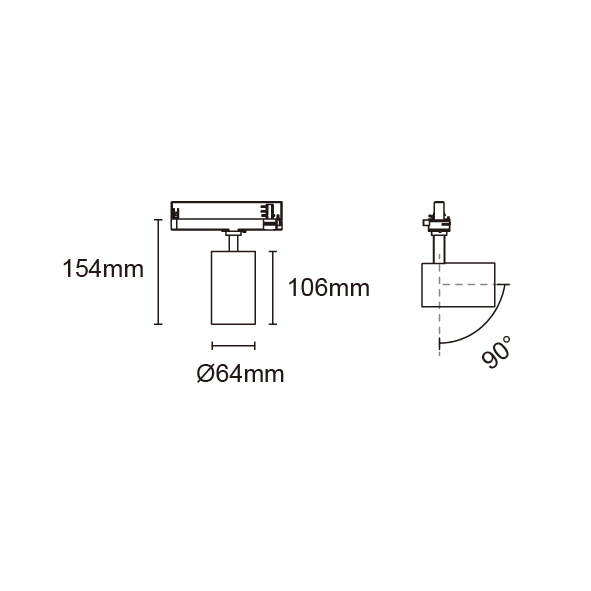

- 2319.209-UA-300-HE
- 10W
- 1635lm

-
ASTER-A
ITEM NO. 2319.209-UA-300-HE
Consumption10W
Current / Voltage300mA / AC 220-240V
LED Lumen1635lm
Beam Angle 18°/24°/36°/50°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
- E-catalogue

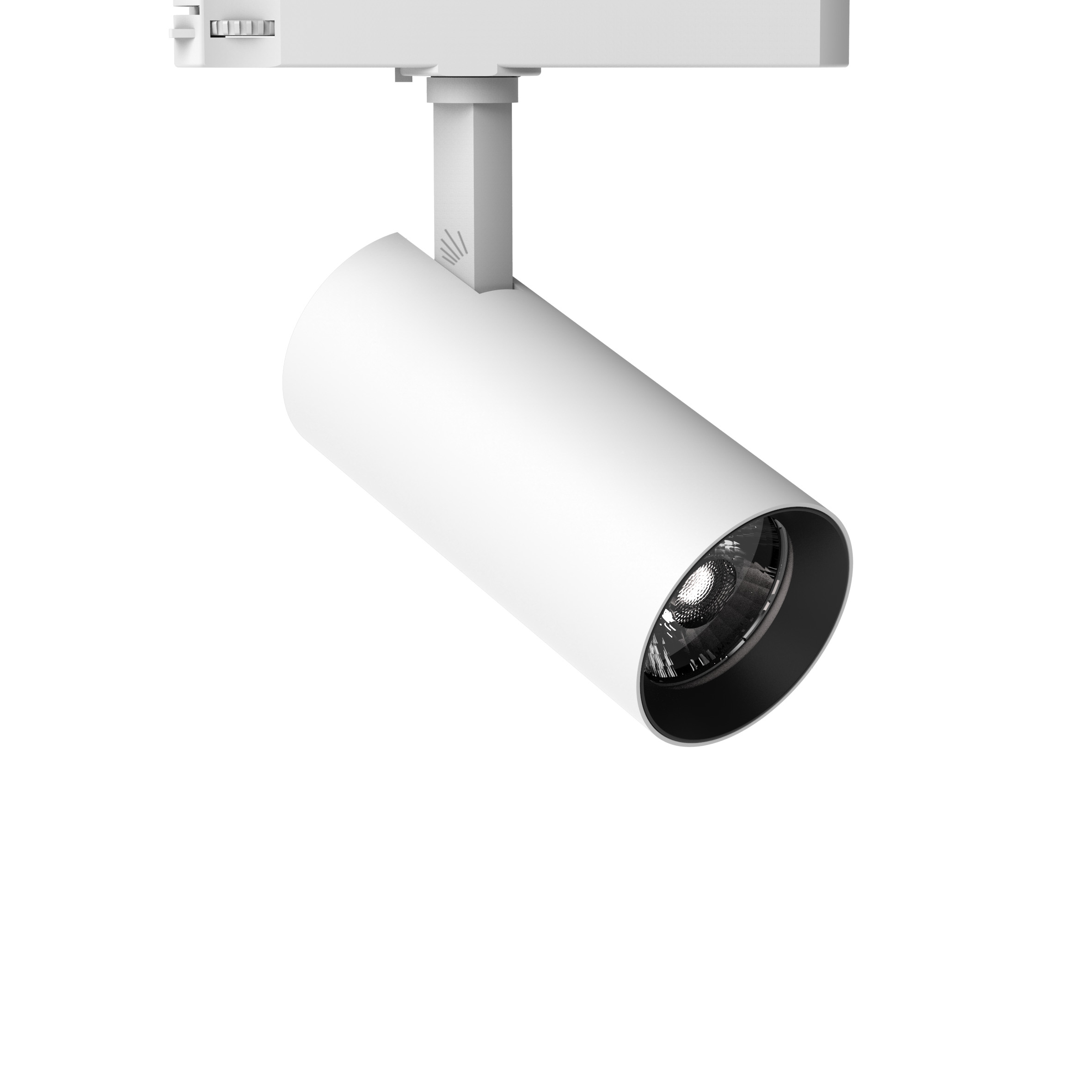

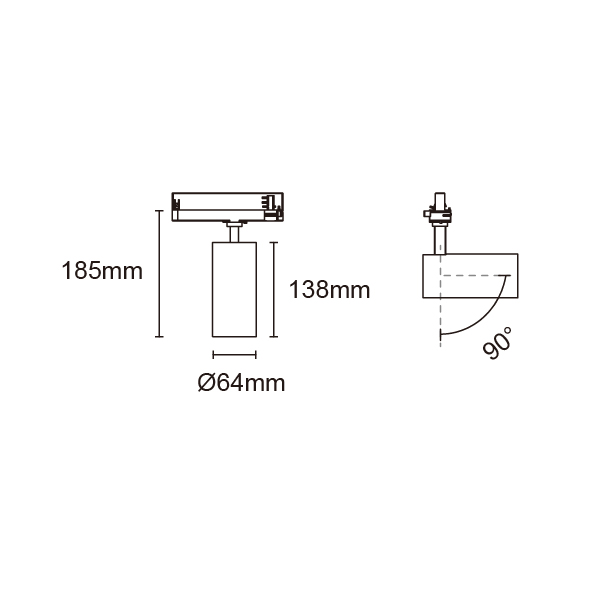

- 2319.200-UA-400-HE
- 14W
- 2106lm

-
ASTER-A
ITEM NO. 2319.200-UA-400-HE
Consumption14W
Current / Voltage400mA / AC 220-240V
LED Lumen2106lm
Beam Angle 18°/24°/36°/50°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

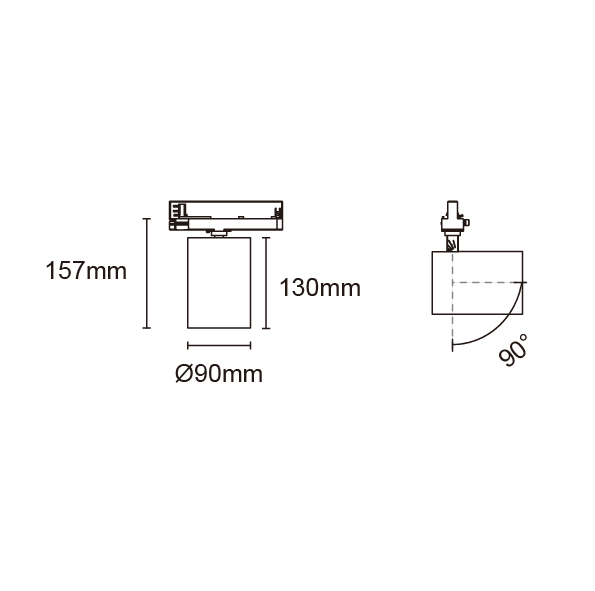

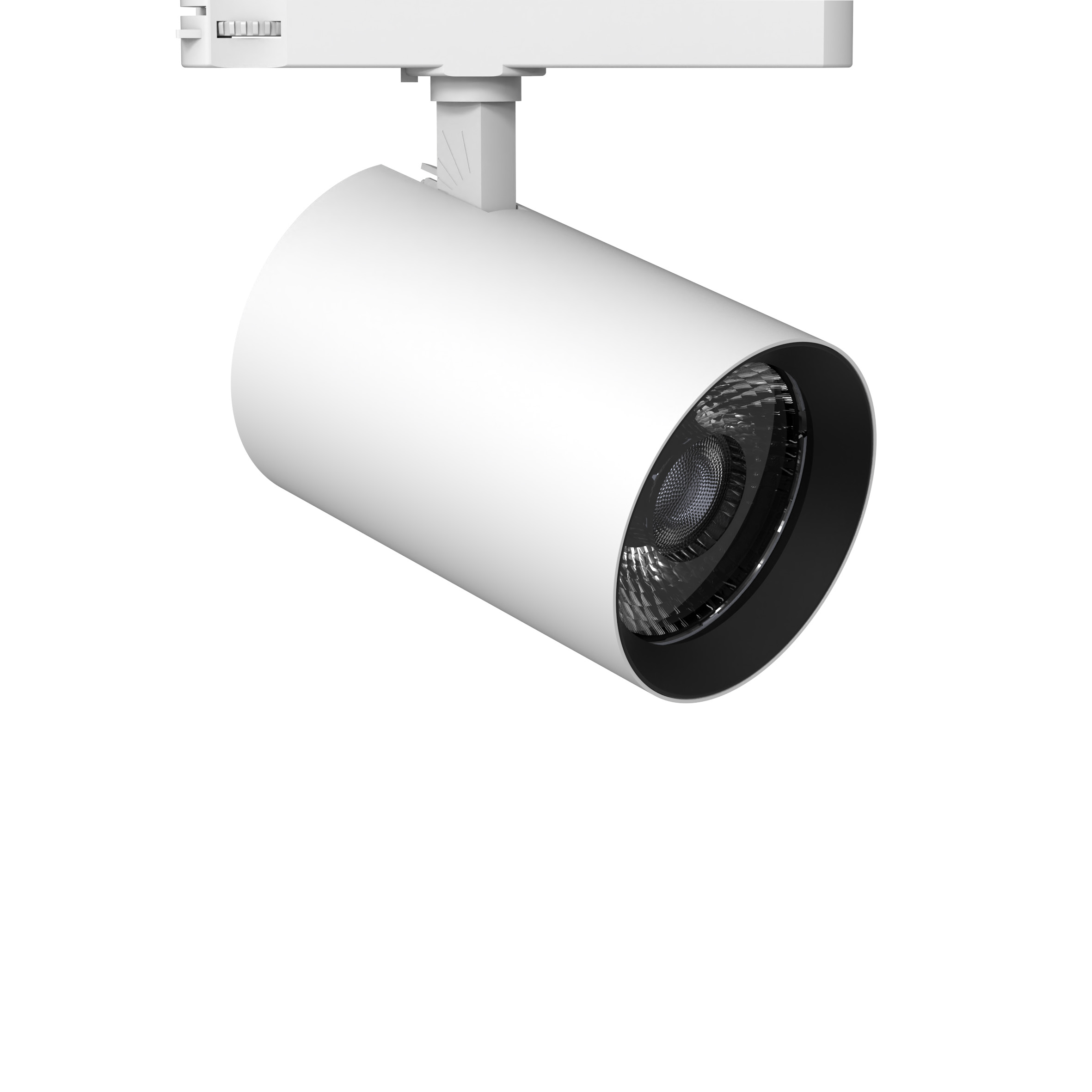

- 2319.223-UA-500-HE
- 17W
- 2706 lm

-
ASTER-A
ITEM NO. 2319.223-UA-500-HE
Consumption17W
Current / Voltage500mA / AC 220-240V
LED Lumen2706 lm
Beam Angle 16°/25°/38°/45°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

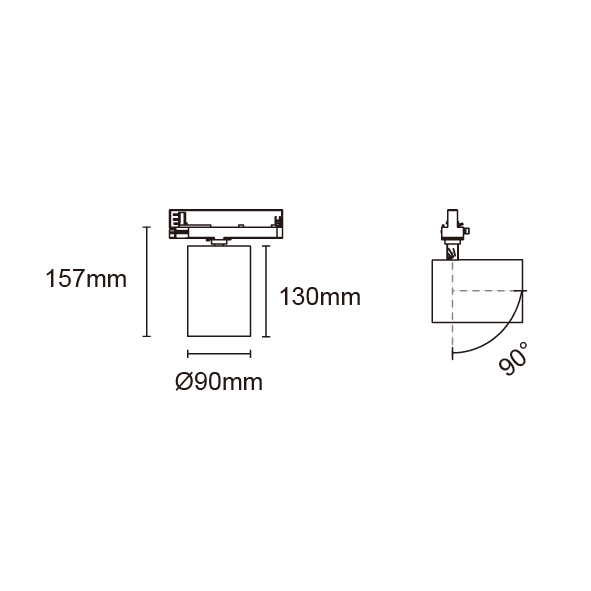

- 2319.223-UA-700-HE
- 24W
- 3746 lm

-
ASTER-A
ITEM NO. 2319.223-UA-700-HE
Consumption24W
Current / Voltage700mA / AC 220-240V
LED Lumen3746 lm
Beam Angle 16°/25°/38°/45°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.223-UA-500-HE-DA
- 17W
- 2706 lm

-
ASTER-A
ITEM NO. 2319.223-UA-500-HE-DA
Consumption17W
Current / Voltage500mA / AC220-240V
LED Lumen2706 lm
Beam Angle 16°/25°/38°/45°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.223-UA-700-HE-DA
- 24W
- 3746 lm

-
ASTER-A
ITEM NO. 2319.223-UA-700-HE-DA
Consumption24W
Current / Voltage700mA / AC 220-240V
LED Lumen3746 lm
Beam Angle 16°/25°/38°/45°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.209-UA-350
- 12W
- 1454lm

-
ASTER-A
ITEM NO. 2319.209-UA-350
Consumption12W
Current / Voltage350mA / AC 220-240V
LED Lumen1454lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

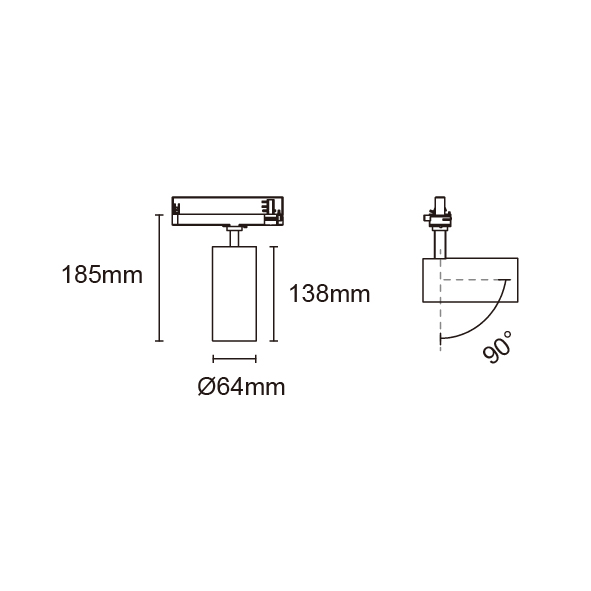

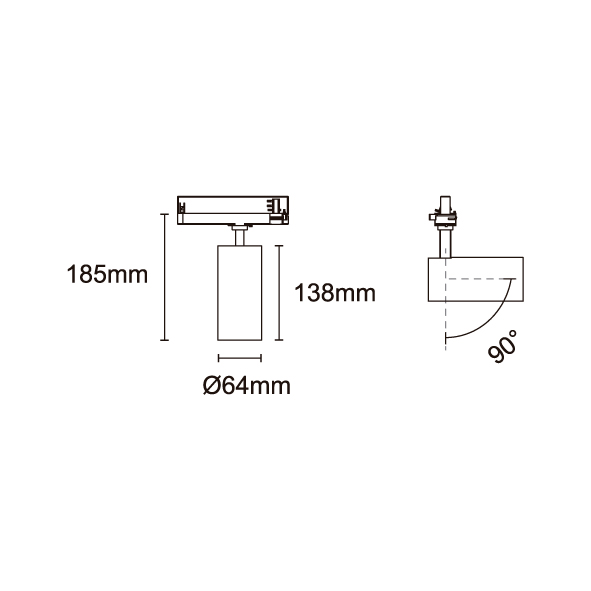

- 2319.200-UA-700-HE
- 26W
- 3476lm

-
ASTER-A
ITEM NO. 2319.200-UA-700-HE
Consumption26W
Current / Voltage700mA / AC 220-240V
LED Lumen3476lm
Beam Angle 18°/24°/36°/50°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

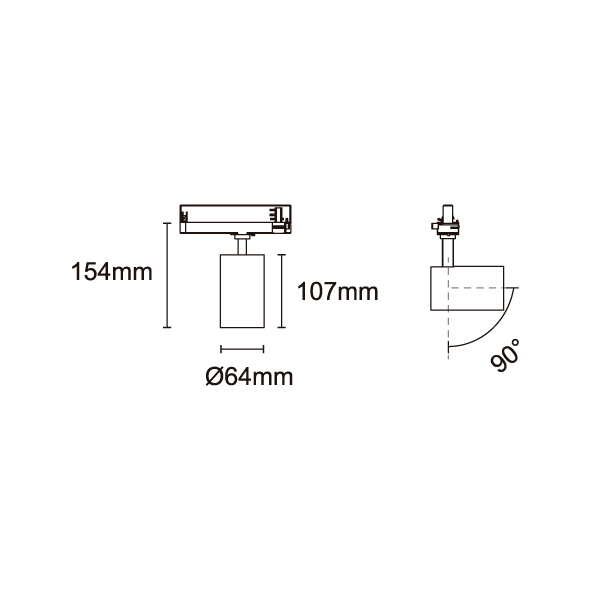

- 2319.209-UA-350-DA
- 12W
- 1454lm

-
ASTER-A
ITEM NO. 2319.209-UA-350-DA
Consumption12W
Current / Voltage350mA / AC 220-240V
LED Lumen1454lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.200-AD3-1200
- 4W
- 235 lm

-
ASTER-A
ITEM NO. 2319.200-AD3-1200
Consumption4W
Current / Voltage1200mA / AC 100-277V
LED Lumen235 lm
Beam Angle 4°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

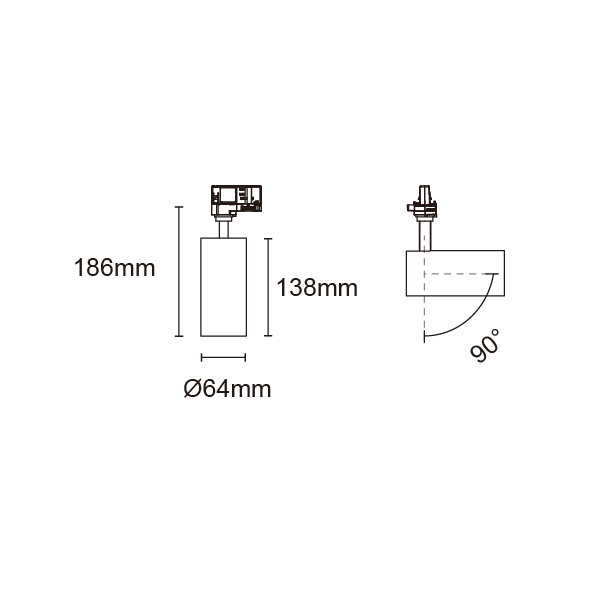

- 2319.200-AD3-350
- 12W
- 1454 lm

-
ASTER-A
ITEM NO. 2319.200-AD3-350
Consumption12W
Current / Voltage350mA / AC 100-277V
LED Lumen1454 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 2319.200-AD3-500
- 17W
- 2004 lm

-
ASTER-A
ITEM NO. 2319.200-AD3-500
Consumption17W
Current / Voltage500mA / AC 100-277V
LED Lumen2004 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue

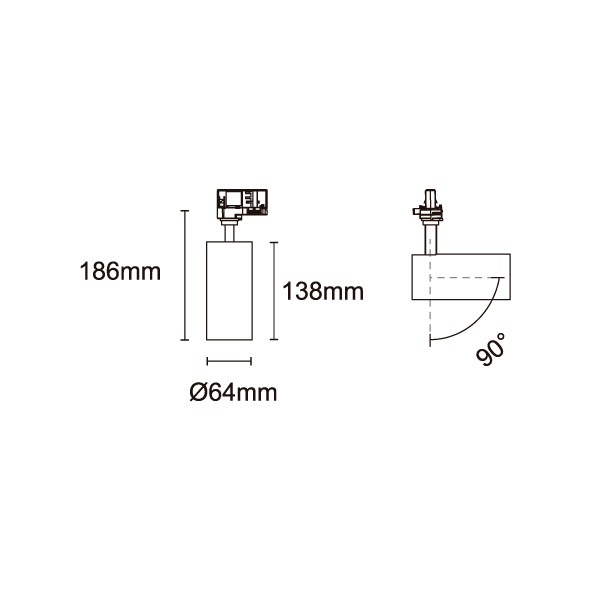

- 2319.200-AD3-350-DA
- 12W
- 1454 lm

-
ASTER-A
ITEM NO. 2319.200-AD3-350-DA
Consumption12W
Current / Voltage350mA / AC 100-277V
LED Lumen1454 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.200-AD3-500-DA
- 17W
- 2004 lm

-
ASTER-A
ITEM NO. 2319.200-AD3-500-DA
Consumption17W
Current / Voltage500mA / AC 100-277V
LED Lumen2004 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

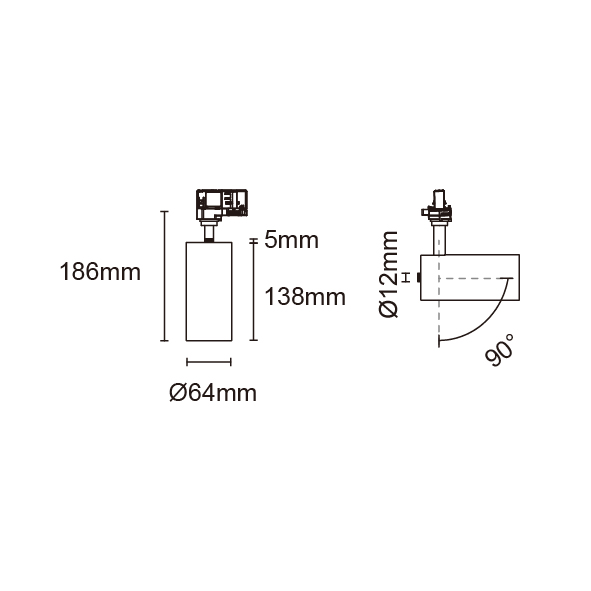

- 2319.200-AD3-D-350
- 12W
- 1454 lm

-
ASTER-A
ITEM NO. 2319.200-AD3-D-350
Consumption12W
Current / Voltage350mA / AC 100-277V
LED Lumen1454 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

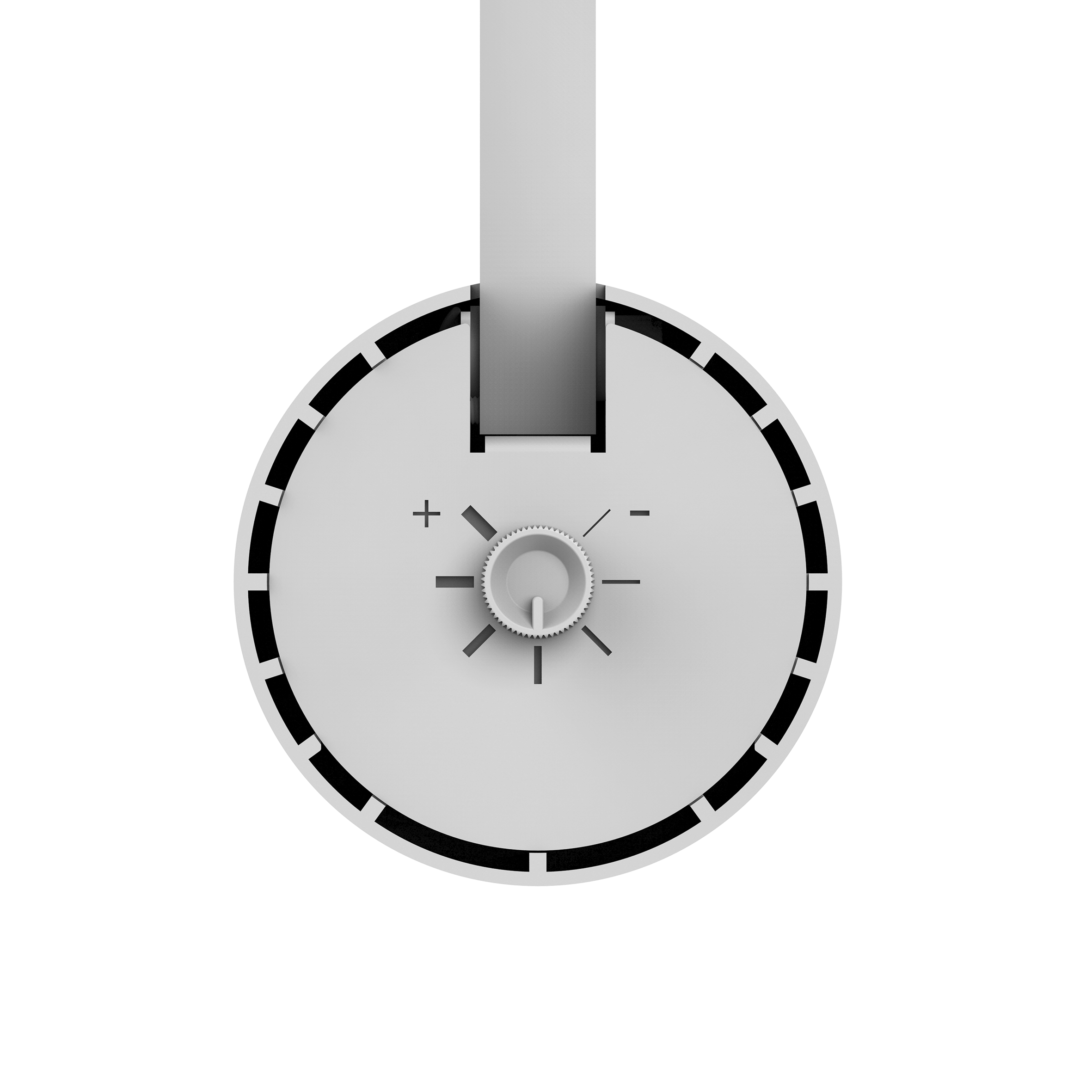

- 2319.200-AD3-D-500
- 17W
- 2004 lm

-
ASTER-A
ITEM NO. 2319.200-AD3-D-500
Consumption17W
Current / Voltage500mA / AC 100-277V
LED Lumen2004 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue

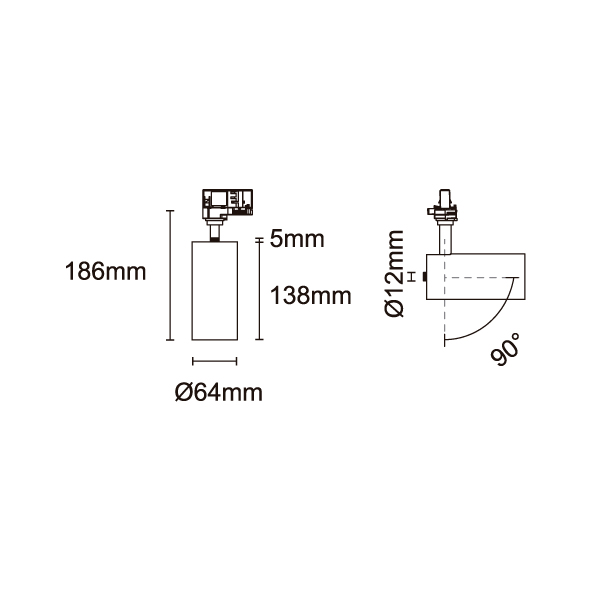

- 2319.200-AD3-CT-250
- 8W
- 1064 lm

-
ASTER-A
ITEM NO. 2319.200-AD3-CT-250
Consumption8W
Current / Voltage250mA / AC 100-277V
LED Lumen1064 lm
Beam Angle 20°/25°/38°/50°
CCT5CCT
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.223-UA-700
- 24W
- 2987 lm

-
ASTER-A
ITEM NO. 2319.223-UA-700
Consumption24W
Current / Voltage700mA
LED Lumen2987 lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

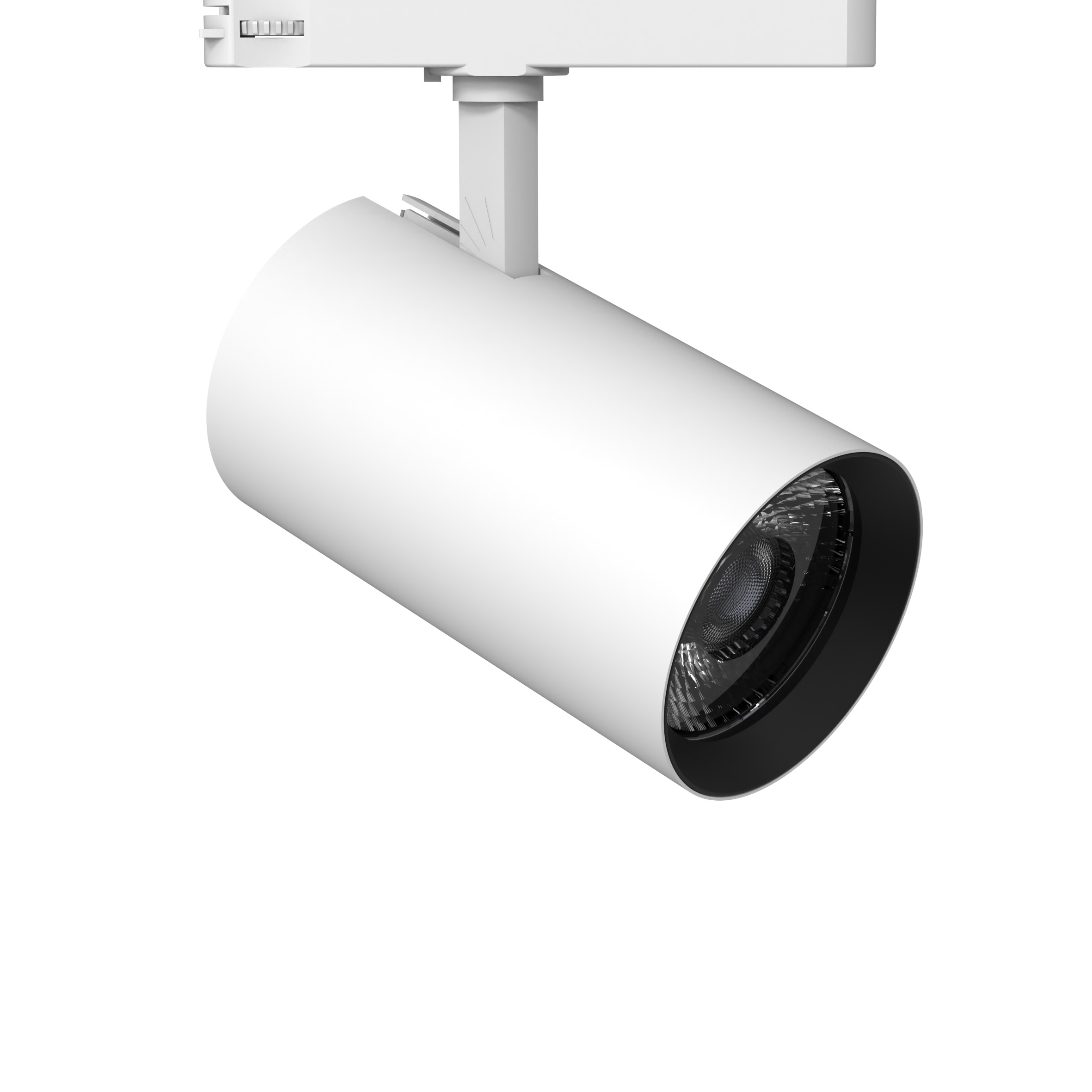

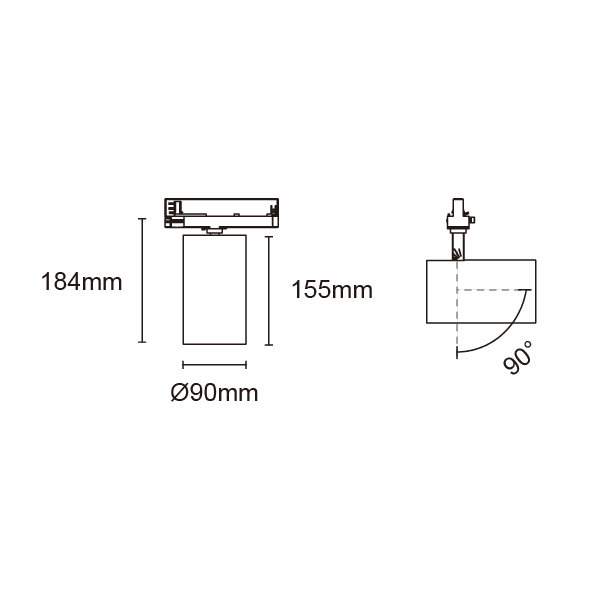

- 2319.221-UA-1050
- 37W
- 4344 lm

-
ASTER-A
ITEM NO. 2319.221-UA-1050
Consumption37W
Current / Voltage1050mA / AC 220-240V
LED Lumen4344 lm
Beam Angle 17°/25°/40°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

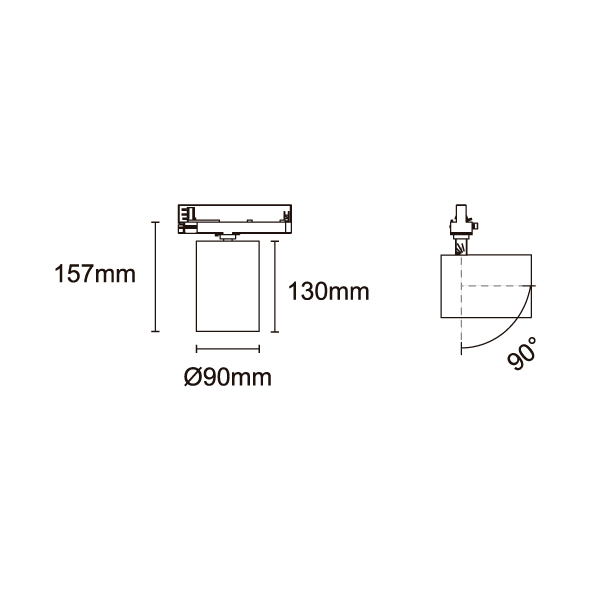

- 2319.223-UA-700-DA
- 24W
- 2987 lm

-
ASTER-A
ITEM NO. 2319.223-UA-700-DA
Consumption24W
Current / Voltage700mA / AC 220-240V
LED Lumen2987 lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

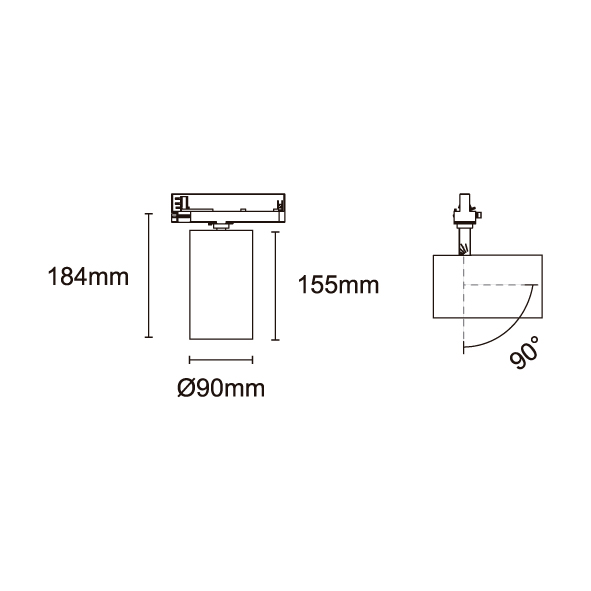

- 2319.221-UA-1050-DA
- 37W
- 4344 lm

-
ASTER-A
ITEM NO. 2319.221-UA-1050-DA
Consumption37W
Current / Voltage1050 mA / AC 220-240V
LED Lumen4344 lm
Beam Angle 17°/25°/40°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

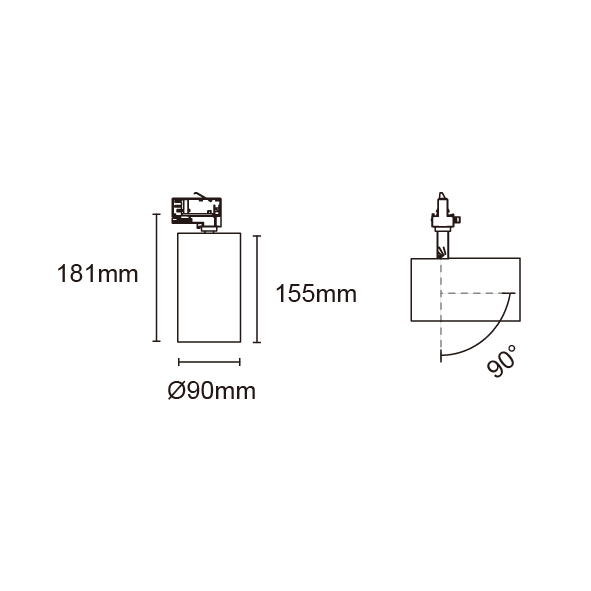

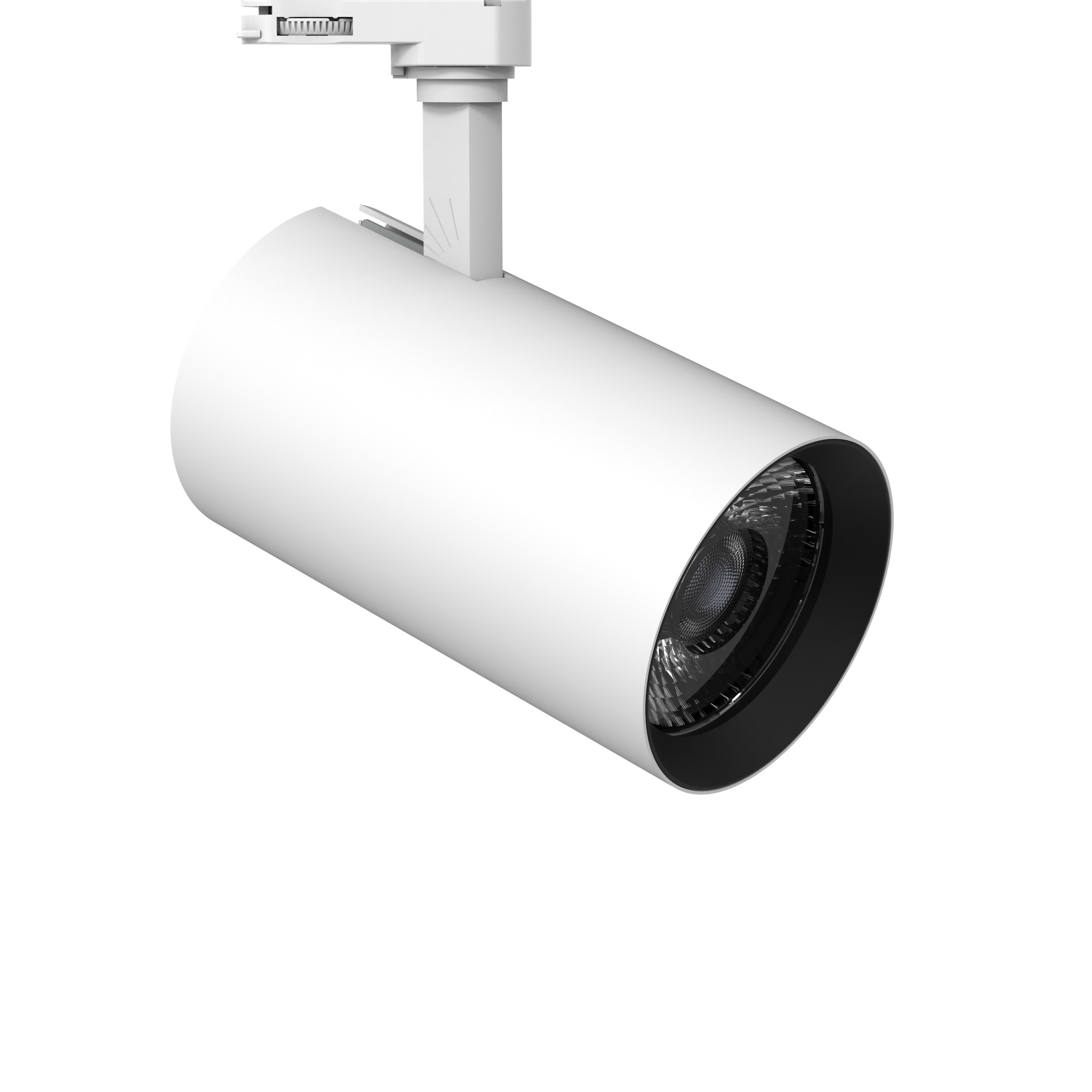

- 2319.221-AD3-500
- 17W
- 2177 lm

-
ASTER-A
ITEM NO. 2319.221-AD3-500
Consumption17W
Current / Voltage500mA / AC 220-240V
LED Lumen2177 lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.221-AD3-900
- 31W
- 3770 lm

-
ASTER-A
ITEM NO. 2319.221-AD3-900
Consumption31W
Current / Voltage900mA / AC 220-240V
LED Lumen3770 lm
Beam Angle 17°/24°/40°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

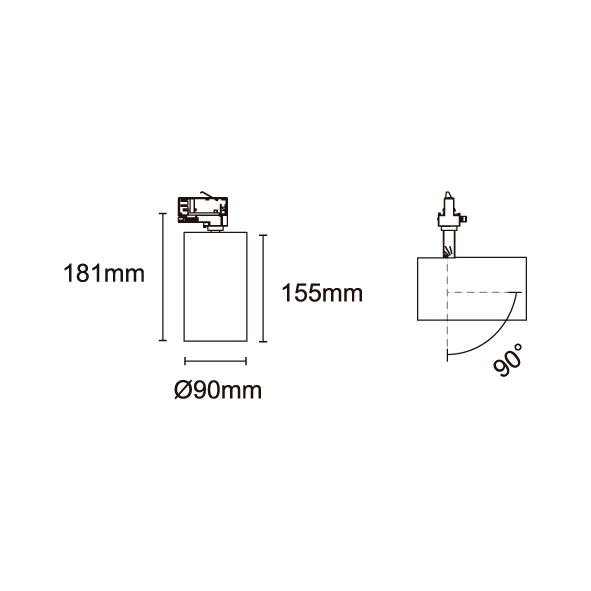

- 2319.221-AD3-500-DA
- 17W
- 2177 lm

-
ASTER-A
ITEM NO. 2319.221-AD3-500-DA
Consumption17W
Current / Voltage500mA / AC 220-240V
LED Lumen2177 lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.221-AD3-800-DA
- 27W
- 3381 lm

-
ASTER-A
ITEM NO. 2319.221-AD3-800-DA
Consumption27W
Current / Voltage800mA / AC 220-240V
LED Lumen3381 lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

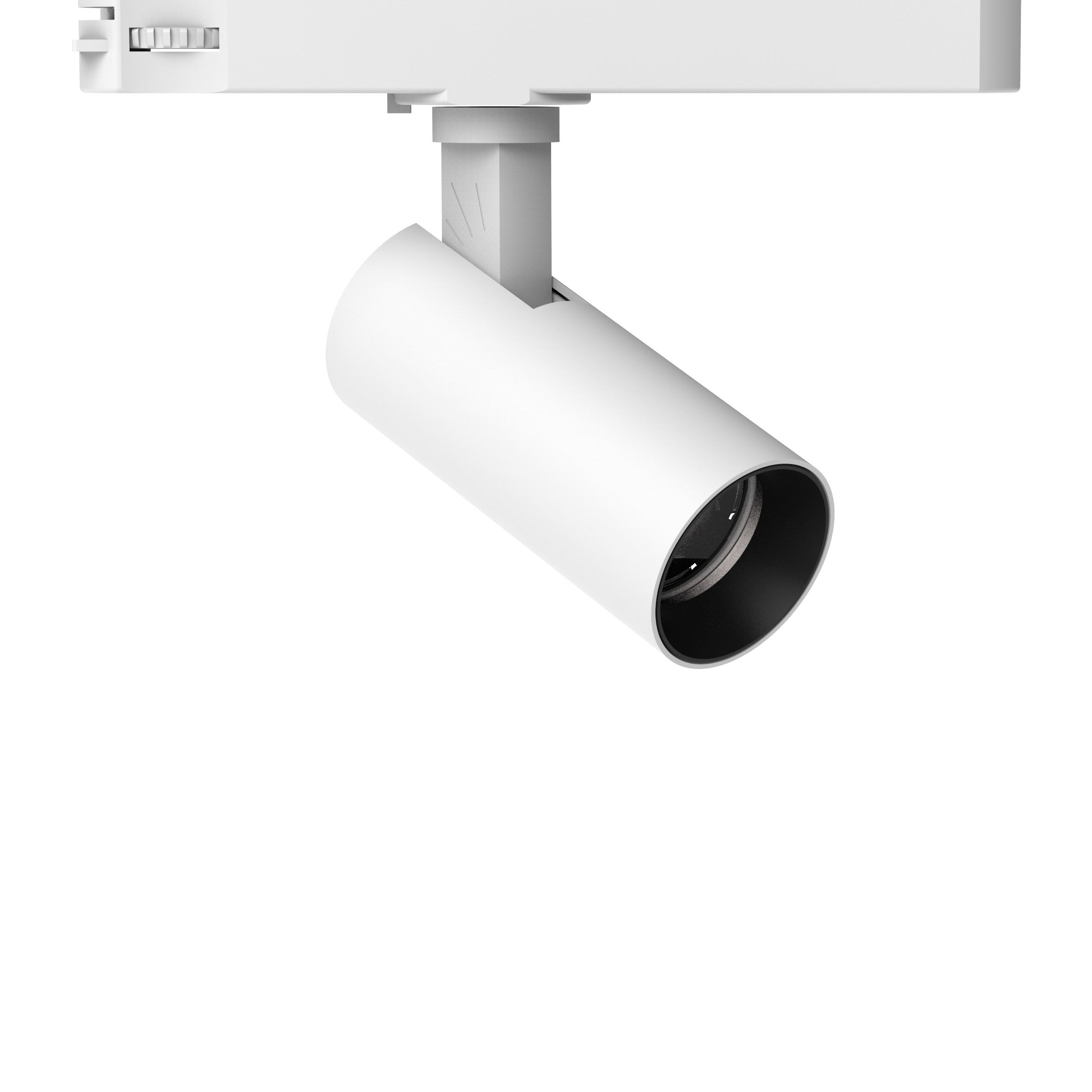

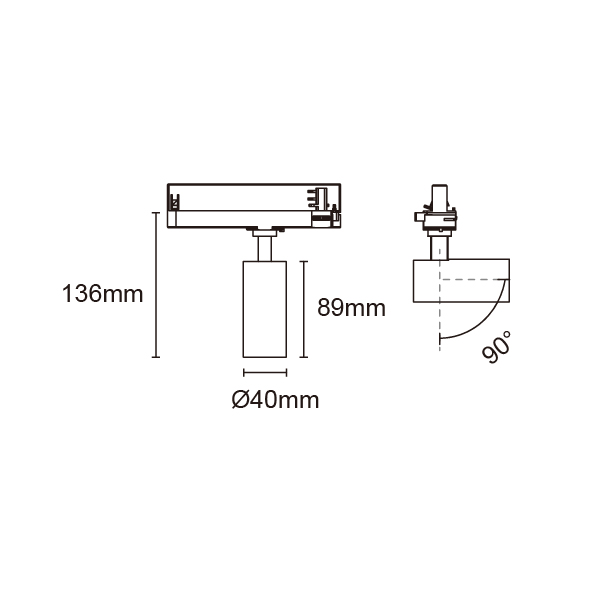

- 2319.225-UA-200
- 7W
- 806 lm

-
ASTER-A
ITEM NO. 2319.225-UA-200
Consumption7W
Current / Voltage200 mA / AC 220-240V
LED Lumen806 lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

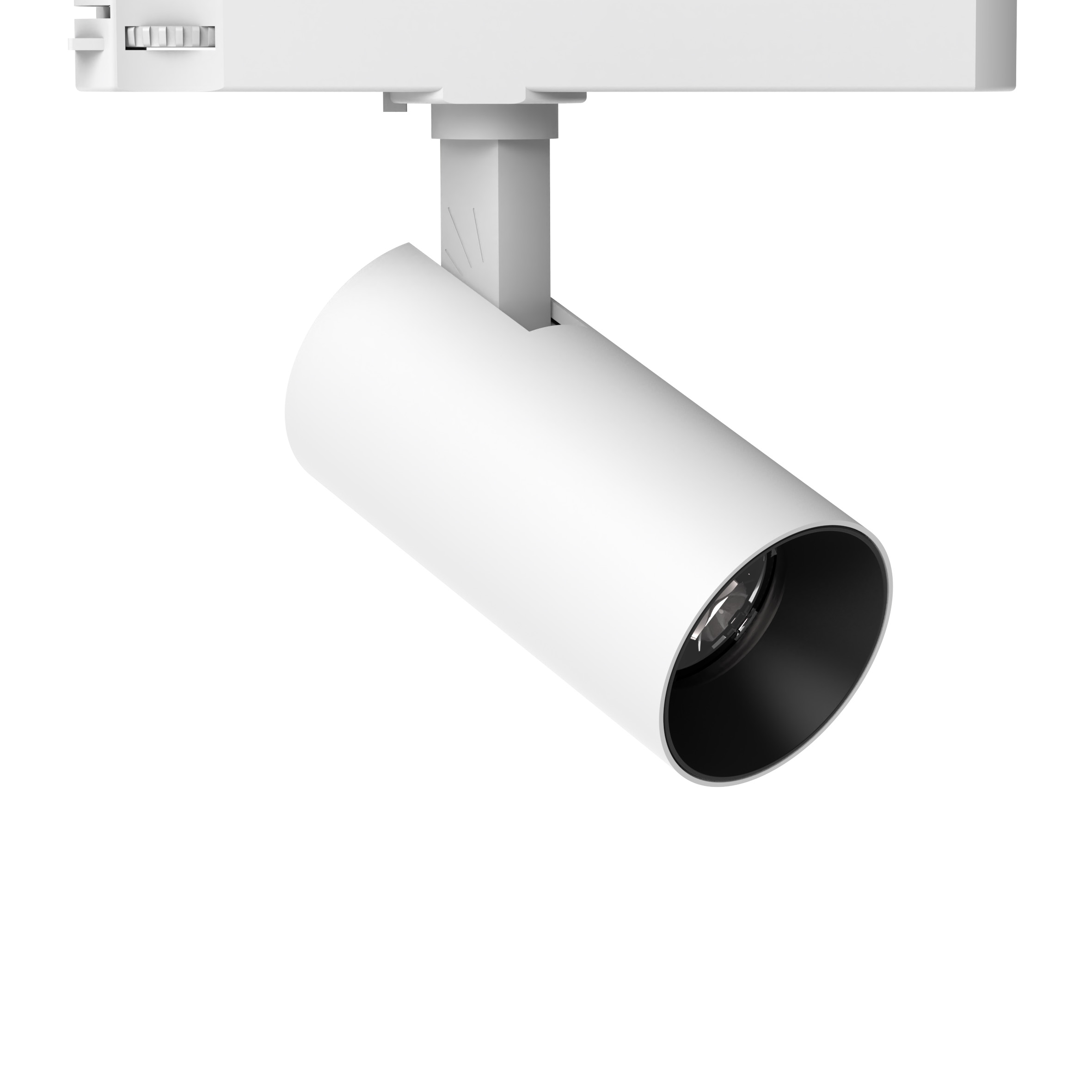

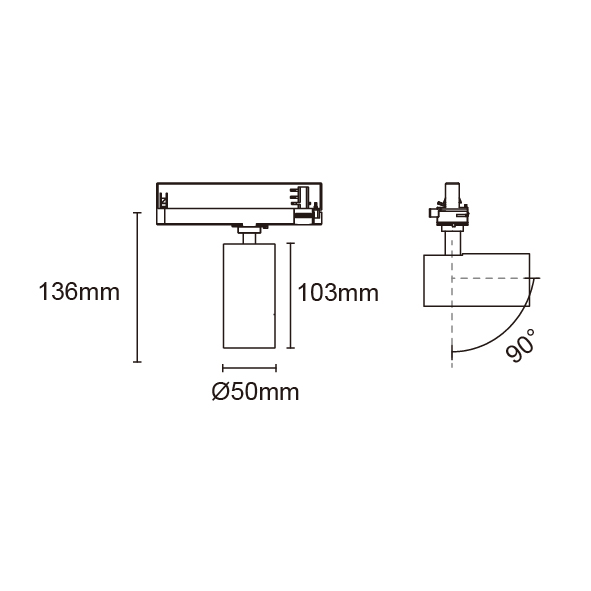

- 2419.204-UA-300
- 10W
- 1274 lm

-
ASTER-A
ITEM NO. 2419.204-UA-300
Consumption10W
Current / Voltage300 mA / AC 220-240V
LED Lumen1274 lm
Beam Angle 18°/25°/40°/50°
CCT3000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue

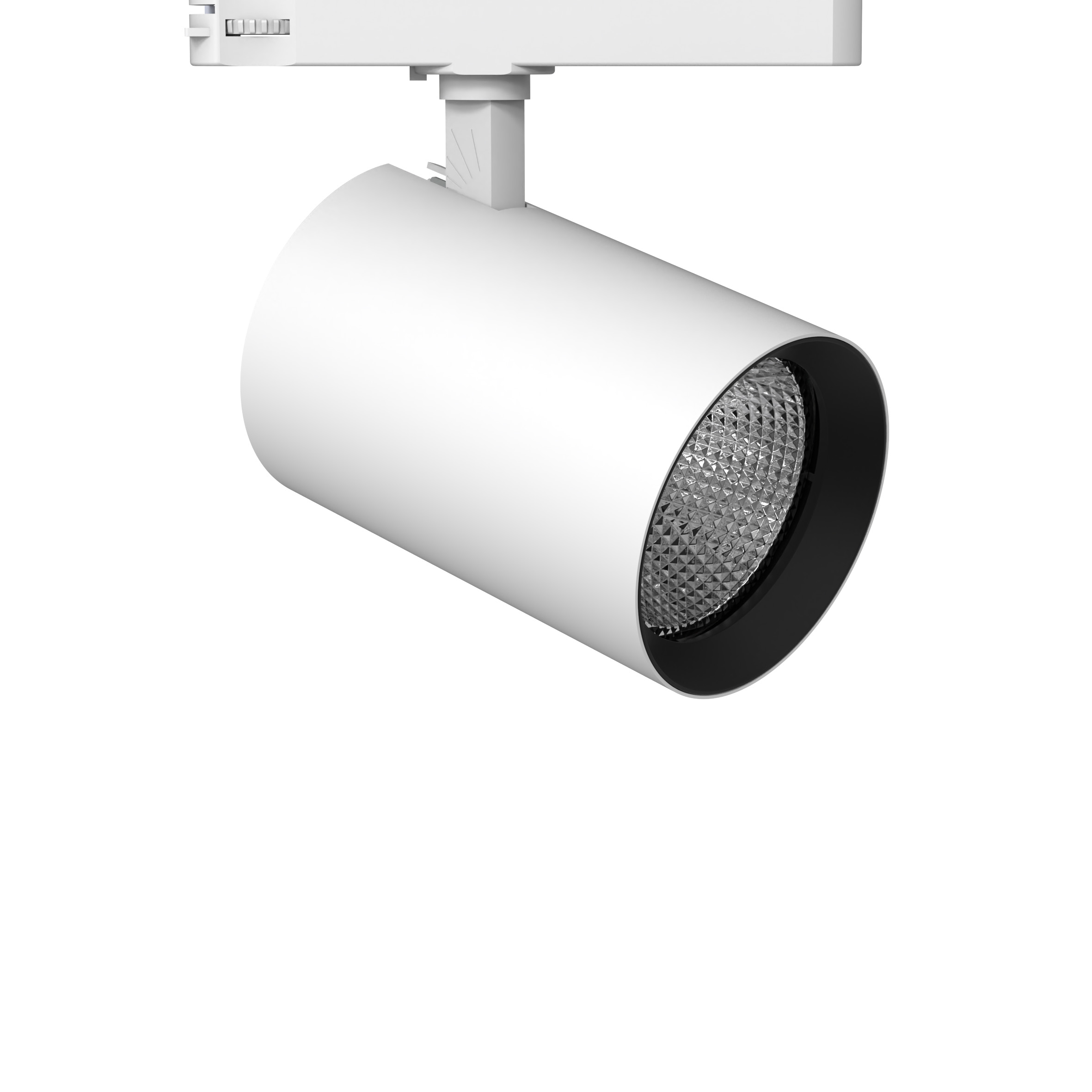

- 2319.223-UA-1050-HE
- 38W
- 5664 lm

-
ASTER-A
ITEM NO. 2319.223-UA-1050-HE
Consumption38W
Current / VoltageAC 220-240V
LED Lumen5664 lm
Beam Angle 16°/25°/38°/45°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 2319.223-UA-1050-HE-DA
- 38W
- 5664 lm

-
ASTER-A
ITEM NO. 2319.223-UA-1050-HE-DA
Consumption38W
Current / VoltageAC 220-240V
LED Lumen5664 lm
Beam Angle 16°/25°/38°/45°
CCT4000K
*Other CCT Also Available
CRI90
UGR
IP20
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
