3. ESB
Article number
Led Consumption
Lumen

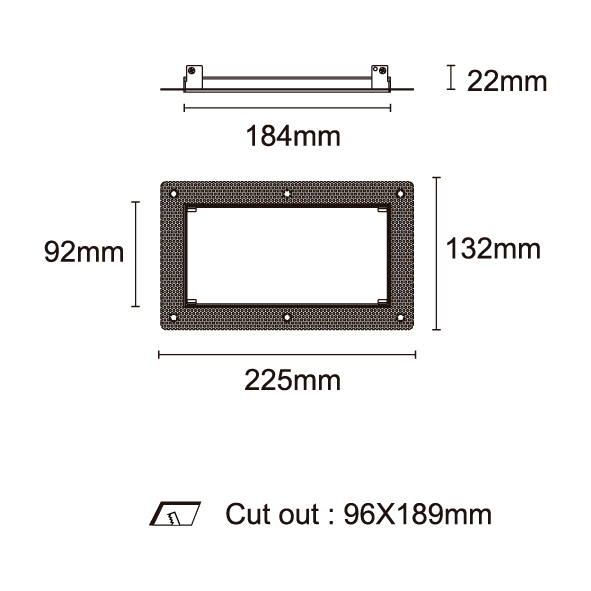

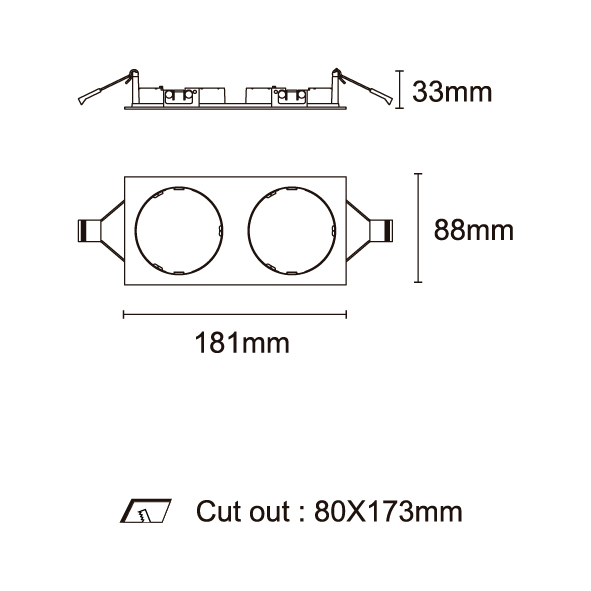

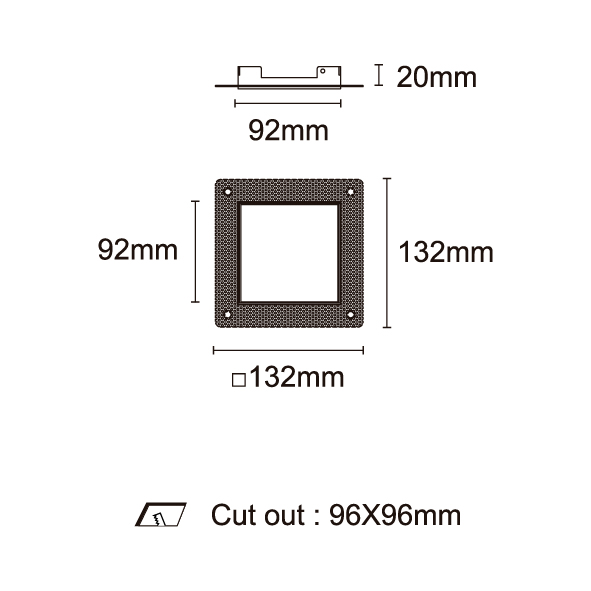

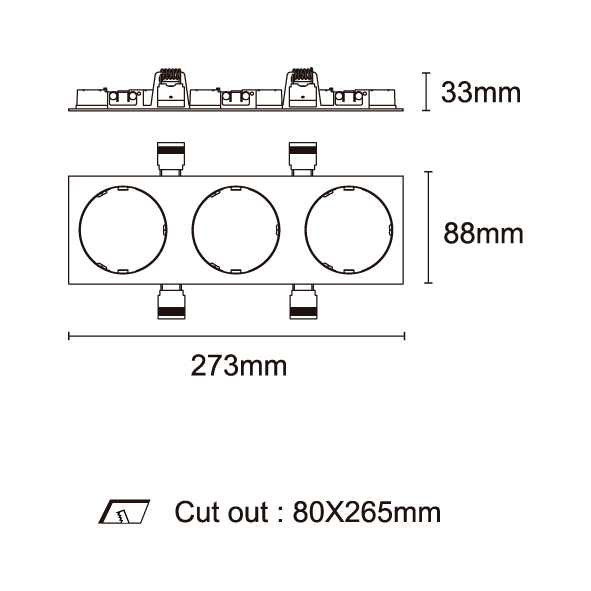

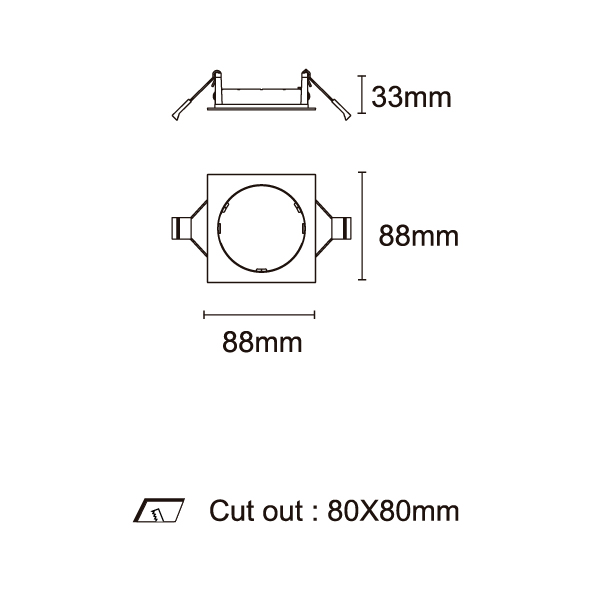

Cut Out
Light Distribution

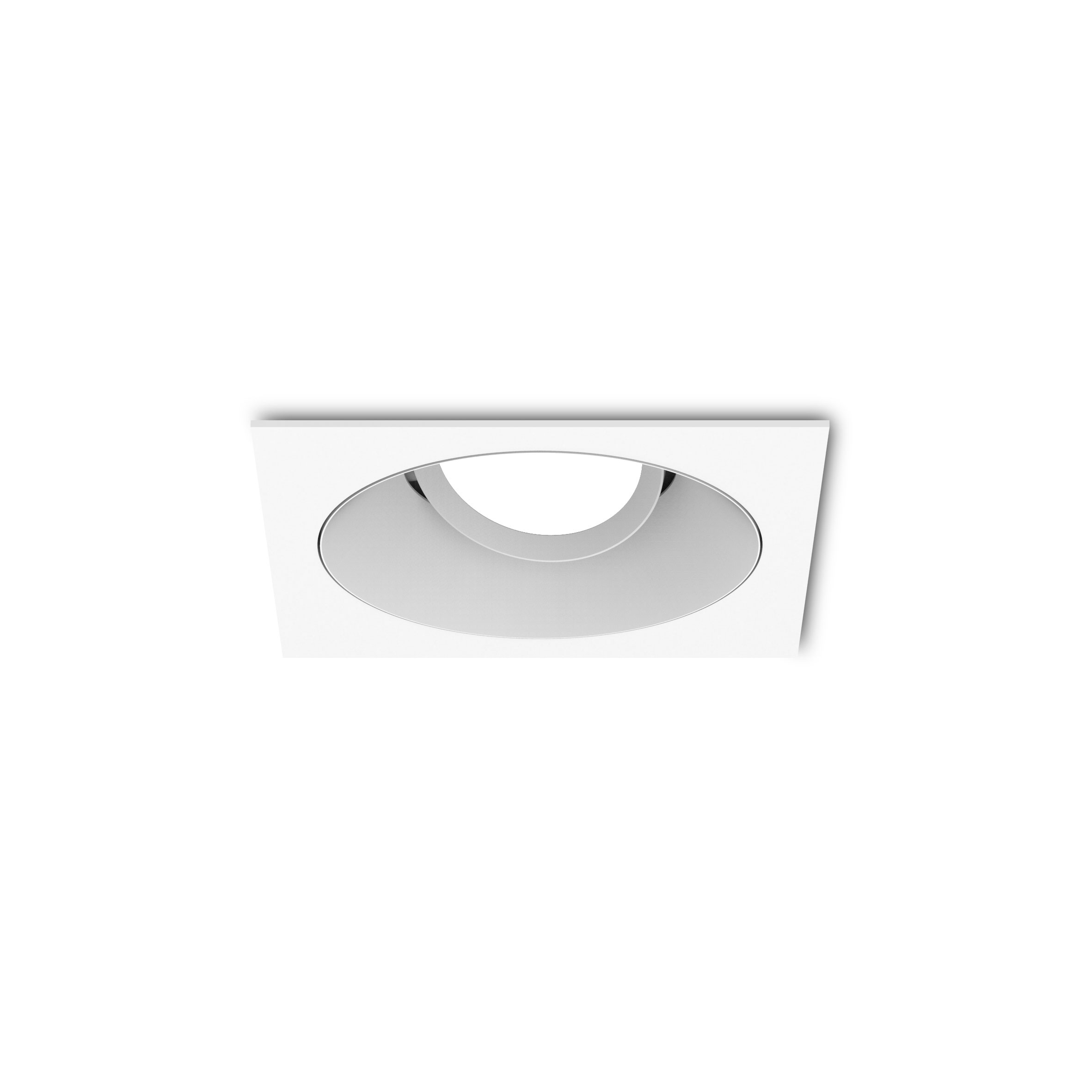

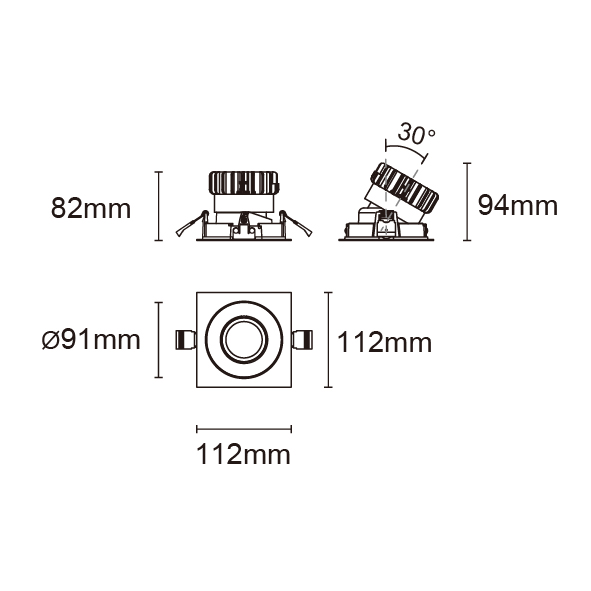

ESB35-TF1-WH-RGA0000-WH-LEE15
17Wx1
2004lm
  • ESB

    ITEM NO. ESB35-TF1-WH-RGA0000-WH-LEE15

    Consumption17Wx1

    Current / Voltage500mA

    LED Lumen2004lm

    Beam Angle 20°/30°/45°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TF1-WH-RGA0000-WH-LEE15DW
16Wx1
34-1507lm
  • ESB

    ITEM NO. ESB35-TF1-WH-RGA0000-WH-LEE15DW

    Consumption16Wx1

    Current / Voltage500mA

    LED Lumen34-1507lm

    Beam Angle 20°/25°/40°/50°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

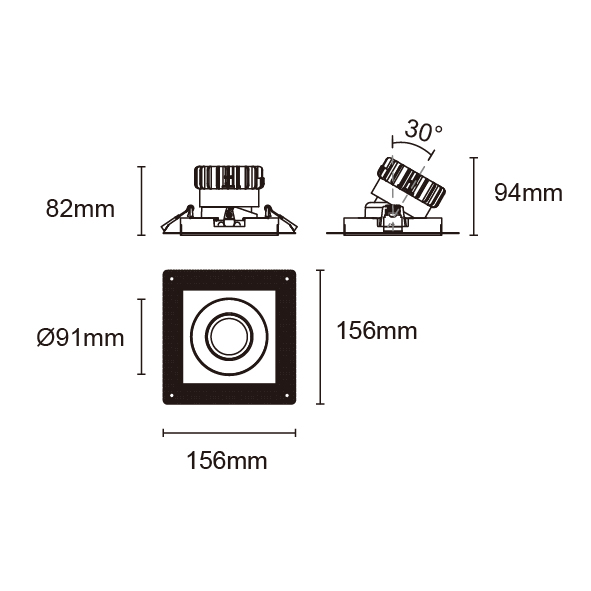

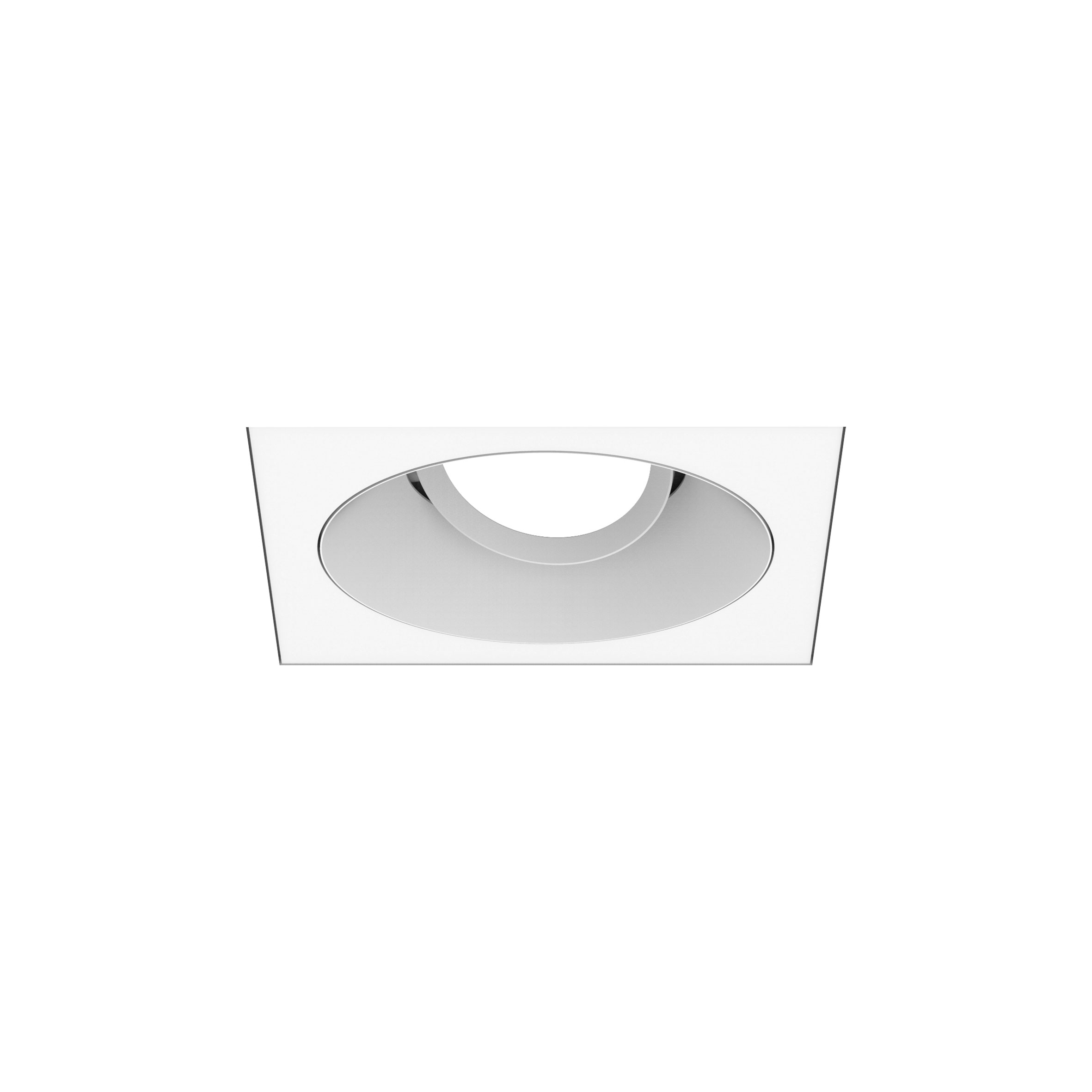

ESB35-TL1-WH-GA0000-WH-LEE15
17Wx1
34-1507lm
  • ESB

    ITEM NO. ESB35-TL1-WH-GA0000-WH-LEE15

    Consumption17Wx1

    Current / Voltage500mA

    LED Lumen34-1507lm

    Beam Angle 20°/30°/45°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TL1-WH-GA0000-WH-LEE15DW
16Wx1
34-1507lm
  • ESB

    ITEM NO. ESB35-TL1-WH-GA0000-WH-LEE15DW

    Consumption16Wx1

    Current / Voltage450mA

    LED Lumen34-1507lm

    Beam Angle 20°/25°/40°/50°

    CCT1800-3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

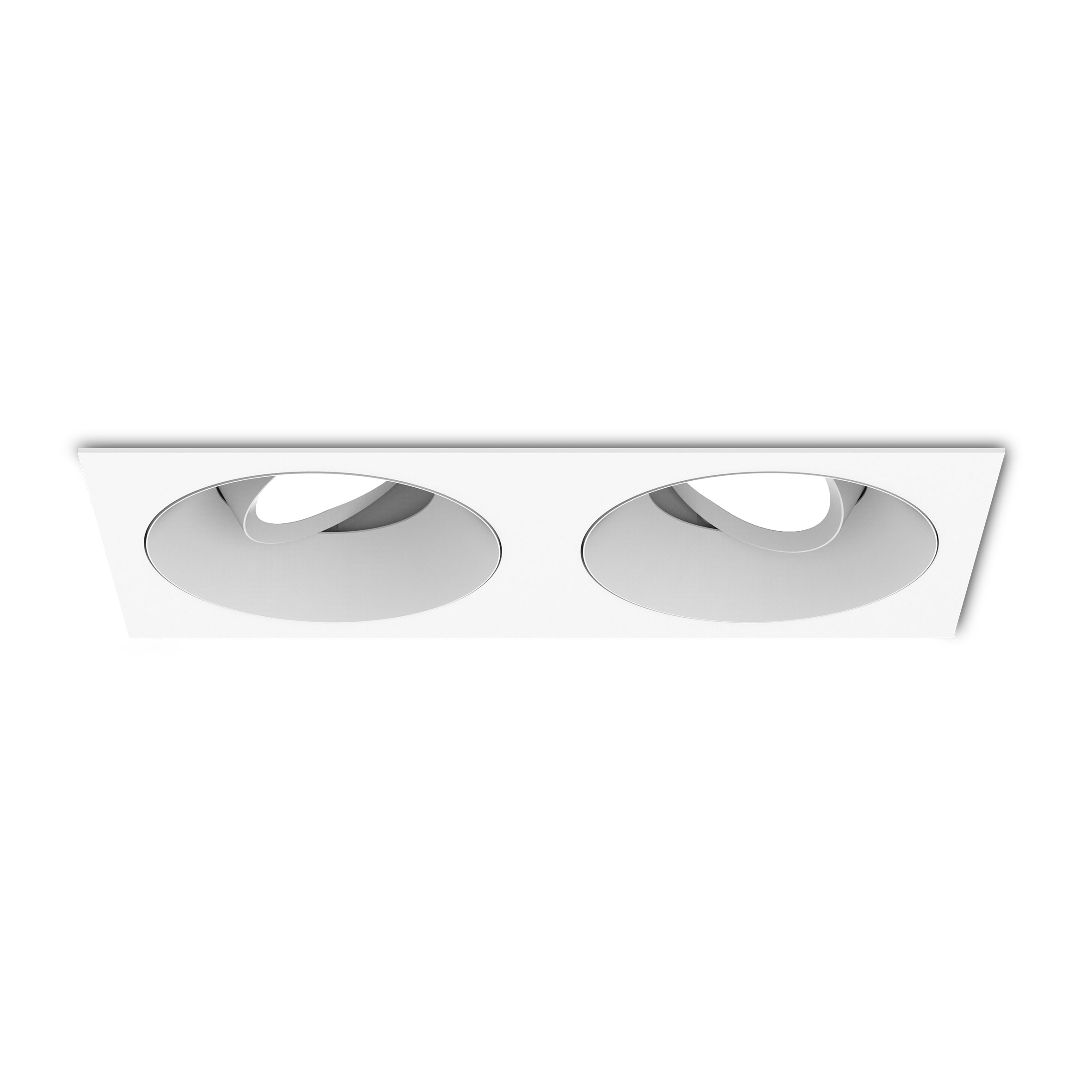

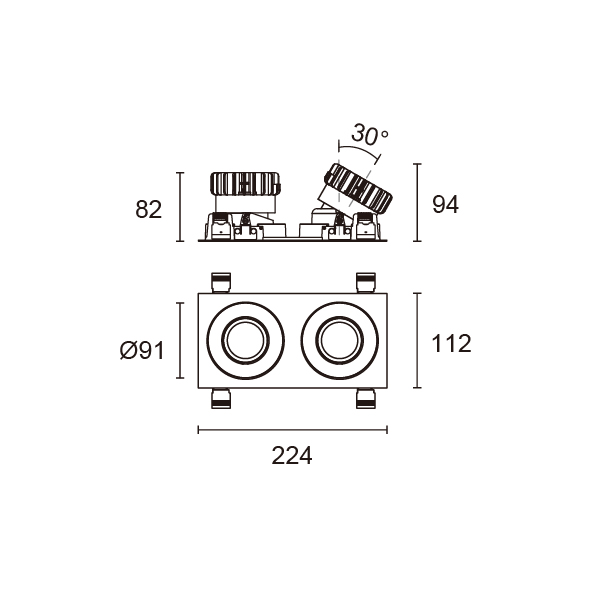

ESB35-TF2-WH-RGAGA00-WH-LEE15
17W x2
2004lm x2
  • ESB

    ITEM NO. ESB35-TF2-WH-RGAGA00-WH-LEE15

    Consumption17W x2

    Current / Voltage500mA

    LED Lumen2004lm x2

    Beam Angle 20°/30°/45°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TF2-WH-RGAGA00-WH-LEE15DW
16W x2
34-1507lm x2
  • ESB

    ITEM NO. ESB35-TF2-WH-RGAGA00-WH-LEE15DW

    Consumption16W x2

    Current / Voltage450mA

    LED Lumen34-1507lm x2

    Beam Angle 20°/25°/40°/50°

    CCT1800-3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

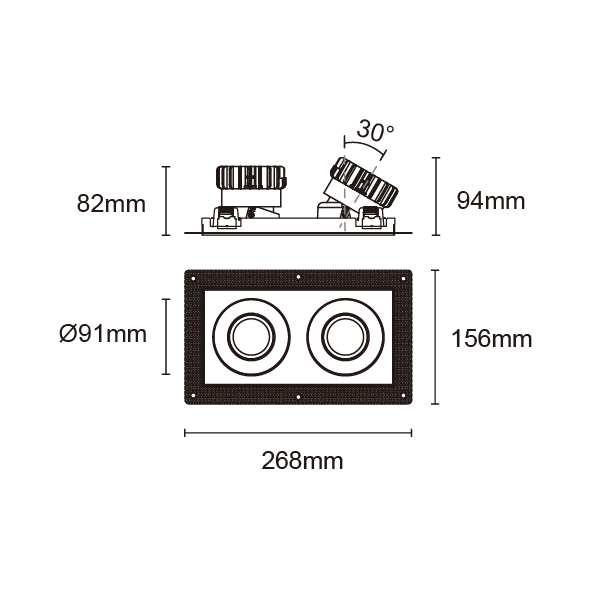

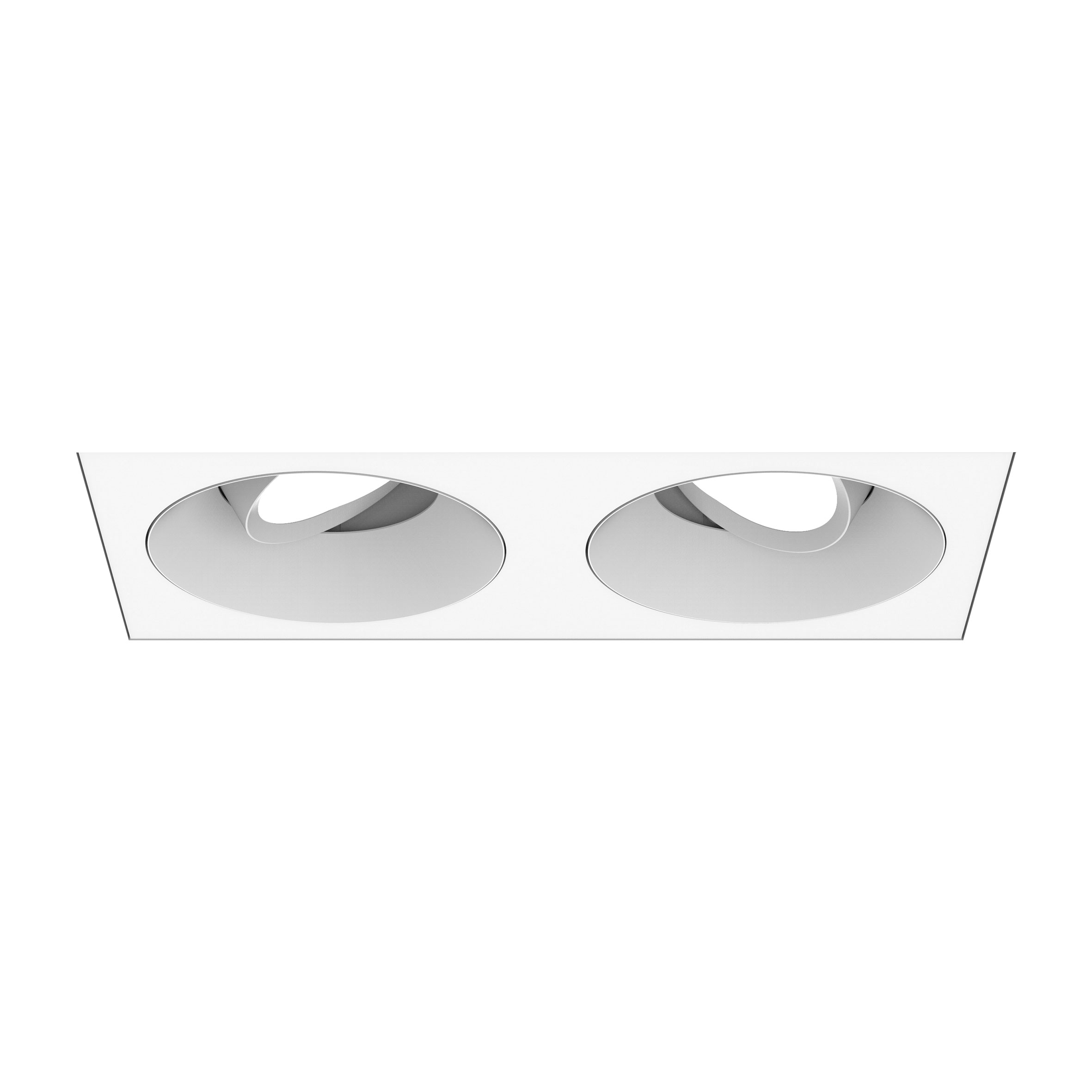

ESB35-TL2-WH-RGAGA00-WH-LEE15
17W x2
2004lm x2
  • ESB

    ITEM NO. ESB35-TL2-WH-RGAGA00-WH-LEE15

    Consumption17W x2

    Current / Voltage500mA

    LED Lumen2004lm x2

    Beam Angle 20°/30°/45°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TL2-WH-RGAGA00-WH-LEE15DW
16W x2
34-1507lm x2
  • ESB

    ITEM NO. ESB35-TL2-WH-RGAGA00-WH-LEE15DW

    Consumption16W x2

    Current / Voltage450mA

    LED Lumen34-1507lm x2

    Beam Angle 20°/25°/40°/50°

    CCT1800-3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

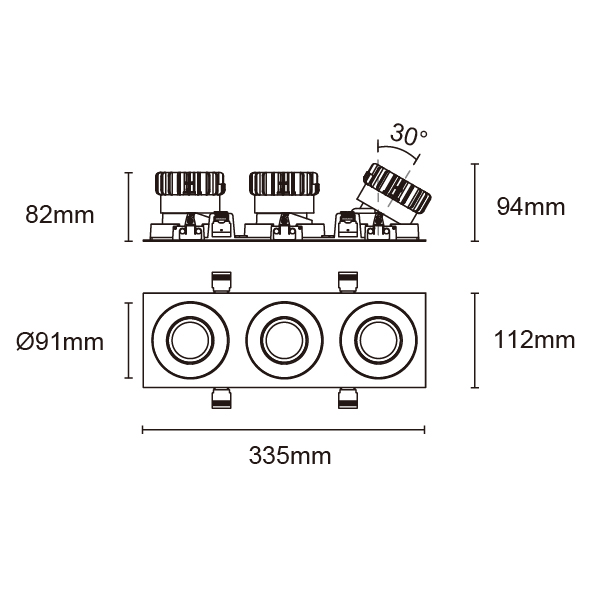

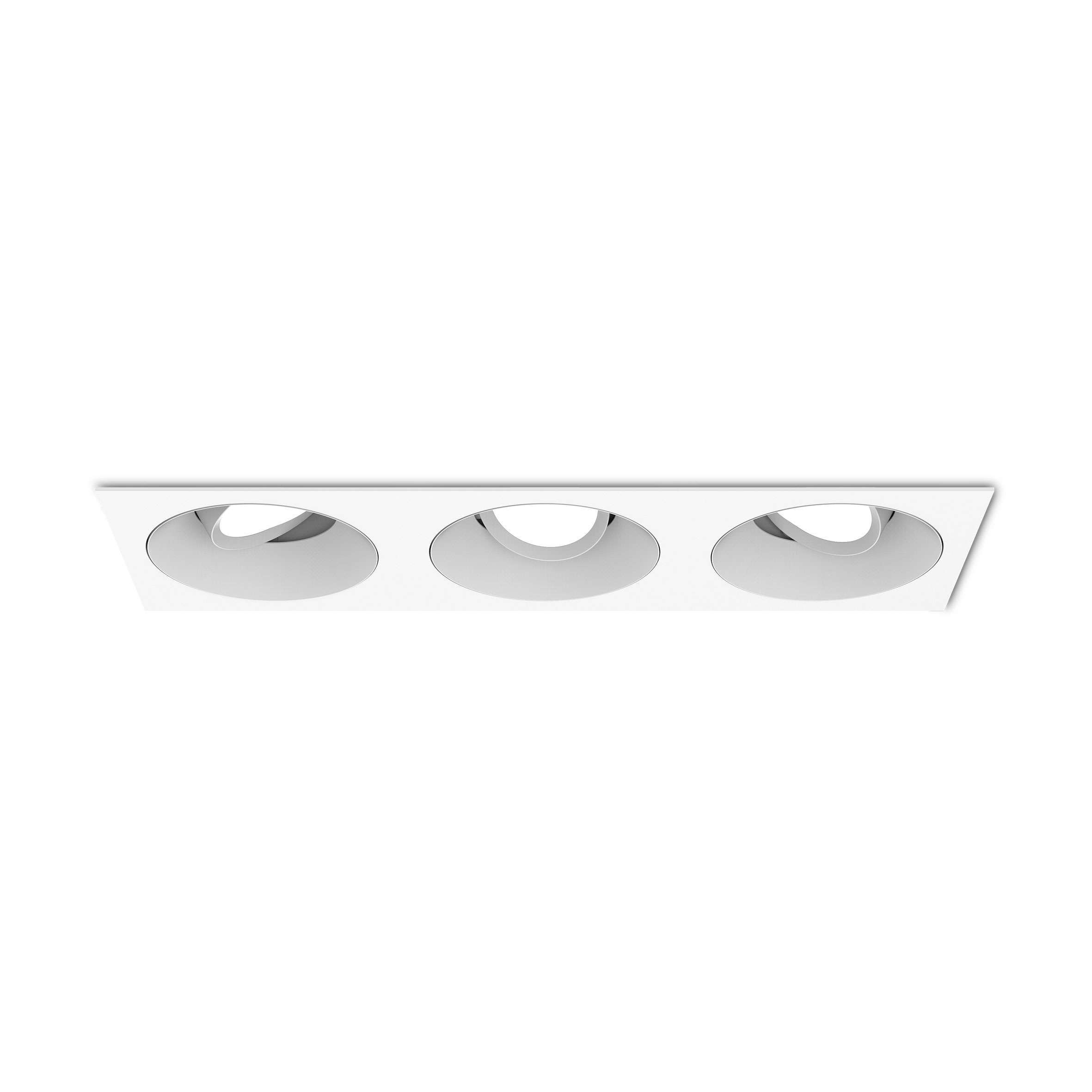

ESB35-TF3-WH-RGAGAGA-WH-LEE15
17W x3
2004lm x3
  • ESB

    ITEM NO. ESB35-TF3-WH-RGAGAGA-WH-LEE15

    Consumption17W x3

    Current / Voltage500mA

    LED Lumen2004lm x3

    Beam Angle 20°/30°/45°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TF3-WH-RGAGAGA-WH-LEE15DW
16W x3
34-1507lm x2
  • ESB

    ITEM NO. ESB35-TF3-WH-RGAGAGA-WH-LEE15DW

    Consumption16W x3

    Current / Voltage450mA

    LED Lumen34-1507lm x2

    Beam Angle 20°/25°/40°/50°

    CCT1800-3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

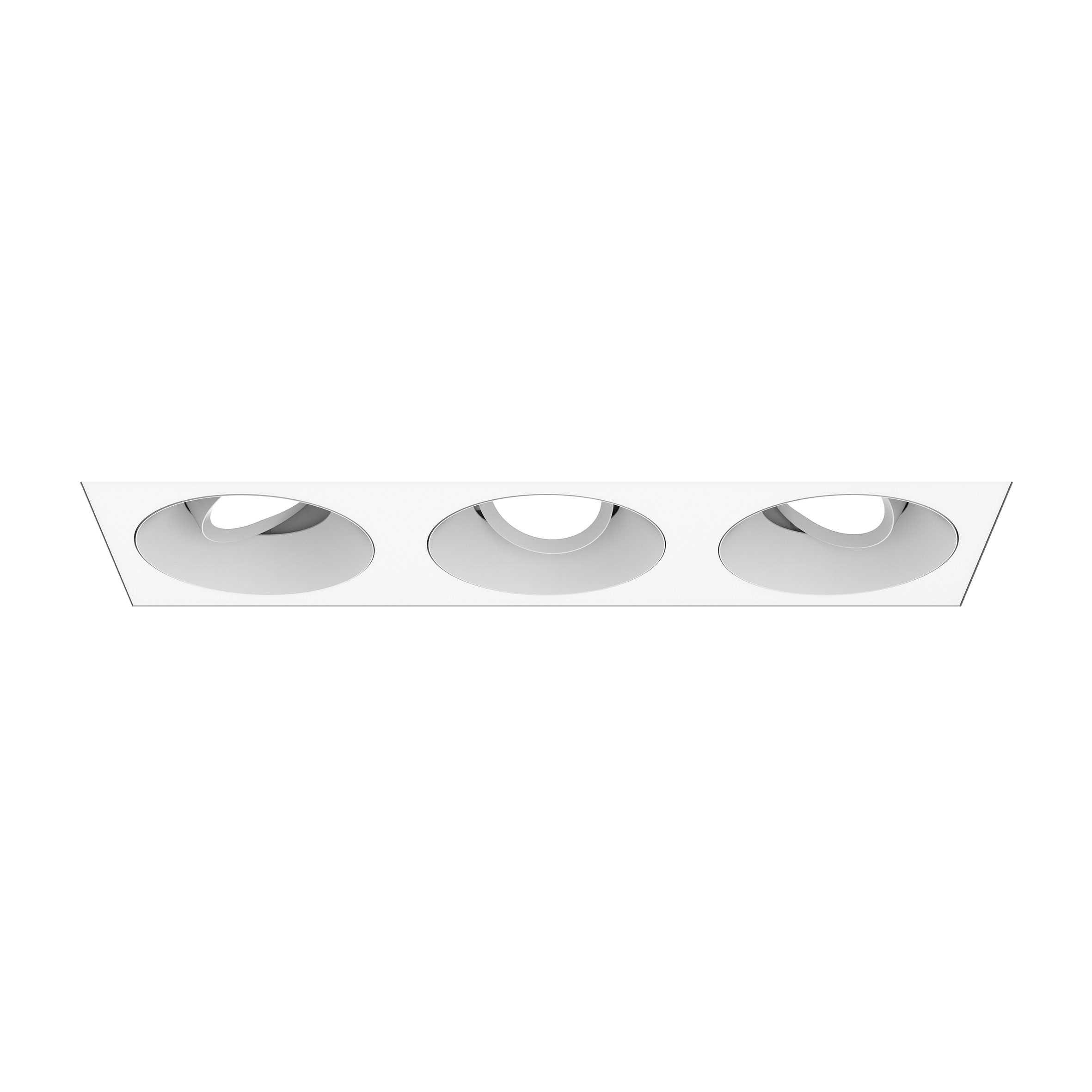

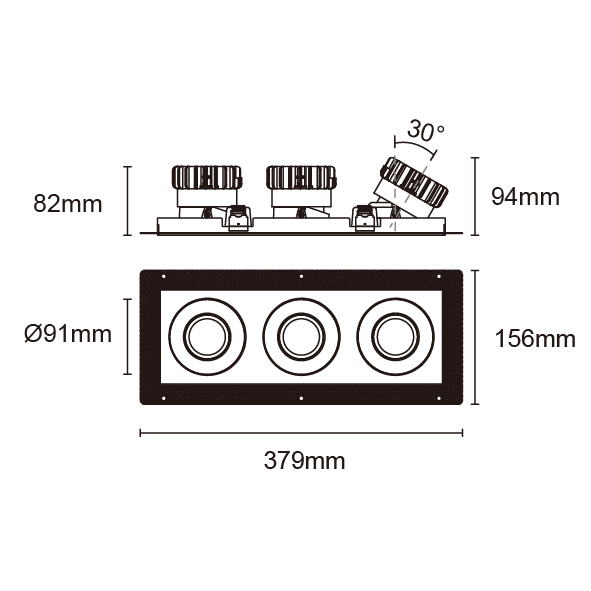

ESB35-TL3-WH-RGAGAGA-WH-LEE15
17W x3
2004lm x3
  • ESB

    ITEM NO. ESB35-TL3-WH-RGAGAGA-WH-LEE15

    Consumption17W x3

    Current / Voltage500mA

    LED Lumen2004lm x3

    Beam Angle 20°/30°/45°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TL3-WH-RGAGAGA-WH-LEE15DW
16W x3
34-1507lm
  • ESB

    ITEM NO. ESB35-TL3-WH-RGAGAGA-WH-LEE15DW

    Consumption16W x3

    Current / Voltage450mA

    LED Lumen34-1507lm

    Beam Angle 20°/25°/40°/50°

    CCT1800-3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TF1-WH-RGA0000-WH-ACOT72
25Wx1
2873lmx1
  • ESB

    ITEM NO. ESB35-TF1-WH-RGA0000-WH-ACOT72

    Consumption25Wx1

    Current / Voltage700mA

    LED Lumen2873lmx1

    Beam Angle 30°/40°/50°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TL1-WH-RGA0000-WH-ACOT72
25Wx1
2873lmx1
  • ESB

    ITEM NO. ESB35-TL1-WH-RGA0000-WH-ACOT72

    Consumption25Wx1

    Current / Voltage700mA

    LED Lumen2873lmx1

    Beam Angle 30°/40°/50°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TF2-WH-RGAGA00-WH-ACOT72
30Wx2
2873lmx2
  • ESB

    ITEM NO. ESB35-TF2-WH-RGAGA00-WH-ACOT72

    Consumption30Wx2

    Current / Voltage700mA

    LED Lumen2873lmx2

    Beam Angle 30°/40°/50°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TL2-WH-RGAGA00-WH-ACOT72
30Wx2
2873lmx2
  • ESB

    ITEM NO. ESB35-TL2-WH-RGAGA00-WH-ACOT72

    Consumption30Wx2

    Current / Voltage700mA

    LED Lumen2873lmx2

    Beam Angle 30°/40°/50°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TF3-WH-RGAGAGA-WH-ACOT72
30Wx3
2873lmx3
  • ESB

    ITEM NO. ESB35-TF3-WH-RGAGAGA-WH-ACOT72

    Consumption30Wx3

    Current / Voltage700mA

    LED Lumen2873lmx3

    Beam Angle 30°/40°/50°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes

ESB35-TL3-WH-RGAGAGA-WH-ACOT72
30Wx3
2873lmx3
  • ESB

    ITEM NO. ESB35-TL3-WH-RGAGAGA-WH-ACOT72

    Consumption30Wx3

    Current / Voltage700mA

    LED Lumen2873lmx3

    Beam Angle 30°/40°/50°/55°

    CCT3000K

    *Other CCT Also Available

    CRI90+

    UGR

    IP44

    Finishes
